Description
Insize Digital Caliper
The Insize 1106-502 Digital Caliper is a high-precision measuring instrument designed for large workpieces, offering a measuring range up to 20 inches. It features a clear digital display, smooth slide operation, and essential measurement functions for industrial and quality control applications.

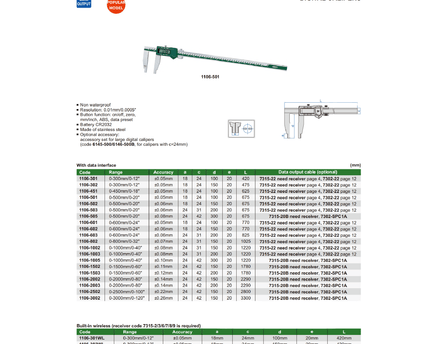

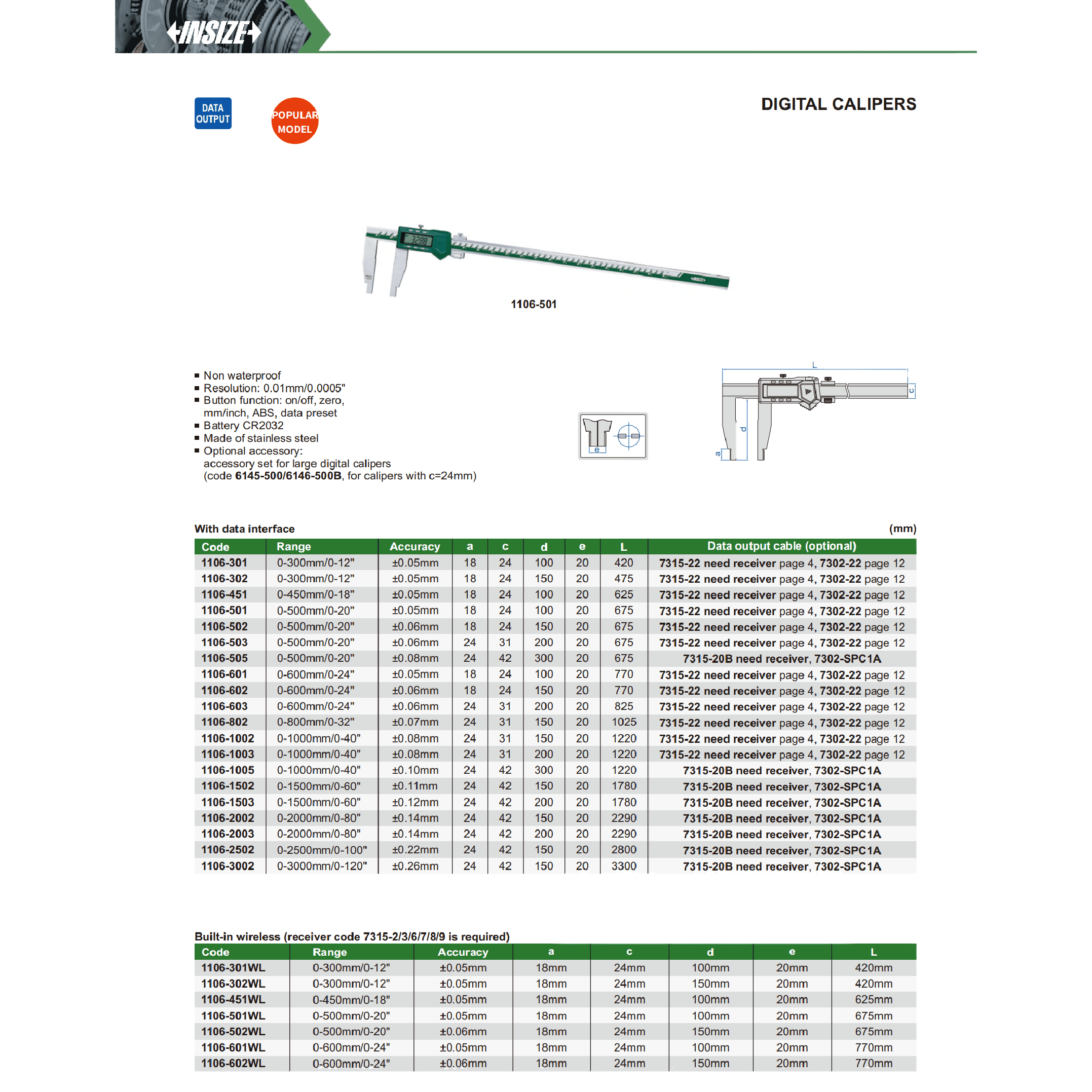

Specifications :
-
Part No: 1106-502
-
Range: 0–500 mm / 0–20"
-
Resolution: 0.01 mm / 0.0005"
-
Accuracy: ±0.06 mm
-
Dimensions (mm): a: 18, c: 24, d: 150, e: 20, L: 675
-
Functions: On/Off, zero setting at any position, mm/inch conversion, ABS mode, data preset
-
Construction: Stainless steel, non-waterproof
-
Power Supply: CR2032 battery
-
Data Output: SPC output (requires 7315-22 cable and receiver; optional)
-
Included Accessories: Battery, protective case
-
Optional Accessories: Accessory set for large digital calipers (code 6145-9006/146-600B)
Made of stainless steel and built for large-scale precision, the INSIZE 1106-502 Digital Caliper is ideal for reliable and efficient measurement of oversized components in industrial settings.
