Description

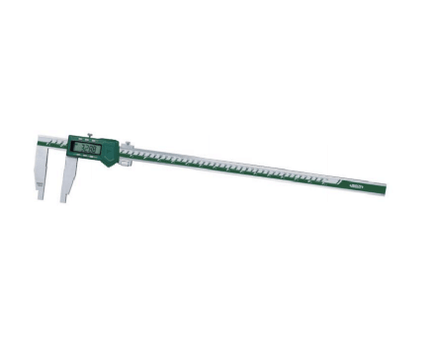

Insize Long Jaw Digital Caliper
The Insize 1106-802 Long Jaw Digital Caliper is a precision measuring instrument designed for large workpieces, offering an extended measuring range and long jaws for inside, outside, and depth measurements. Built from stainless steel, it provides high durability and accurate results, making it ideal for mechanical, aerospace, and fabrication applications.

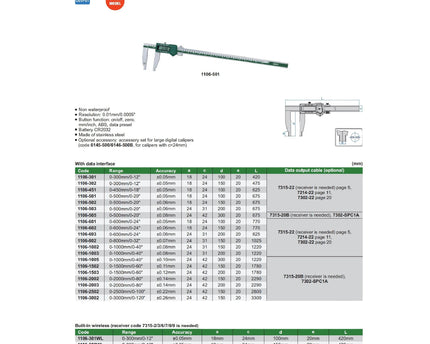

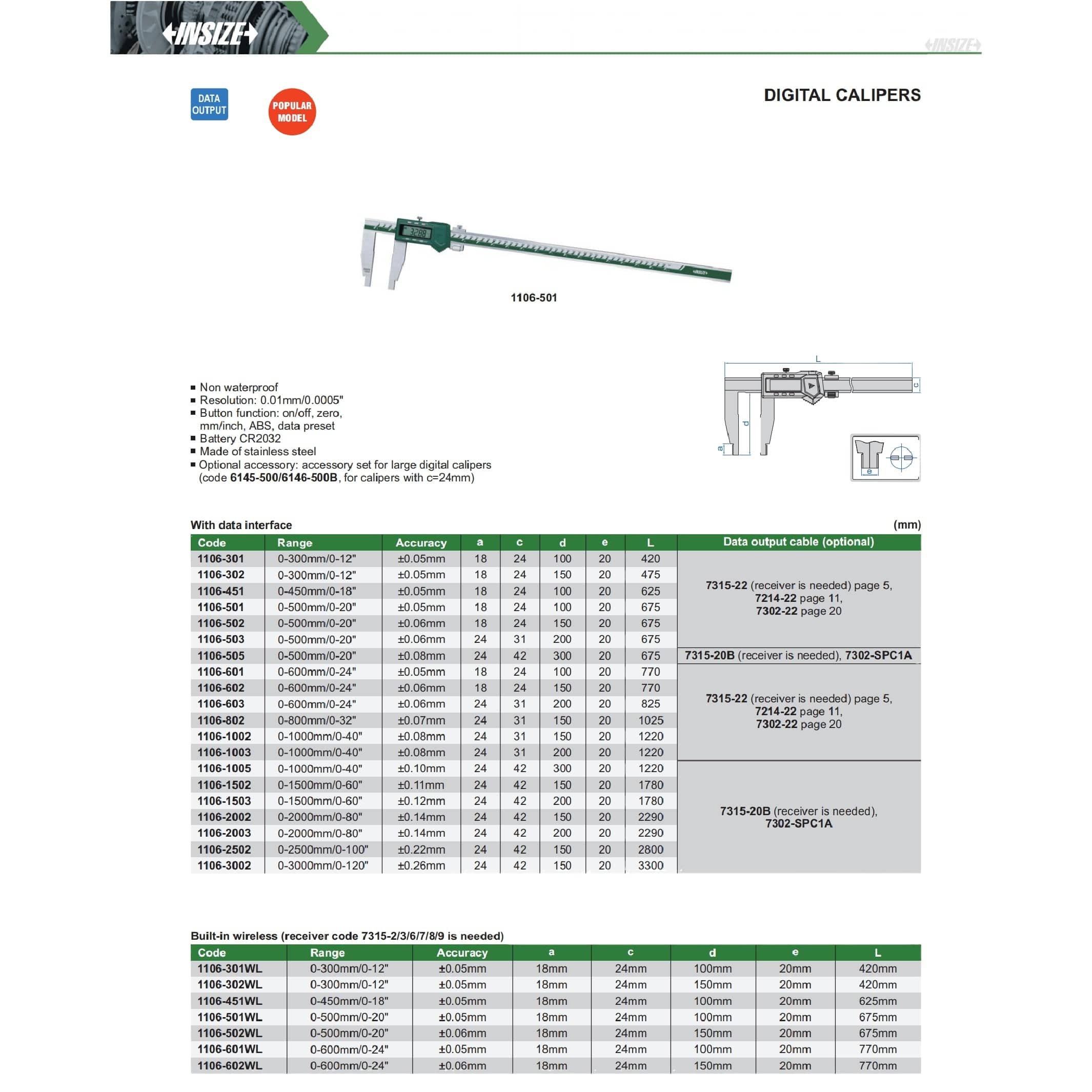

Specifications :
-
Part No: 1106-802
-
Range: 0–800 mm / 0–32"
-
Resolution: 0.01 mm / 0.0005"
-
Accuracy: ±0.07 mm
-
Jaw Length: 150 mm
-
Dimensions (mm): a: 24, c: 31, d: 150, e: 20, L: 1025
-
Functions: On/Off, Zero setting at any position, mm/inch conversion, ABS (absolute) mode, data preset
-
Construction: Stainless steel (non-waterproof)
-
Data Output: SPC output (optional cable; compatible with 7315-22 receiver, 7141-22 cable, 7302-22 cable)
-
Power Supply: CR2032 battery
-
Included Accessories: Battery, protective case
-
Optional Accessories: Accessory set for large digital calipers (for calipers with c ≥ 24 mm)
Rugged and accurate, the INSIZE 1106-802 offers the capacity and precision needed for oversized component measurement, ensuring reliable performance in demanding industrial environments.
