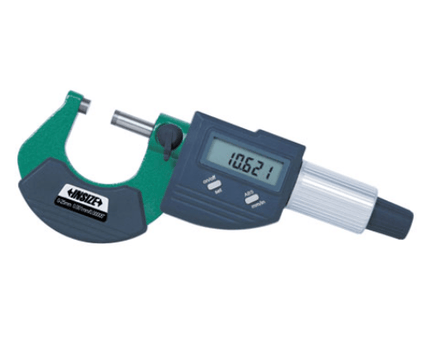

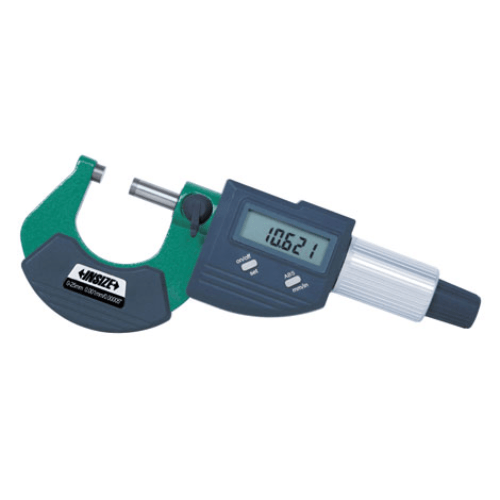

Insize Digital Outside Micrometer
The Insize 3109-125A Digital Outside Micrometer is engineered for precision measurement of external dimensions in the 100 to 125 mm range. With a resolution of 0.001 mm (0.00005") and an accuracy of ±3 µm, it ensures dependable results in both workshop and inspection settings. The micrometer features carbide measuring faces for superior wear resistance, a friction thimble for consistent measurement pressure, and an automatic power-off function to extend battery life. A spherical anvil is included for measuring tube wall thickness, along with setting standards for calibration.

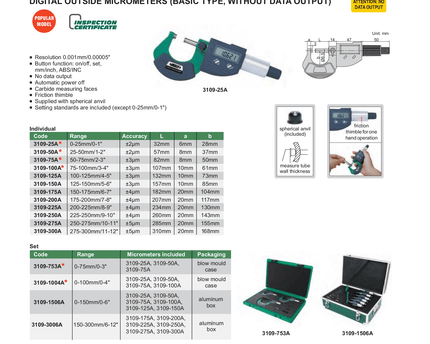

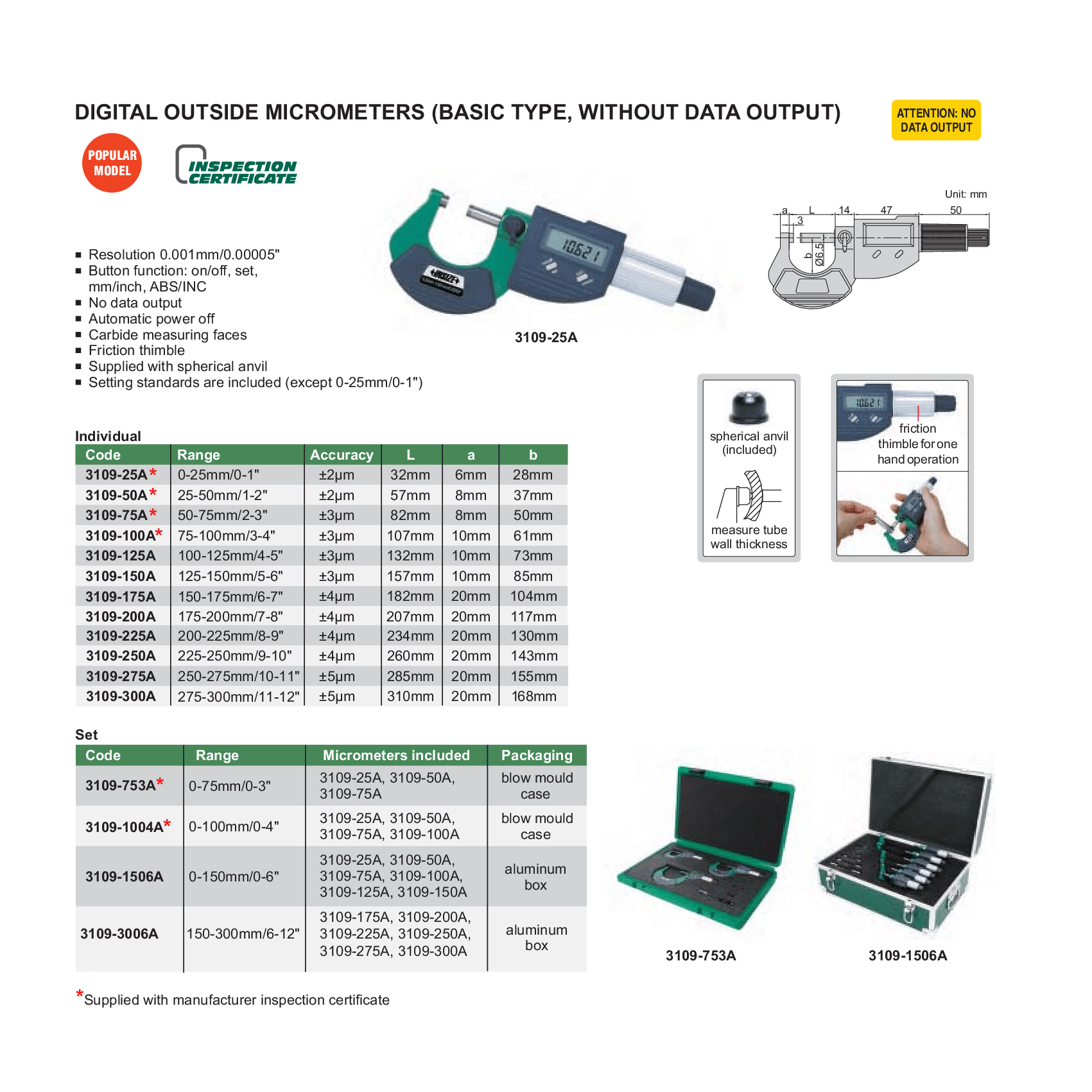

Specifications :
-
Part No: 3109-125A
-
Range: 100–125 mm / 4–5"
-
Resolution: 0.001 mm / 0.00005"
-
Accuracy: ±3 µm
-
L: 132 mm
-
a: 10 mm
-
b: 73 mm
-
Measuring Faces: Carbide
-
Functions: On/off, set, mm/inch, ABS/INC
-
Power Supply: Battery powered, automatic power off
-
Included Accessories: Spherical anvil, setting standard
-
Data Output: None
With high resolution, durable construction, and included calibration accessories, the INSIZE 3109-125A is a reliable tool for accurate measurement of medium-sized external dimensions.
