Description

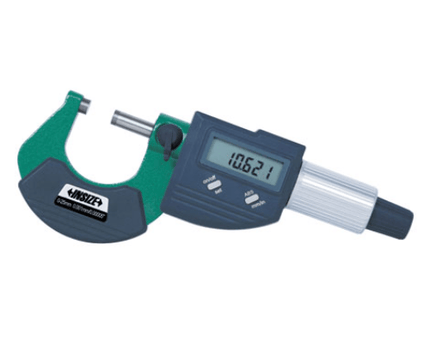

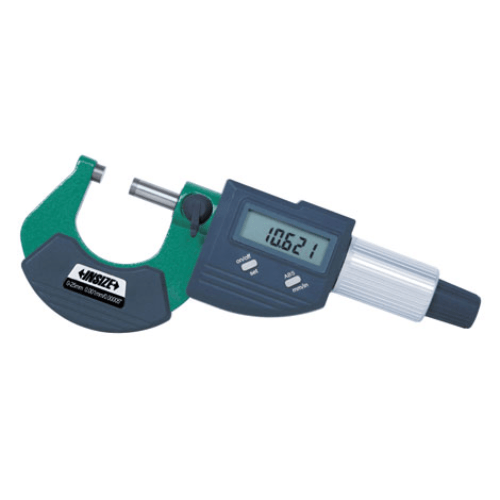

Insize Digital Outside Micrometer
The Insize 3109-150A Digital Outside Micrometer is designed for precision measurement of external dimensions from 125 to 150 mm. It features a resolution of 0.001 mm (0.00005") and ±3 µm accuracy, making it suitable for demanding inspection and machining applications. The micrometer includes carbide measuring faces for enhanced wear resistance, a friction thimble for consistent measuring pressure, and an automatic power-off function to conserve battery life. Supplied with a spherical anvil for tube wall thickness measurement and a setting standard for calibration.

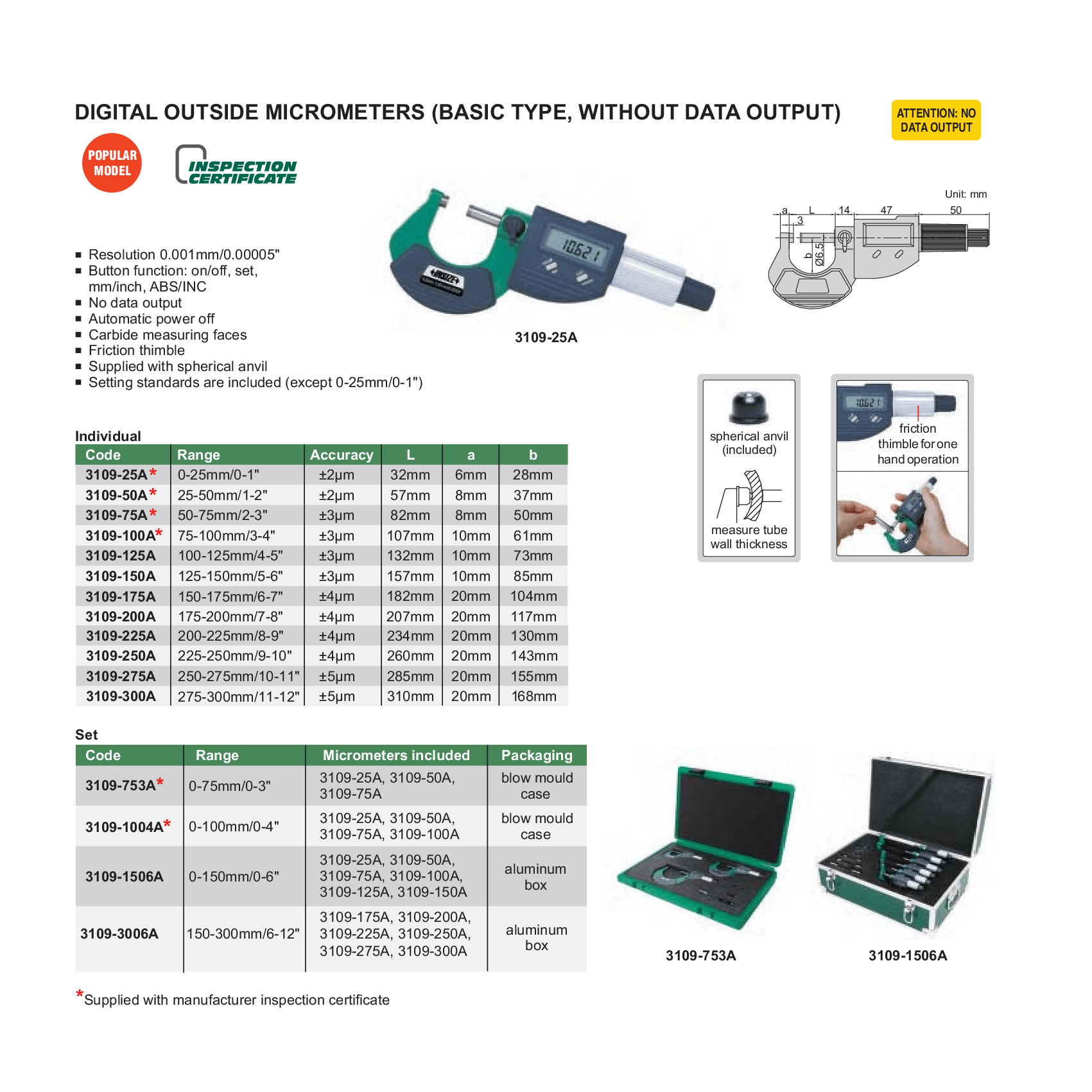

Specifications :
-
Part No: 3109-150A
-
Range: 125–150 mm / 5–6"
-
Resolution: 0.001 mm / 0.00005"
-
Accuracy: ±3 µm
-
L: 157 mm
-
a: 10 mm
-
b: 85 mm
-
Measuring Faces: Carbide
-
Functions: On/off, set, mm/inch, ABS/INC
-
Power Supply: Battery powered, automatic power off
-
Included Accessories: Spherical anvil, setting standard
-
Data Output: None
The INSIZE 3109-150A offers reliable, high-precision measurement for larger workpieces with robust build quality and essential calibration tools.
