Description

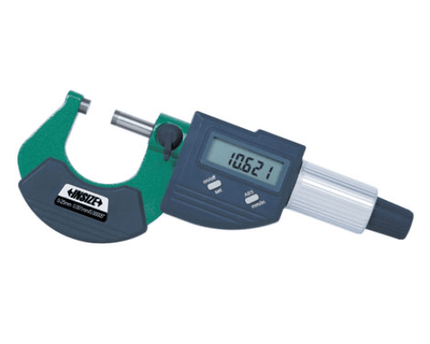

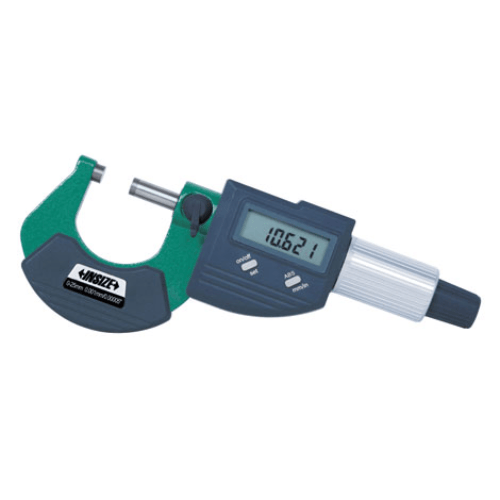

Insize Digital Outside Micrometer
The Insize 3109-175A Digital Outside Micrometer is built for accurate measurement of external dimensions between 150 and 175 mm. It delivers a resolution of 0.001 mm (0.00005") and ±4 µm accuracy. The carbide-tipped measuring faces ensure excellent wear resistance, and the friction thimble provides consistent measuring pressure. An automatic power-off feature extends battery life. The micrometer includes a spherical anvil for measuring tube wall thickness and a setting standard for calibration purposes.

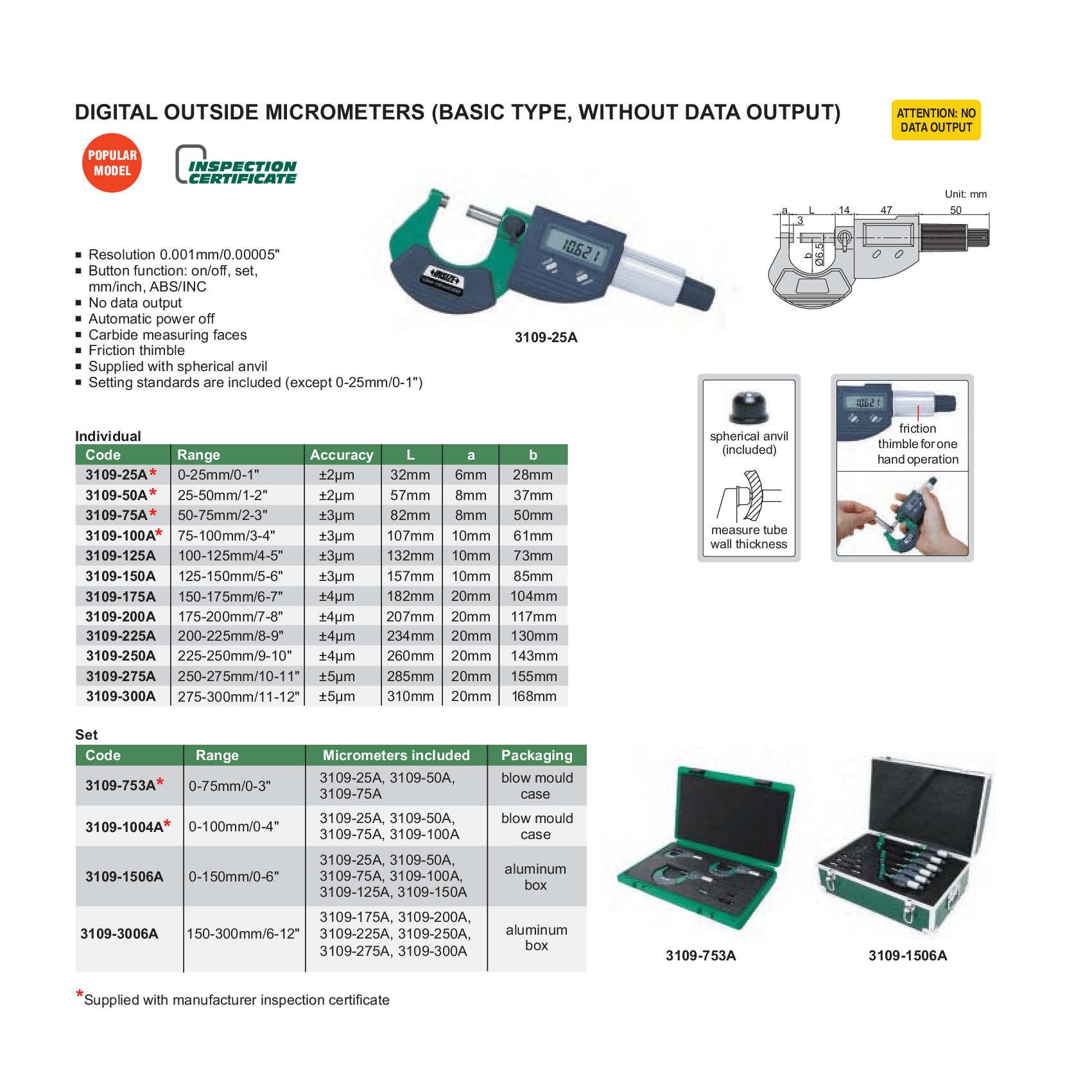

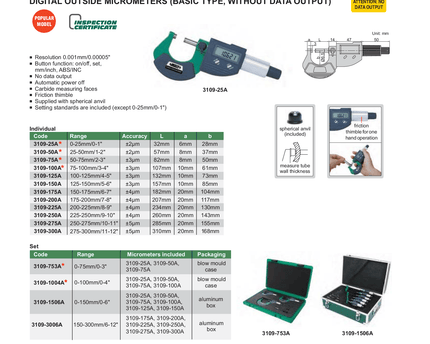

Specifications :
-
Part No: 3109-175A
-
Range: 150–175 mm / 6–7"
-
Resolution: 0.001 mm / 0.00005"
-
Accuracy: ±4 µm
-
L: 182 mm
-
a: 20 mm
-
b: 104 mm
-
Measuring Faces: Carbide
-
Functions: On/off, set, mm/inch, ABS/INC
-
Power Supply: Battery powered, automatic power off
-
Included Accessories: Spherical anvil, setting standard
-
Data Output: None
Offering fine resolution and robust construction, the INSIZE 3109-175A is ideal for larger-scale external dimension measurements in industrial environments.
