Description

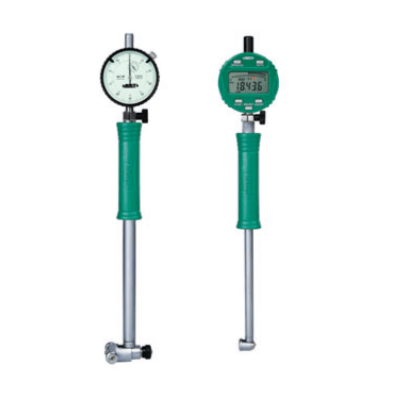

Insize Bore Gauge
The Insize 2122-250A Bore Gauge is engineered for accurate measurement of internal diameters ranging from 160 to 250 mm. It is equipped with a precision dial indicator featuring 0.01 mm graduation, delivering high accuracy and repeatability. The use of ceramic contact points and a ceramic anvil ensures exceptional wear resistance and durability, making it suitable for demanding workshop and inspection tasks.
Specifications :
-
Part No: 2122-250A
-
Range: 160–250 mm
-
Indicator Type: Dial indicator
-
Graduation: 0.01 mm
-
Accuracy: ±0.018 mm
-
Repeatability: 0.003 mm
-
Contact Point: Ceramic
-
Anvil: Ceramic
-
Optional Accessories: Setting ring (code 6312), long handle (code 7351), bore gauge setter
With its robust ceramic measuring components and precise dial indicator, the INSIZE 2122-250A provides reliable and repeatable internal diameter measurements for a wide range of industrial applications.
