Description

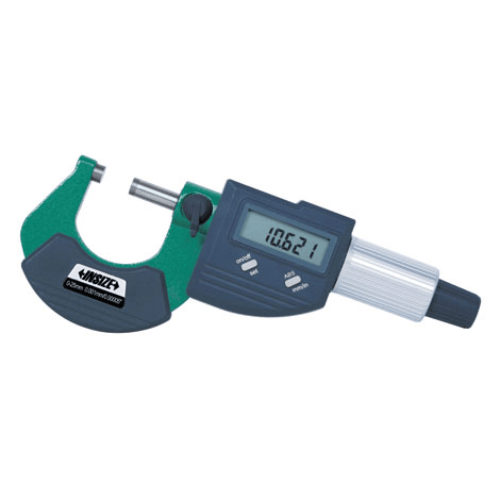

Insize Digital Outside Micrometer
The Insize 3109-300A Digital Outside Micrometer measures external diameters from 275 to 300 mm. It offers a resolution of 0.001 mm (0.00005") with ±5 µm accuracy. Featuring carbide measuring faces for exceptional durability and a friction thimble for consistent operation, it ensures repeatable, accurate results. Automatic power-off helps extend battery life. The micrometer is supplied with a spherical anvil for tube wall thickness measurement and a setting standard for calibration.

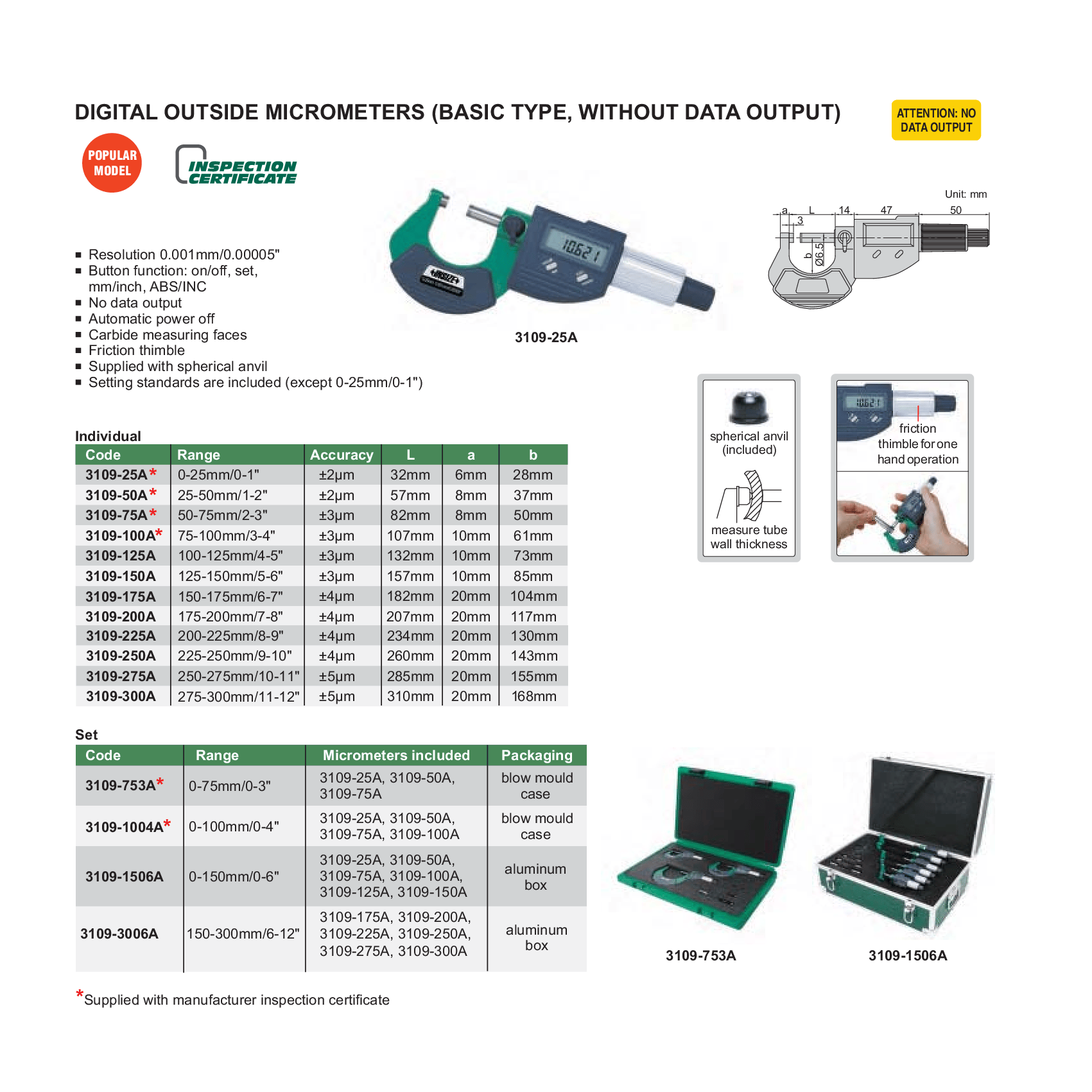

Specifications :
-
Part No: 3109-300A
-
Range: 275–300 mm / 11–12"
-
Resolution: 0.001 mm / 0.00005"
-
Accuracy: ±5 µm
-
L: 310 mm
-
a: 20 mm
-
b: 168 mm
-
Measuring Faces: Carbide
-
Functions: On/off, set, mm/inch, ABS/INC
-
Power Supply: Battery powered, automatic power off
-
Included Accessories: Spherical anvil, setting standard
-
Data Output: None
Built for large-scale measurement tasks, the INSIZE 3109-300A delivers precise, repeatable performance in demanding industrial settings.
