Description

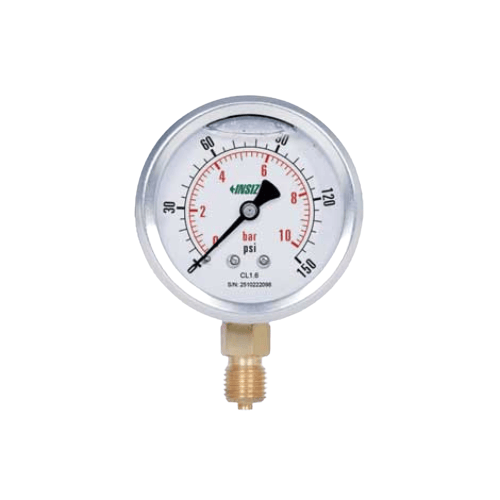

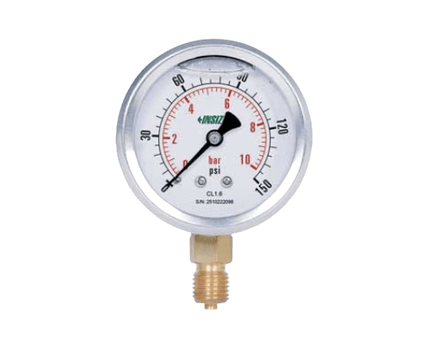

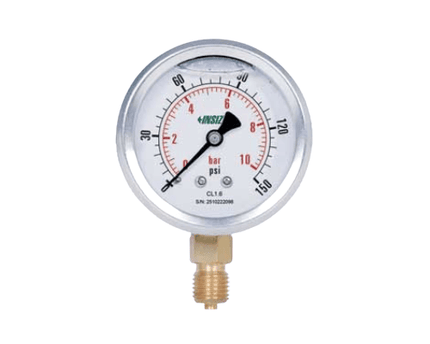

Insize Bourdon Tube Pressure Gauge 1/4 NPT 0–10 Bar Series 5201-63N2Y10
The Insize 5201-63N2Y10 is a liquid-filled Bourdon tube pressure gauge built for pneumatic, hydraulic, and compressed air systems. Constructed with a stainless steel case, bezel, and copper alloy internals, it offers shock-proof and pulse-proof performance. This model features a 63 mm dial, 1/4 NPT bottom connection, and measures pressures up to 10 bar (150 psi). Supplied with a manufacturer inspection certificate for accuracy and reliability.

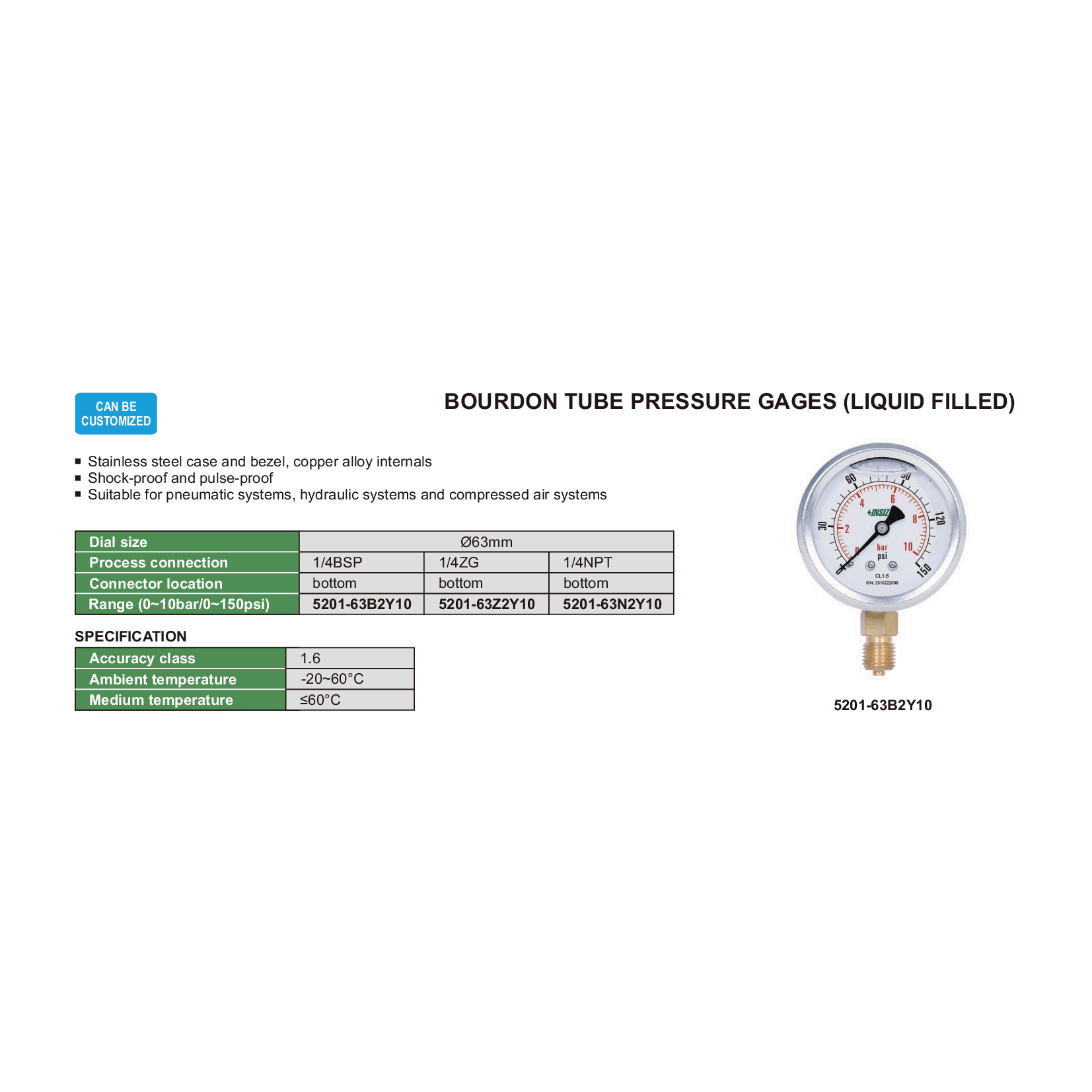

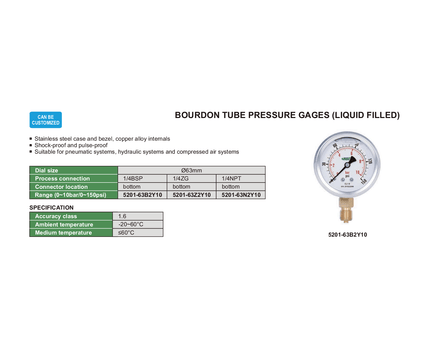

Specifications:
-
Part No: 5201-63N2Y10
-
Dial Size: Ø63 mm
-
Thread Connection: 1/4 NPT
-
Range: 0–10 bar / 0–150 psi
-
Connection Location: Bottom
-
Accuracy Class: 1.6
-
Ambient Temperature: -20 to 60°C
-
Medium Temperature: ≤60°C
-
Certificate: Manufacturer inspection certificate
Durable and accurate, the Insize 5201-63N2Y10 is ideal for precise pressure monitoring in industrial environments.
