Description

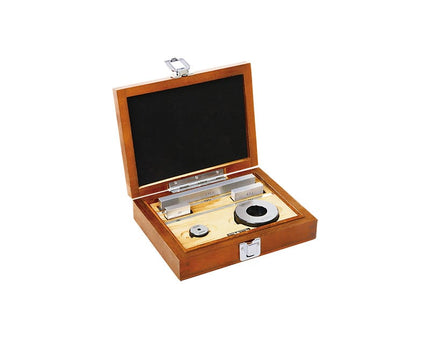

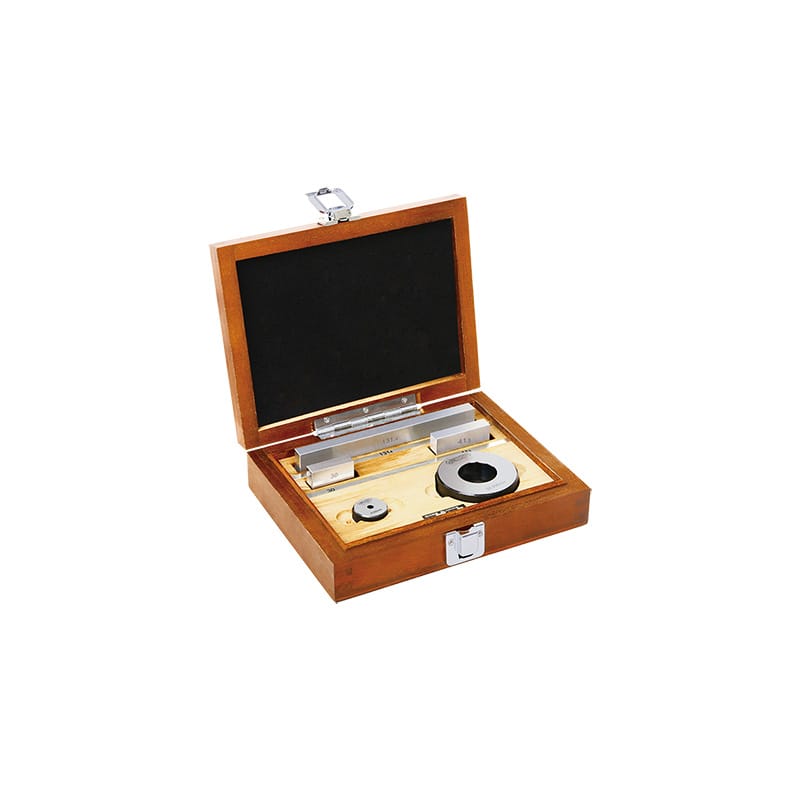

The Insize 4176-30 Caliper Inspection Gauge Block and Ring Gauge Set is a precision calibration kit designed for checking and verifying the accuracy of calipers in workshop, inspection, and quality control applications. Manufactured from high-quality alloy steel, this professional inspection set is ideal for routine calibration and measurement verification.
This Grade 2 inspection set includes precision gauge blocks and ring gauges for reliable dimensional checking and calibration of calipers ranging from 0-150mm. The gauge blocks comply with ISO3650 standards, while the ring gauges meet DIN2250-1:2008 requirements, ensuring dependable and traceable inspection performance. Supplied with a manufacturer inspection certificate for added confidence in measurement accuracy.
Key Features & Benefits
- Professional caliper inspection and calibration set
- Suitable for 0-150mm caliper verification
- Manufactured from durable alloy steel
- Grade 2 precision gauge blocks
- Gauge blocks comply with ISO3650
- Ring gauges comply with DIN2250-1:2008
- Supplied with manufacturer inspection certificate
- Designed for workshop, inspection, and quality control use
- Provides accurate calibration reference standards
- Ideal for routine measuring tool verification
- Supplied in protective storage case
Technical Specifications
- Part Number: 4176-30
- Product Type: Caliper Inspection Gauge Block & Ring Gauge Set
- Material: Alloy Steel
- Grade: 2
- Gauge Blocks Included: 30mm, 41.3mm, 131.4mm
- Ring Gauges Included: Ø10mm, Ø25mm
- Applicable Calipers: 0-150mm
- Gauge Block Standard: ISO3650
- Ring Gauge Standard: DIN2250-1:2008
- Calibration/Standard Application: DIN862:1988
- Inspection Certificate: Included
Ring Gauge Dimensions
- Ø5mm Ring Gauge: b = 5mm, ØD = 22mm
- Ø10mm Ring Gauge: b = 8mm, ØD = 32mm
- Ø25mm Ring Gauge: b = 14mm, ØD = 53mm
Applications:
- Caliper calibration and verification
- Inspection laboratory applications
- Workshop measuring tool checks
- Quality assurance and control
- Routine dimensional verification
- Precision measuring equipment maintenance
Insize calibration and inspection products are designed for professional measurement verification and quality control applications, providing dependable accuracy and repeatable inspection results in industrial environments.
Insize is internationally recognised for manufacturing precision measuring instruments, calibration equipment, and inspection tools trusted by engineers, machinists, and quality control professionals worldwide.
