Description

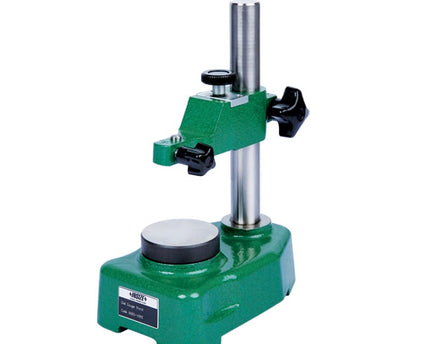

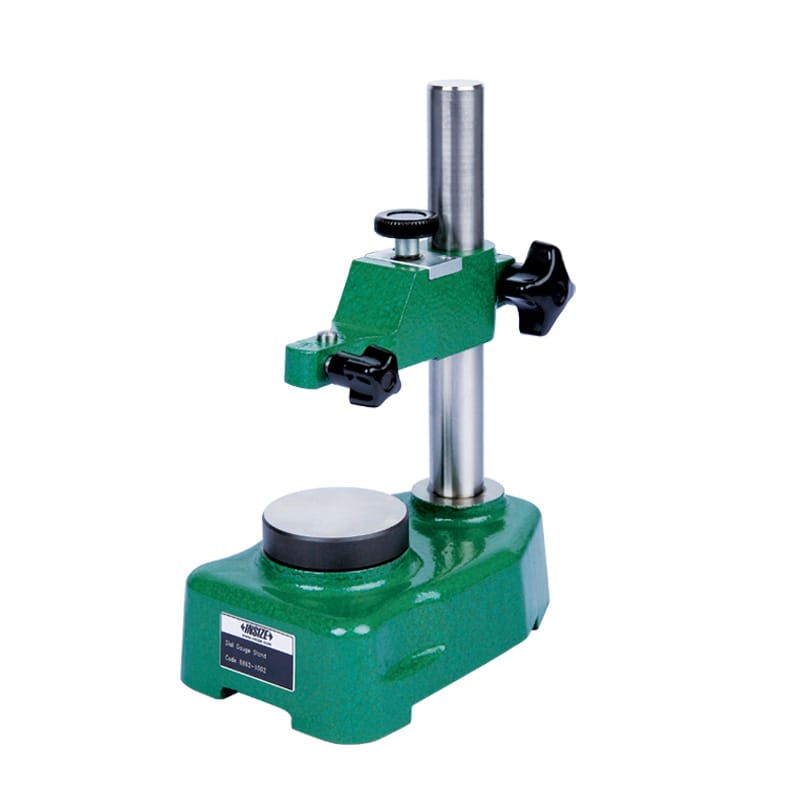

The Insize 6862-1002 Dial Indicator Stand is a precision measuring support designed for accurate inspection, alignment, and comparative measurement applications in machining and quality control environments. Built with a stable heavy-duty base and fine adjustment mechanism, this stand provides reliable positioning for dial indicators and test indicators during precision measurement tasks.
Featuring a plain hardened steel anvil with excellent flatness accuracy, the stand is suitable for workshop inspection, tool setup, machine calibration, and precision measurement applications. The Ø8mm holding stem compatibility allows secure mounting of standard dial indicators and measuring instruments.
Key Features & Benefits
- Precision dial indicator stand for inspection and measurement tasks
- Suitable for dial indicators with Ø8mm holding stem
- Plain hardened steel anvil surface
- Fine adjustment mechanism for precise positioning
- Stable heavy-duty cast base construction
- High flatness accuracy for reliable measurements
- Vertical holder travel for flexible setup adjustment
- Ideal for workshop, machining, and inspection applications
- Supplied with protective dust cover
- Designed for precision comparative measurement work
Technical Specifications
- Part Number: 6862-1002
- Product Type: Dial Indicator Stand
- Applicable Holding Stem: Ø8mm
- Anvil Type: Plain
- Anvil Material: Steel
- Anvil Hardness: HRC60±2
- Anvil Flatness: 1.5µm
- Vertical Travel of Holder: 100mm
- Fine Adjustment Range: 2mm
- Base Length: 160mm
- Anvil Diameter: Ø58mm
- Column Height: 182mm
- Supplied With: Dust cover
Applications
- Dial indicator measurement setups
- Precision workshop inspection
- Machine setup and alignment
- Comparative measurement applications
- Quality control and inspection work
- Toolroom and machining environments
- Surface and dimensional checking
- Engineering and manufacturing inspection
Insize precision measuring equipment is trusted worldwide for dependable accuracy, robust construction, and reliable performance across industrial inspection, machining, and engineering applications.
The Insize 6862-1002 Dial Indicator Stand provides stable and accurate indicator positioning for professional precision measurement and workshop inspection tasks.
