Description

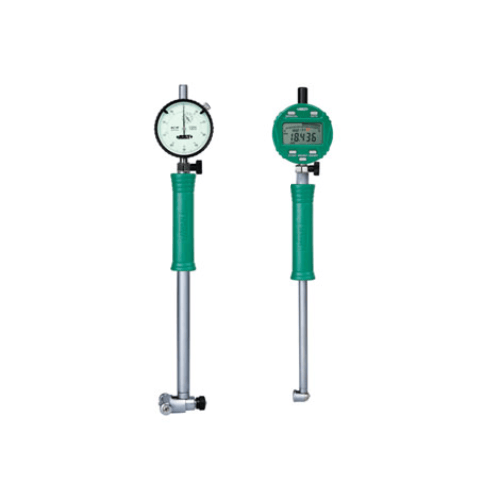

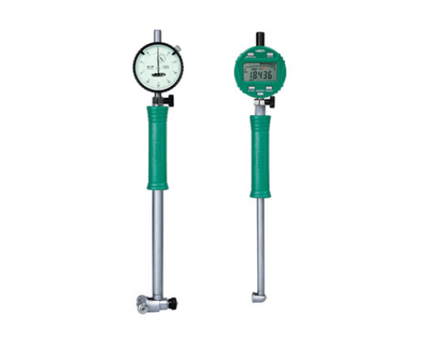

Insize Bore Gauge
The Insize 2122-161A Bore Gauge is designed for precise measurement of internal diameters ranging from 100 to 160 mm. It features a high-precision digital indicator with a 12.7 mm (0.5") measuring range and a resolution of 0.002 mm/0.0001" (switchable to 0.01 mm/0.0005"). This model ensures excellent accuracy and repeatability, making it suitable for both workshop and inspection use. The bore gauge features ceramic contact points and a ceramic anvil, providing exceptional wear resistance and a long service life.

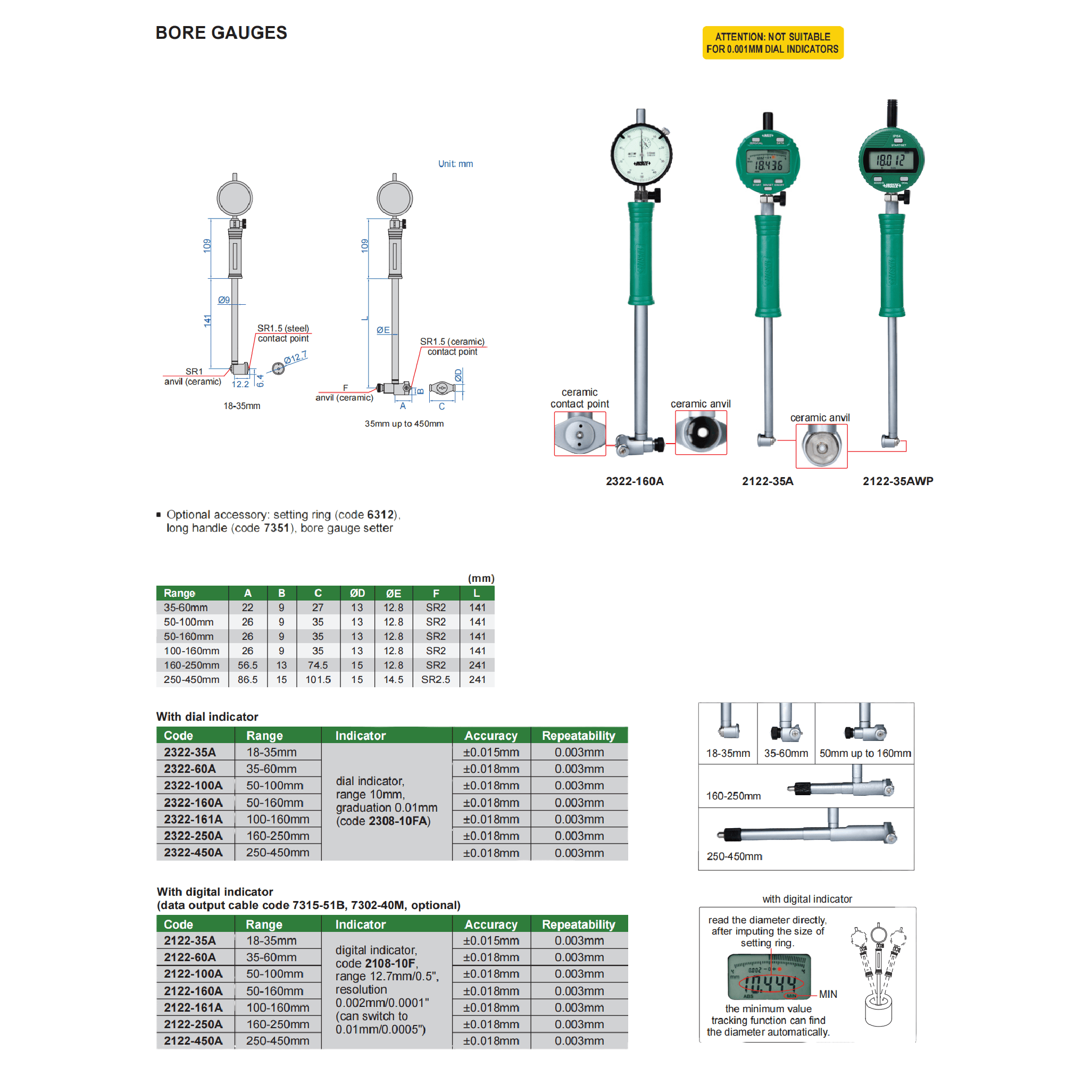

Specifications :
-
Part No: 2122-161A
-
Range: 100–160 mm
-
Indicator Type: Digital indicator, code 2128-10F
-
Measuring Range (Indicator): 12.7 mm / 0.5"
-
Resolution: 0.002 mm / 0.0001" (switchable to 0.01 mm / 0.0005")
-
Accuracy: ±0.018 mm
-
Repeatability: 0.003 mm
-
Contact Point: Ceramic
-
Anvil: Ceramic
-
Optional Accessories: Setting ring (code 6312), long handle (code 7351), bore gauge setter
Combining advanced digital measurement capability with durable ceramic measuring components, the INSIZE 2122-161A delivers dependable and repeatable internal diameter measurements for industrial applications.
