Description

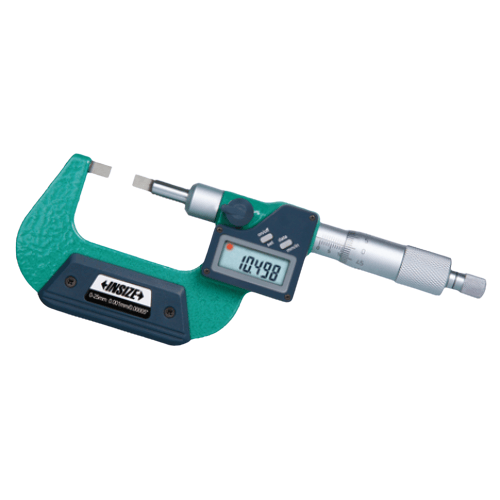

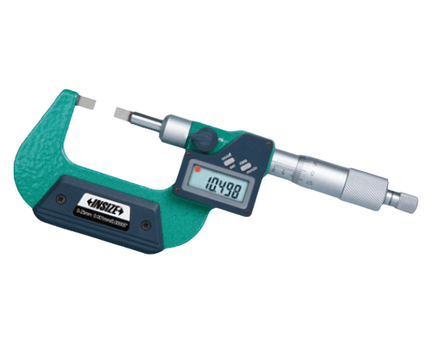

Insize Digital Blade Micrometer
The Insize 3532-125BA Digital Blade Micrometer is designed for measuring the groove diameter of shafts, keyways, and other narrow recesses with exceptional precision. Featuring a non-rotating spindle, thin blade anvils, and a clear digital display, it is ideal for applications requiring accurate measurements in hard-to-reach areas. The device supports data output for efficient recording and offers both metric and inch readings.

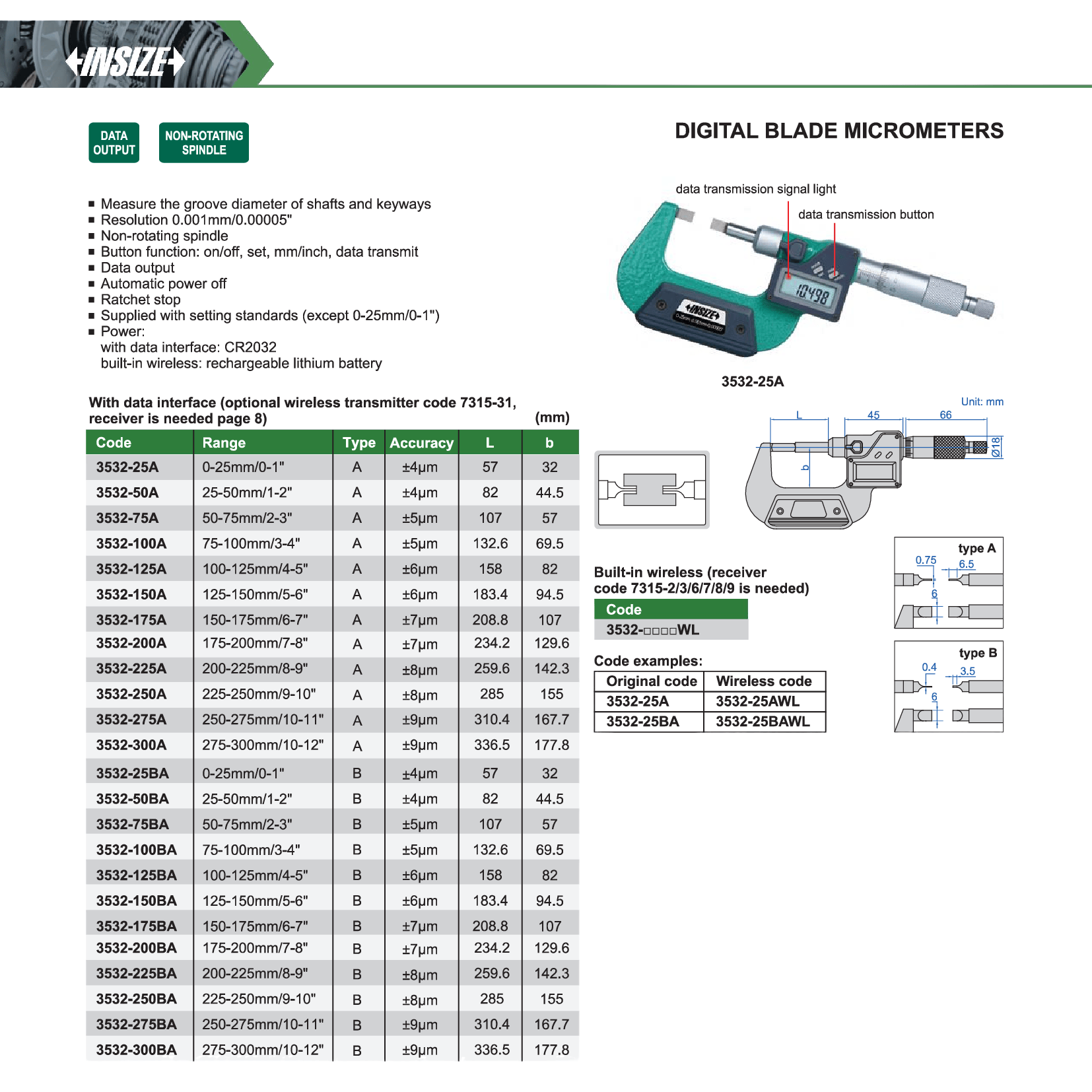

Specifications :
-
Part No: 3532-125BA
-
Range: 100–125 mm / 4–5"
-
Type: B
-
Accuracy: ±6 µm
-
Dimension L: 158 mm
-
Dimension b: 82 mm
-
Resolution: 0.001 mm / 0.00005"
-
Functions: On/Off, Set, mm/inch conversion, Data transmit, Automatic power off
-
Spindle: Non-rotating
-
Power Supply: CR2032 battery (with data interface) / Rechargeable lithium battery (built-in wireless)
-
Included Accessories: Setting standards (except 0–25 mm model)
-
Data Output: Yes (optional wireless transmitter code 7315-31, receiver required)
Engineered for accuracy and ease of use, the INSIZE 3532-125BA delivers reliable performance in precision manufacturing and inspection environments, especially where narrow groove and keyway measurements are essential.
