Description

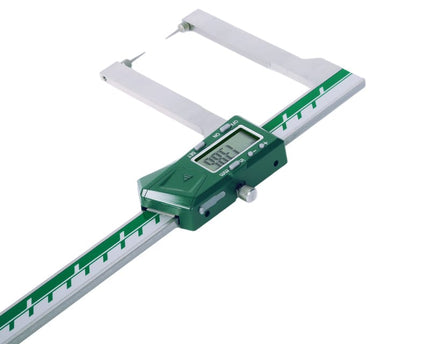

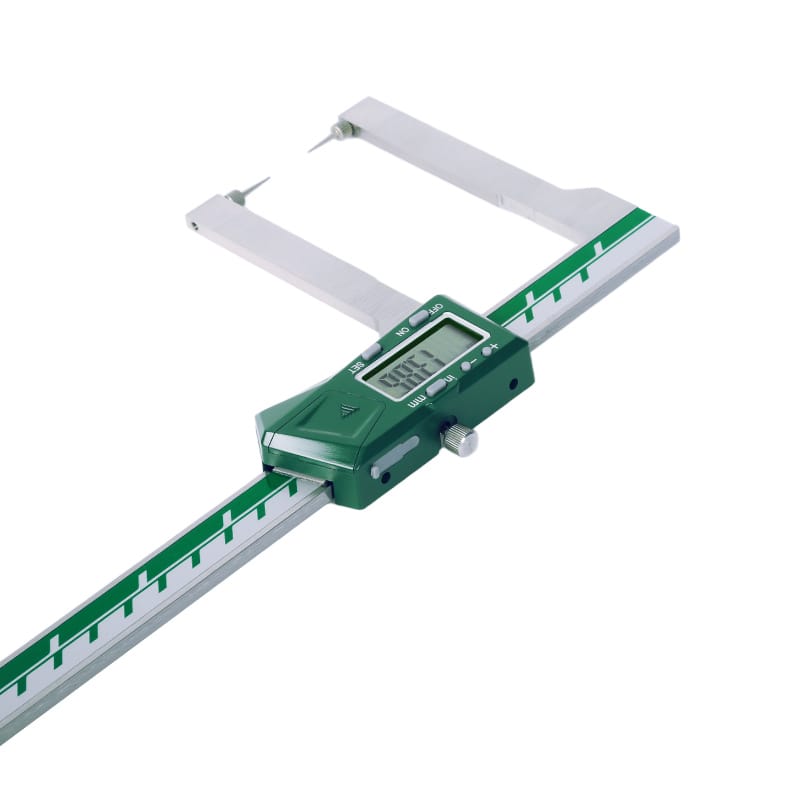

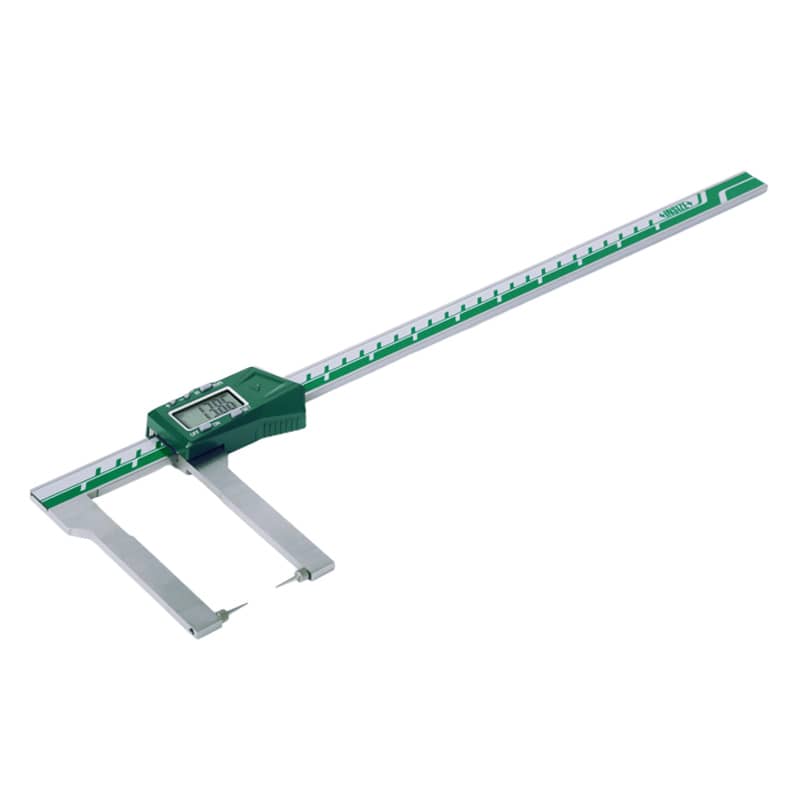

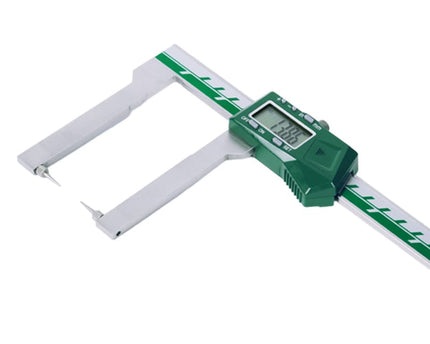

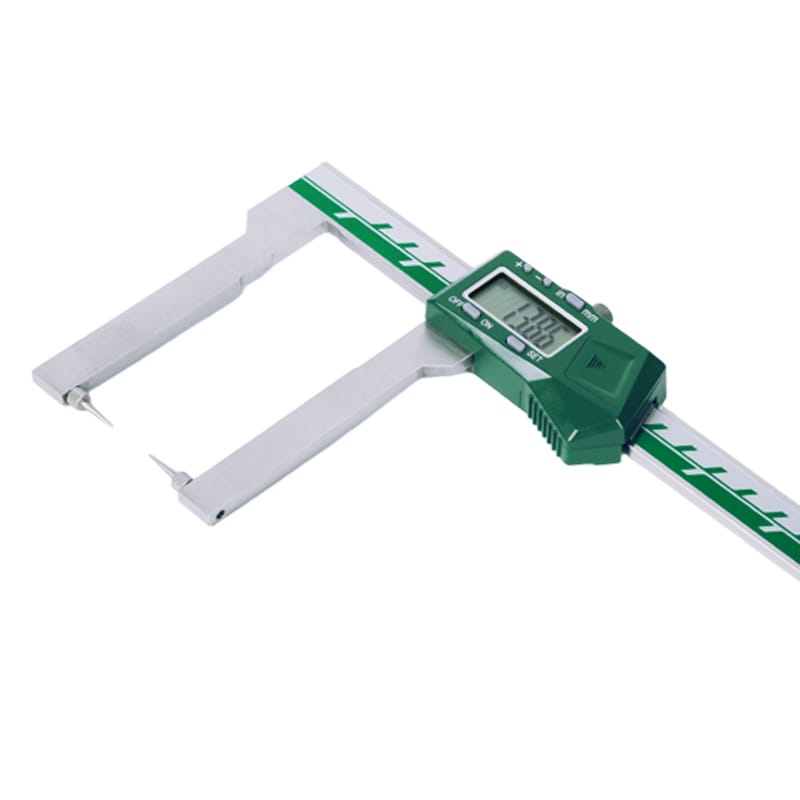

The Insize 1530-300 Digital Caliper with Interchangeable Points is a versatile precision measuring instrument designed for accurate measurement of internal and external grooves, slots, recesses, and specialised dimensions. Supplied with multiple interchangeable measuring points and a zero setting block, this caliper provides exceptional flexibility for complex measuring applications in machining, inspection, engineering, and quality control.
Manufactured from durable stainless steel, the caliper features a clear digital display with data output functionality for efficient measurement recording and integration into quality assurance systems. The interchangeable point system allows users to adapt the caliper for a wide range of precision measurement tasks while maintaining high accuracy and repeatability.
Key Features & Benefits
- Measures internal and external grooves and specialised dimensions
- Interchangeable measuring points for versatile applications
- Measuring range from 0-300mm (0-12")
- High resolution of 0.01mm / 0.0005"
- Accuracy of ±0.06mm
- Data output interface for measurement recording and SPC systems
- Supplied with 4 pairs of interchangeable measuring points
- Includes zero setting block for external measurement setup
- Preset function for convenient operation
- Automatic power off feature to conserve battery life
- Durable stainless steel construction
- Optional accessories available including additional points and depth stop
Technical Specifications
- Part Number: 1530-300
- Product Type: Digital Caliper with Interchangeable Points
- Range: 0-300mm / 0-12"
- Accuracy: ±0.06mm
- Resolution: 0.01mm / 0.0005"
- Data Output: With data interface
- Overall Length (L): 407mm
- d Dimension: 90mm
- c Dimension: 16mm
- Material: Stainless Steel
- Battery: CR2032
- Thread Specification: M2.5 x 0.45
- Optional Wireless Transmitter: 7315-25 (receiver required)
Included Measuring Points:
- 4 pairs of interchangeable points included
- Suitable for measuring grooves, recesses, and specialised profiles
- Zero setting block included for external measurement calibration
Functions:
- On/Off
- Set function
- mm/inch conversion
- Preset (+, -)
- Automatic power off
Insize digital calipers with interchangeable points are designed for professional precision measurement applications requiring flexibility, repeatability, and reliable accuracy across a wide range of specialised measuring tasks.
Insize is internationally recognised for producing high-quality precision measuring instruments trusted by machinists, engineers, manufacturers, and inspection professionals worldwide.
