Description

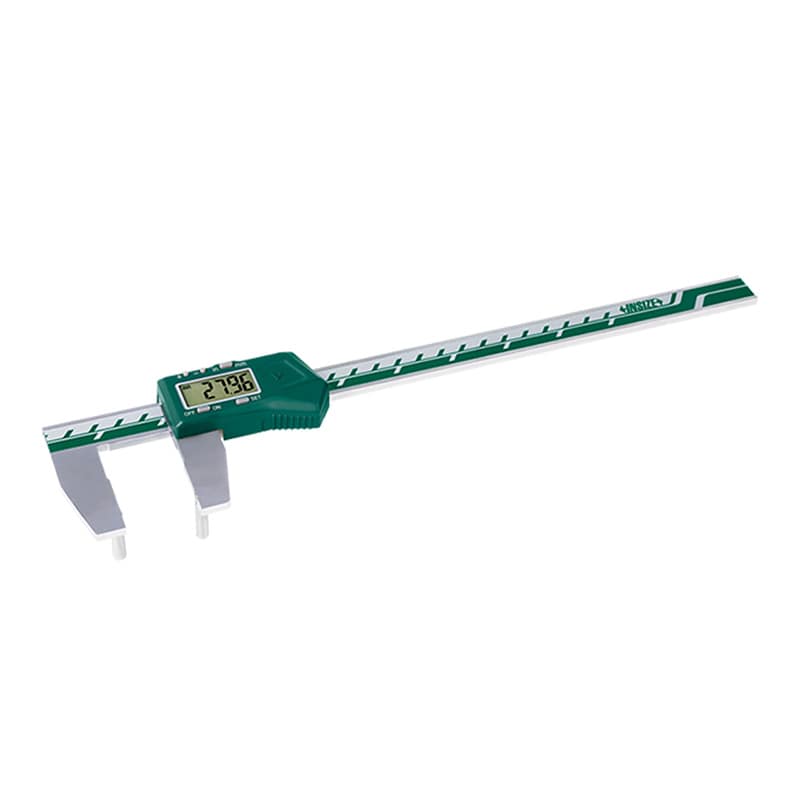

The Insize 1513-200 Digital Caliper for Bores with Barrier Inside is specially designed for accurately measuring bore diameters where internal barriers or obstructions prevent the use of standard measuring tools. Ideal for industrial inspection, machining, pipework, and precision engineering applications, this caliper allows reliable internal measurements in hard-to-access locations.
Manufactured from durable stainless steel, the caliper features a high-visibility digital display with data output functionality for efficient measurement recording and quality control processes. The specially designed jaw configuration enables accurate bore measurements around internal barriers while maintaining excellent measuring repeatability and ease of operation.
Key Features & Benefits
- Designed for measuring bores with internal barriers or obstructions
- Measuring range from 10-200mm (0.4-8")
- Digital display with 0.01mm / 0.0005" resolution
- High measuring accuracy of ±0.03mm
- Data output interface for recording and transfer of measurements
- Preset function for convenient measuring operation
- Special jaw design for difficult internal measuring applications
- Automatic power off function to extend battery life
- Made from durable stainless steel
- Suitable for workshop, machining, engineering, and inspection applications
- Optional wireless transmitter available
Technical Specifications
- Part Number: 1513-200
- Product Type: Digital Caliper for Bores with Barrier Inside
- Range: 10-200mm / 0.4-8"
- Accuracy: ±0.03mm
- Resolution: 0.01mm / 0.0005"
- Data Output: With data interface
- Barrier Diameter Requirement (Ød): <D-10mm (less than 70mm)
- Material: Stainless Steel
- Battery: CR2032
- Overall Length: 320mm
- Jaw Depth: 35mm
- Beam Thickness: 16mm
- Measuring Pin Diameter: Ø5mm
- Optional Wireless Transmitter: 7315-25 (receiver required)
Functions:
- On/Off
- Set function
- mm/inch conversion
- Preset (+, -)
- Automatic power off
Barrier Diameter Reference:
- When measuring bore diameter (ØD) of 40mm, the barrier diameter (Ød) should be less than 30mm
- When measuring bore diameter (ØD) of 100mm, the barrier diameter (Ød) should be less than 70mm
Insize digital calipers for bores with barrier inside are precision inspection tools developed for specialised internal measurement applications where standard calipers cannot easily access or measure around obstructions.
Insize is globally recognised for manufacturing high-quality precision measuring instruments trusted by machinists, engineers, and quality control professionals worldwide.
