Description

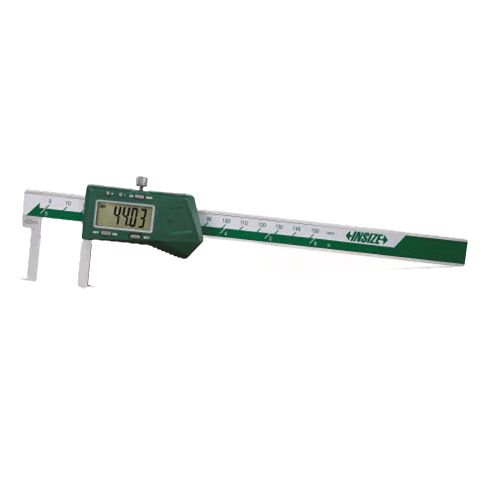

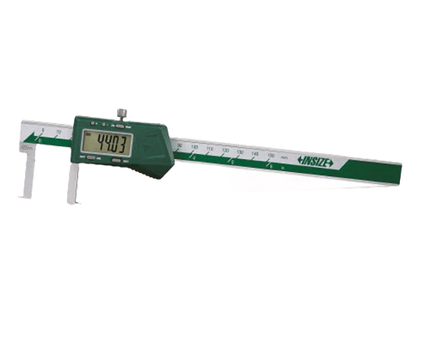

Insize Digital Inside Groove Caliper
The Insize Digital Inside Groove Caliper 1120-500 is designed for precise measurement of internal grooves, slots, and recesses. With a large measuring range, stainless steel construction, and clear digital display, it is ideal for use in machining, tooling, and quality control environments.

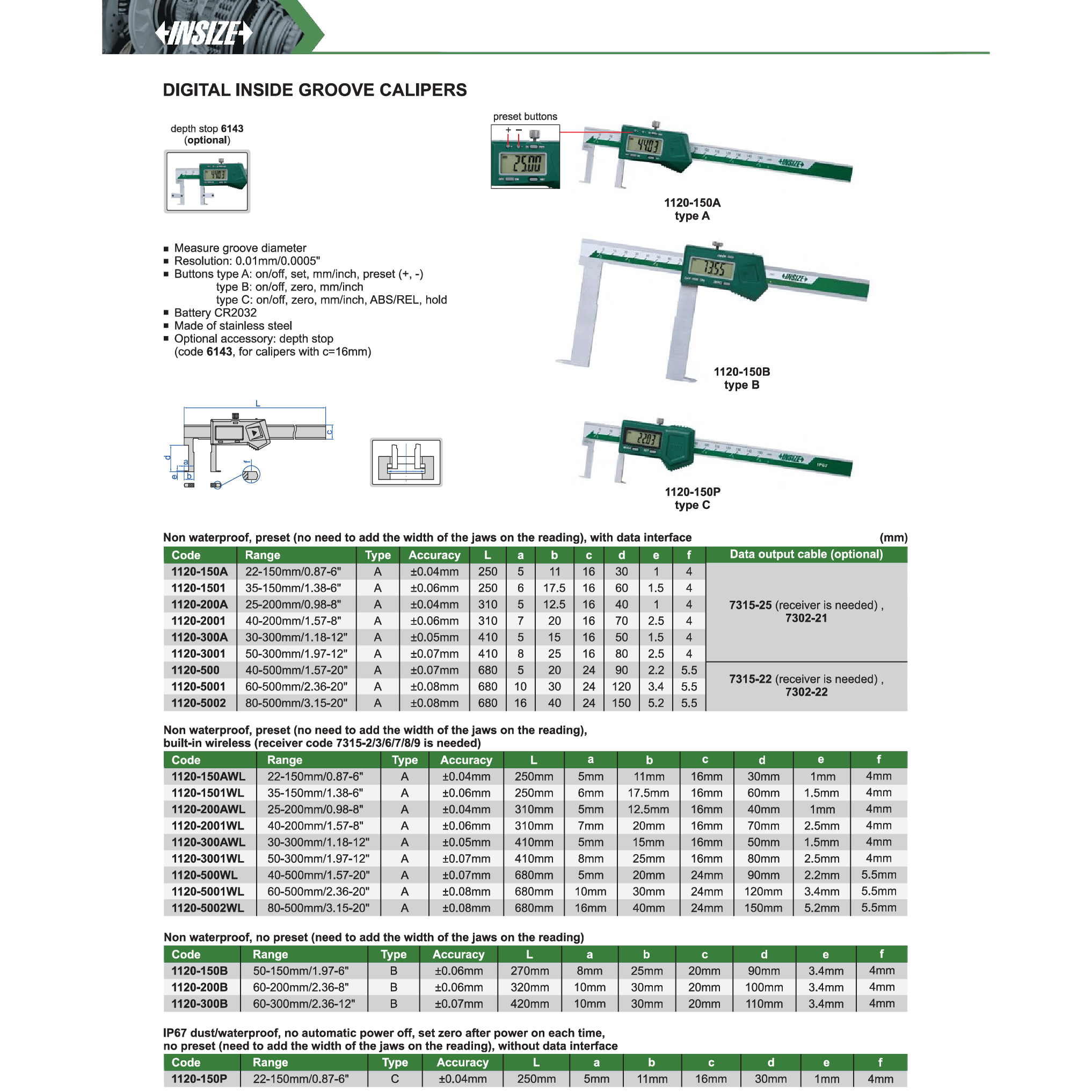

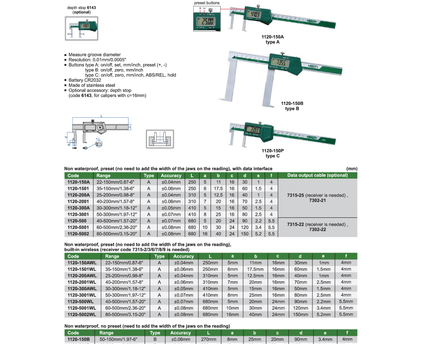

Specifications :
-
Part No: 1120-500
-
Measuring Range: 40–500 mm / 1.57–20″
-
Resolution: 0.01 mm / 0.0005″
-
Accuracy: ±0.07 mm
-
Type: A (with preset function, mm/inch conversion, data output)
-
Material: Stainless steel
-
Battery: CR2032 (included)
-
Display Features: On/off, set, mm/inch, preset (+/−)
-
Data Output: Yes (optional cable: 7302-22; receiver: 7315-22)
-
Jaw Dimensions: a = 5 mm, b = 20 mm, c = 24 mm, d = 90 mm, e =2.2 mm, f = 5.5 mm
-
Total Length (L): 680 mm
-
Included Accessories: CR2032 battery, protective case
-
Optional Accessories: Data output cable, wireless receiver
Reliable and durable, the INSIZE 1120-500 is a trusted solution for accurate internal groove measurements in a wide range of industrial applications.
