Description

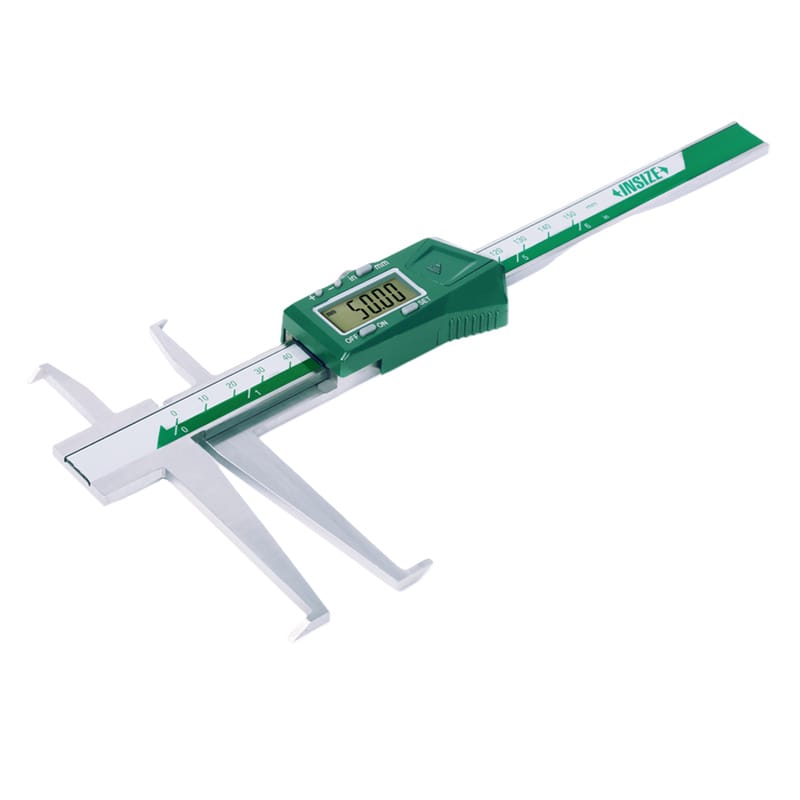

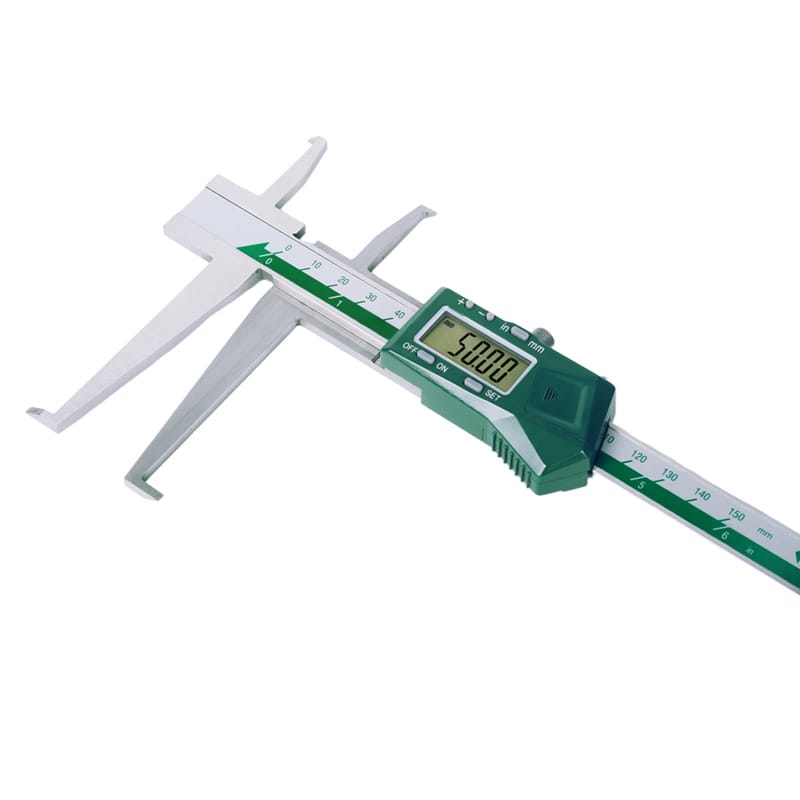

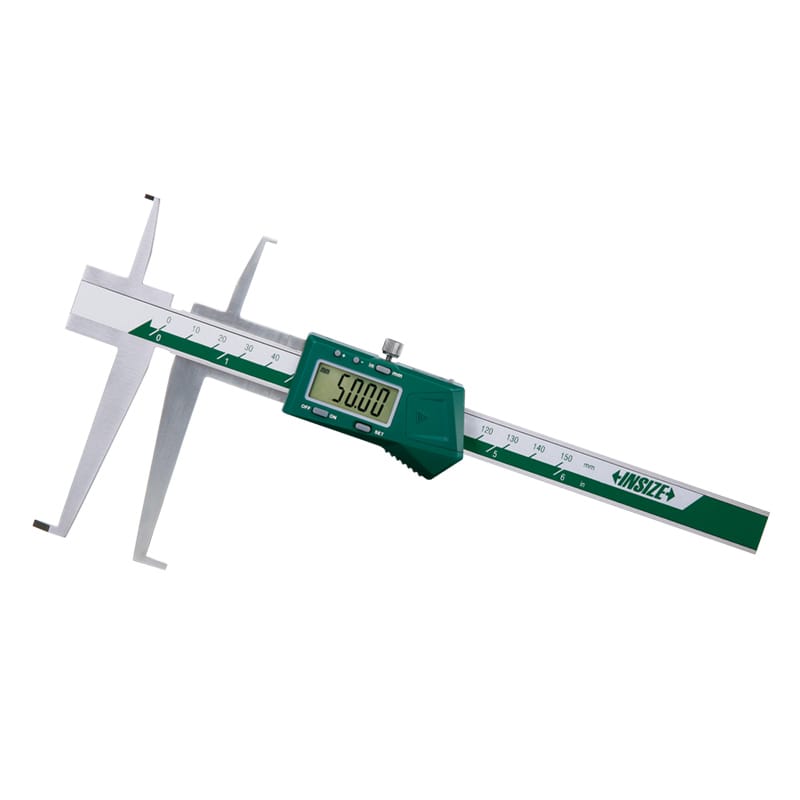

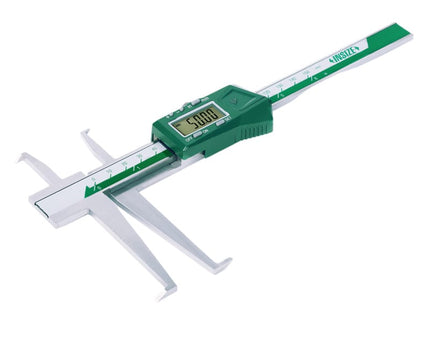

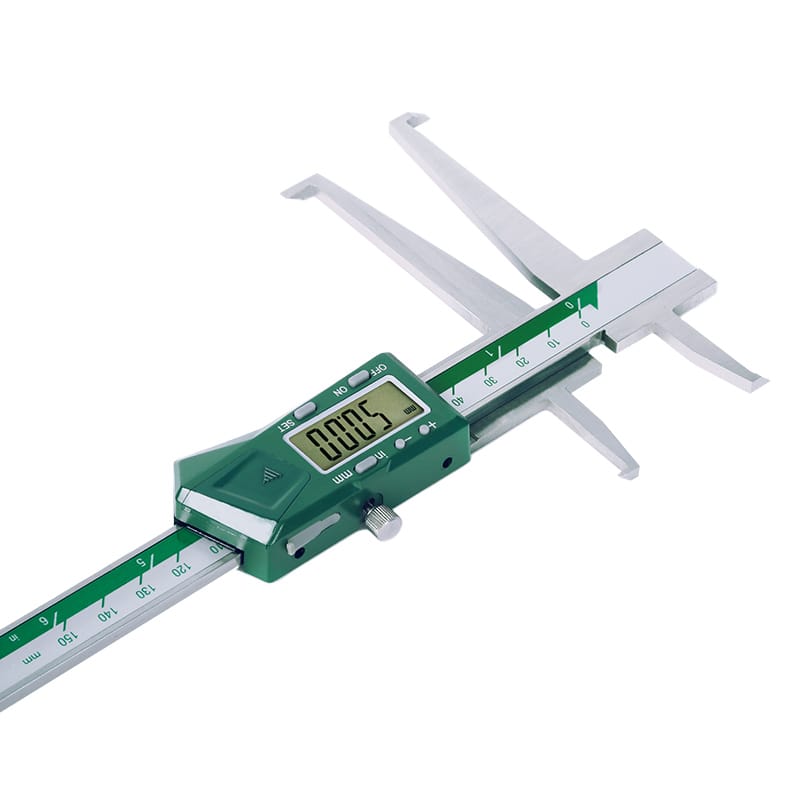

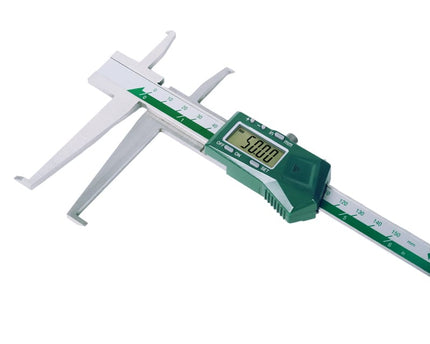

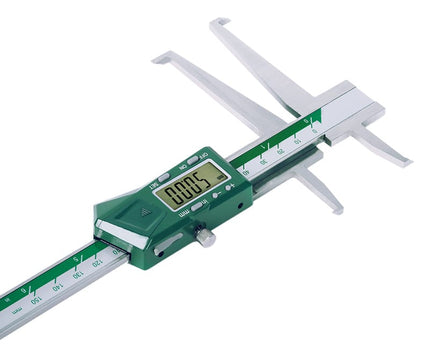

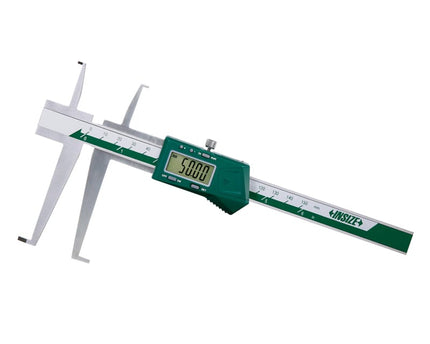

The Insize 1176-200 Digital Inside Groove Caliper is a precision measuring instrument designed for accurate measurement of groove diameters and internal bore features. Engineered for machining, inspection, and engineering applications, this caliper provides reliable and repeatable measurements of internal grooves using both upper and lower jaws.
Manufactured from durable stainless steel, the caliper features a digital display with preset functionality and data output capability for efficient measurement recording and quality control processes. Its precision ground measuring jaws and ergonomic design ensure smooth operation and dependable accuracy in workshop and inspection environments.
Key Features & Benefits
- Designed for measuring internal groove diameters inside bores
- Upper and lower jaw measurement capability
- Wide measuring range up to 200mm
- Digital display with 0.01mm / 0.0005" resolution
- Preset function for efficient measurement operation
- Data output interface for recording and transfer of measurements
- Made from durable stainless steel construction
- Smooth sliding movement for precise adjustment
- Suitable for machining, engineering, inspection, and quality control applications
- Optional wireless transmitter available
- Optional depth stop accessory available
Technical Specifications
- Part Number: 1176-200
- Product Type: Digital Inside Groove Caliper
- Type: A
- Range of Upper Jaw: 9-200mm / 0.35-8"
- Range of Lower Jaw: 17-200mm / 0.70-8"
- Accuracy: ±0.05mm
- Resolution: 0.01mm / 0.0005"
- Data Output: With data interface
- Material: Stainless Steel
- Battery: CR2032
- L: 320mm
- a: 3.5mm
- Optional Wireless Transmitter: Code 7315-25 (receiver required)
- Optional Depth Stop: Code 6143
Functions:
- On/Off
- Set
- mm/inch conversion
- Preset (+, -)
Measurement Capacity:
- Upper Jaw (D1): Ø9-200mm
- Lower Jaw (D2): Ø17-200mm
Insize digital inside groove calipers are designed for professional workshop and inspection applications, providing dependable accuracy when measuring grooves, recesses, and internal bore features that require precise dimensional verification.
Insize is globally recognised for manufacturing professional precision measuring instruments and inspection equipment trusted by machinists, engineers, and quality assurance professionals worldwide.
