Description

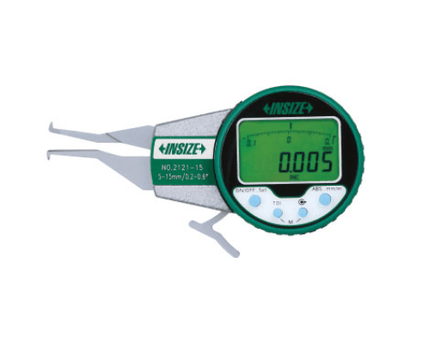

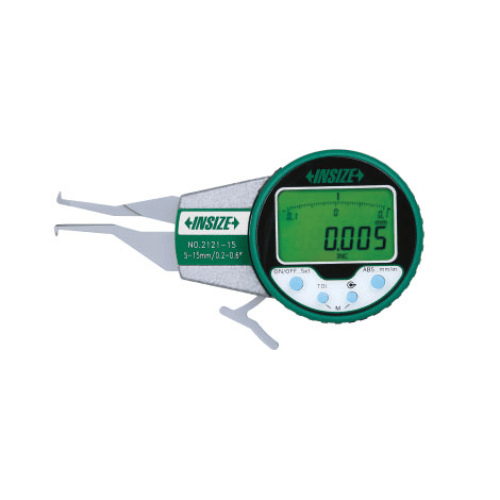

Insize Digital Internal Caliper Gauge
The Insize 2121-15 Digital Internal Caliper Gauge is designed for accurate and convenient measurement of small internal diameters ranging from 5 to 15 mm. It offers a fine resolution of 0.005 mm (0.0002") and displays readings in both digital and analog formats. The display can be rotated by 170° for optimal viewing, and features include tolerance Go/No-Go display, data preset, maximum/minimum measurement, data hold, inch/metric conversion, and absolute/incremental measurement modes. Powered by a CR2032 battery, it includes an automatic power-off function and data output capability.

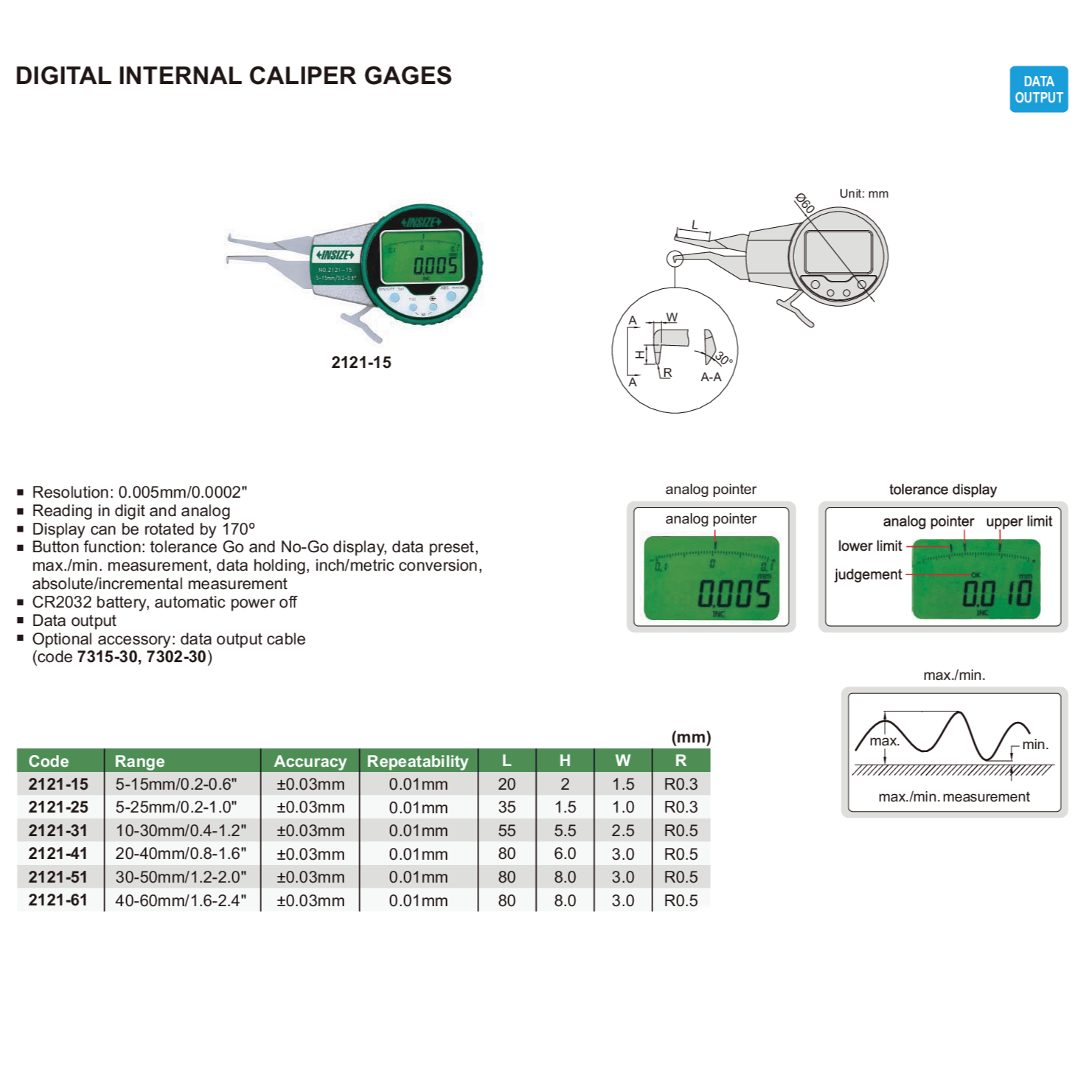

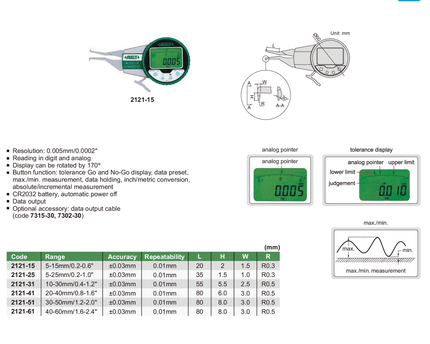

Specifications :
-
Part No: 2121-15
-
Range: 5–15 mm (0.2–0.6")
-
Resolution: 0.005 mm / 0.0002"
-
Accuracy: ±0.03 mm
-
Repeatability: 0.01 mm
-
L: 20 mm
-
H: 2 mm
-
W: 1.5 mm
-
R: R0.3
-
Display Rotation: 170°
-
Power Supply: CR2032 battery
-
Functions: Tolerance Go/No-Go display, data preset, max/min measurement, data hold, inch/metric conversion, absolute/incremental measurement
-
Optional Accessories: Data output cable (code 7315-30, 7302-30)
With its compact size, fine resolution, and versatile measurement features, the INSIZE 2121-15 is ideal for precise small-bore internal diameter measurements in workshop and inspection environments.
