Description

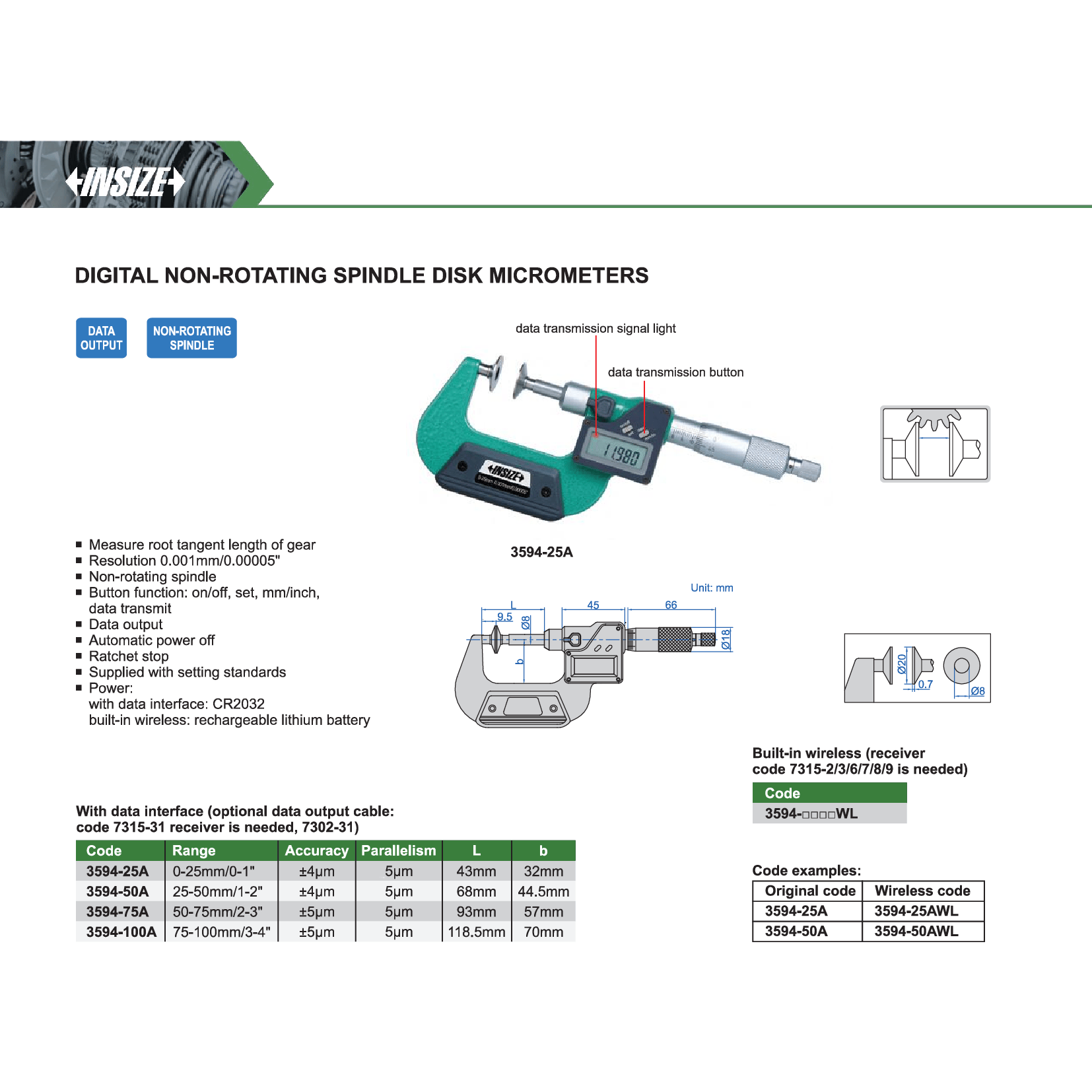

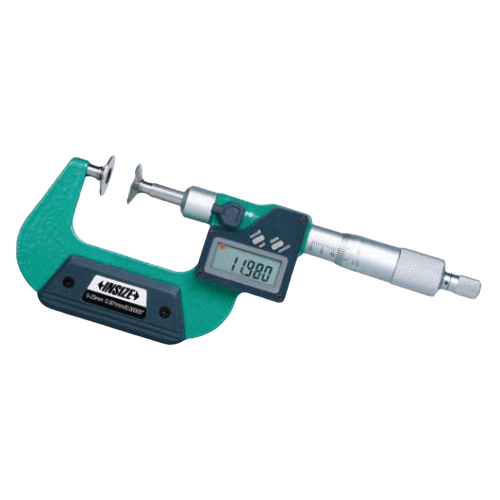

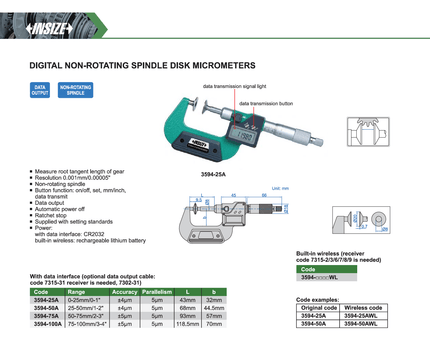

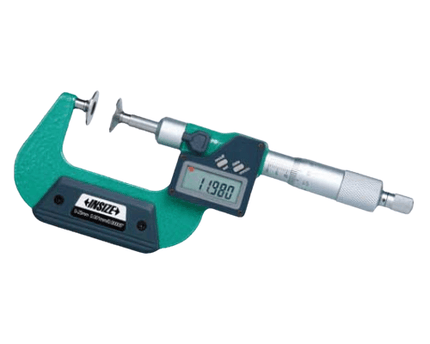

Insize Digital Non-Rotating Spindle Disk Micrometer
The Insize 3594-50A Digital Non-Rotating Spindle Disk Micrometer is designed for measuring the root tangent length of gears with high accuracy. Featuring a non-rotating spindle and disk-shaped measuring faces, it ensures consistent contact and precision. This model offers IP-rated dust protection, a clear digital display, and data output capability for efficient measurement recording. The ratchet stop ensures uniform measuring force, while carbide disks provide long-term durability.
Specifications :
-
Part No: 3594-50A
-
Range: 25–50 mm / 1–2"
-
Resolution: 0.001 mm / 0.00005"
-
Accuracy: ±4 µm
-
Parallelism: 5 µm
-
Measuring Face Diameter: 20 mm
-
L: 68 mm
-
b (Throat Depth): 44.5 mm
-
Functions: On/Off, set, mm/inch conversion, data transmission
-
Features: Data output, automatic power off, ratchet stop, non-rotating spindle, carbide measuring faces
-
Power Supply:
- With data interface: CR2032 battery
- Built-in wireless: Rechargeable lithium battery
-
Data Output: SPC output (requires 7315-31 cable and receiver; optional)
-
Included Accessories: Setting standards, battery, protective case
With its non-rotating spindle and precision carbide disks, the INSIZE 3594-50A is ideal for accurate gear measurement in manufacturing, inspection, and quality control environments.
