Description

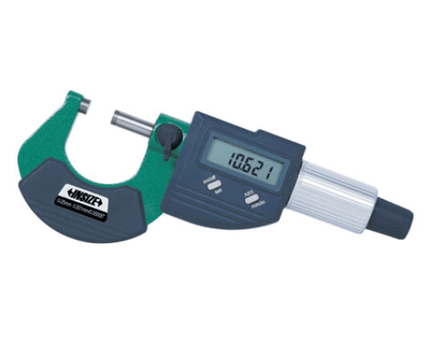

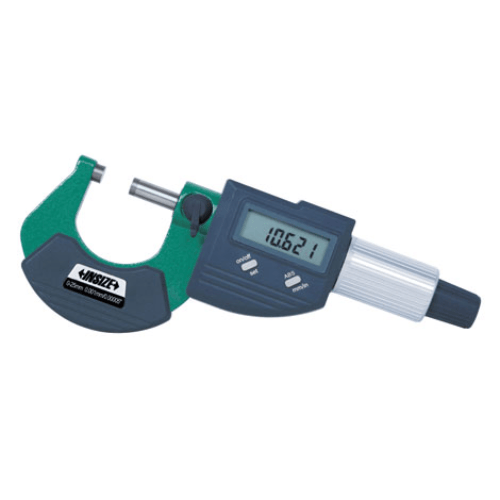

Insize Digital Outside Micrometer
The Insize 3109-225A Digital Outside Micrometer is designed for precision measurement of external dimensions from 200 to 225 mm. It offers a resolution of 0.001 mm (0.00005") and ±4 µm accuracy, making it suitable for high-accuracy inspection work. The micrometer is equipped with carbide measuring faces for exceptional wear resistance and a friction thimble for consistent pressure application. Automatic power-off preserves battery life, and a spherical anvil is included for tube wall thickness measurement, along with a setting standard for calibration.

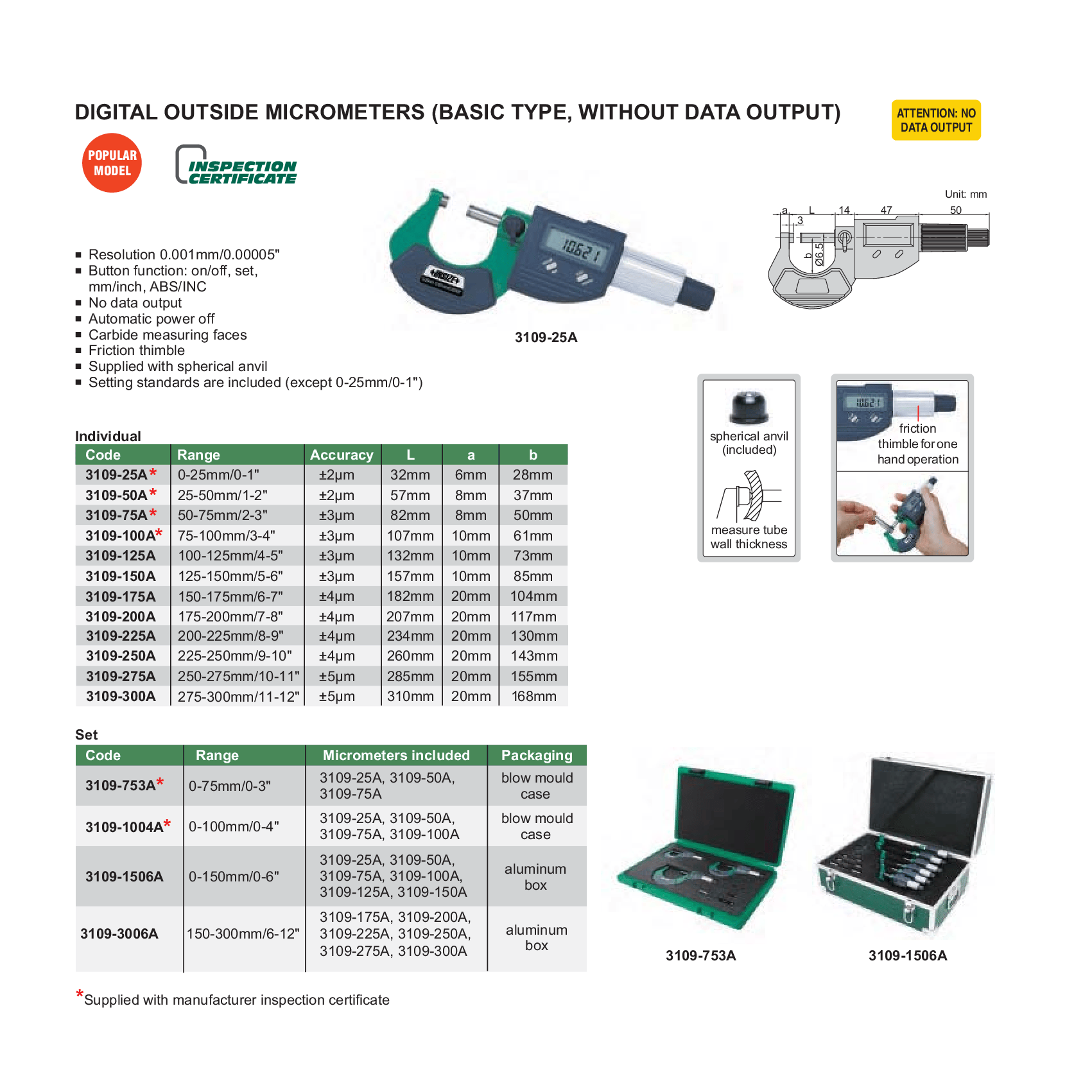

Specifications :
-
Part No: 3109-225A
-
Range: 200–225 mm / 8–9"
-
Resolution: 0.001 mm / 0.00005"
-
Accuracy: ±4 µm
-
L: 234 mm
-
a: 20 mm
-
b: 130 mm
-
Measuring Faces: Carbide
-
Functions: On/off, set, mm/inch, ABS/INC
-
Power Supply: Battery powered, automatic power off
-
Included Accessories: Spherical anvil, setting standard
-
Data Output: None
With robust construction and fine measurement resolution, the INSIZE 3109-225A is well-suited for precise measurement of larger workpieces.
