Description

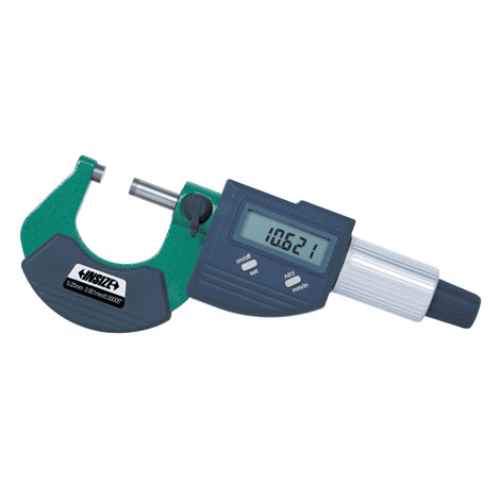

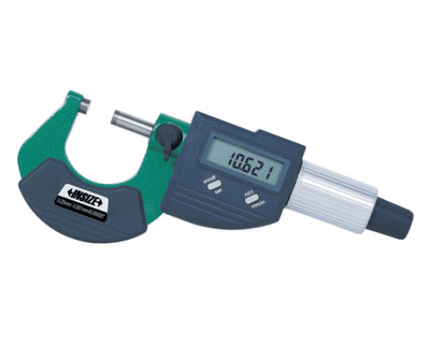

Insize Digital Outside Micrometer Set
The Insize 3109-1004A Digital Outside Micrometer Set provides high-precision measurement for a range of 0 to 100 mm. Featuring a resolution of 0.001 mm (0.00005"), these micrometers are designed for accurate external dimension measurement in workshop and inspection environments. The carbide measuring faces ensure long wear life, while the friction thimble allows smooth and consistent operation. The set includes multiple micrometers to cover the entire range, each supplied with a spherical anvil for tube wall thickness measurement and setting standards for calibration. These micrometers operate without data output and are powered by an automatic shut-off system to conserve battery life.

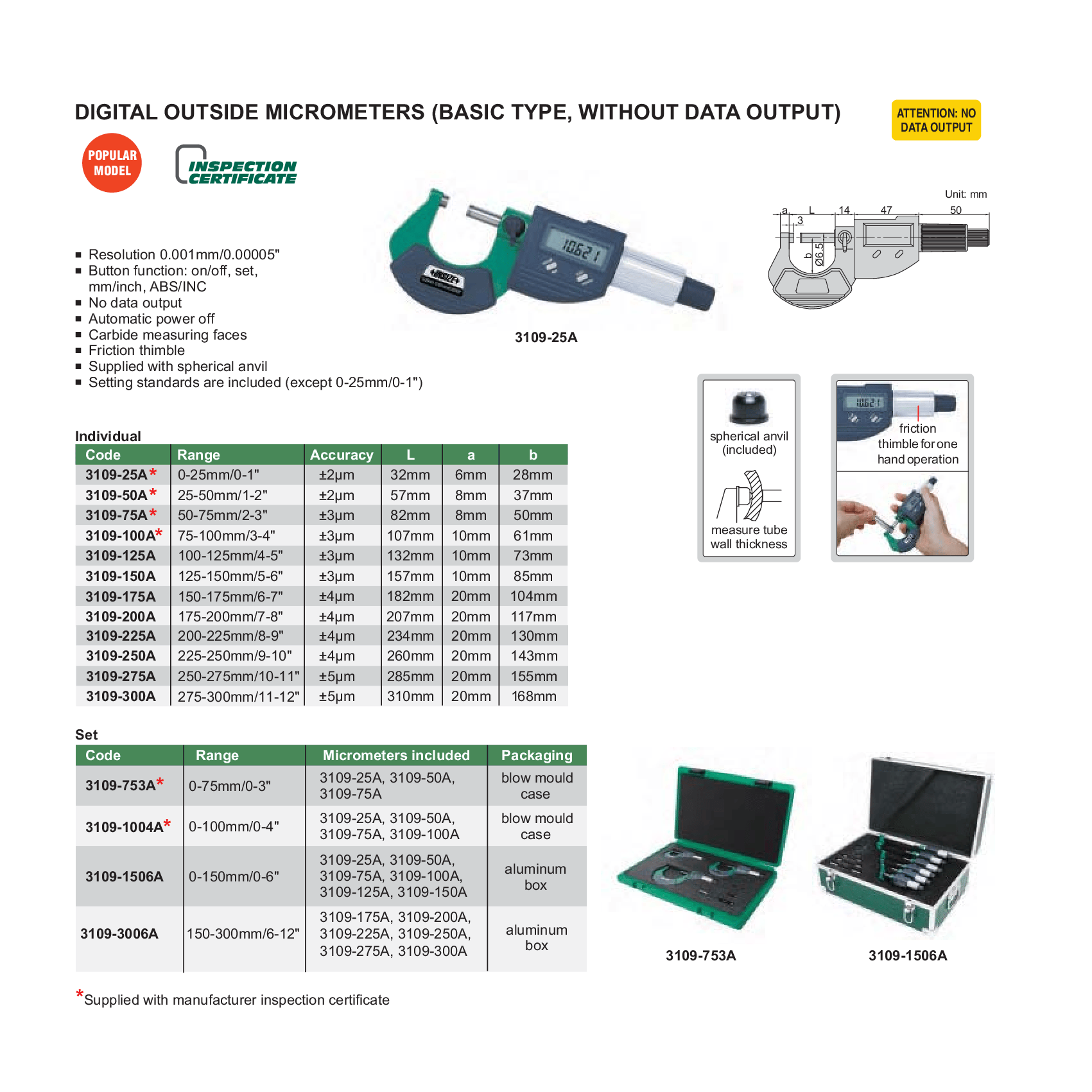

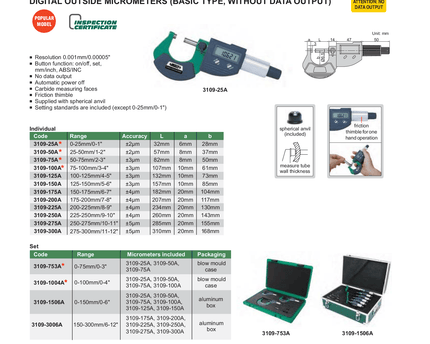

Specifications :
-
Part No: 3109-1004A
-
Range: 0–100 mm / 0–4"
-
Resolution: 0.001 mm / 0.00005"
-
Accuracy:
- 0–25 mm: ±2 µm
- 25–50 mm: ±2 µm
- 50–75 mm: ±3 µm
- 75–100 mm: ±3 µm
-
Micrometers Included: 3109-25A, 3109-50A, 3109-75A, 3109-100A
-
Packaging: Blow mould case
-
Functions: On/off, set, mm/inch, ABS/INC
-
Power Supply: Automatic power off, battery powered
-
Measuring Faces: Carbide
-
Included Accessories: Spherical anvil, setting standards (except for 0–25 mm micrometer)
-
Data Output: None
With its complete range coverage, fine resolution, and durable carbide measuring faces, the INSIZE 3109-1004A micrometer set is an ideal choice for precision external measurement tasks across a wide span of sizes.
