Description

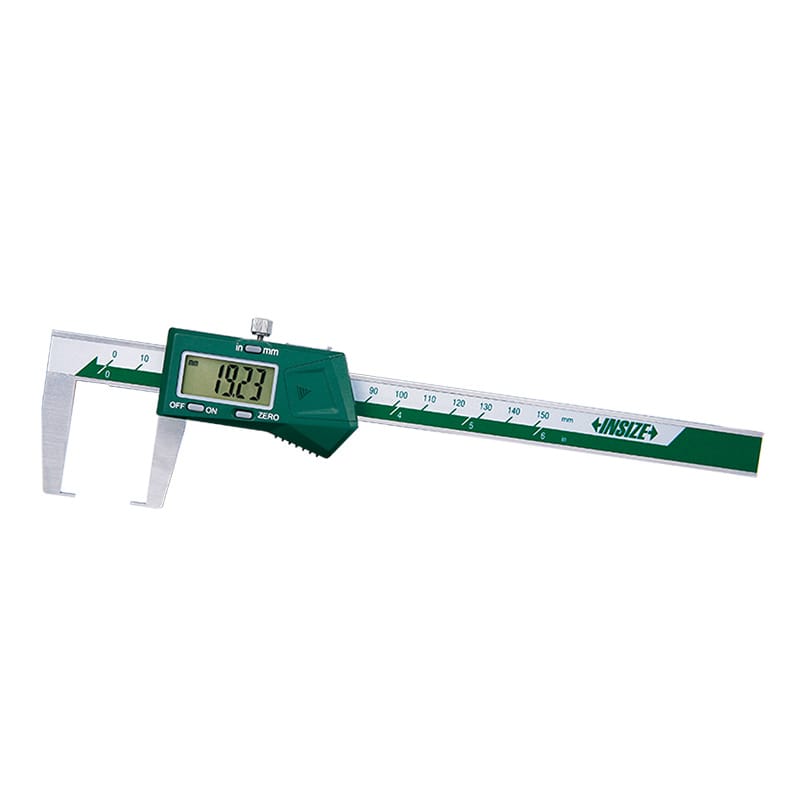

The Insize 1187-200A Digital Outside Neck Caliper is a precision measuring instrument designed for accurate measurement of grooves, recesses, neck diameters, and difficult-to-access external dimensions. Ideal for machining, engineering, inspection, and quality control applications, this caliper provides reliable and repeatable measurements with precision ground measuring jaws.
Manufactured from durable stainless steel, the caliper features a digital display with data output capability for efficient measurement recording and inspection processes. Its slim jaw design allows convenient access into grooves and recessed areas while maintaining excellent measuring accuracy and smooth operation.
Key Features & Benefits
- Designed for measuring grooves, recesses, and outside neck diameters
- Wide measuring range from 0-200mm (0-8")
- Digital display with 0.01mm / 0.0005" resolution
- Data output interface for recording and transfer of measurements
- Slim jaw design for accessing recessed and difficult measuring areas
- Made from durable stainless steel construction
- Smooth sliding movement for precise adjustment
- Automatic power off function
- Suitable for machining, engineering, inspection, and quality control applications
- Optional wireless transmitter available
- Optional depth stop accessory available
Technical Specifications
- Part Number: 1187-200A
- Product Type: Digital Outside Neck Caliper
- Range: 0-200mm / 0-8"
- Accuracy: ±0.05mm
- Resolution: 0.01mm / 0.0005"
- Data Output: With data interface
- Material: Stainless Steel
- Battery: CR2032
- L: 310mm
- a: 9mm
- b: 1.5mm
- c: 80mm
- d: 23mm
- e: 16mm
- f: 4mm
- Optional Wireless Transmitter: 7315-25 (receiver required)
- Optional Depth Stop: Code 6143 (for calipers with e=16mm)
Functions:
- On/Off
- Zero setting
- mm/inch conversion
- Automatic power off
Insize digital outside neck calipers are designed for professional workshop and inspection environments, delivering dependable accuracy for external groove, recess, and neck diameter measurements where standard calipers may not provide sufficient access.
Insize is globally recognised for manufacturing professional precision measuring instruments and inspection equipment trusted by machinists, engineers, and quality assurance professionals worldwide.
