Description

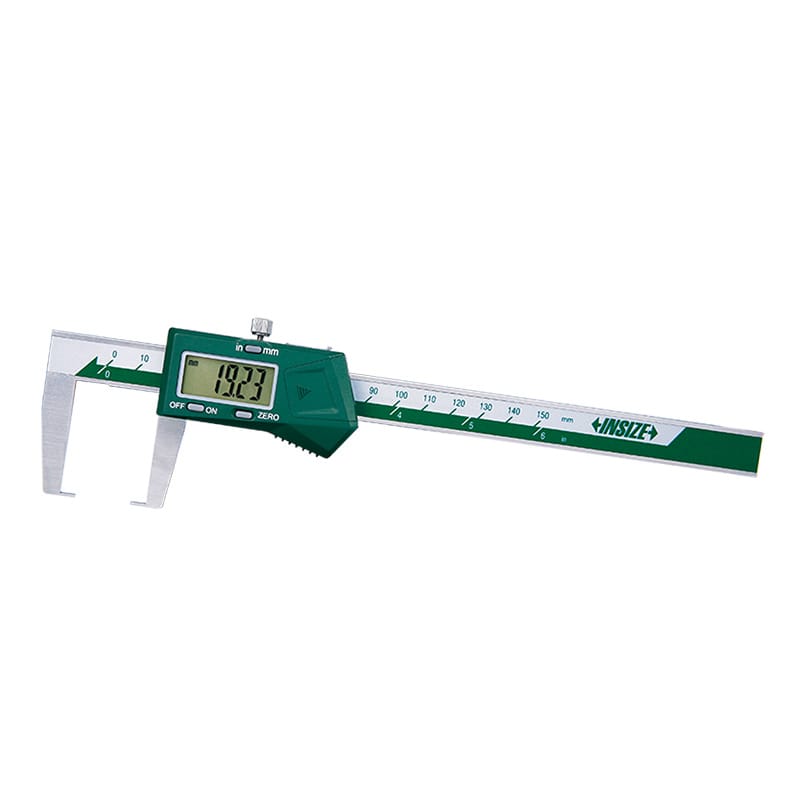

The Insize 1187-500A Digital Outside Neck Caliper is a precision measuring instrument designed for accurate measurement of grooves, recesses, neck diameters, and difficult-to-access external dimensions. Engineered for machining, engineering, inspection, and quality control applications, this caliper delivers dependable and repeatable measurements across a large 0-500mm measuring range.
Manufactured from durable stainless steel, the caliper features a digital display with data output capability for efficient measurement recording and inspection processes. The specially designed measuring jaws provide easy access to recessed areas and grooves while maintaining excellent measuring accuracy and smooth sliding operation.
Key Features & Benefits
- Designed for measuring grooves, recesses, and outside neck diameters
- Large measuring range from 0-500mm (0-20")
- Digital display with 0.01mm / 0.0005" resolution
- Data output interface for measurement recording and transfer
- Slim jaw design for recessed and difficult-to-access measurements
- Made from durable stainless steel construction
- Smooth sliding movement for precise adjustment
- Automatic power off function
- Suitable for machining, engineering, inspection, and quality control applications
- Optional wireless transmitter available
- Optional depth stop accessory available
Technical Specifications
- Part Number: 1187-500A
- Product Type: Digital Outside Neck Caliper
- Range: 0-500mm / 0-20"
- Accuracy: ±0.07mm
- Resolution: 0.01mm / 0.0005"
- Data Output: With data interface
- Material: Stainless Steel
- Battery: CR2032
- L: 690mm
- a: 12mm
- b: 2mm
- c: 150mm
- d: 36mm
- e: 24mm
- f: 5.5mm
- Optional Wireless Transmitter: 7315-22 (receiver required)
- Optional Depth Stop: Code 6143
Functions:
- On/Off
- Zero setting
- mm/inch conversion
- Automatic power off
Insize digital outside neck calipers are designed for professional workshop and inspection applications, providing reliable measurement performance for external grooves, recesses, and neck diameters where standard calipers cannot easily access.
Insize is globally recognised for manufacturing professional precision measuring instruments and inspection equipment trusted by machinists, engineers, and quality assurance professionals worldwide.
