Description

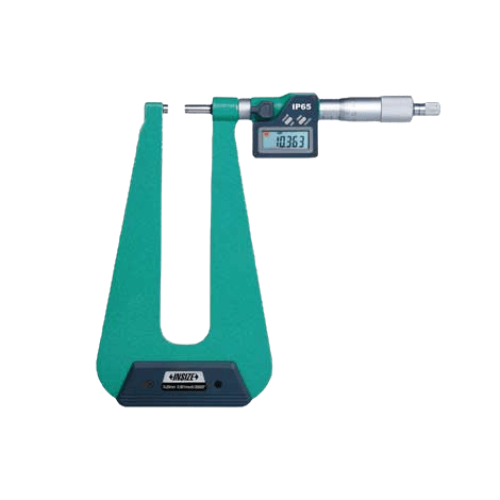

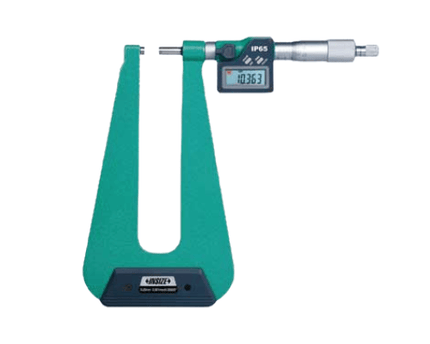

Insize Digital Sheet Metal Micrometer
The Insize 3539-254FA Digital Sheet Metal Micrometer is designed with a deep frame for measuring sheet metal, paper, and plastic with high accuracy. It features IP65 dust/waterproof protection, a clear digital display, and data output capability for efficient measurement recording. Built with carbide measuring faces and a ratchet stop, it ensures consistent measuring force and long-term durability.

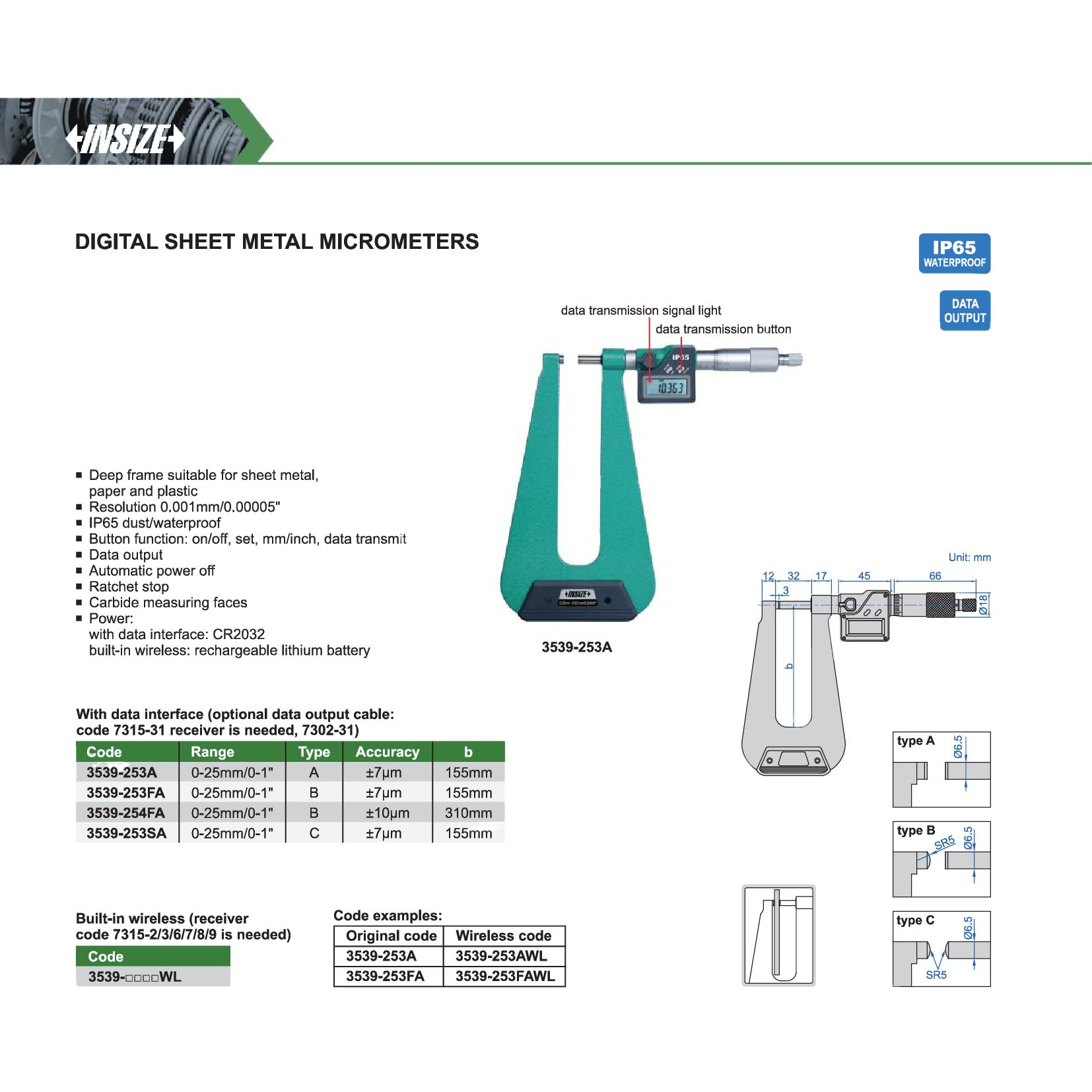

Specifications :
-
Part No: 3539-254FA
-
Range: 0–25 mm / 0–1"
-
Type: B
-
Resolution: 0.001 mm / 0.00005"
-
Accuracy: ±10 µm
-
Throat Depth (b): 310 mm
-
Protection: IP65 dust/waterproof
-
Functions: On/Off, set, mm/inch conversion, data transmit
-
Features: Data output, automatic power off, ratchet stop, carbide measuring faces
-
Power Supply:
- With data interface: CR2032 battery
- Built-in wireless: Rechargeable lithium battery
-
Data Output: SPC output (requires 7315-31 cable and receiver; optional)
-
Included Accessories: Battery, protective case
With its deep throat capacity and IP65 protection, the INSIZE 3539-254FA is ideal for accurate measurement of large sheet materials in both workshop and inspection environments.
