Description

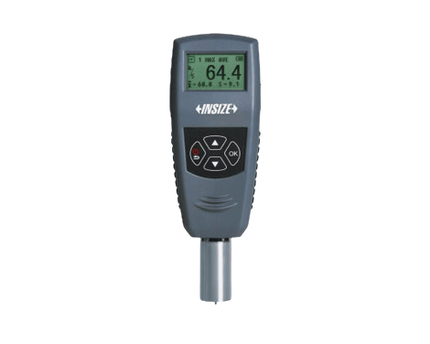

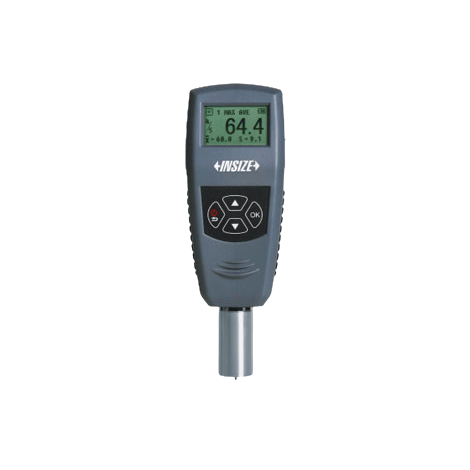

Insize Digital Shore Durometer
The Insize ISH-DSA Digital Shore A Durometer is engineered for measuring the hardness of soft materials such as rubber and plastics. It delivers quick, accurate readings and meets international hardness testing standards, including ISO 868, ISO 7619, and ASTM D2240. With features like tolerance testing, memory storage, and wireless connectivity, it is ideal for both lab and production environments.

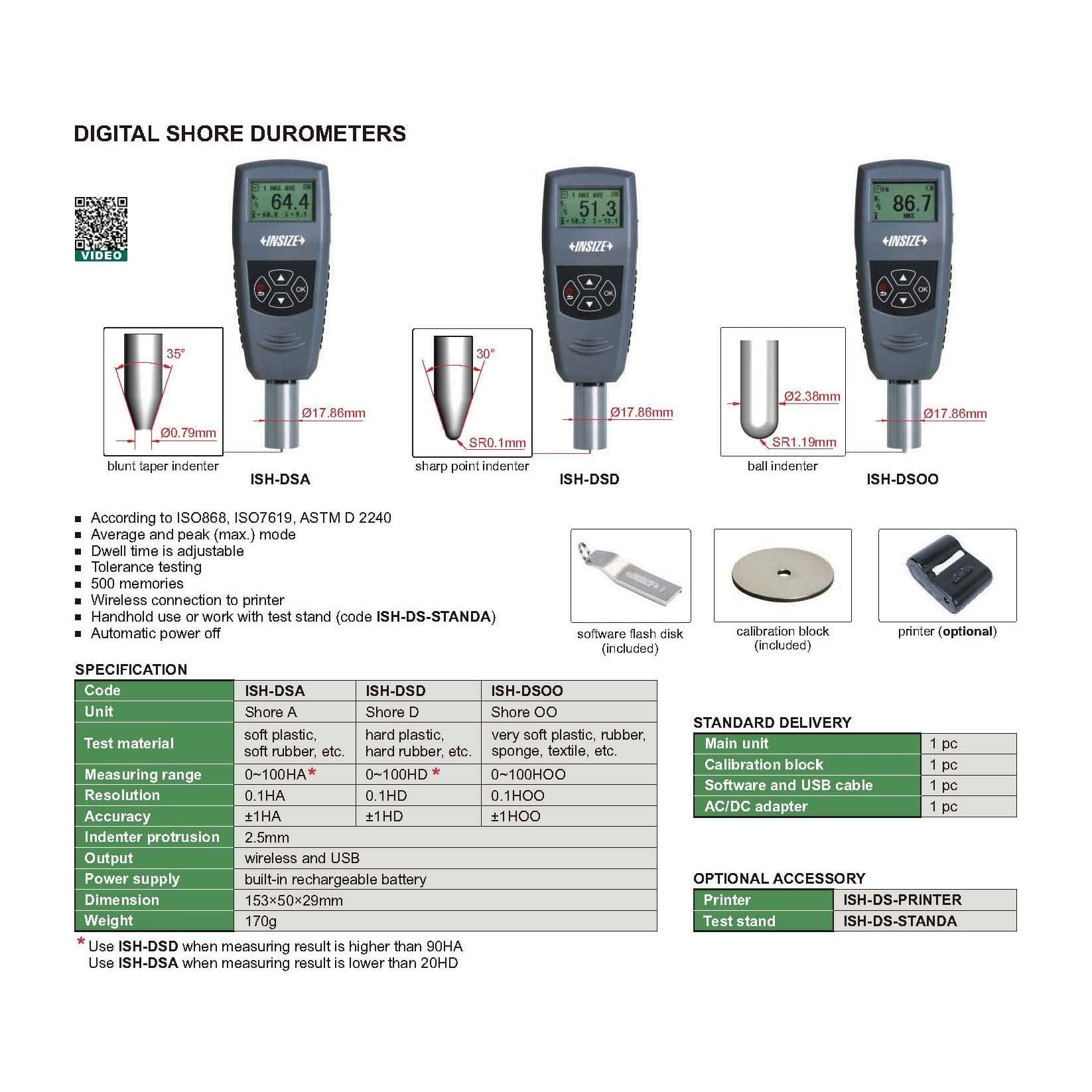

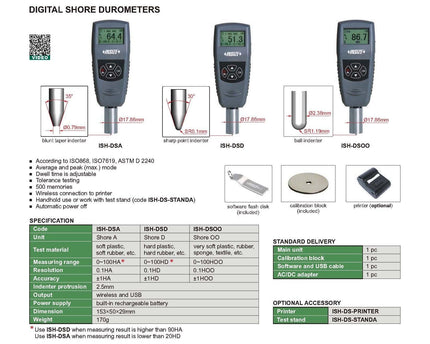

Specifications :
-
Part No: ISH-DSA
-
Type: Shore A
-
Measuring Range: 0–100 HA
-
Resolution: 0.1 HA
-
Accuracy: ±1 HA
-
Test Material: Soft plastic, soft rubber, etc.
-
Indenter Type: Blunt taper
-
Indenter Dimensions: Tip diameter: Ø0.79 mm, Angle: 35°
-
Indenter Protrusion: 2.5 mm
-
Product Features: 500-memory storage, average and peak (max.) modes, tolerance testing, adjustable dwell time, auto power-off, wireless and USB data output
-
Compliance Standards: ISO 868, ISO 7619, ASTM D2240
-
Power Supply: Built-in rechargeable battery
-
Dimensions: 153 × 50 × 29 mm
-
Weight: 170 g
-
Included Accessories: Calibration block, USB cable, software flash disk, AC/DC adapter, main unit
-
Optional Accessories: ISH-DS-PRINTER (wireless printer), ISH-DS-STANDA (test stand)
Reliable, easy to operate, and built for both field and lab use, the INSIZE ISH-DSA is ideal for consistent Shore A hardness measurements in quality control processes. Recommended for materials with a hardness lower than 90 HA.
