Description

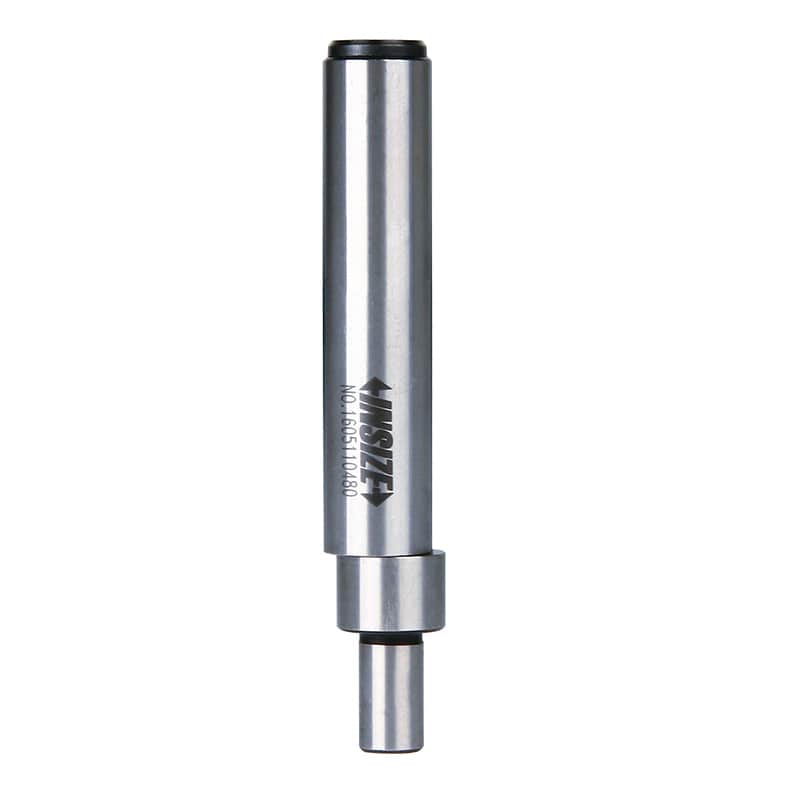

The Insize 6567-1 Edge Finder is a precision workshop tool designed for accurately locating workpiece edges and reference positions on milling machines and machining centres. Ideal for setup and alignment tasks, this edge finder helps machinists establish accurate datum points for precision machining operations.
Manufactured with a hardened shank and contact point for improved durability and wear resistance, the Insize 6567-1 delivers reliable and repeatable positioning accuracy. Suitable for machine spindle speeds between 400–600rpm, it is an essential tool for milling, drilling, and machining applications requiring accurate edge detection.
Key Features & Benefits
- Precision edge finder for milling machine setup
- Hardened shank and contact point for durability
- Suitable for locating workpiece edges accurately
- Ideal for machining datum and reference positioning
- Provides repeatable and reliable edge detection
- Suitable for machine speeds of 400–600rpm
- Compact and easy-to-use design
- Designed for milling, drilling, and machining applications
- High precision 8μm accuracy
- Professional workshop and engineering tool
Technical Specifications
- Part Number: 6567-1
- Product Type: Edge Finder
- Shank Diameter (A): Ø10mm
- Contact Point Diameter (B): Ø6mm
- Accuracy: 8μm
- Recommended Machine Speed: 400–600rpm
- Material: Hardened steel shank and contact point
- Total Length: 65mm
Applications:
- Milling machine edge locating
- Workpiece alignment and setup
- Datum point positioning
- Precision machining operations
- Engineering and toolroom applications
- Workshop machining setup tasks
Insize precision measuring and workshop tools are engineered for professional machining and inspection environments, delivering dependable performance, accuracy, and durability across industrial applications.
Insize is globally recognised for manufacturing high-quality precision measuring instruments, machine setup tools, and inspection equipment trusted by machinists, engineers, and metalworking professionals worldwide.
