Description

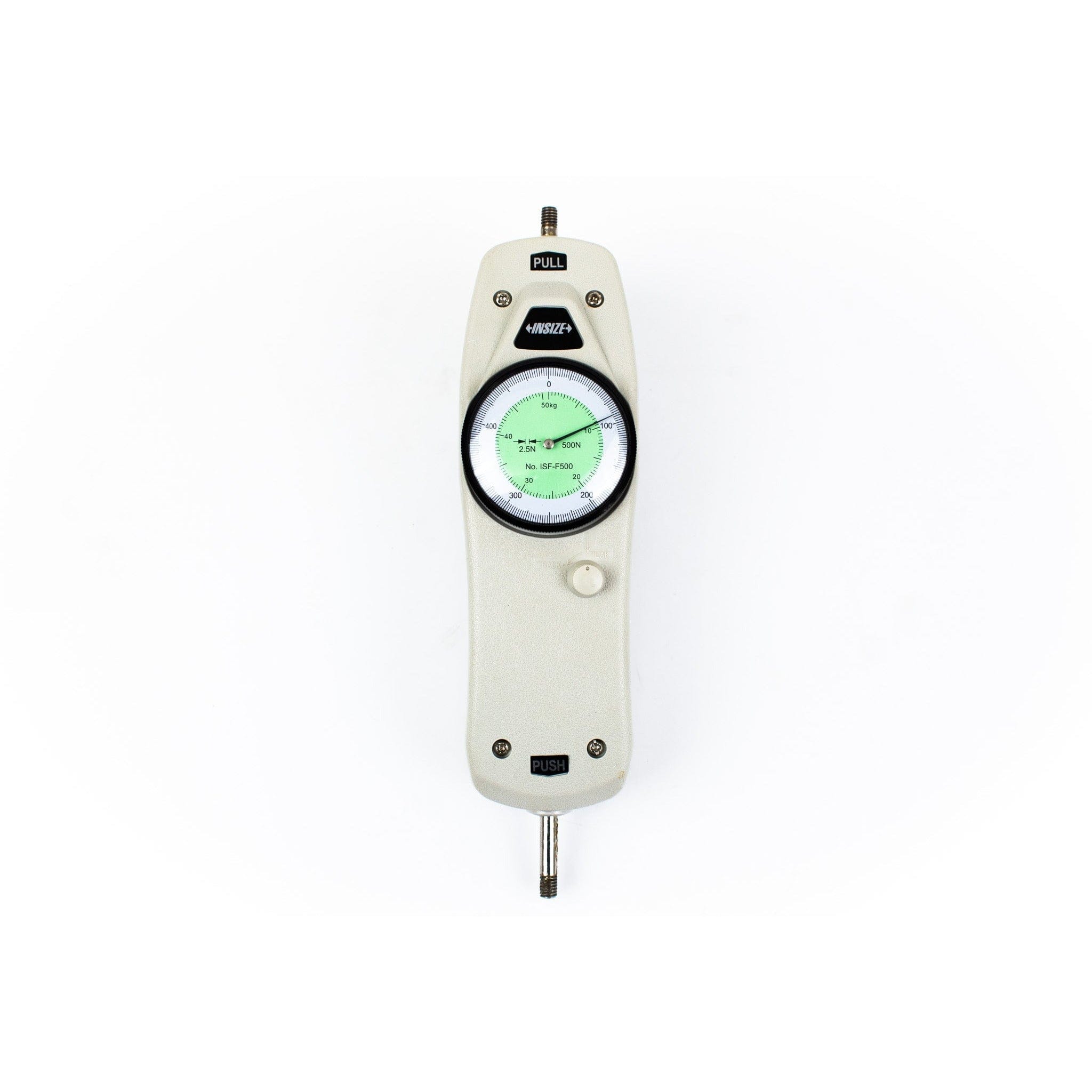

The Insize ISF-F500 Dial Force Gauge is designed for accurate push and pull force measurement in workshop, laboratory, production, and quality control applications. Featuring both peak (maximum) and tracking measurement modes, this mechanical force gauge provides reliable force testing without requiring batteries or external power.
Supplied with multiple push tips, pull clamp, and extension rod accessories, the ISF-F500 is suitable for a wide range of compression and tension testing tasks including switch testing, spring force measurement, connector testing, and component verification.
Key Features & Benefits
- Dial type push and pull force gauge
- Suitable for tension and compression force testing
- Peak (maximum) and tracking measurement modes
- Easy-to-read analog dial display
- Reliable mechanical operation without batteries
- Compact and portable design
- Supplied with multiple testing accessories
- Ideal for workshop, manufacturing, laboratory, and inspection applications
- Optional test stand available for controlled testing

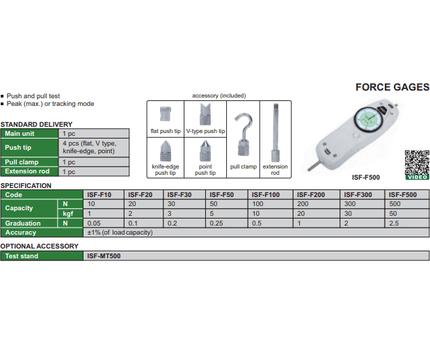

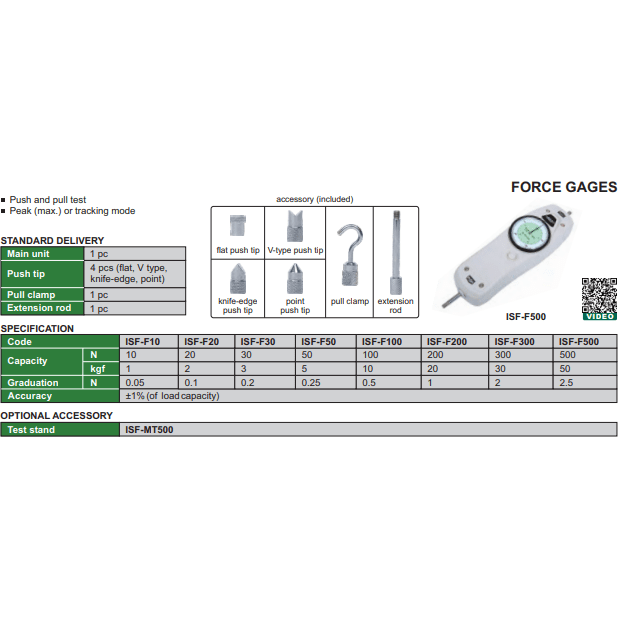

Technical Specifications
- Part Number: ISF-F500
- Capacity: 500N / 50kgf
- Graduation (N): 2.5N
- Graduation (kgf): 0.5kgf
- Accuracy: ±1% of load capacity
- Measurement Type: Push and pull testing
- Display Type: Analog dial

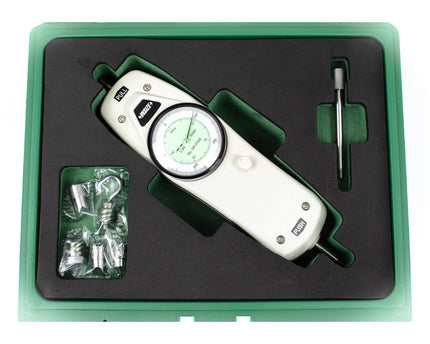

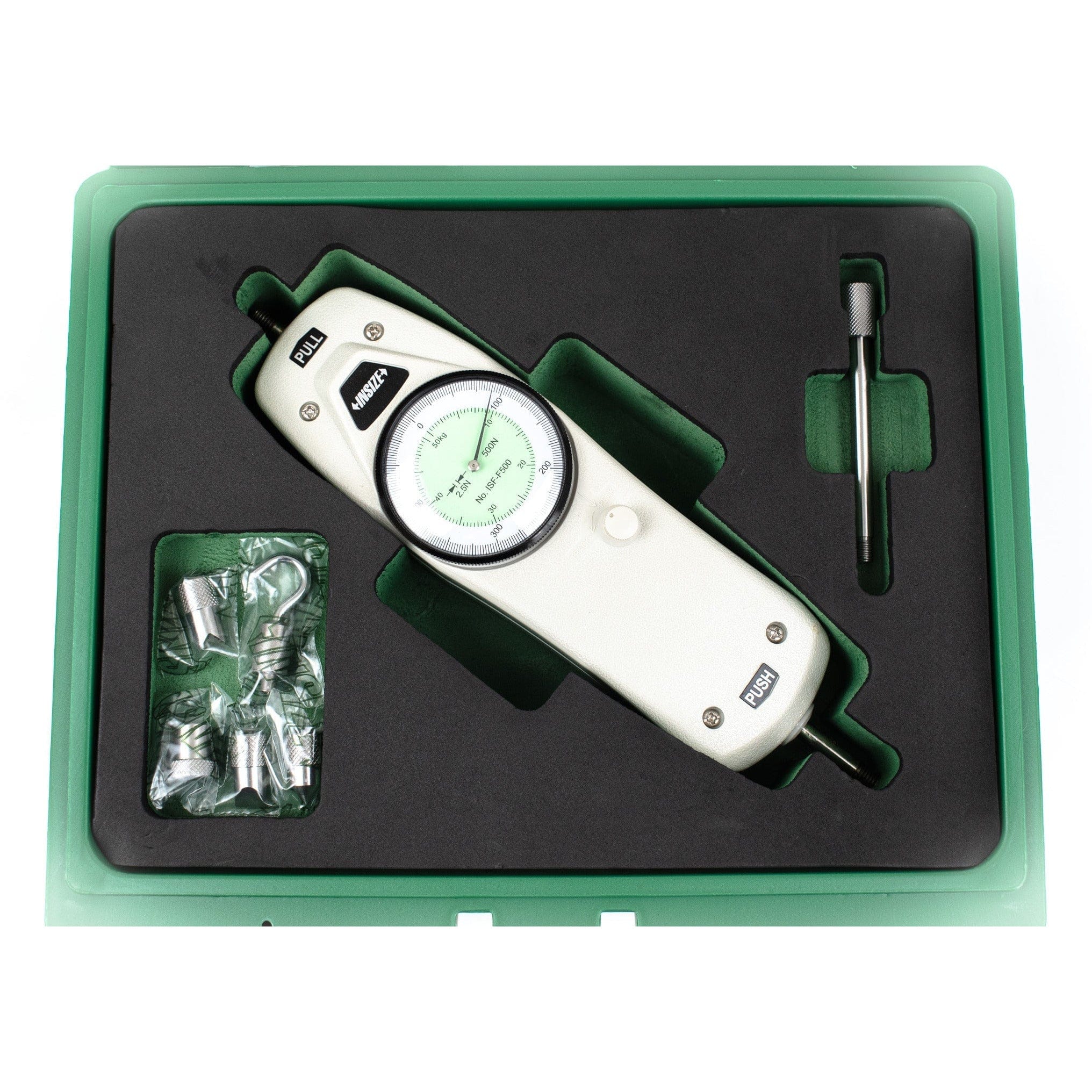

Standard Delivery
- Main unit – 1 pc

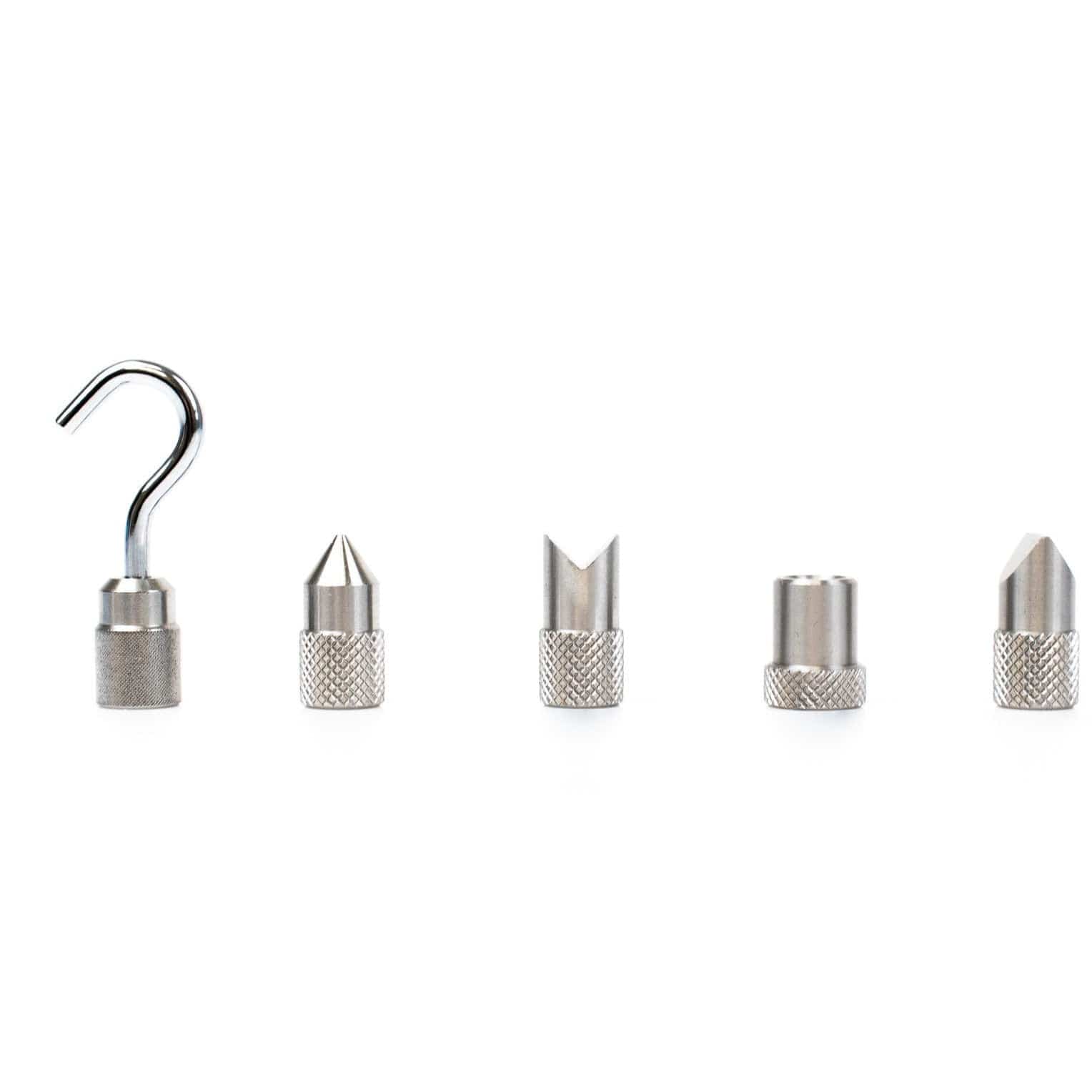

- Push tips – 4 pcs (flat, V-type, knife-edge, point)
- Pull clamp – 1 pc

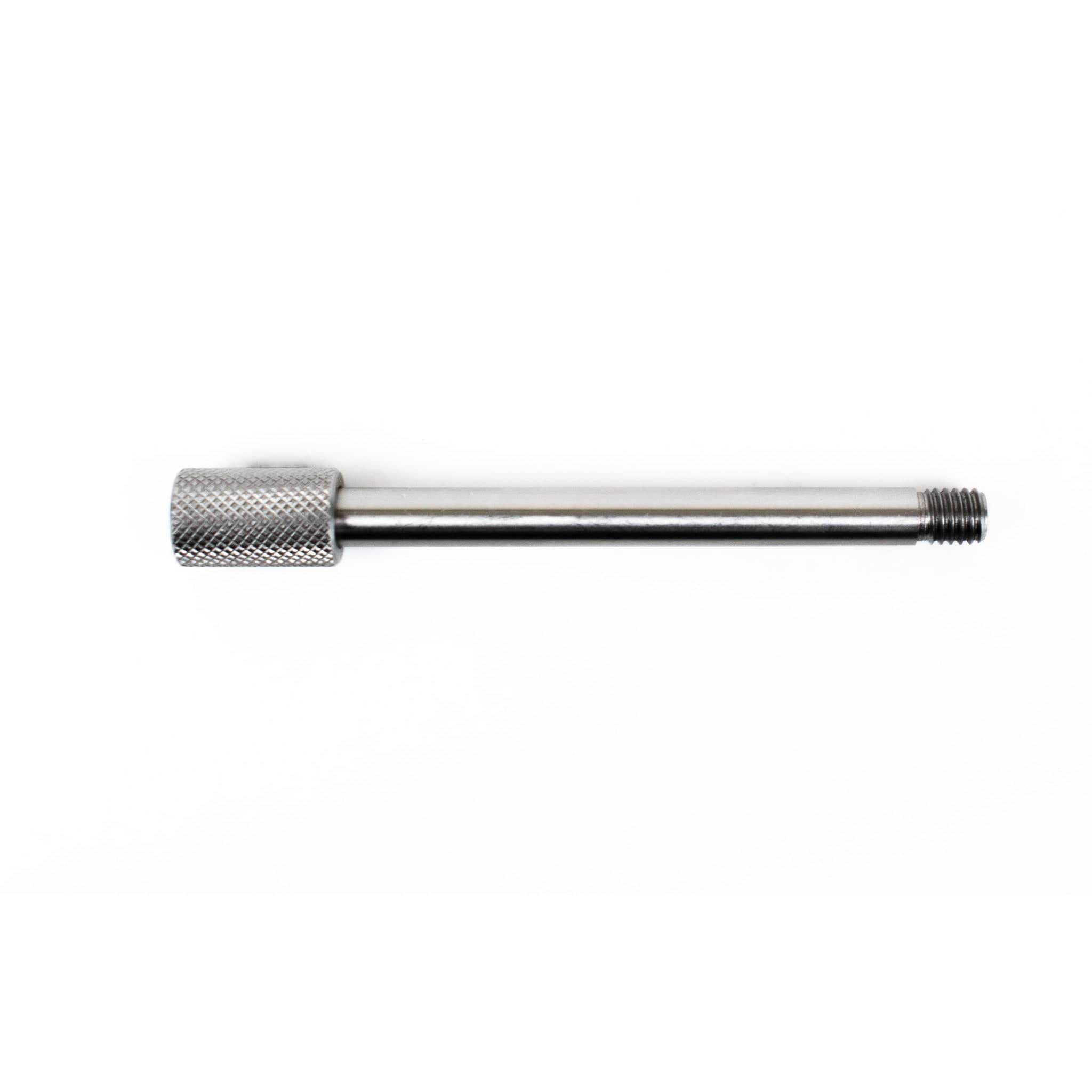

- Extension rod – 1 pc
Optional Accessory
Well-designed, durable high-precision force measuring instruments suitable for a wide variety of industrial testing applications. Insize force gauges provide dependable and repeatable force measurement performance for quality control and production environments.
Insize is globally recognised for producing high-quality precision measuring instruments trusted by machinists, engineers, inspectors, and manufacturing professionals worldwide.
