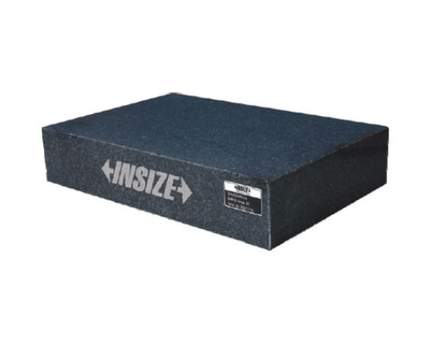

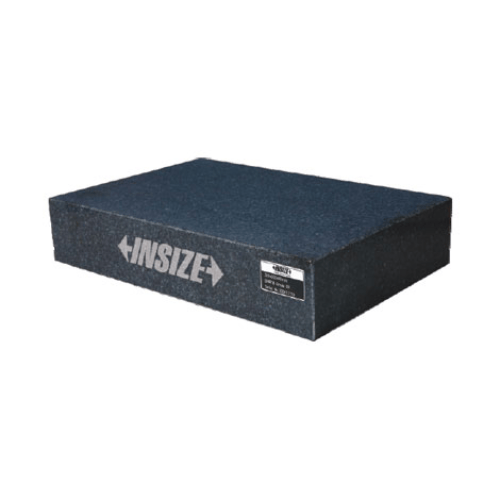

Insize Granite Surface Plate 400x400x60mm
The INSIZE 6900 Series Granite Surface Plates are precision instruments designed for accurate measurement and inspection. Manufactured from high-quality Indian granite, these plates offer high hardness, excellent stability, and resistance to deterioration or dimensional changes over time. With superior flatness and durability, they are ideal for use in inspection rooms, laboratories, and workshops. Certified to DIN876 standards, INSIZE granite surface plates ensure long-term accuracy and reliability for a wide range of applications in machining, quality control, and calibration.
Key Features:
-
Part Number: 6900-144
-
Size (L×W×H): 400×400×60 mm
-
Flatness: 3.1 µm
-
Weight: 29 kg
-
Max Load: 60 kg
-
Material: Granite, resistant to deterioration and dimensional changes
-
Standards: Meets DIN876
- Grade 00: For inspection room or lab
- Grade 0: For workshop
Well designed for precision, the INSIZE Granite Surface Plate is the perfect instrument for accurate measurement and inspection of a wide range of components. It is ideal for mounting mechanical and electronic gauges.
