Description

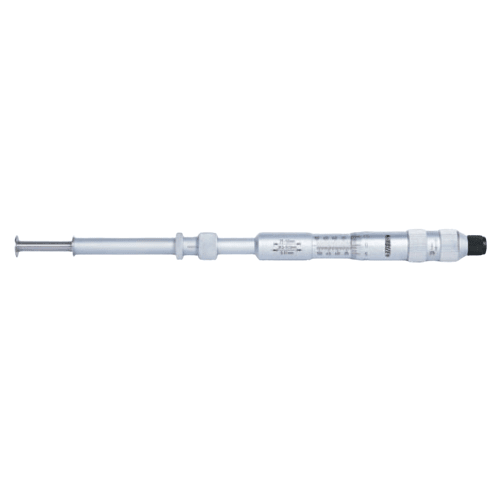

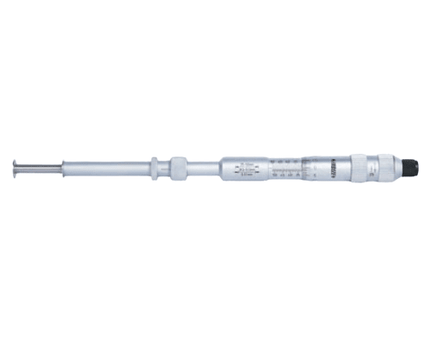

Insize Groove Micrometer
The Insize 3287-25B Groove Micrometer is designed to measure the width of grooves inside bores with high precision. Featuring two graduations for inside and outside measurements, a non-rotating spindle, and a two-directional ratchet stop, it ensures accuracy and repeatability. Built with a durable construction, it is ideal for precision engineering applications.

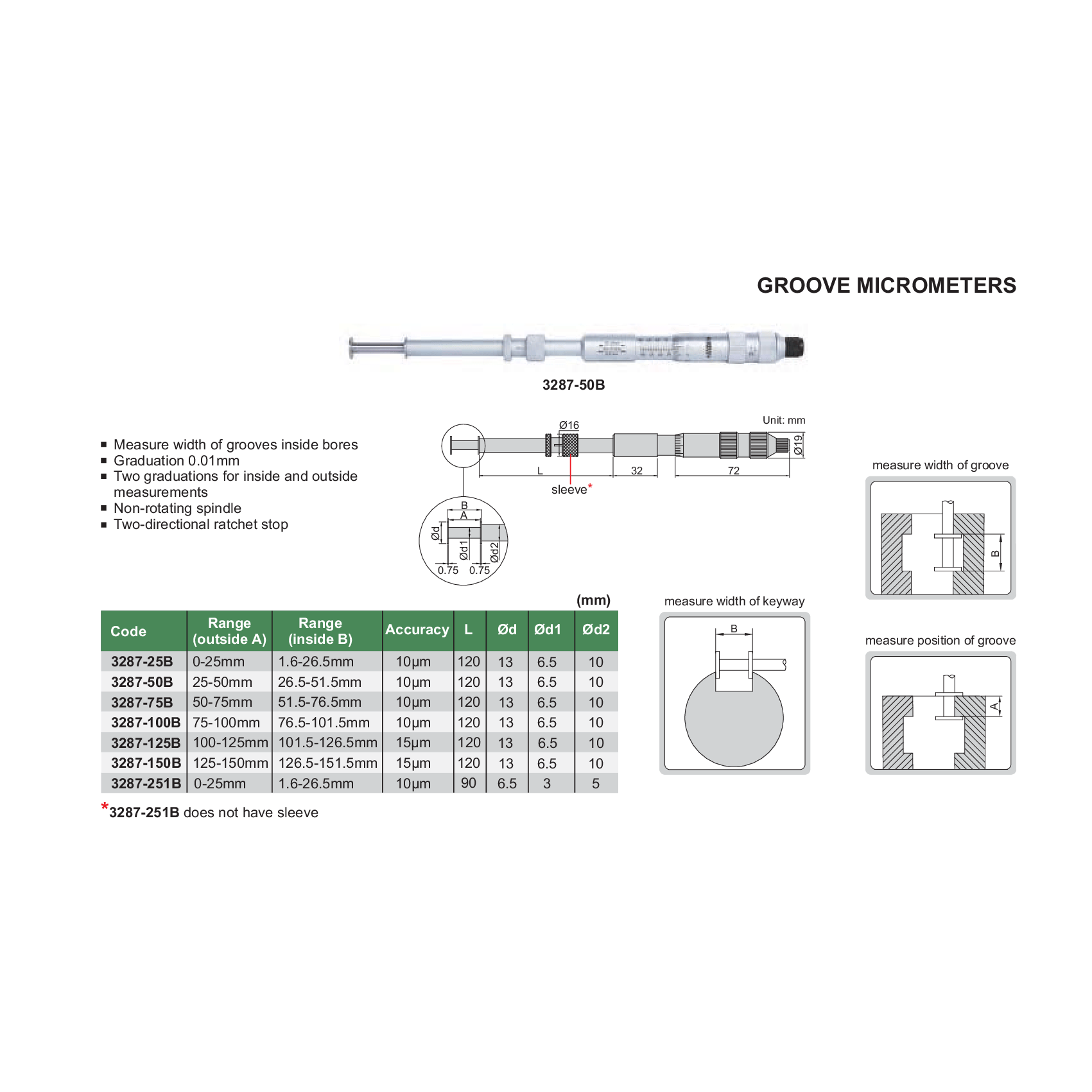

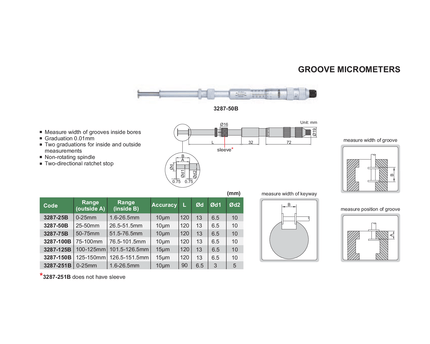

Specifications :
-
Part No: 3287-25B
-
Range (Outside A): 0–25 mm
-
Range (Inside B): 1.6–26.5 mm
-
Graduation: 0.01 mm
-
Accuracy: 10 µm
-
L: 120 mm
-
Ød: 13 mm
-
Ød1: 6.5 mm
-
Ød2: 10 mm
-
Features: Two graduations for inside and outside measurements, non-rotating spindle, two-directional ratchet stop
-
Applications: Measuring groove width, keyway width, and groove position inside bores
With its specialized groove-measuring capability, the INSIZE 3287-25B is an essential tool for machinists and inspectors working with components requiring precise internal groove measurements.
