Insize Hydraulic Mini Magnetic Stand

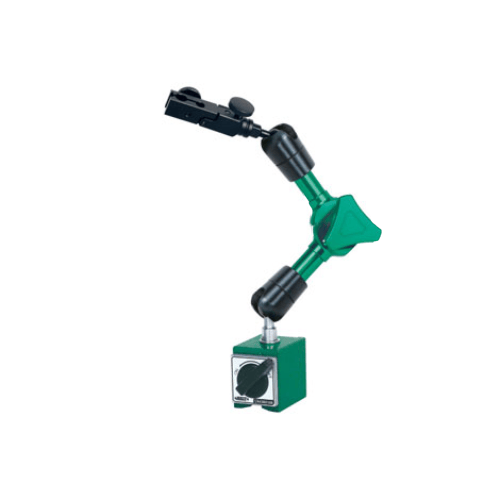

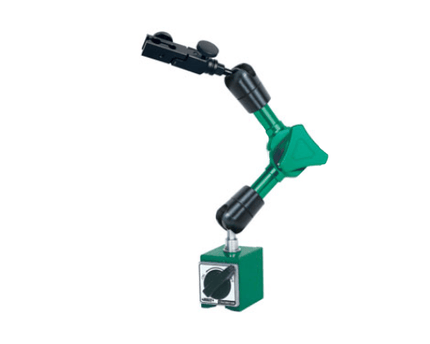

The Insize 6228-40 Hydraulic Mini Magnetic Stand is designed exclusively for dial test indicators. Featuring fine adjustment and a dovetail groove, it ensures the precise positioning of measuring instruments. Its adjustable hydraulic force provides flexible holding strength, making it highly reliable for precision measurement tasks in workshop and inspection environments.

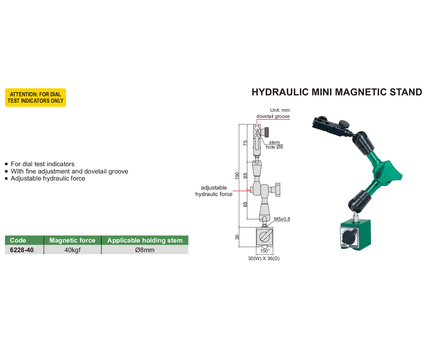

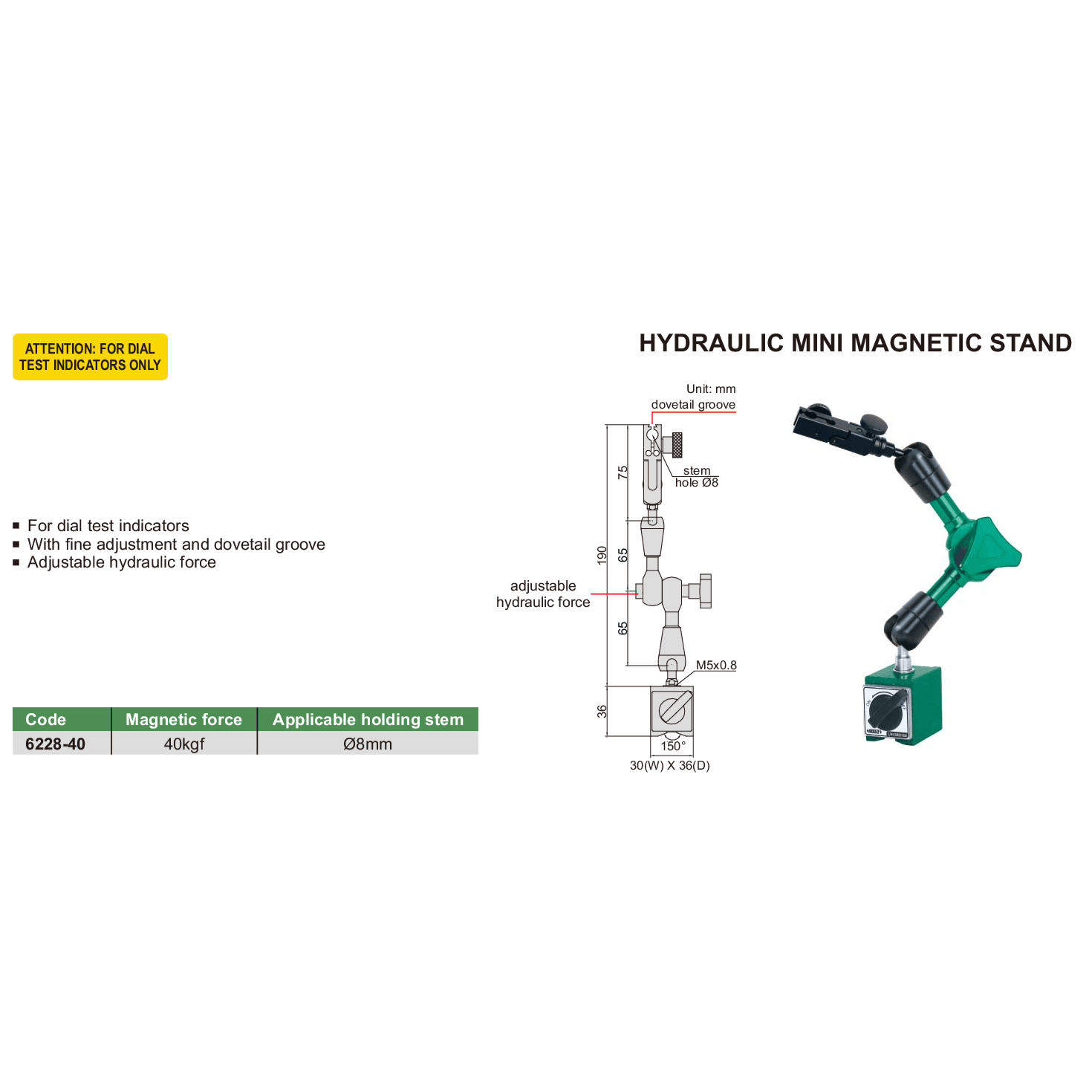

Specifications :
-
Part No: 6228-40
-
Magnetic Force: 40kgf
-
Applicable Holding Stem: Ø8mm
-
Base Size: 30(W) × 36(D) mm
-
Arm Length: 190 mm total
-
Stem Hole: Ø8 mm
-
Thread: M5 × 0.8
-
Switch Angle: 150°
-
Special Features: Adjustable hydraulic force, dovetail groove, fine adjustment
-
Applications: Precision holding of dial test indicators during measurement and inspection
Compact, adjustable, and precise, the INSIZE 6228-40 ensures reliable performance for dial test indicator applications.
