Description

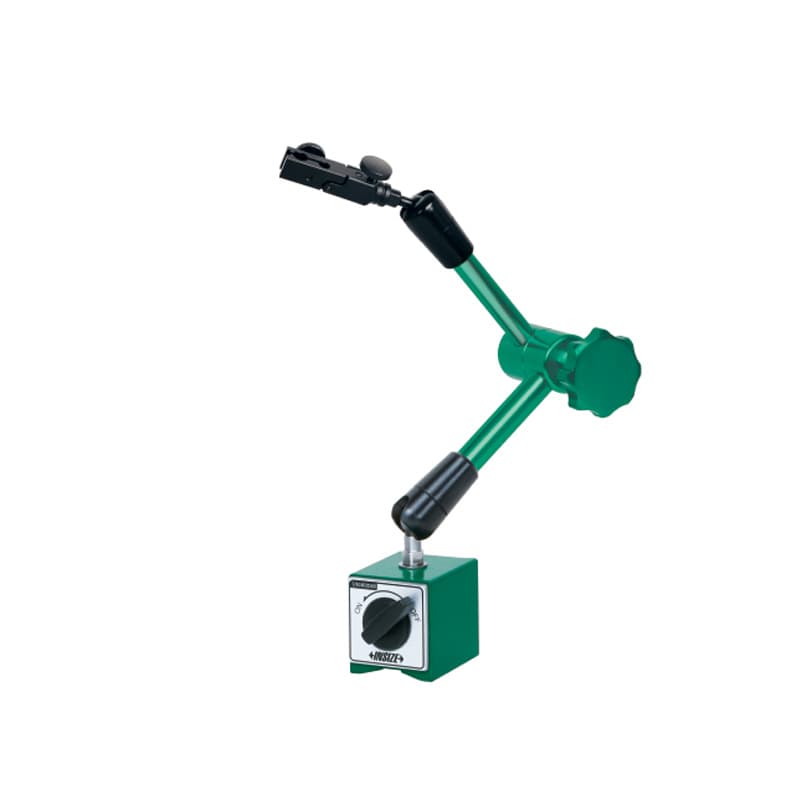

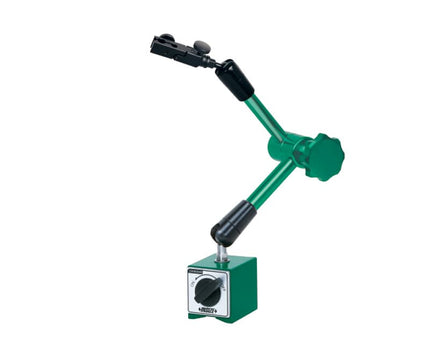

The Insize 6229-80 Hydraulic Universal Magnetic Stand is a precision inspection accessory designed for secure positioning of digital indicators, dial indicators, and dial test indicators. Featuring adjustable hydraulic pressure and a fine adjustment mechanism, this magnetic stand delivers stable and accurate indicator positioning for workshop and inspection applications.
Built with a powerful 80kgf magnetic base, the stand ensures strong holding performance on ferrous surfaces while allowing smooth and flexible arm movement. The integrated dovetail groove and Ø8mm stem hole provide broad compatibility with a wide range of measuring indicators.
Key Features & Benefits
- Hydraulic pressure is adjustable for controlled movement
- Strong 80kgf magnetic holding force
- Fine adjustment mechanism for precise positioning
- Suitable for digital and dial indicators
- Compatible with dial test indicators
- Includes dovetail groove mounting
- Ø8mm applicable holding stem
- Rigid articulated arm construction
- Quick magnetic ON/OFF base control
- Ideal for precision inspection and setup tasks
Technical Specifications
- Part Number: 6229-80
- Product Type: Hydraulic Universal Magnetic Stand
- Magnetic Force: 80kgf
- Applicable Holding Stem: Ø8mm
- Fine Adjustment: Yes
- Dovetail Groove: Included
- Hydraulic Pressure: Adjustable
- Base Size: 50mm(W) × 60mm(D)
- Thread Size: M8 × 1.25
- Arm Diameter: Ø14mm / Ø16mm
- Application: Indicator holding and precision inspection
Applications
- Dial indicator mounting
- Digital indicator positioning
- Dial test indicator setup
- Machining inspection
- Precision alignment work
- Workshop measurement tasks
- Surface inspection applications
- Toolroom and quality control use
Insize precision measuring and inspection tools are widely trusted in machining, manufacturing, and engineering industries for their reliability, durability, and consistent measurement performance.
The Insize 6229-80 Hydraulic Universal Magnetic Stand provides secure indicator holding and precise adjustment for demanding industrial inspection applications.
