Description

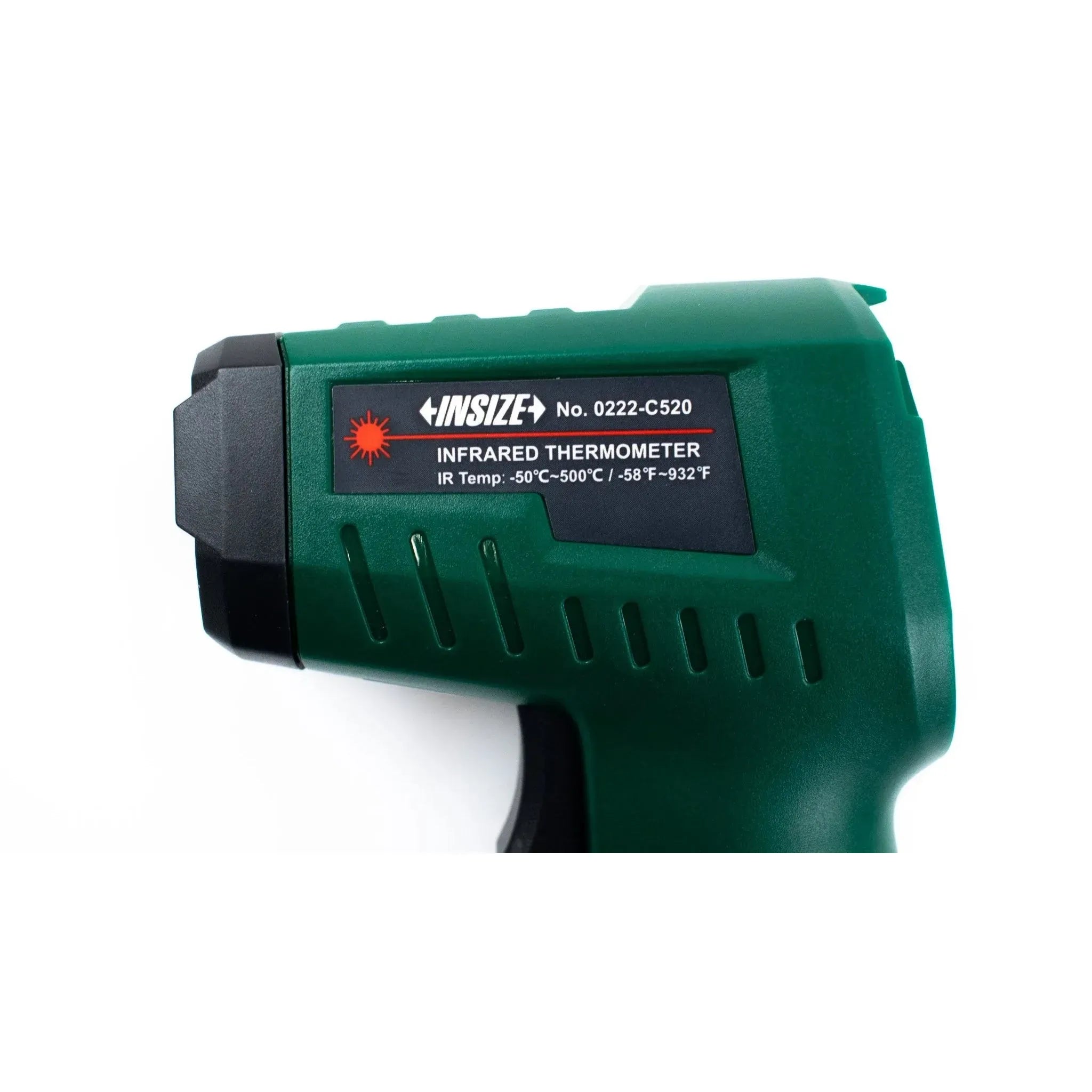

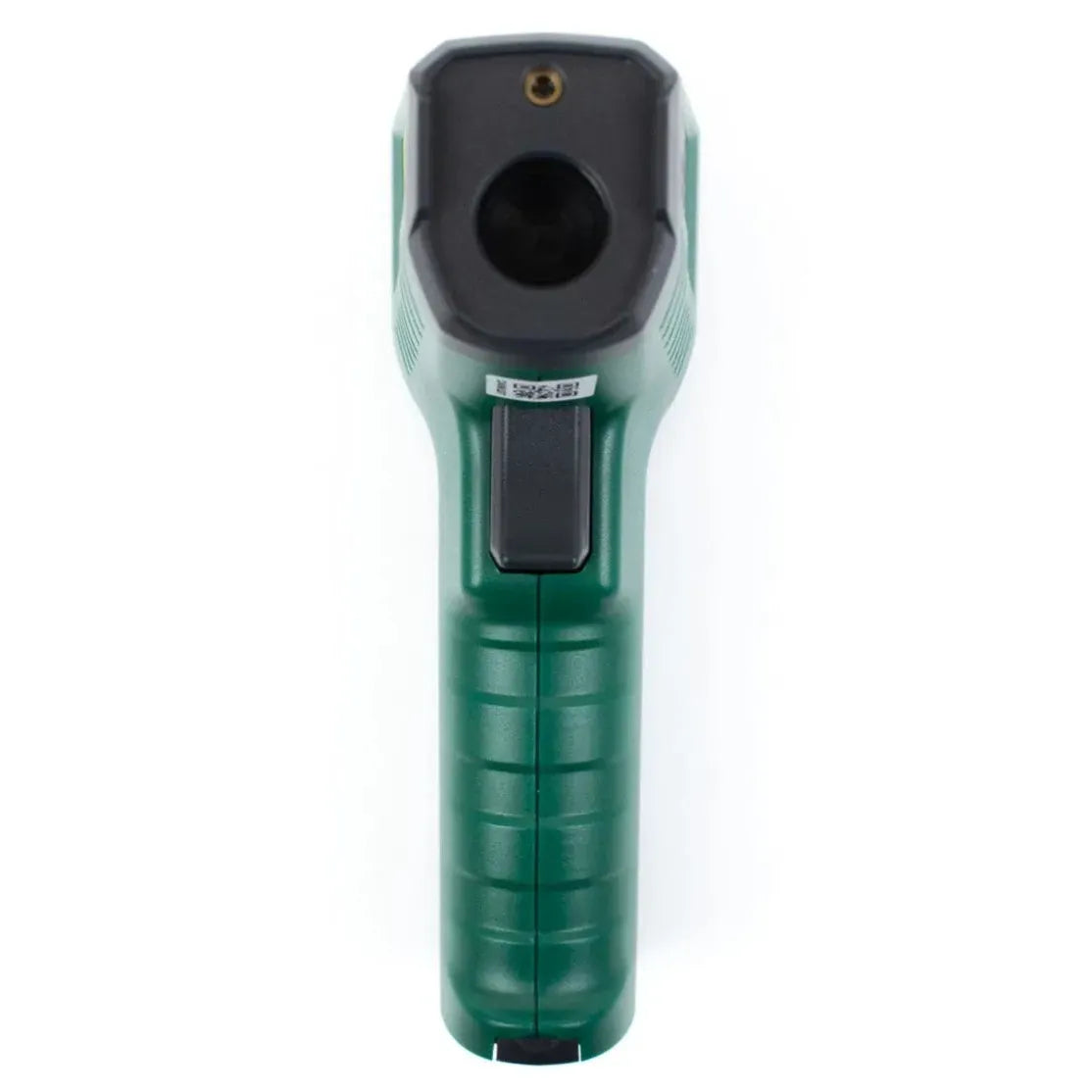

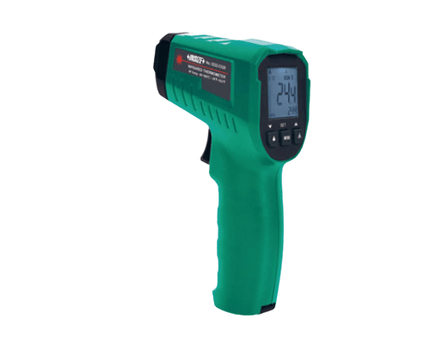

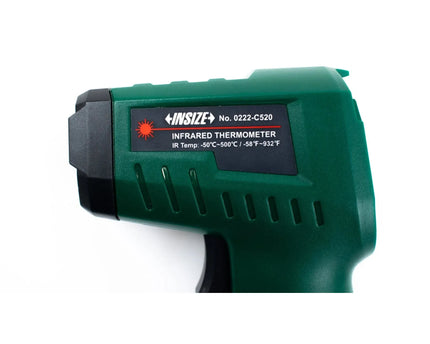

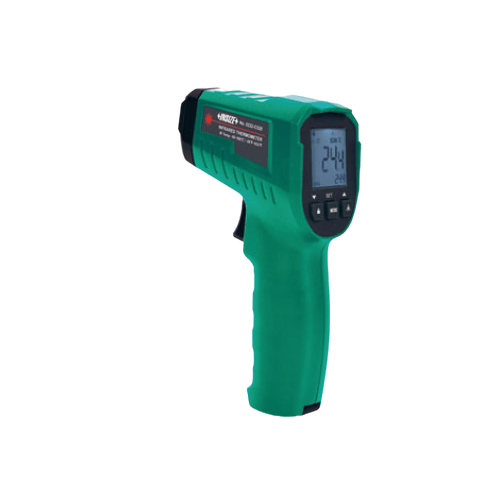

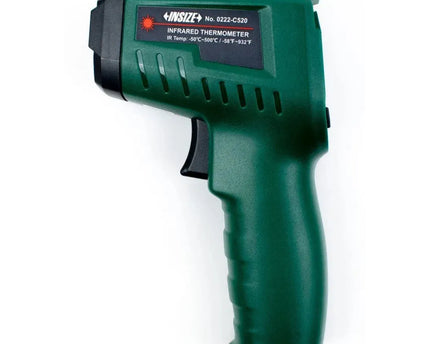

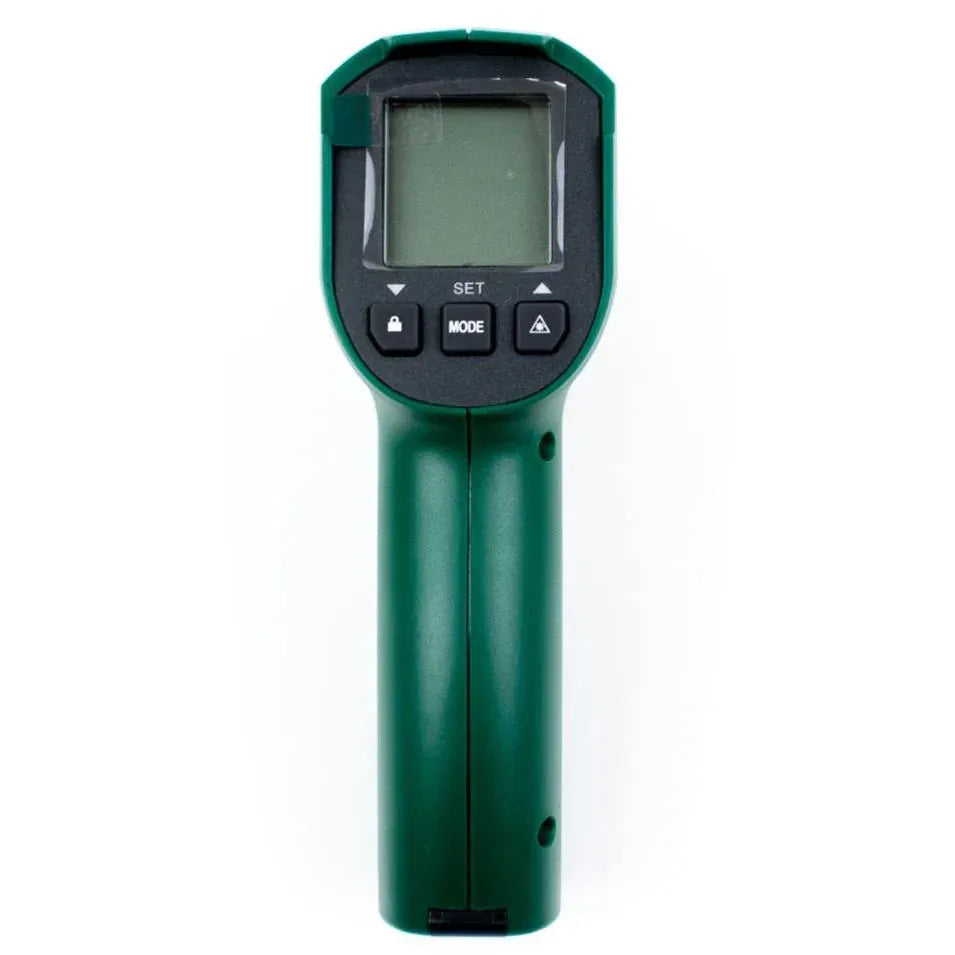

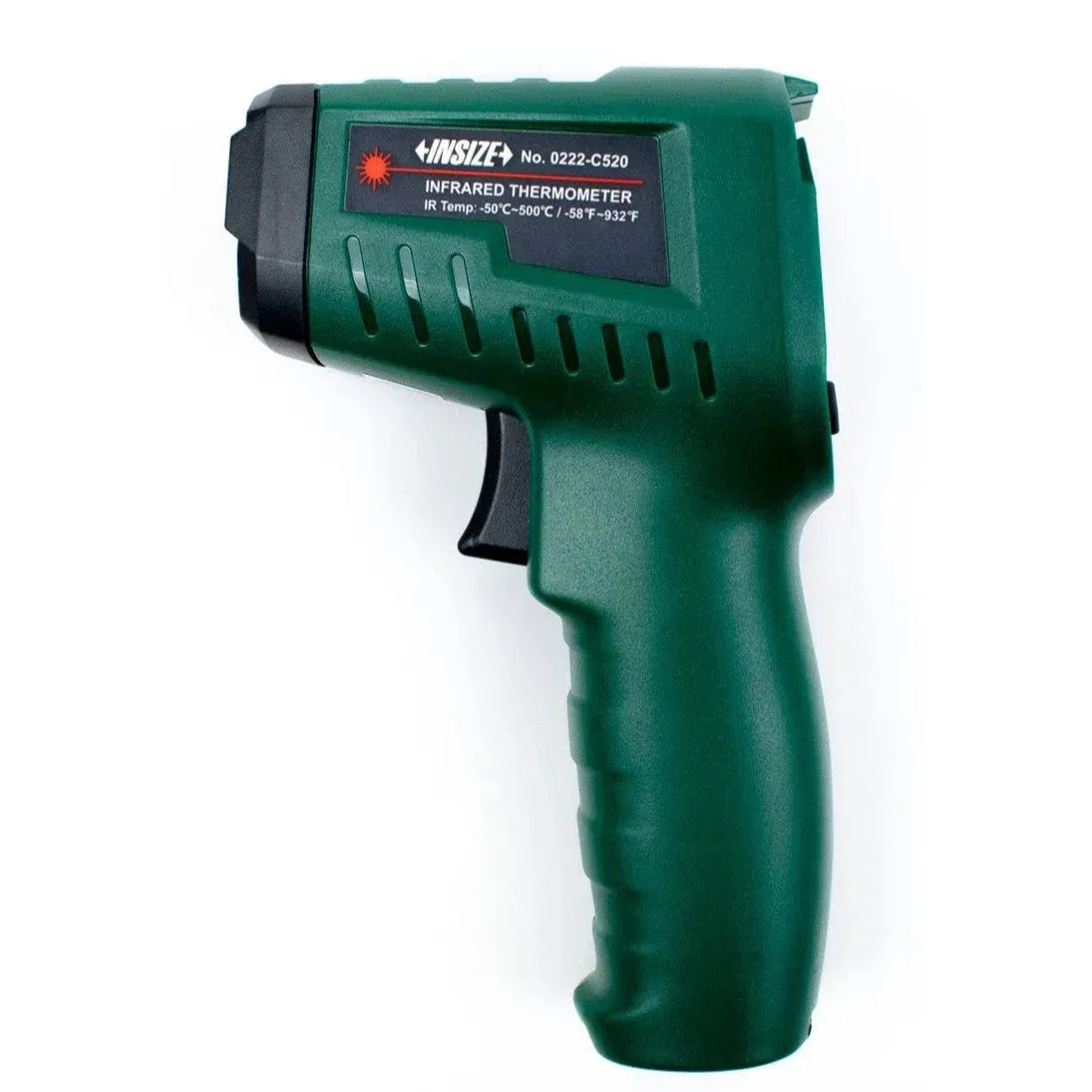

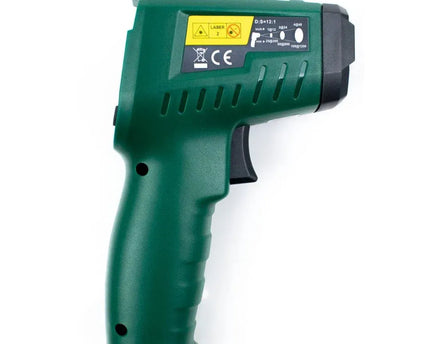

Insize Infrared Thermometer (Basic Type)
The INSIZE 0222-C520 Infrared Thermometer enables quick, contact-free temperature measurement with a wide range and fast response. It features MAX/MIN/AVG/DIF modes, high/low alarms, an adjustable emissivity for different surfaces, and a targeting laser for precise aiming—ideal for maintenance, workshop, and inspection tasks.

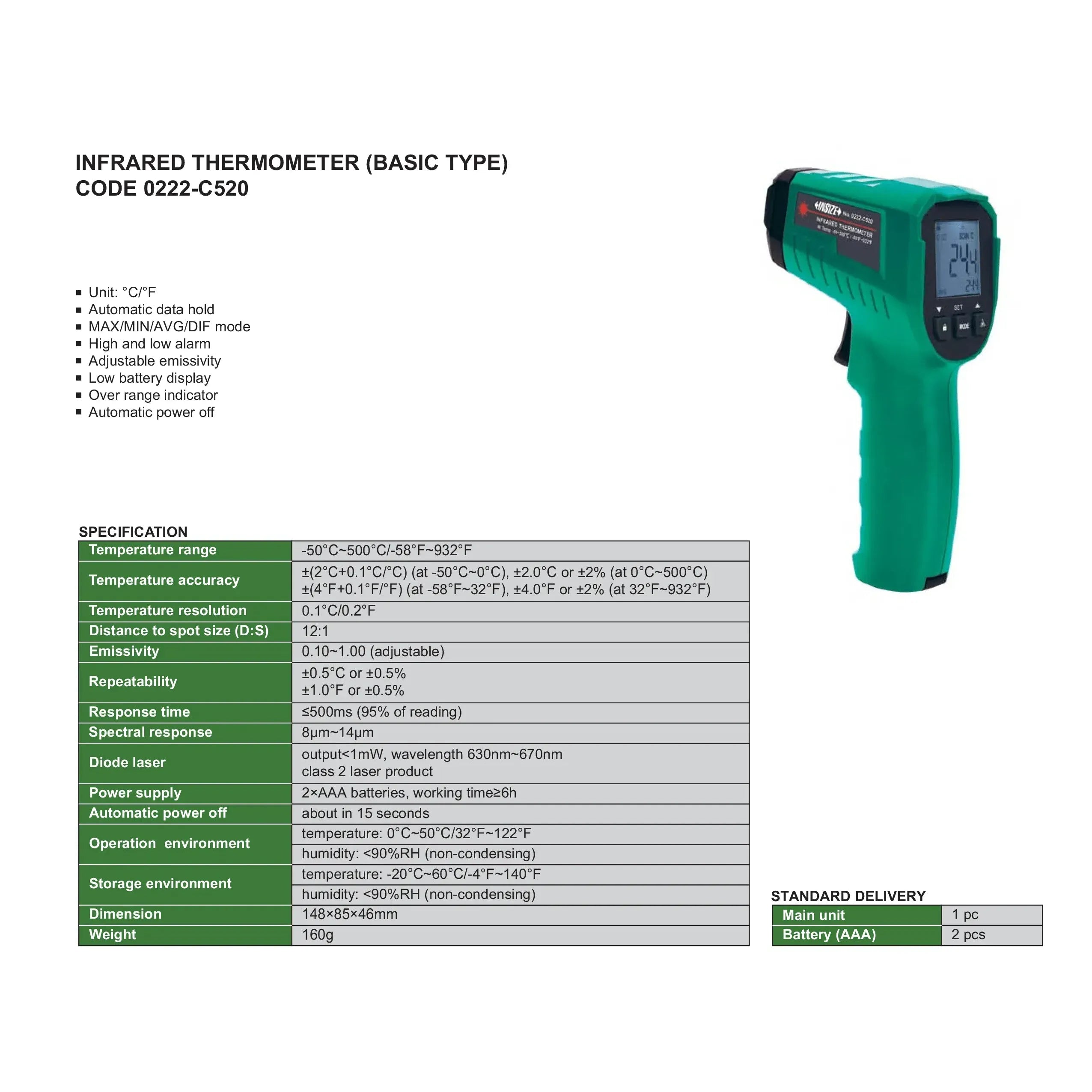

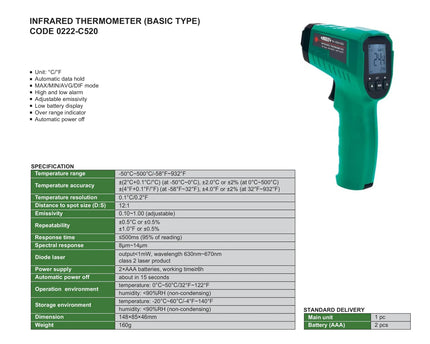

Specifications :
-
Part No: 0222-C520
-
Temperature Range: –50 °C to 500 °C (–58 °F to 932 °F)
-
Accuracy: ±3.0 °C (–50 °C to 0 °C), ±2.0 °C or ±2% (0 °C to 500 °C)
-
Resolution: 0.1 °C / 0.2 °F
-

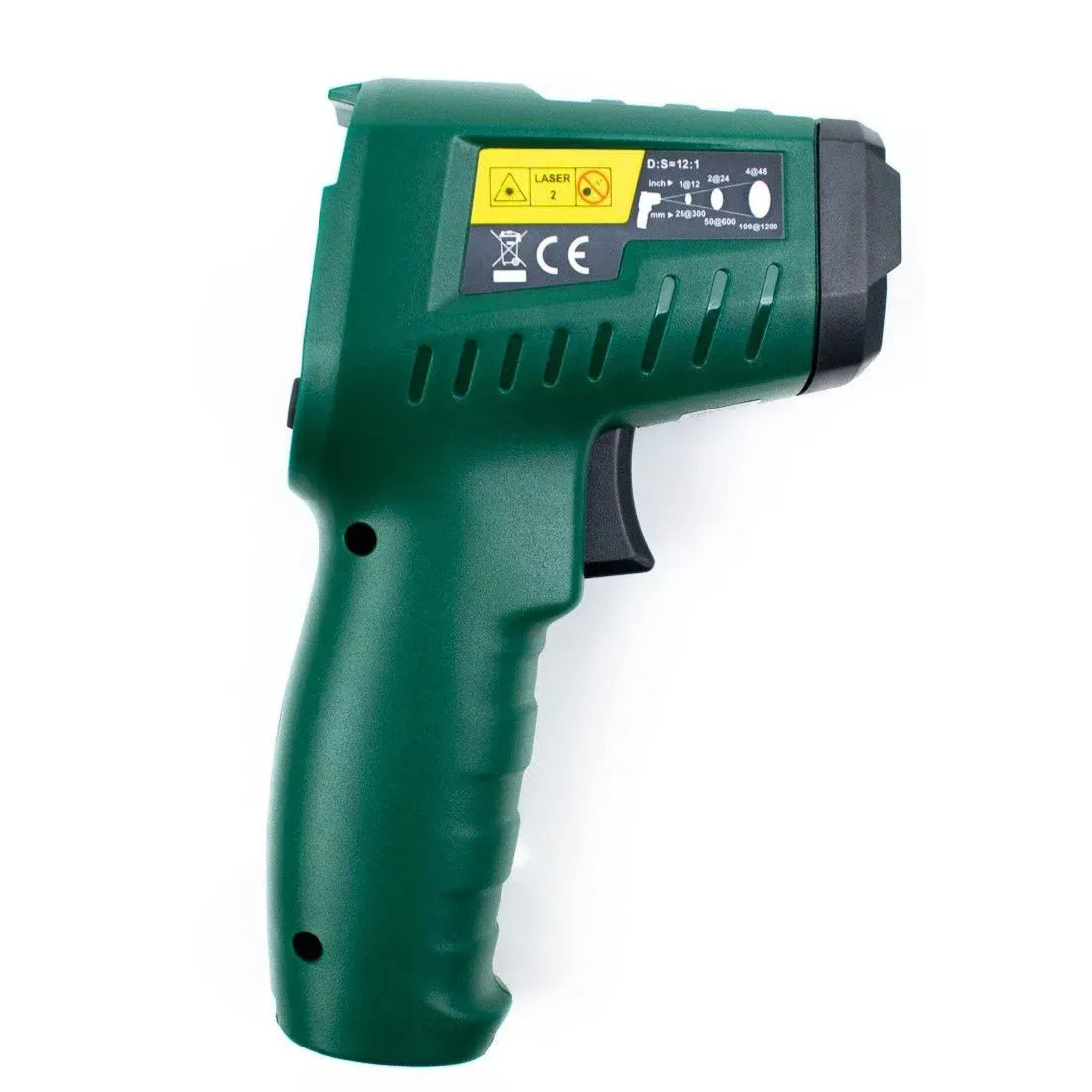

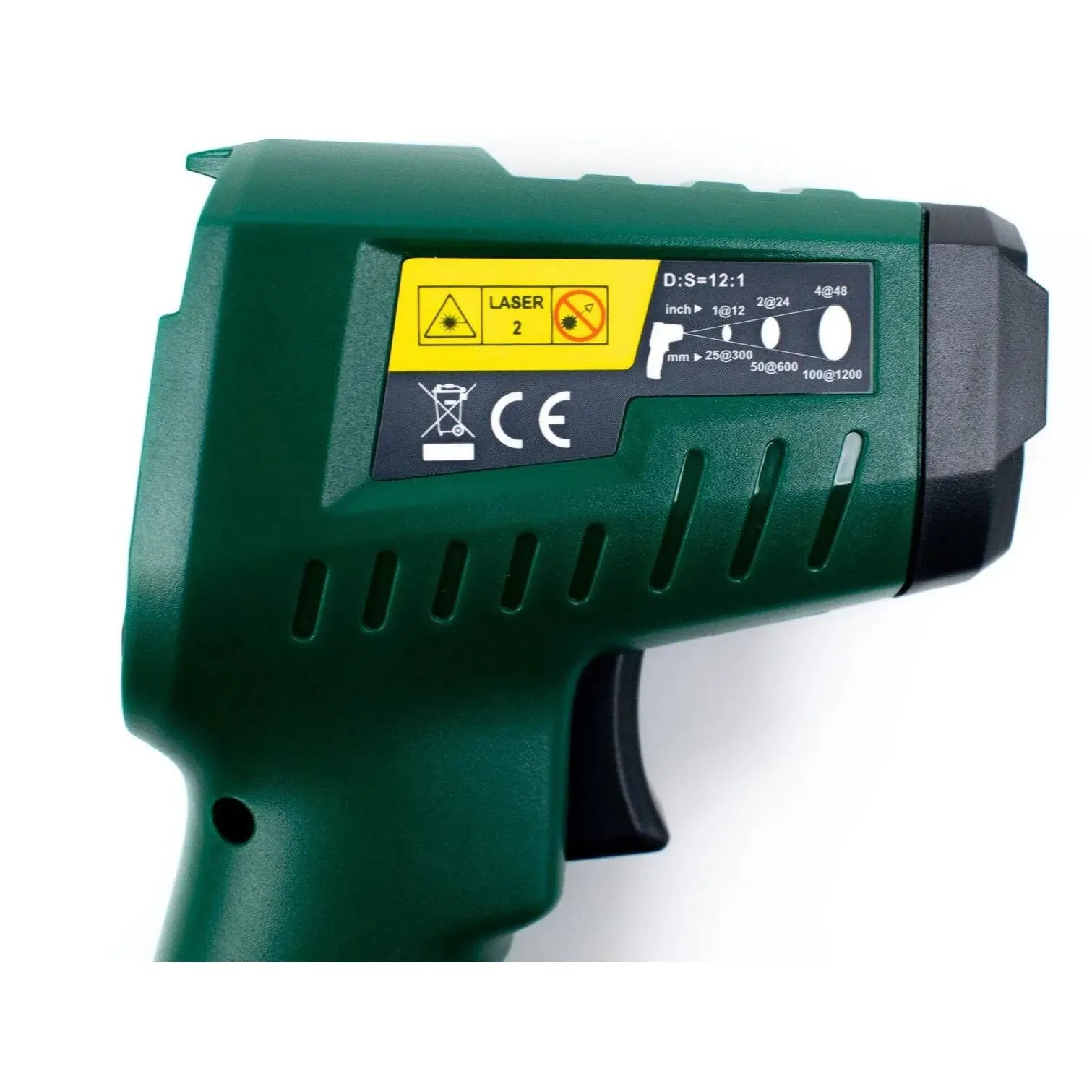

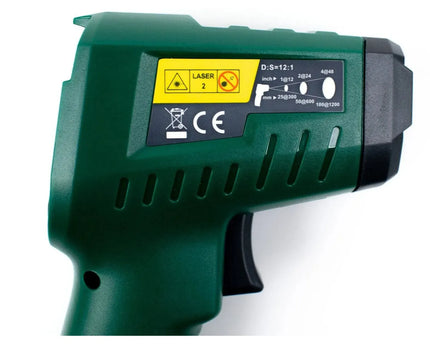

Distance-to-Spot (D:S): 12:1
-
Emissivity: 0.10–1.00 (adjustable)
-
Repeatability: ±0.5 °C or ±0.5% (typ.)
-
Response Time: <500 ms (95% of reading)
-
Spectral Response: 8 µm–14 µm
-

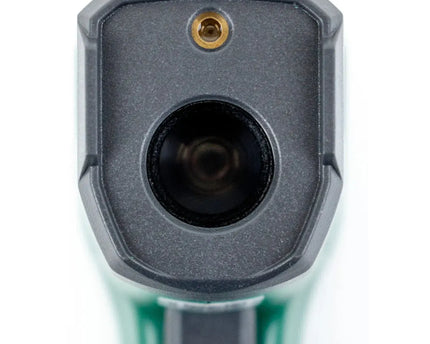

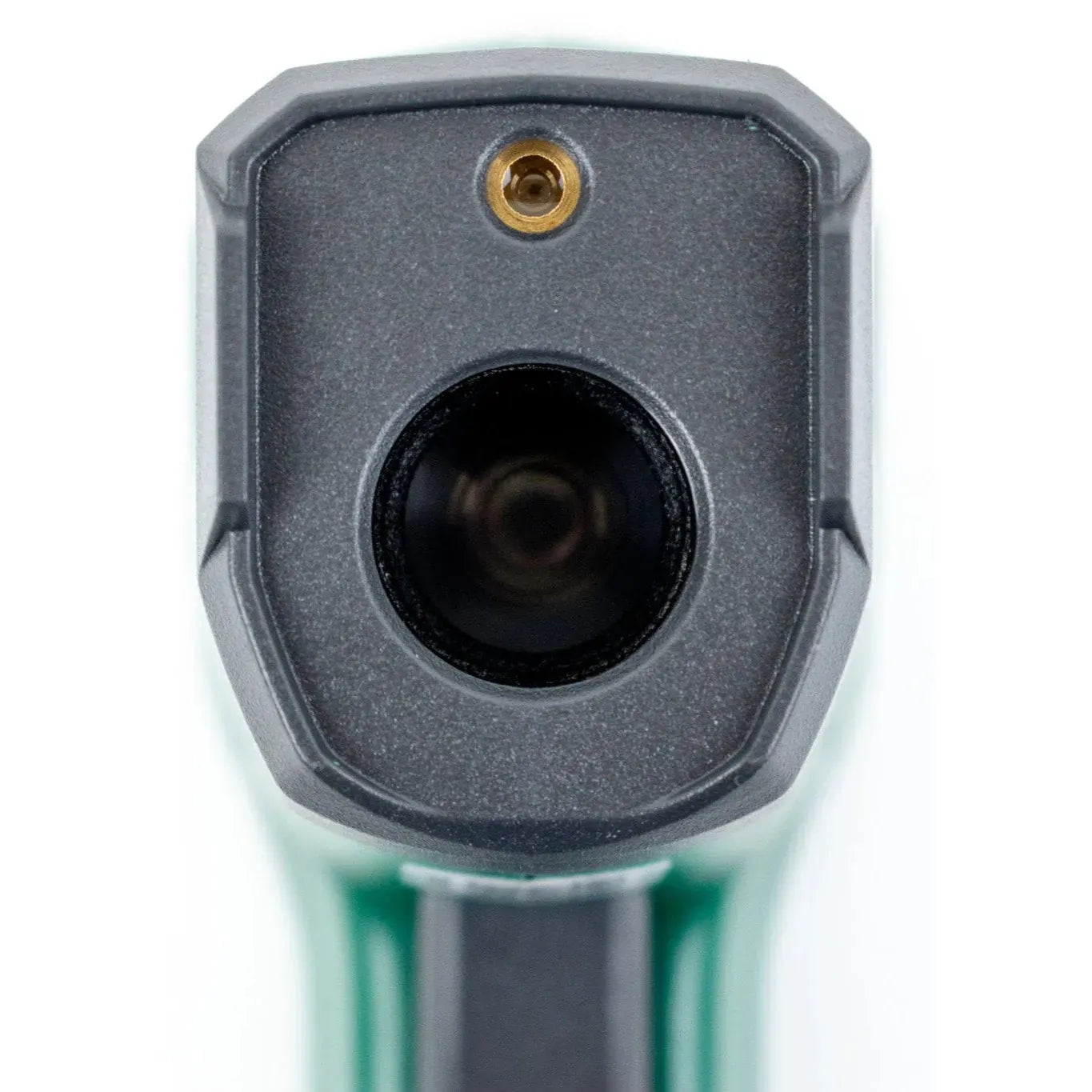

Laser: Single-spot, Class 2, <1 mW, 630–670 nm
-

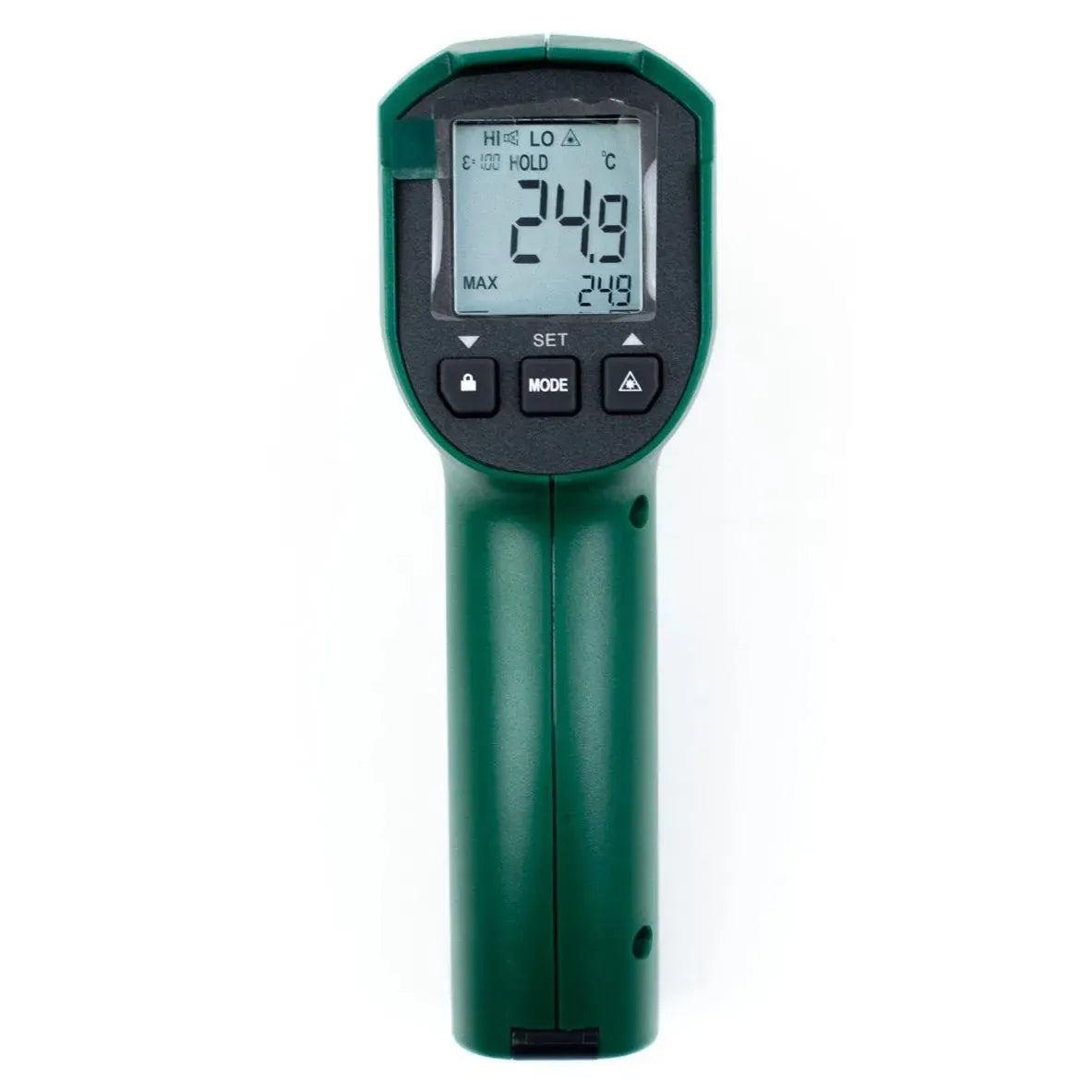

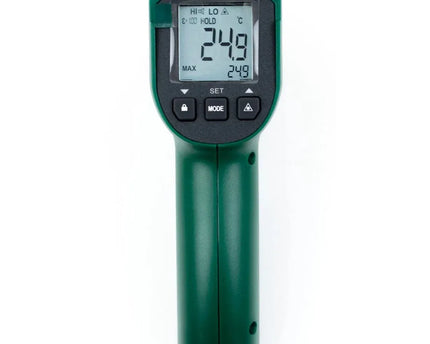

Functions: MAX/MIN/AVG/DIF, high/low alarm, automatic data hold, low battery indicator
-
Power Supply: 2× AAA batteries (included), working time ≈ 6 h
-
Automatic Power Off: About 15 s
-
Operating Environment: 0 °C–50 °C / <90%RH (non-condensing)
-
Storage Environment: –20 °C–60 °C / <90%RH (non-condensing)
-
Dimensions: 148 × 85 × 46 mm
-
Weight: 160 g
-
Standard Delivery: Main unit ×1, AAA battery ×2
-
Application: Contact-free temperature checks for maintenance, workshop, and inspection
The INSIZE 0222-C520 offers fast, reliable infrared temperature measurement with practical features for everyday industrial and workshop use.
