Description

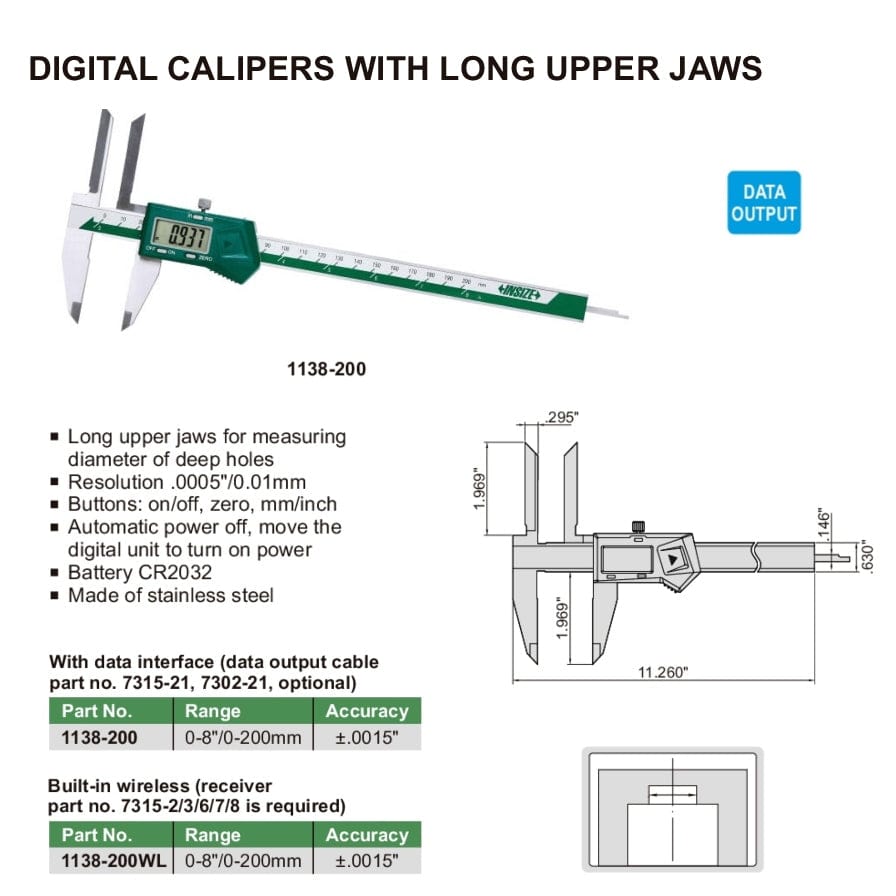

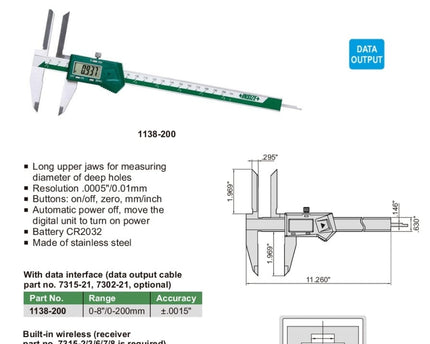

Insize Electronic Caliper 1138-200
the Insize 1138-200 Electronic Caliper is a precision measuring tool designed for accuracy and reliability in demanding environments. Featuring extra-long upper jaws, it is ideal for measuring the diameter of deep or hard-to-reach internal holes. With a measuring range of 0-8" (0-200mm) and a resolution of 0.01mm/0.0005", it delivers consistent, high-accuracy results suited to machining, metalworking, and quality control applications.
Made from hardened stainless steel, the caliper is built to withstand workshop conditions while maintaining long-term performance. the digital display is simple to operate with on/off, zero reset, and mm/inch conversion functions. an automatic wake feature activates the display when the caliper is moved, helping conserve battery life. For data-driven environments, it also supports spc output with an optional cable.
Specifications :
-
Part No: 1138-200
-
Measuring Range: 0-8" / 0-200mm
-
Accuracy: ±0.04mm
-
Resolution: 0.01mm / 0.0005"
-
Display: Digital
-
Material: Stainless Steel
-
Power Supply: CR2032 battery
-
Data Output: Compatible with SPC Cable (optional)
Key Features :
- Long upper jaws for measuring deep or stepped internal holes
- Digital display with high-resolution readout
- Thumb roller for smooth and precise movement
- On/Off, zero reset, and mm/inch conversion functionality
- Automatic wake-up function when moved
- Durable stainless steel construction
- SPC output compatible for digital data collection
A reliable measuring solution for professional use, the insize 1138-200 offers precision, ease of use, and durability in one robust digital caliper.
