Description

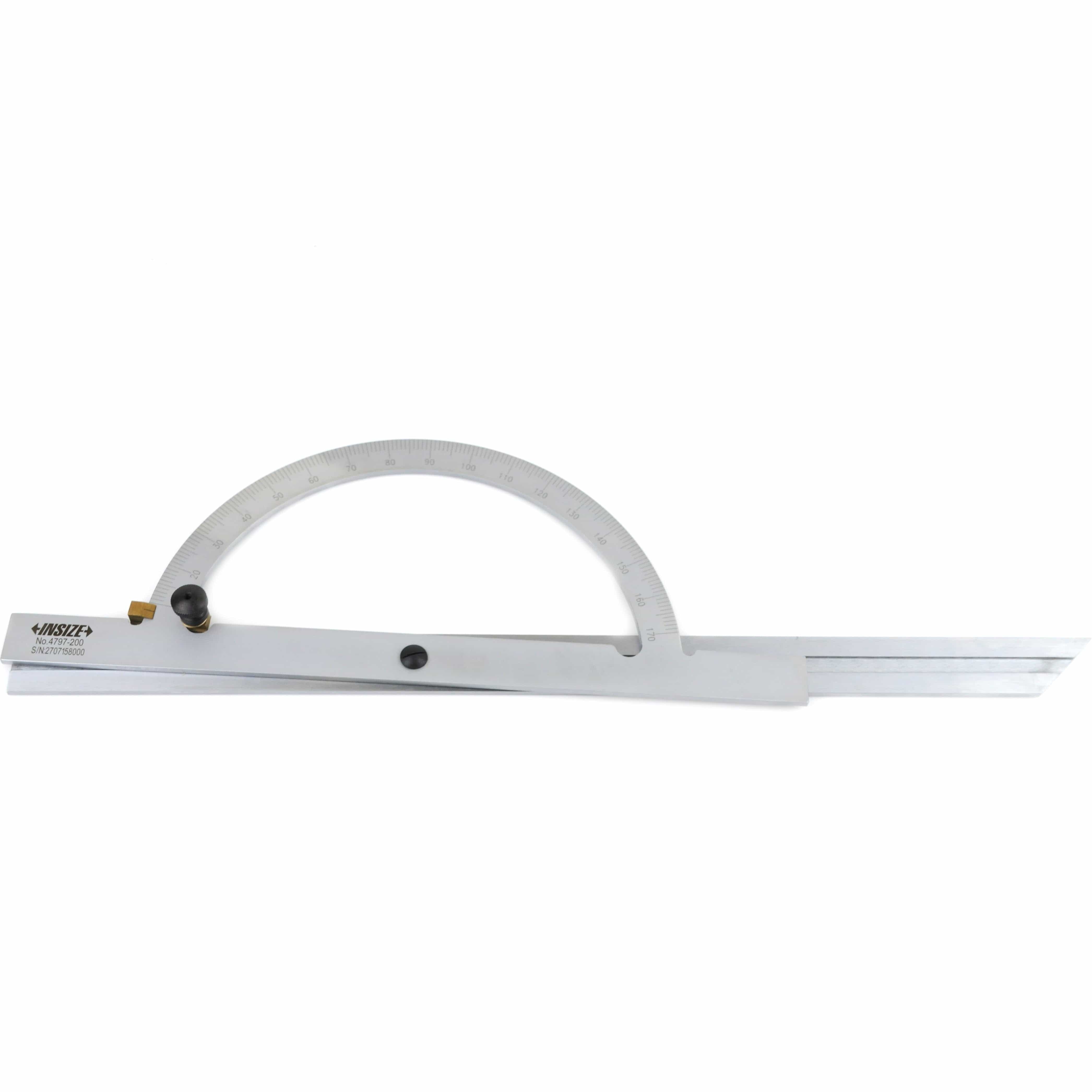

Insize Protractor 10–170°
The Insize Protractor is a precision measuring tool designed for accurate angle measurement in machining, inspection, and layout applications. The movable blade with clamping screw allows angles to be set securely, providing consistent and repeatable measurement results over a wide range.

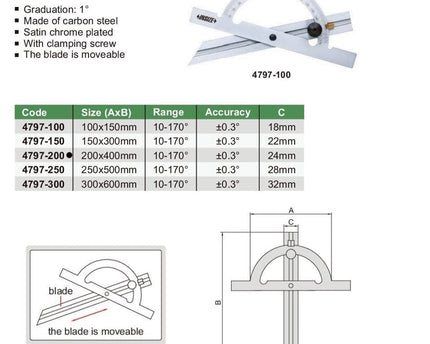

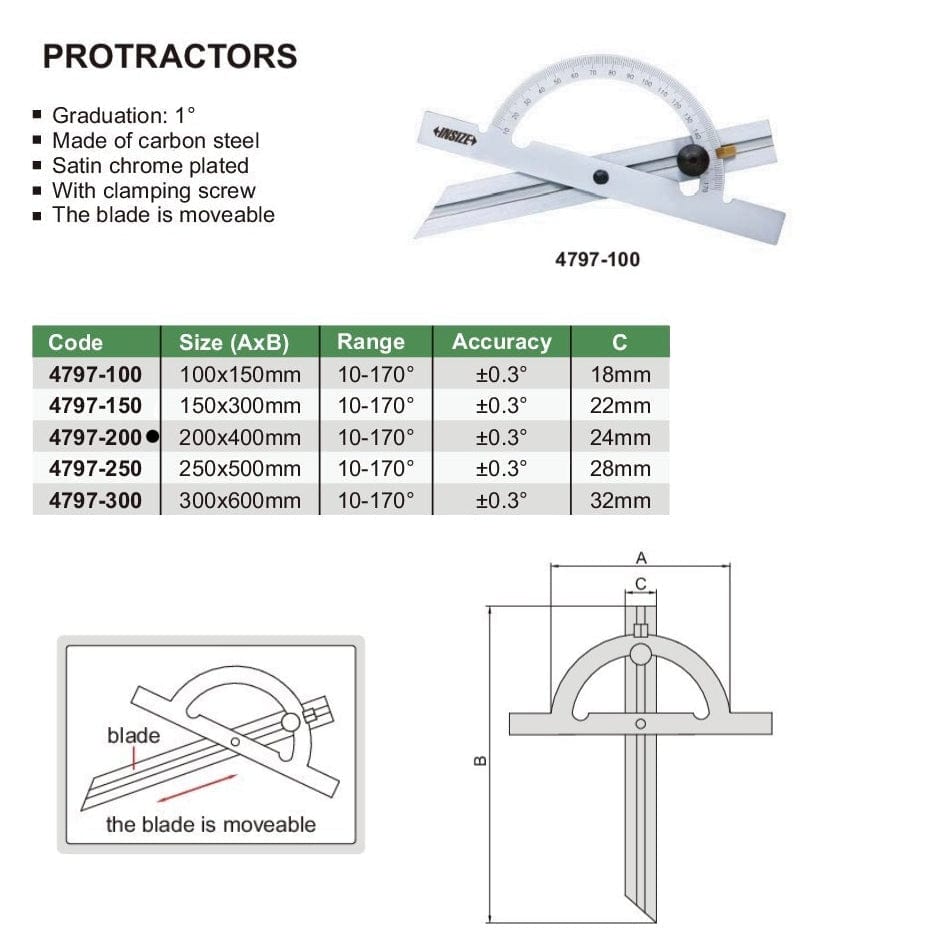

Specifications:
-
Part No.: 4797-200
-
Range: 10–170°
-
Graduation: 1°
-
Accuracy: ±0.3°
-
Size (A × B): 200 × 400 mm
-
C: 24 mm
-
Features: Movable blade with clamping screw
-
Finish: Satin chrome plated
-
Material: Carbon steel
Designed for durability and precision, this protractor is suitable for workshop, toolroom, and inspection use where reliable angle measurement is required.
