Description

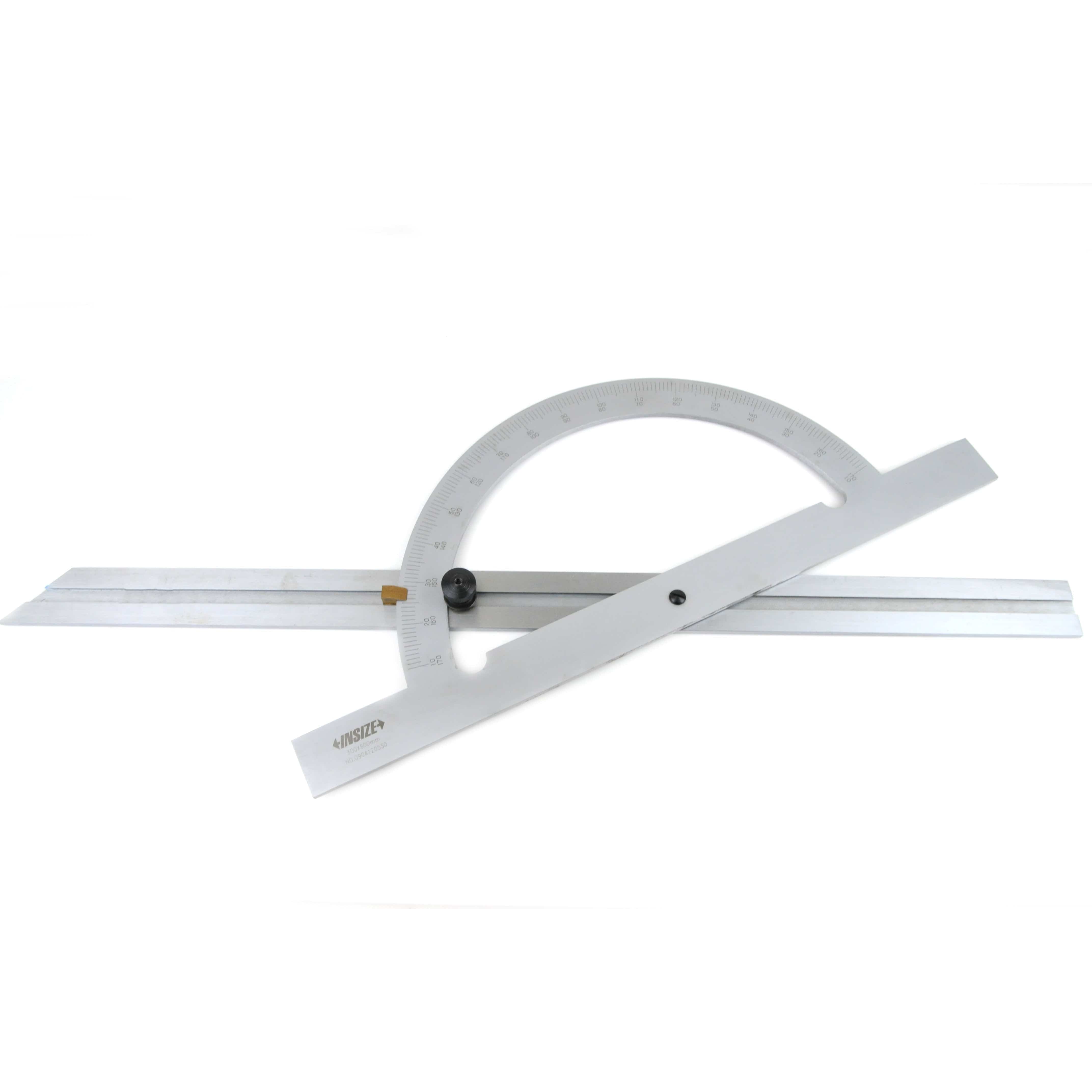

Insize Protractor 300 × 600 mm (10–170°)
The Insize Protractor is a precision angle-measuring instrument designed for machining, inspection, and layout work. Featuring a long movable blade with a secure clamping screw, it allows accurate setting and locking of angles for consistent, repeatable measurements across large workpieces.

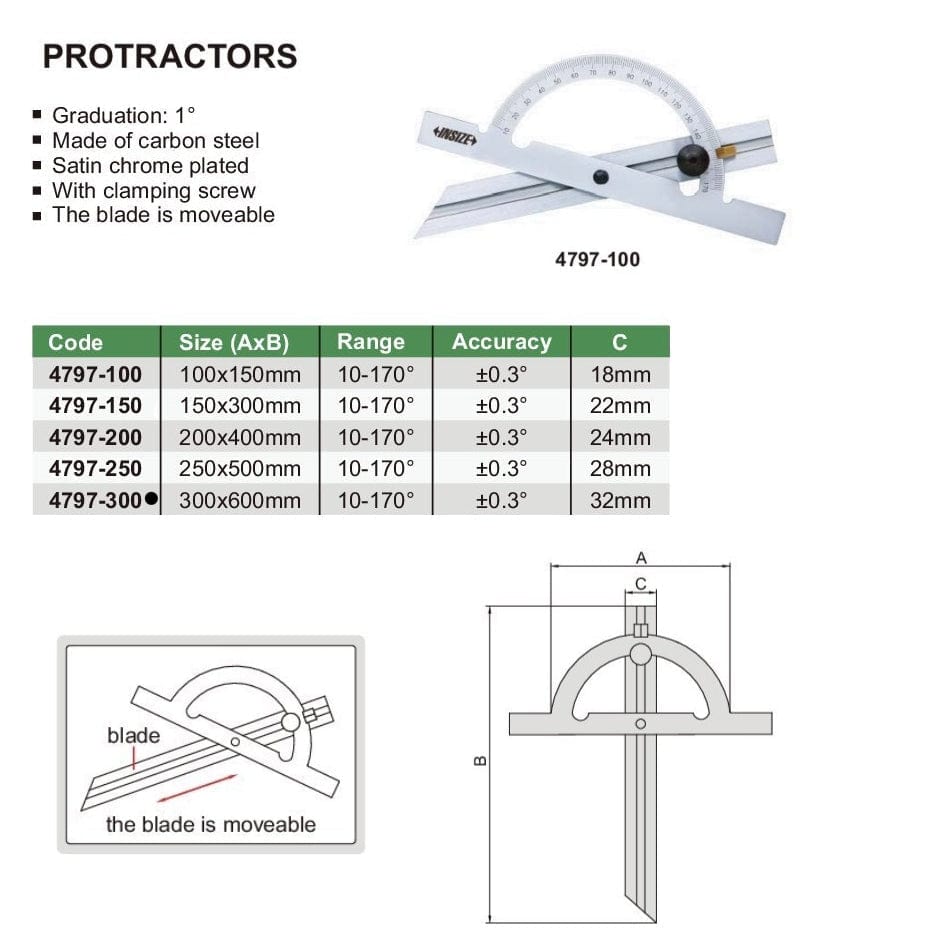

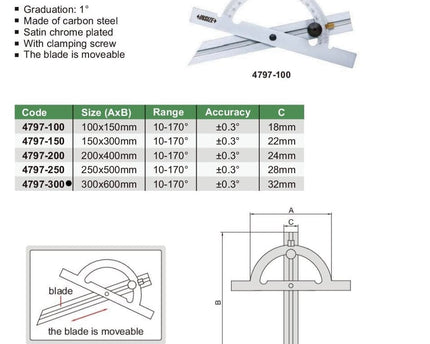

Specifications:
-
Part No.: 4797-300
-
Range: 10–170°
-
Graduation: 1°
-
Accuracy: ±0.3°
-
Size (A × B): 300 × 600 mm
-
C: 32 mm
-
Features: Movable blade with clamping screw
-
Finish: Satin chrome plated
-
Material: Carbon steel
Manufactured for durability and precision, this protractor delivers reliable angle measurement for workshop, toolroom, and inspection applications where accuracy over larger spans is required.
