Description

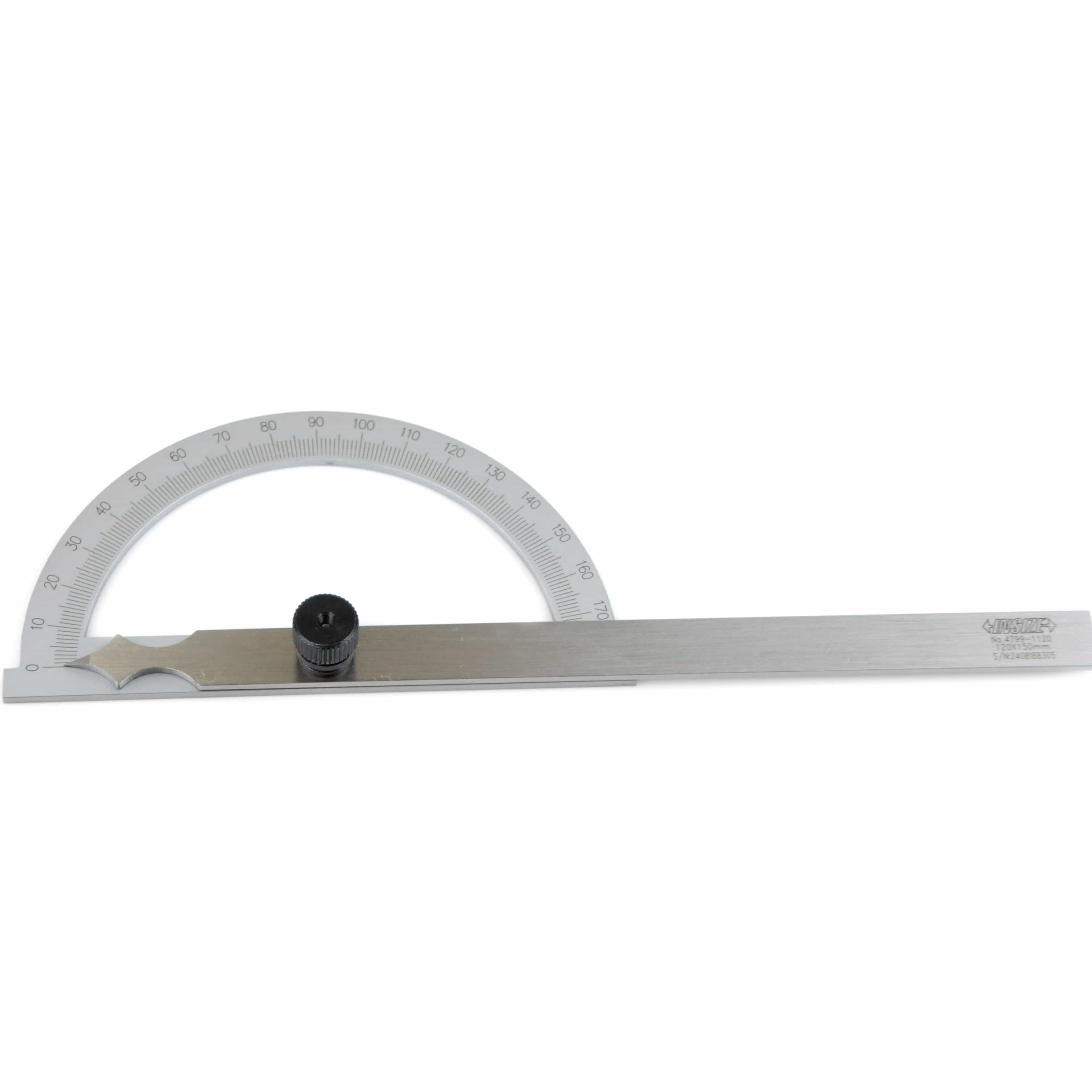

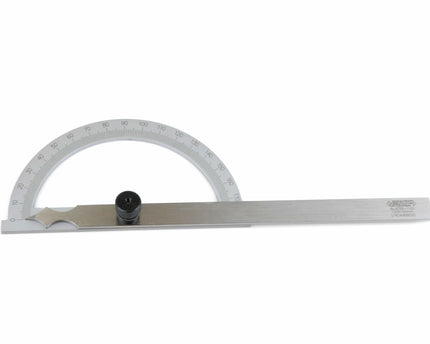

Insize Protractor 0–180° 120 × 150 mm
The Insize Protractor is a precision angle-measuring instrument designed for accurate layout, inspection, and machining applications. With a clear graduated scale and clamping screw, it allows angles to be set, read, and locked securely for repeatable measurement.

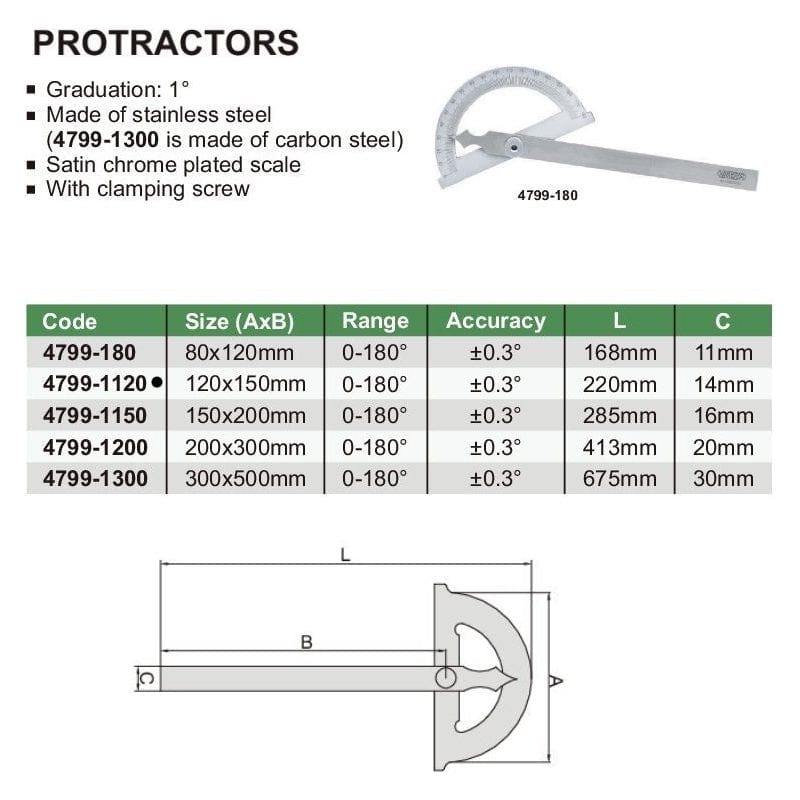

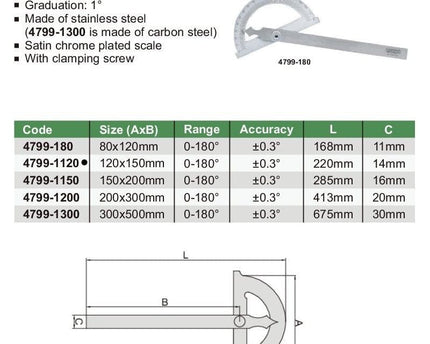

Specifications:
-
Part No.: 4799-1120
-
Range: 0–180°
-
Graduation: 1°
-
Accuracy: ±0.3°
-
Reading: 1°
-

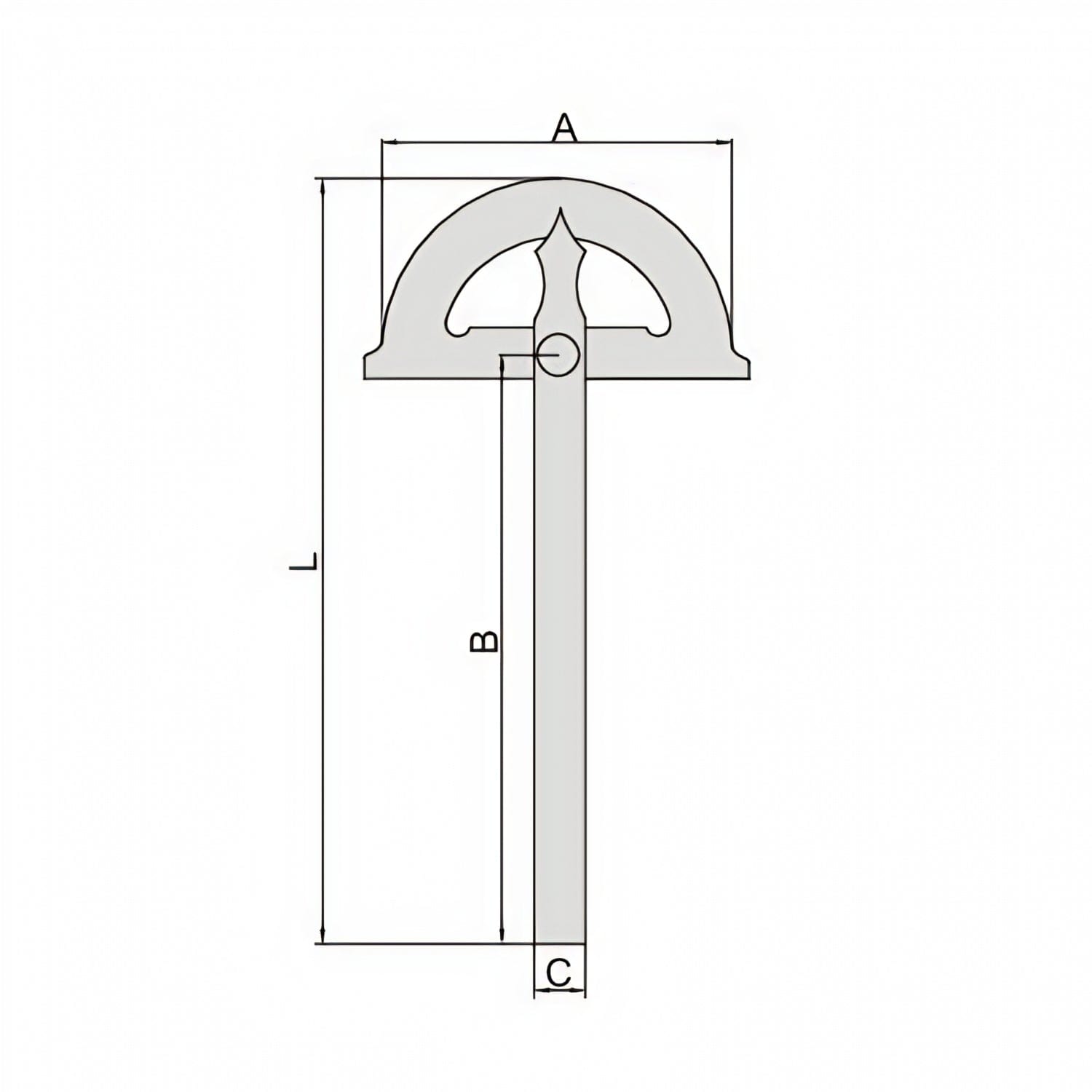

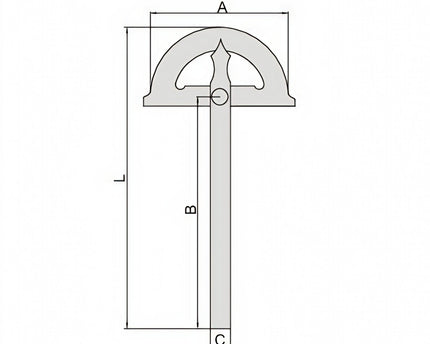

Size (A × B): 120 × 150 mm
-
L: 220 mm
-
C: 14 mm
-
Overall Dimensions: 265 × 90 × 24 mm
-
Finish: Satin chrome plated
-
Material: Stainless steel
-
Features: Includes a clamping screw
Designed for durability and reliable accuracy, this protractor is suitable for workshop, toolroom, and inspection use where precise angle measurement is required.
