Description
Insize Metric Pin Gage Set 4166-411
The Insize 4166-411 Metric Pin Gage Set is designed for high-precision internal diameter measurements, ideal for inspection, quality control, and toolroom applications. Featuring 41 pins ranging from 1.0mm to 5.0mm in 0.1mm increments, this set delivers consistent accuracy and repeatability across a wide range of internal gauging tasks.

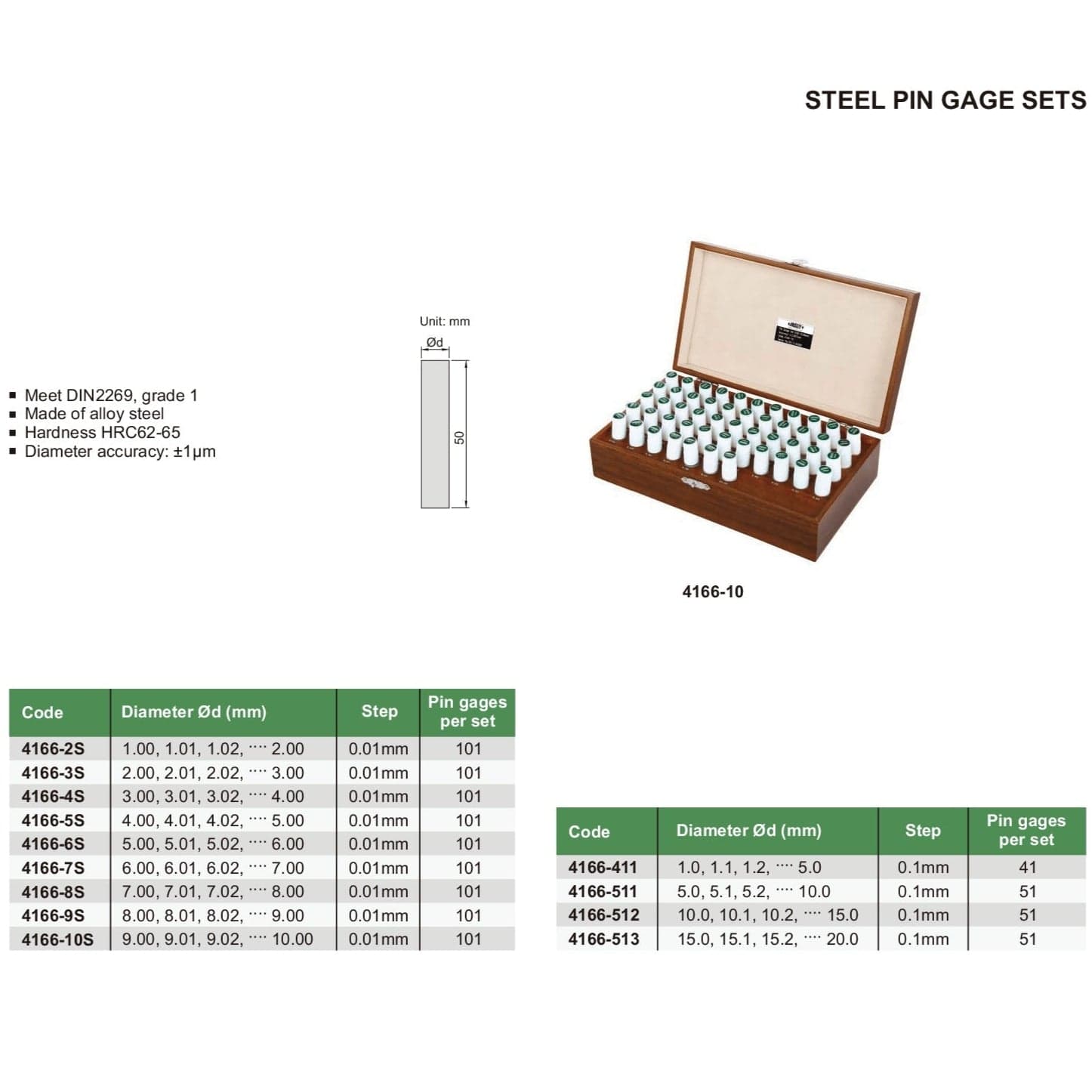

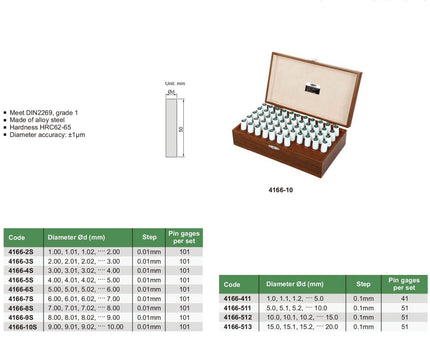

Specifications :
-
Part No: 4166-411
-
Range: 1.0mm to 5.0mm
-
Step Size: 0.1mm
-
Number of Pins: 41
-
Material: Alloy steel
-
Hardness: HRC 62–65
-
Accuracy: ±1µm
-
Standard: DIN2269 Grade 1
-
Category: Measuring
-
Subcategory: Pin gage sets
Key Features :
- 41-piece pin gage set ranging from 1.0mm to 5.0mm
- 0.1mm step size for reliable and repeatable internal measurements
- Manufactured from high-hardness alloy steel for wear resistance
- Diameter tolerance of ±1µm for high-precision applications
- Complies with DIN2269 Grade 1 specifications

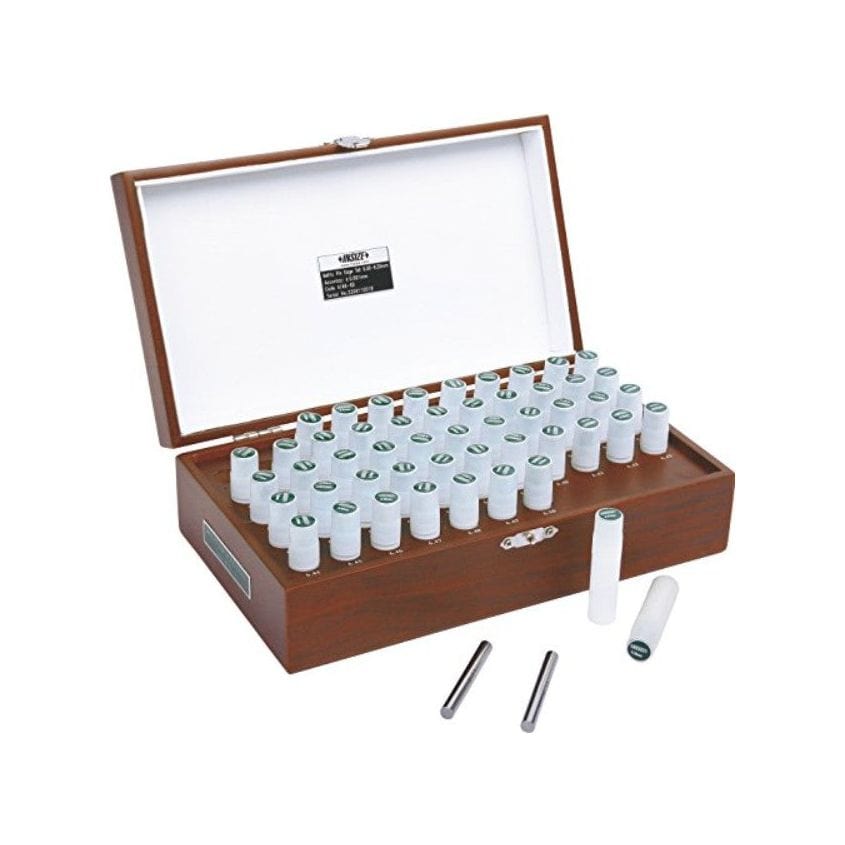

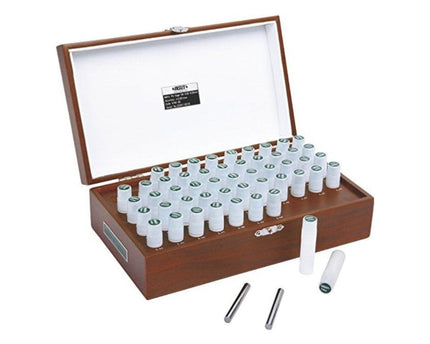

- Supplied in a durable wooden case for safe storage and ease of use
Applications :
- Inspection and measurement of bores, slots, and holes
- Precision gauging in manufacturing and machining environments
- Calibration, quality control, and toolroom setups
Engineered for accuracy and long-term performance, the Insize 4166-411 Metric Pin Gage Set is a must-have for professionals demanding precise internal measurements in critical inspection tasks.
