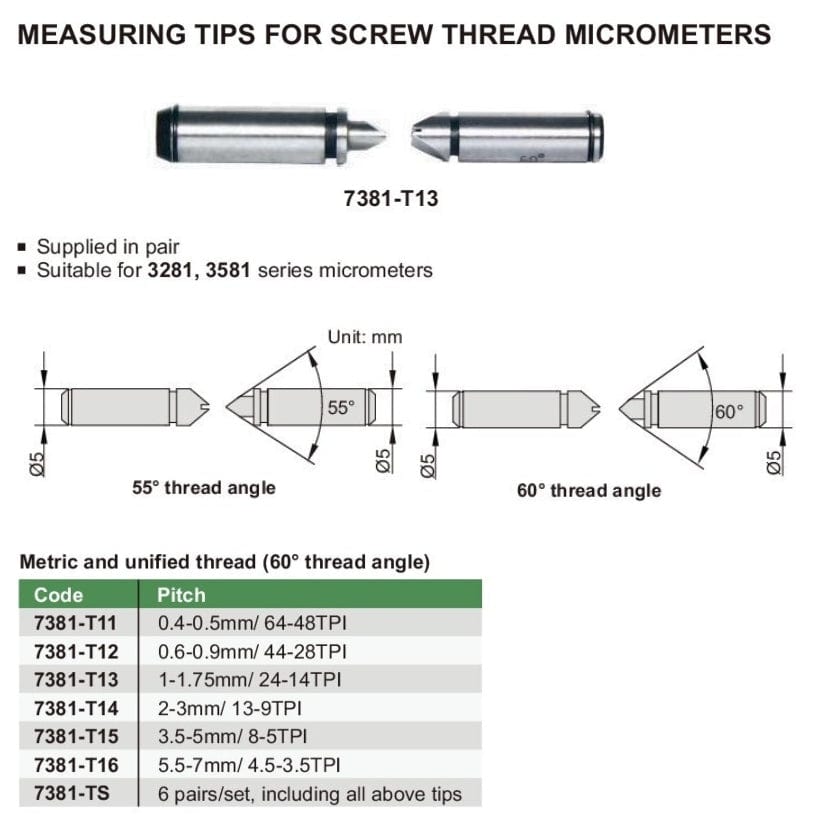

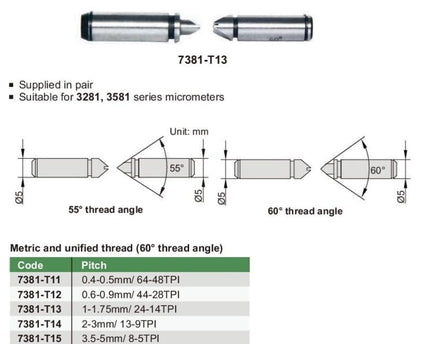

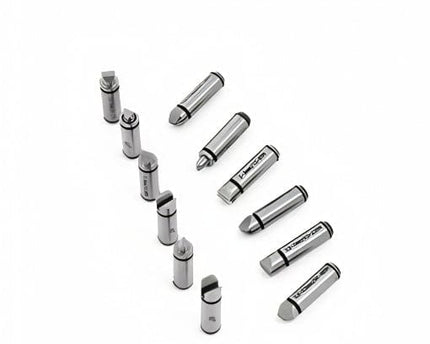

Insize Measuring Tips Set for Screw Thread Micrometers
The Insize Measuring Tips Set is a precision accessory kit designed for accurate screw thread measurement when used with compatible thread micrometers. Suitable for unified and metric threads with a 60° thread angle, this set delivers reliable and repeatable results across a wide range of thread pitches. Manufactured from durable materials, the tips ensure long service life and consistent measurement accuracy in inspection and quality control applications.
Key Features:
-
Part Number: 7381-TS
-

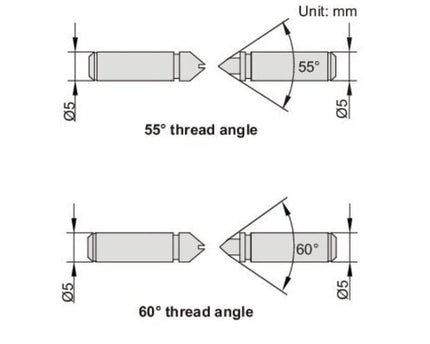

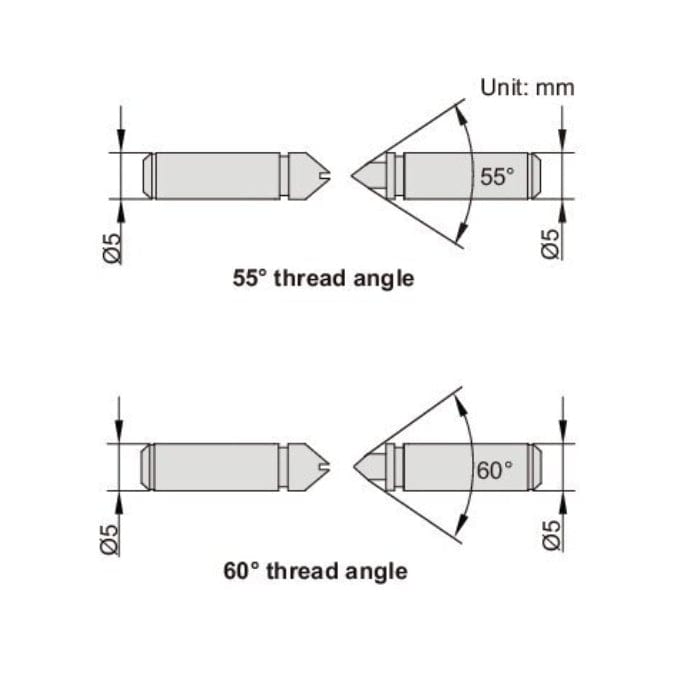

Thread Type: Metric and unified threads (60° thread angle)
-
Compatibility: Suitable for Insize 3281 and 3581 series micrometers
-

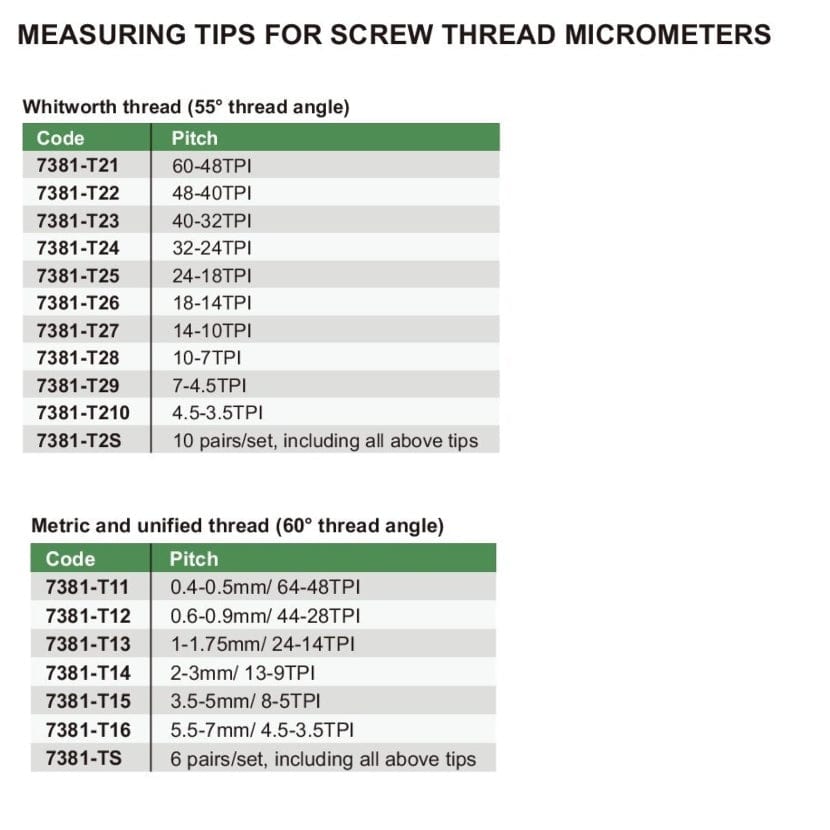

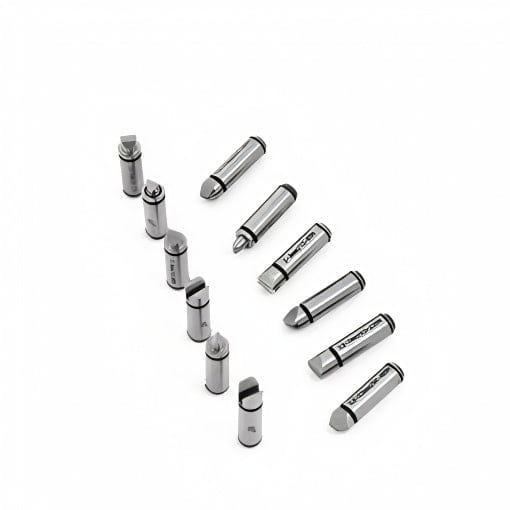

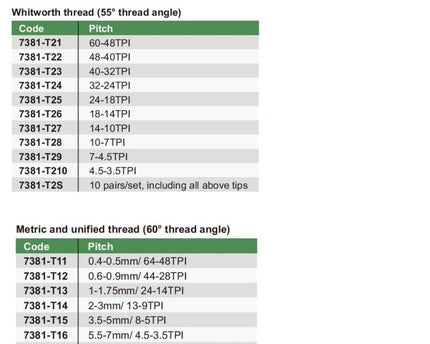

Set Contents: Supplied as matched pairs covering the following pitch ranges:
- 0.4–0.5mm / 64–48 TPI (7381-T11)
- 0.6–0.9mm / 44–28 TPI (7381-T12)
- 1.0–1.75mm / 24–14 TPI (7381-T13)
- 2.0–3.0mm / 13–9 TPI (7381-T14)
- 3.5–5.0mm / 8–5 TPI (7381-T15)
- 5.5–7.0mm / 4.5–3.5 TPI (7381-T16)
Designed for dependable precision and versatility, the Insize Measuring Tips Set is an essential solution for screw thread inspection in both metric and imperial systems across engineering, machining, and quality control environments.
