Description

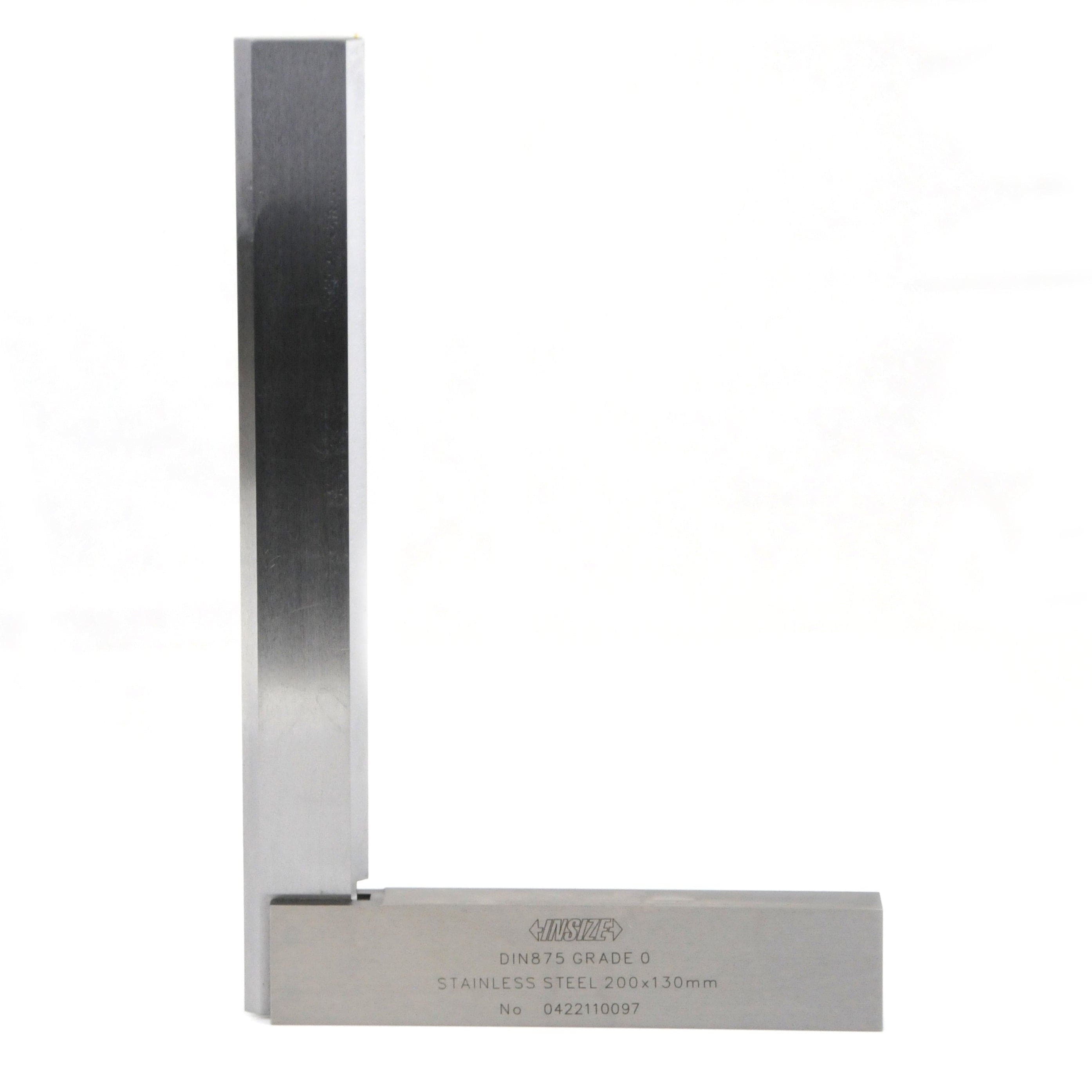

Insize Bevelled Edge Square 200 × 130 mm
The Insize Bevelled Edge Square is a precision reference tool designed for accurate inside and outside squareness checks in machining, inspection, and layout applications. Bevelled measuring edges provide clear contact on internal corners and external faces, while the wide base improves stability for consistent and repeatable measurements.

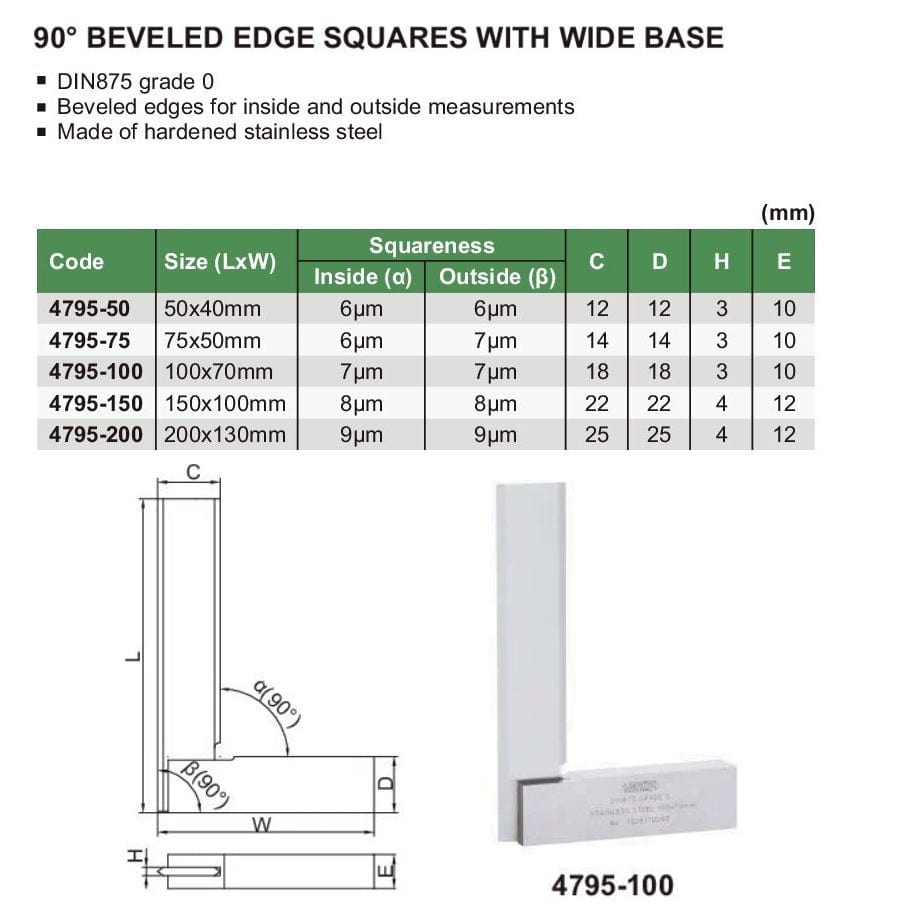

Specifications:
-
Part No.: 4795-200
-
Size (L × W): 200 × 130 mm
-
Angle: 90°
-
Squareness: Inside 9 µm / Outside 9 µm
-
C: 25 mm
-
D: 25 mm
-
E: 12 mm
-
H: 4 mm
-
Design: Bevelled edges with a wide base
-
Standard: DIN 875 Grade 0
-
Material: Hardened stainless steel
Manufactured for durability and high accuracy, this bevelled-edge square delivers reliable squareness verification and precise layout capability, making it suitable for precision engineering, inspection, and toolroom use.
