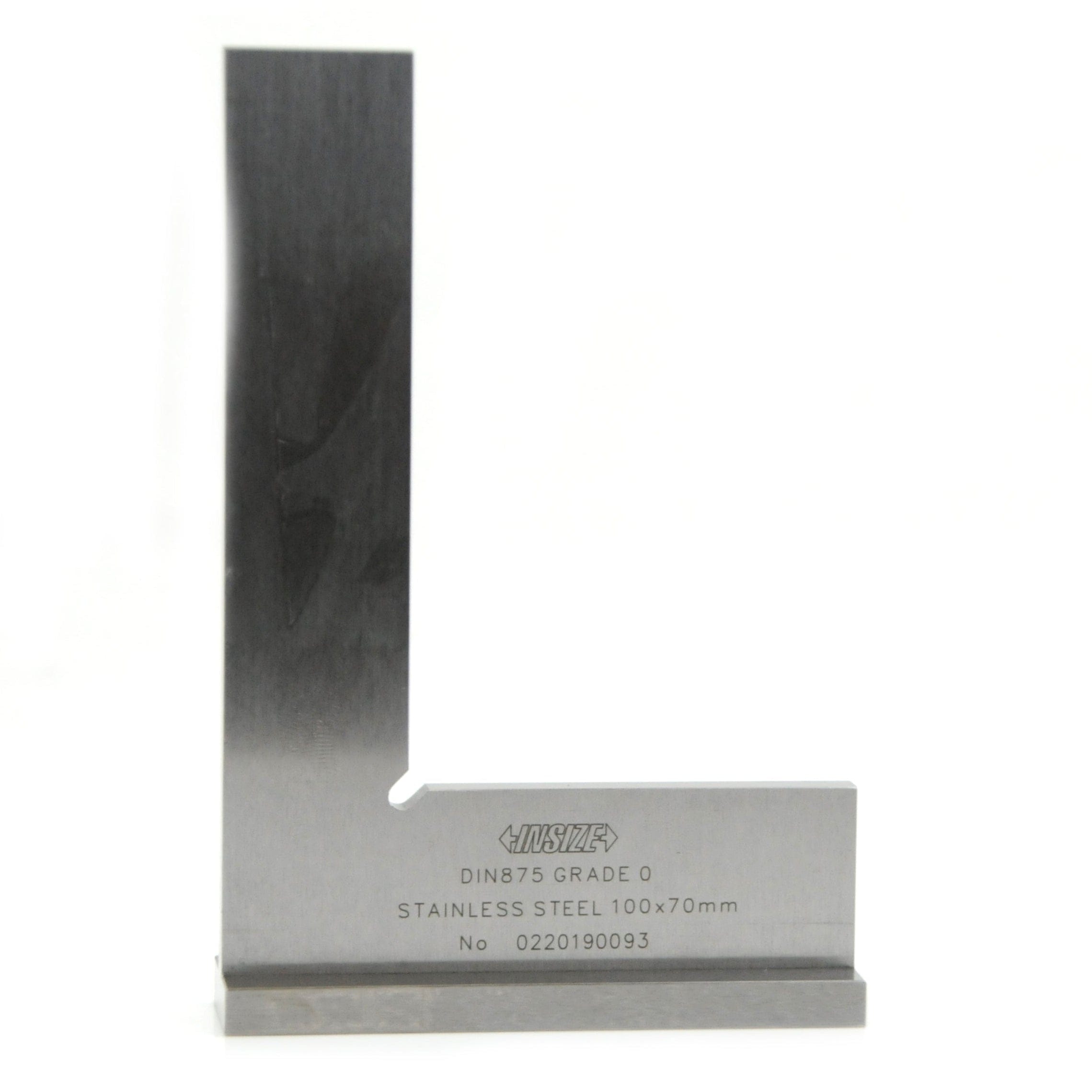

Insize Flat Edge Square 100 × 70 mm
Insize Flat Edge Square is a precision reference tool designed for accurate inside and outside squareness checks in machining, inspection, and layout applications. The wide base design improves stability during use, ensuring consistent and repeatable measurement results.

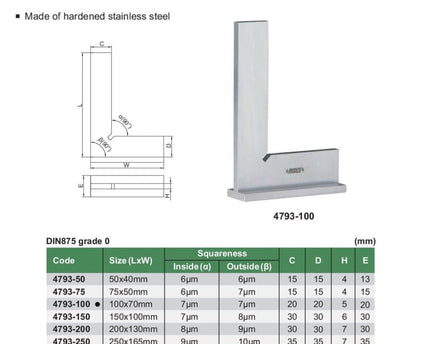

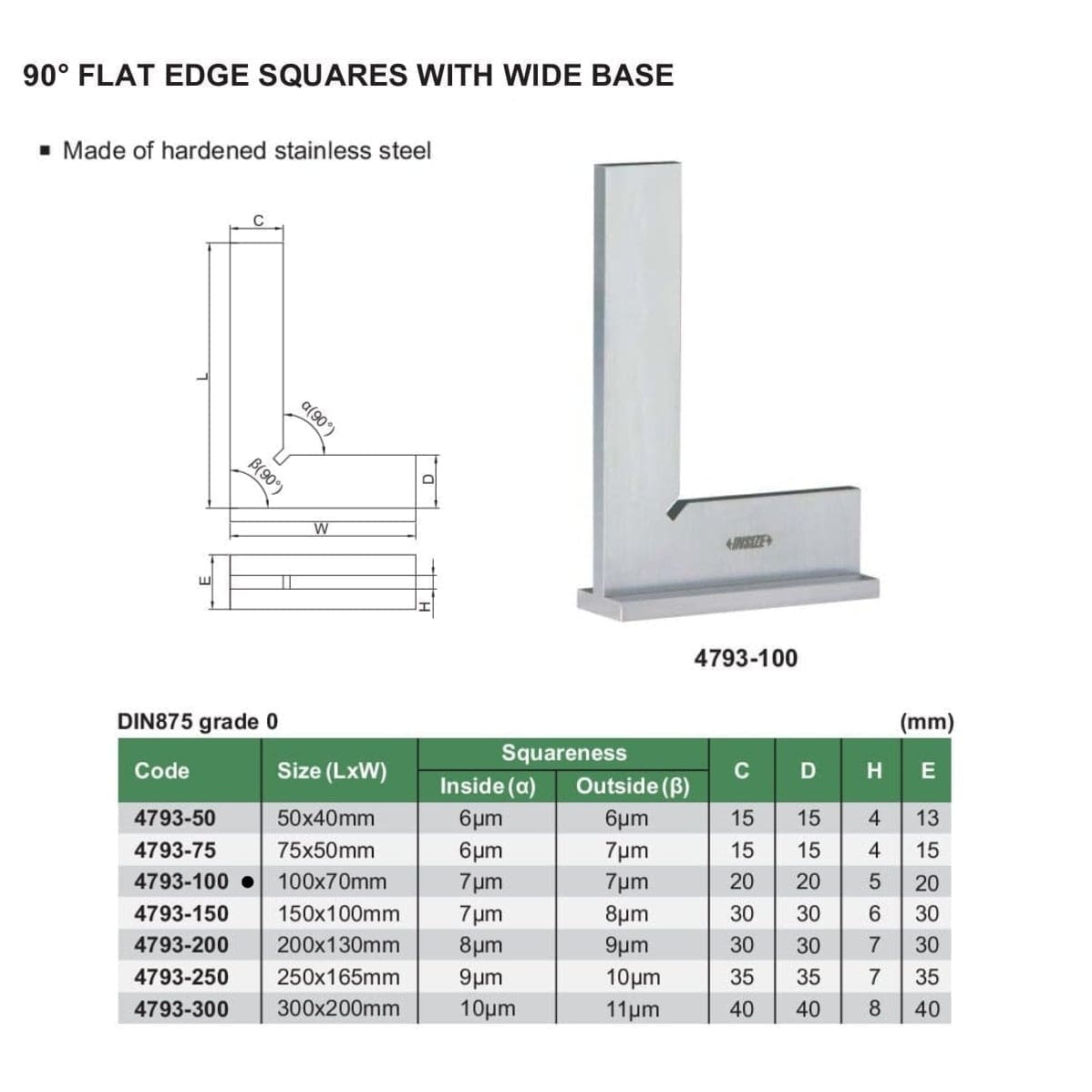

Specifications :
-
Part No.: 4793-100
-
Size (L × W): 100 × 70 mm
-
Angle: 90°
-
Squareness: Inside 7 µm / Outside 7 µm
-
Thickness: 32 mm
-
C: 20 mm
-
D: 20 mm
-
E: 20 mm
-
H: 5 mm
-
Design: Wide base
-
Standard: DIN 875 Grade 0
-
Material: Hardened stainless steel
Manufactured for durability and high accuracy, this flat-edge square provides dependable squareness verification and precise layout capability, making it suitable for precision engineering, inspection, and toolroom use.
