Insize 90° Flat Edge Square
Insize 90° Flat Edge Square is a precision reference tool designed for accurate inside and outside squareness checks in machining, inspection, and layout applications. The flat, bevelled edges provide clear contact on internal corners and external faces, ensuring reliable and repeatable measurements.

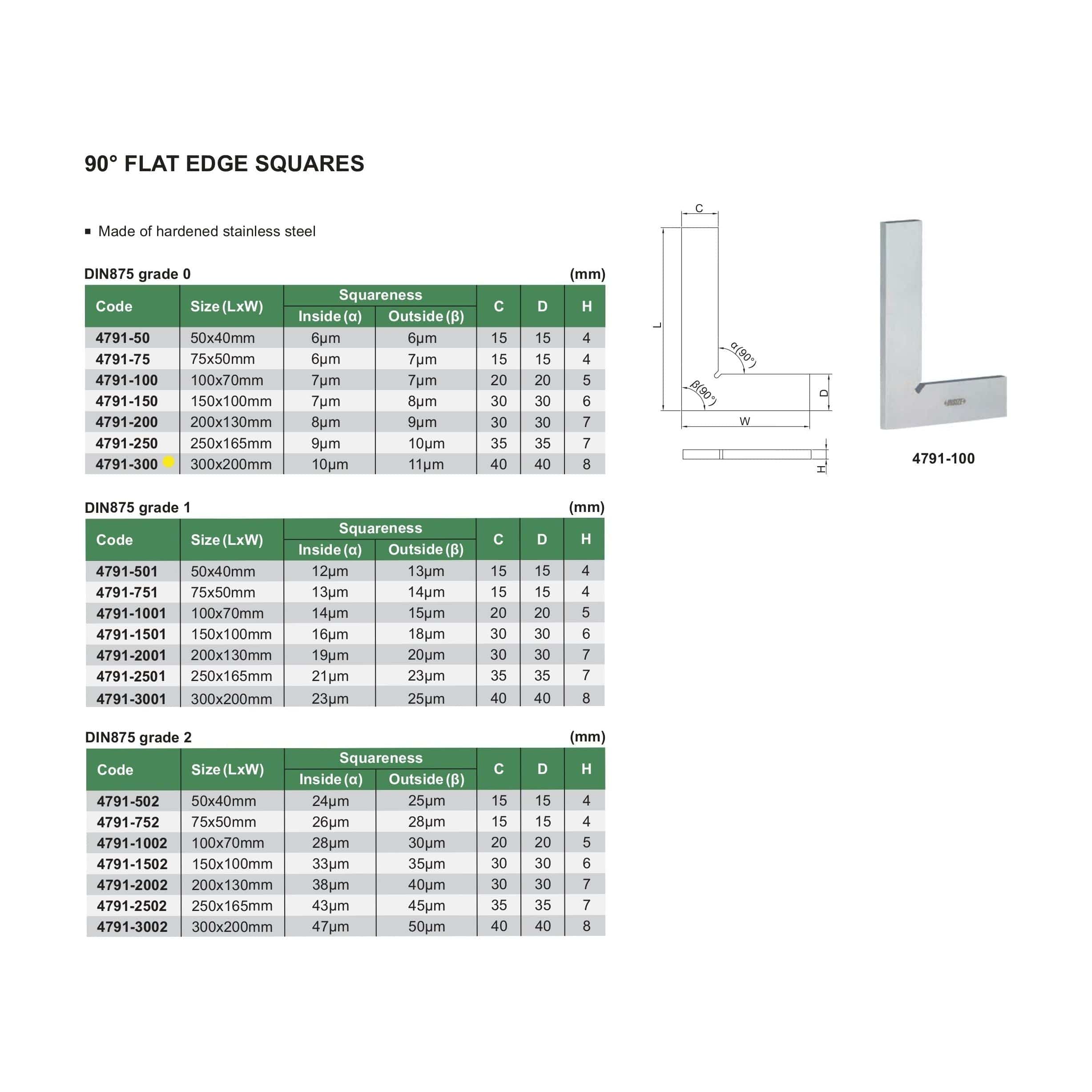

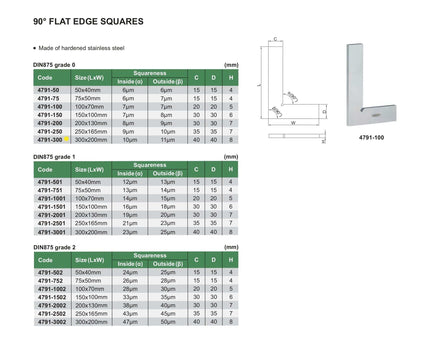

Specifications:
-
Part No.: 4791-300
-

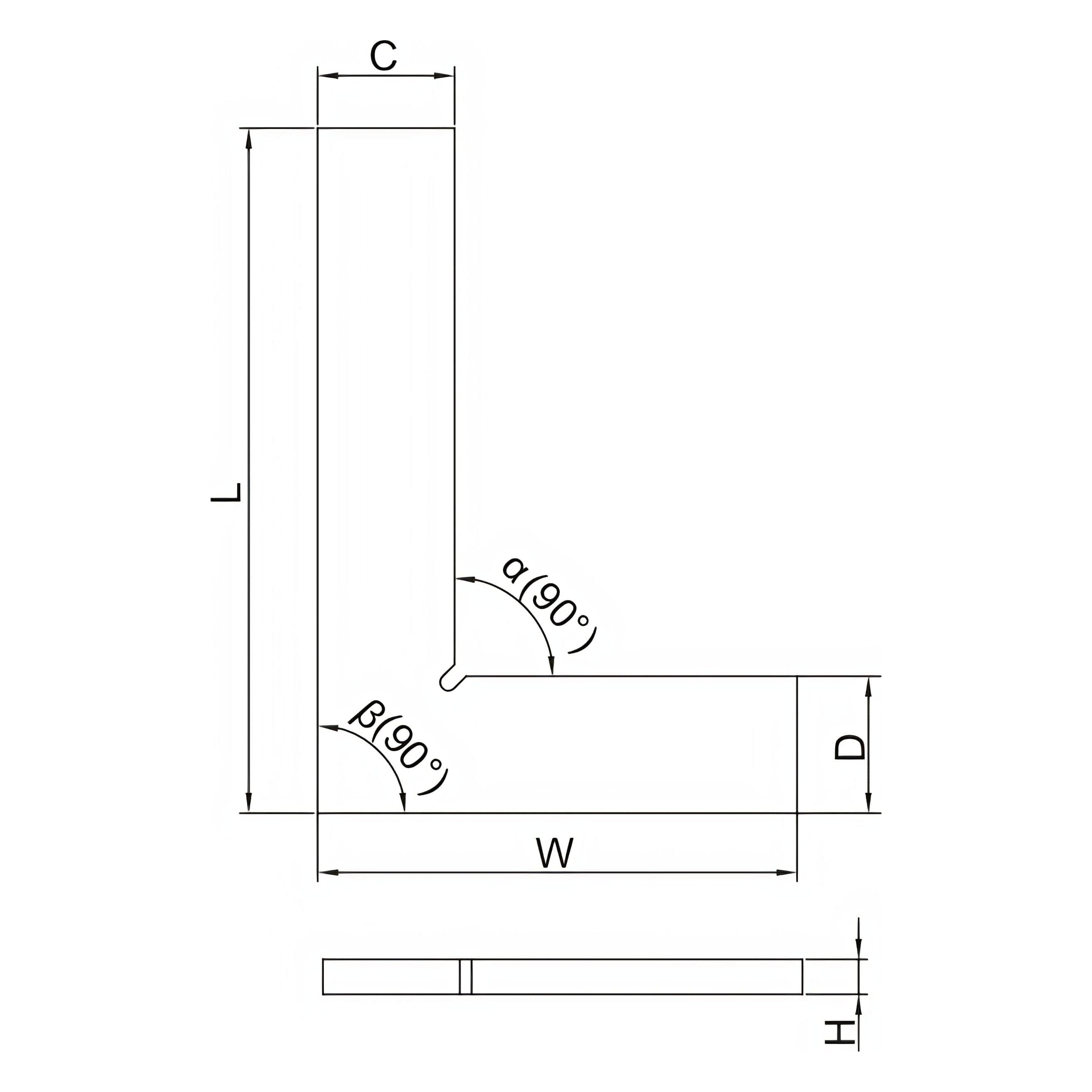

Size (L × W): 300 × 200 mm (11.8" × 7.9")
-
Angle: 90°
-
C: 40 mm
-
D: 40 mm
-
H: 8 mm
-
Edges: Bevelled for inside and outside measurements
-
Finish: Satin chrome plated
-
Standard: DIN 875 Grade 0
-
Material: Hardened stainless steel
Manufactured for high accuracy and durability, this flat-edge square provides dependable squareness verification and precise layout capability, making it suitable for precision engineering, inspection, and toolroom use.
