Description

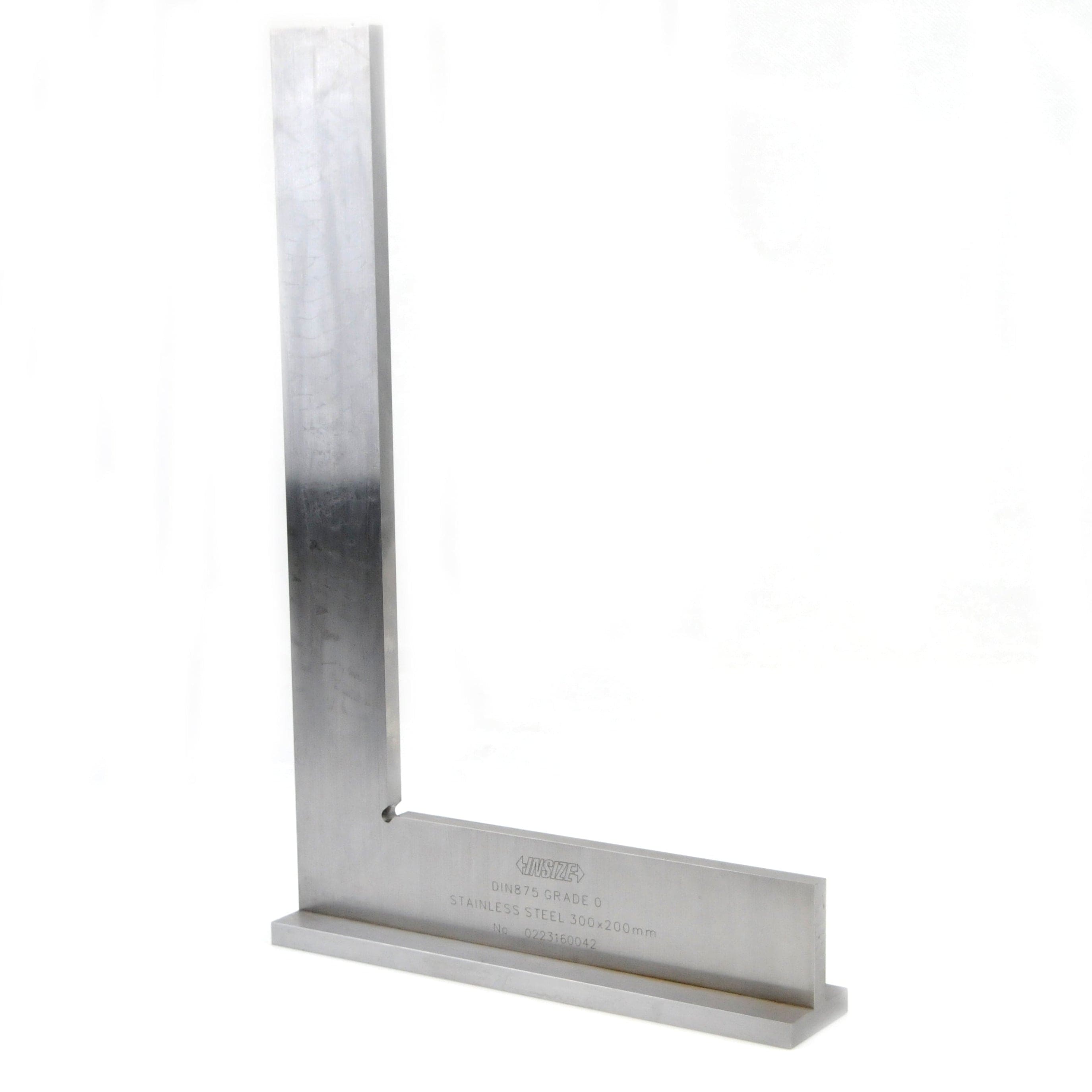

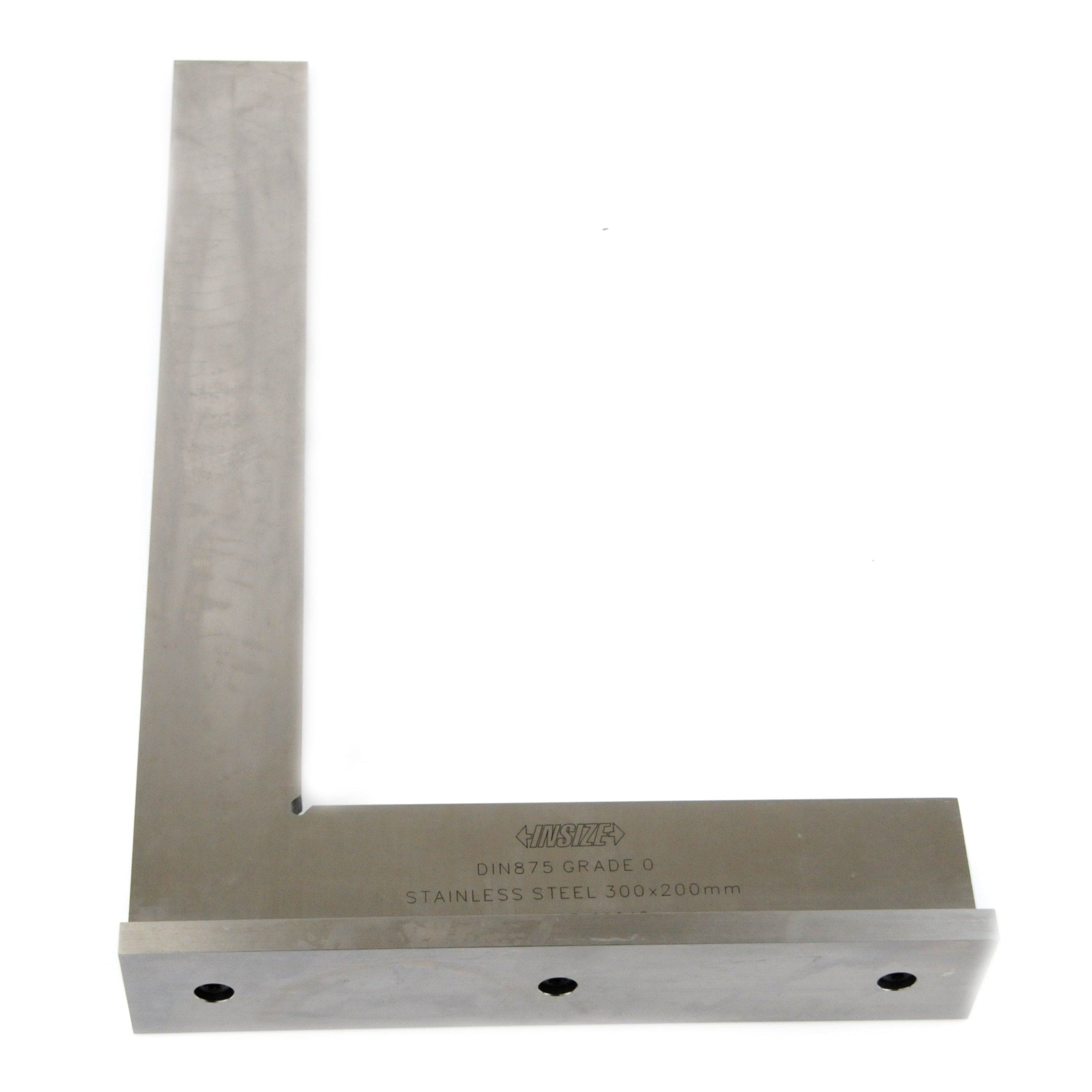

Insize Flat Edge Square 300 × 200 mm
Insize Flat Edge Square is a precision reference tool designed for accurate inside and outside squareness checks in machining, inspection, and layout applications. The wide base design enhances stability, ensuring consistent and repeatable measurement results on flat reference surfaces.

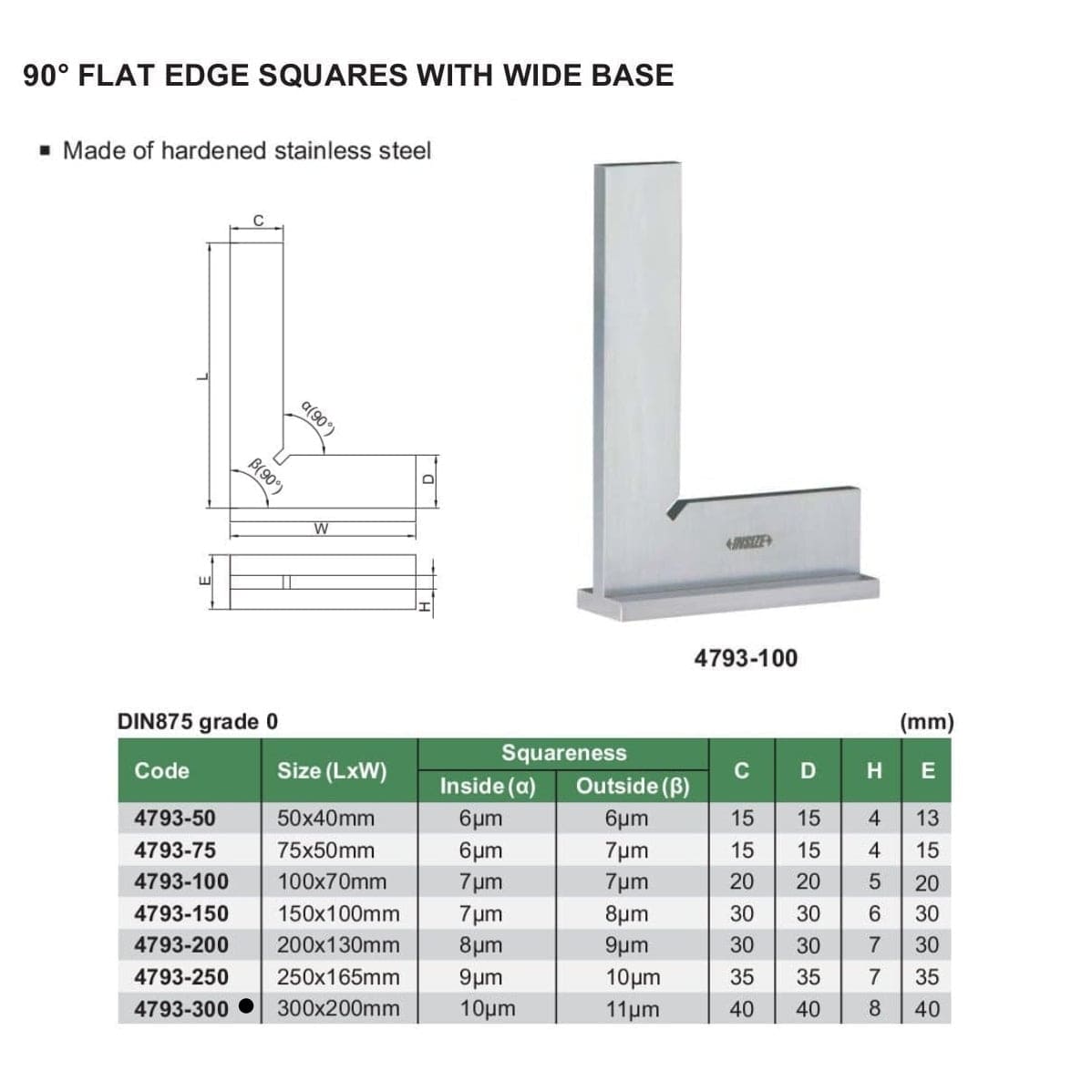

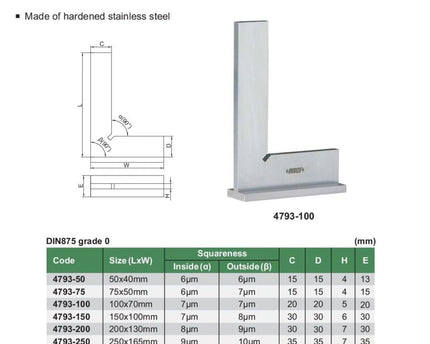

Specifications :
-
Part No.: 4793-300
-
Size (L × W): 300 × 200 mm
-
Angle: 90°
-
Squareness: Inside 10 µm / Outside 11 µm
-
Thickness: 35 mm
-
C: 40 mm
-
D: 40 mm
-
E: 40 mm
-
H: 8 mm
-
Standard: DIN 875 Grade 0
-
Material: Hardened stainless steel
Manufactured for durability and high accuracy, this flat-edge square provides dependable squareness verification and precise layout capability, making it suitable for precision engineering, inspection, and toolroom use.
