Description

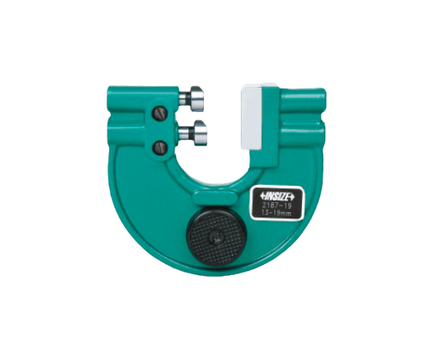

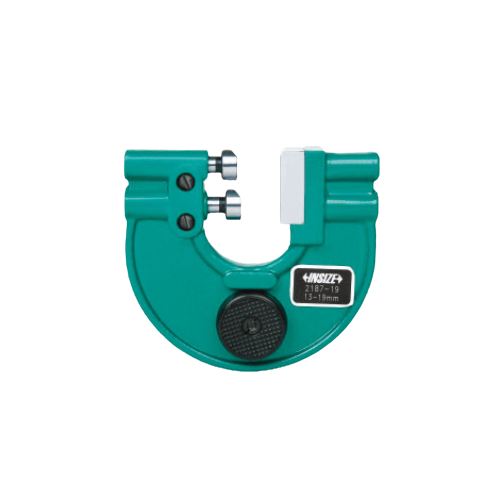

Insize Adjustable Snap Gauge
The INSIZE 2187-32 Adjustable Snap Gauge is designed for fast and accurate measurement of cylindrical parts. Used as a Go/No-Go gauge by setting upper and lower limits, it provides reliable results in inspection and machining. Built with precision-ground measuring faces, it ensures excellent flatness and parallelism for consistent quality control.

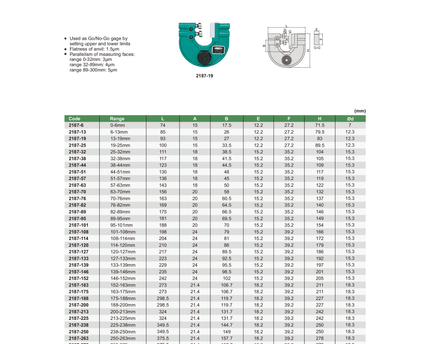

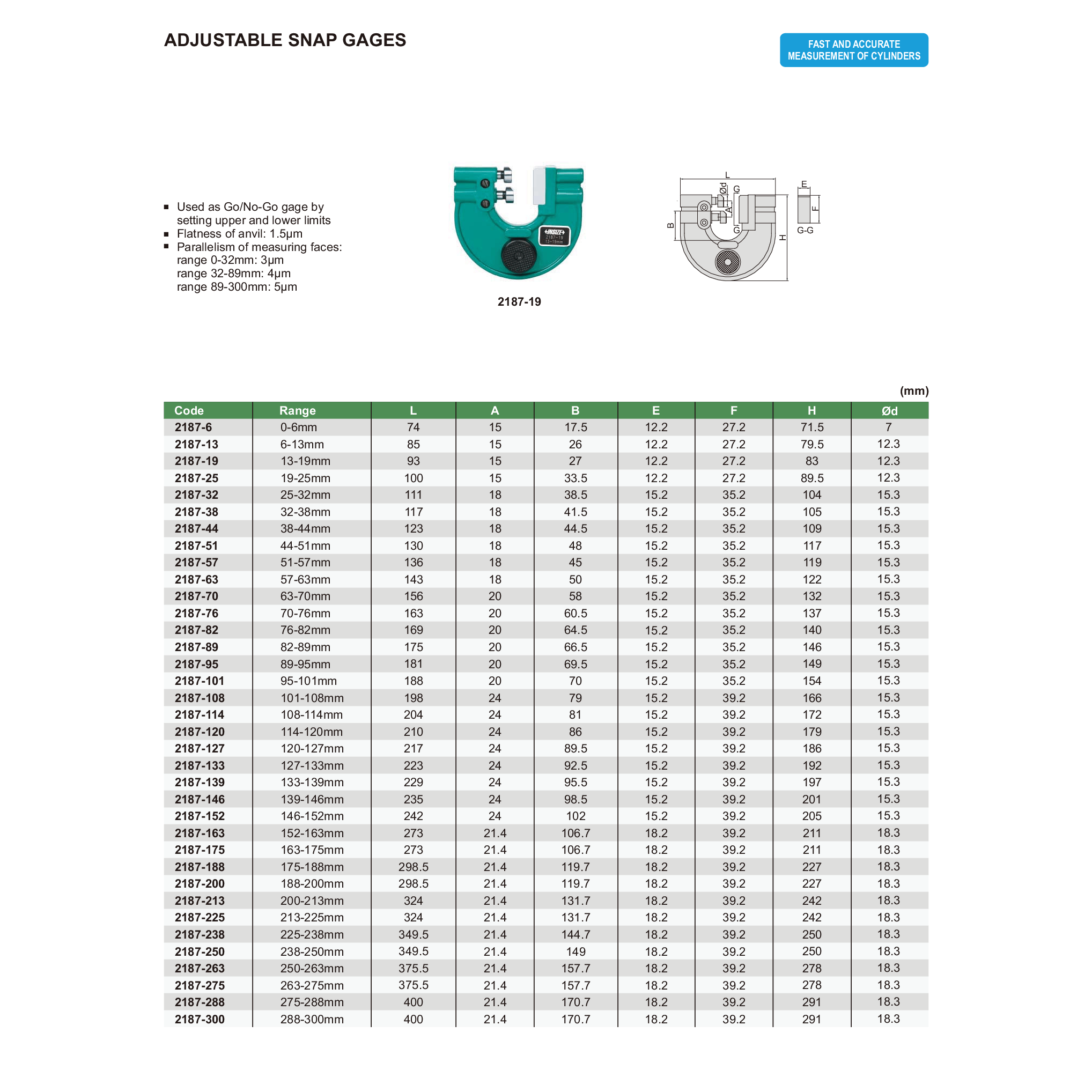

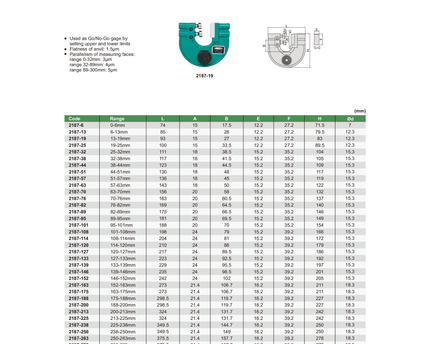

Specifications :
-
Part No: 2187-32
-
Range: 25–32 mm
-
L: 111 mm
-
A: 18 mm
-
B: 38.5 mm
-
E: 15.2 mm
-
F: 35.2 mm
-
H: 104 mm
-
Ød: 15.3 mm
-
Flatness of Anvil Faces: 1.5 µm
-
Parallelism of Measuring Faces: 3 µm (0–32 mm range), 4 µm (32–89 mm range), 5 µm (89–300 mm range)
-
Application: Fast Go/No-Go inspection of cylinders
The INSIZE 2187-32 Adjustable Snap Gauge is a durable, high-precision tool, ideal for production and inspection environments requiring quick and repeatable cylindrical measurements.
