Description
Insize Angle Gauge Set 18 Leaves Series 4807
The Insize 4807 Angle Gauge Set is a precision inspection and setup tool designed for checking primary, half-primary, and complementary angles in machining, toolmaking, engineering, and workshop applications. Manufactured from durable medium carbon steel, this angle gauge set provides reliable angle verification and accurate setup assistance for precision manufacturing tasks.
Featuring 18 precision leaves with an accuracy of ±10′, the Insize 4807 Angle Gauge Set enables quick and convenient angle checking across a wide range of common angular measurements. The set includes both Type A and Type B profiles for versatile inspection and layout applications.
Key Features & Benefits

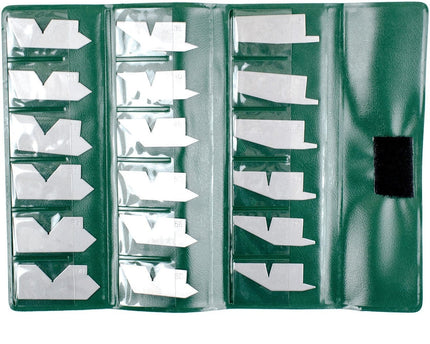

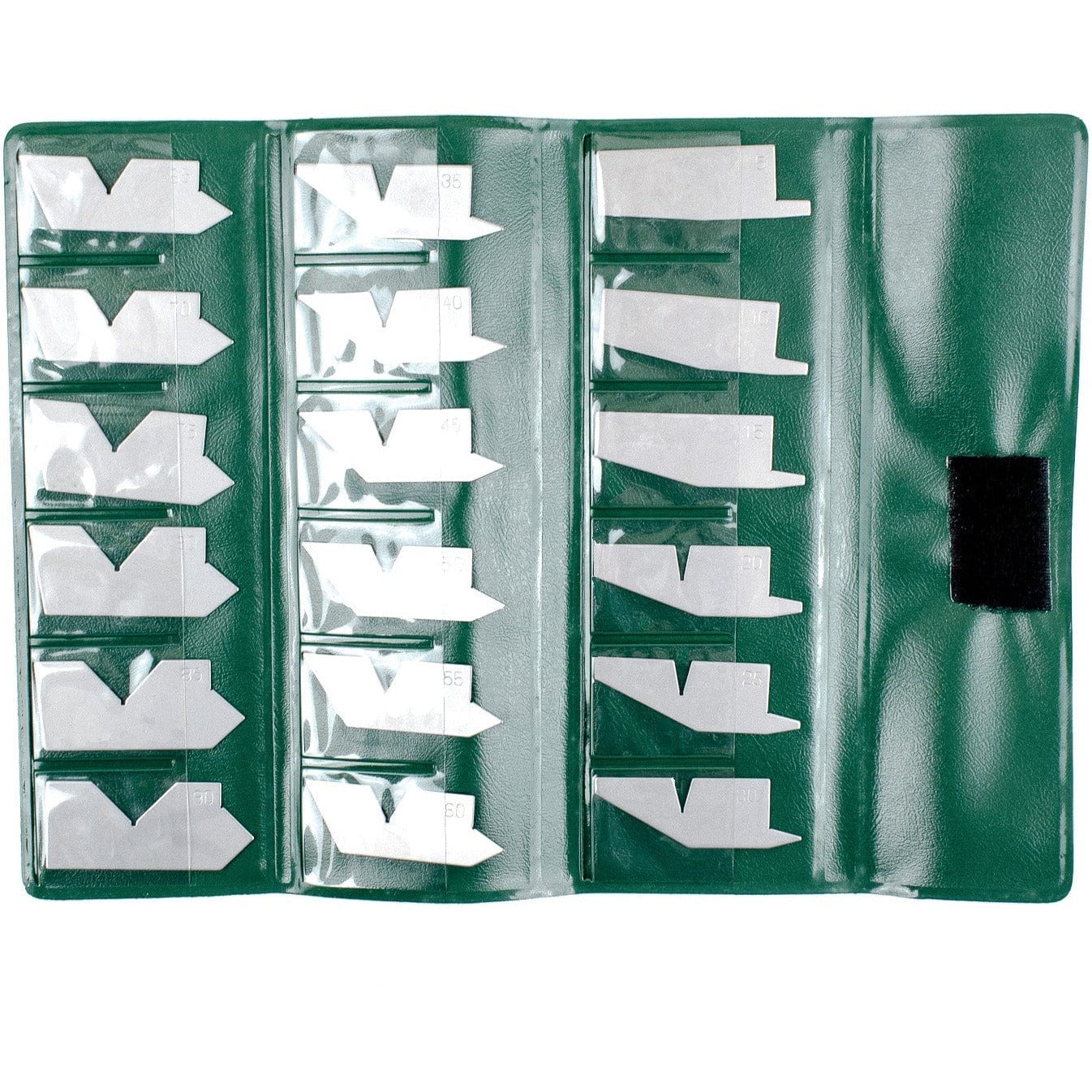

- Precision angle gauge set with 18 leaves
- Designed for checking primary, half-primary, and complementary angles
- Manufactured from durable medium carbon steel
- High accuracy of ±10′
- Suitable for machining and engineering inspection

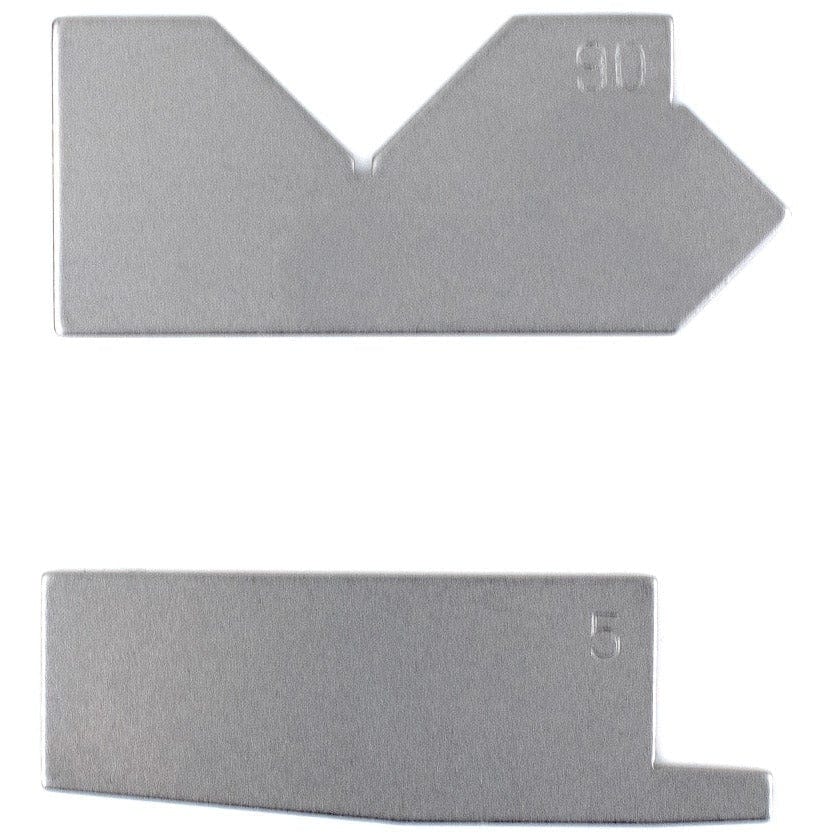

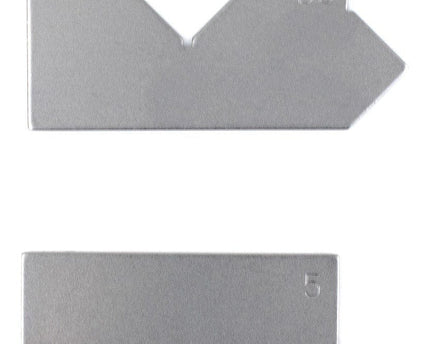

- Includes Type A and Type B angle profiles
- Quick and easy angle verification

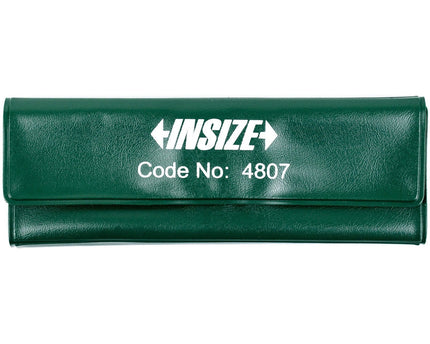

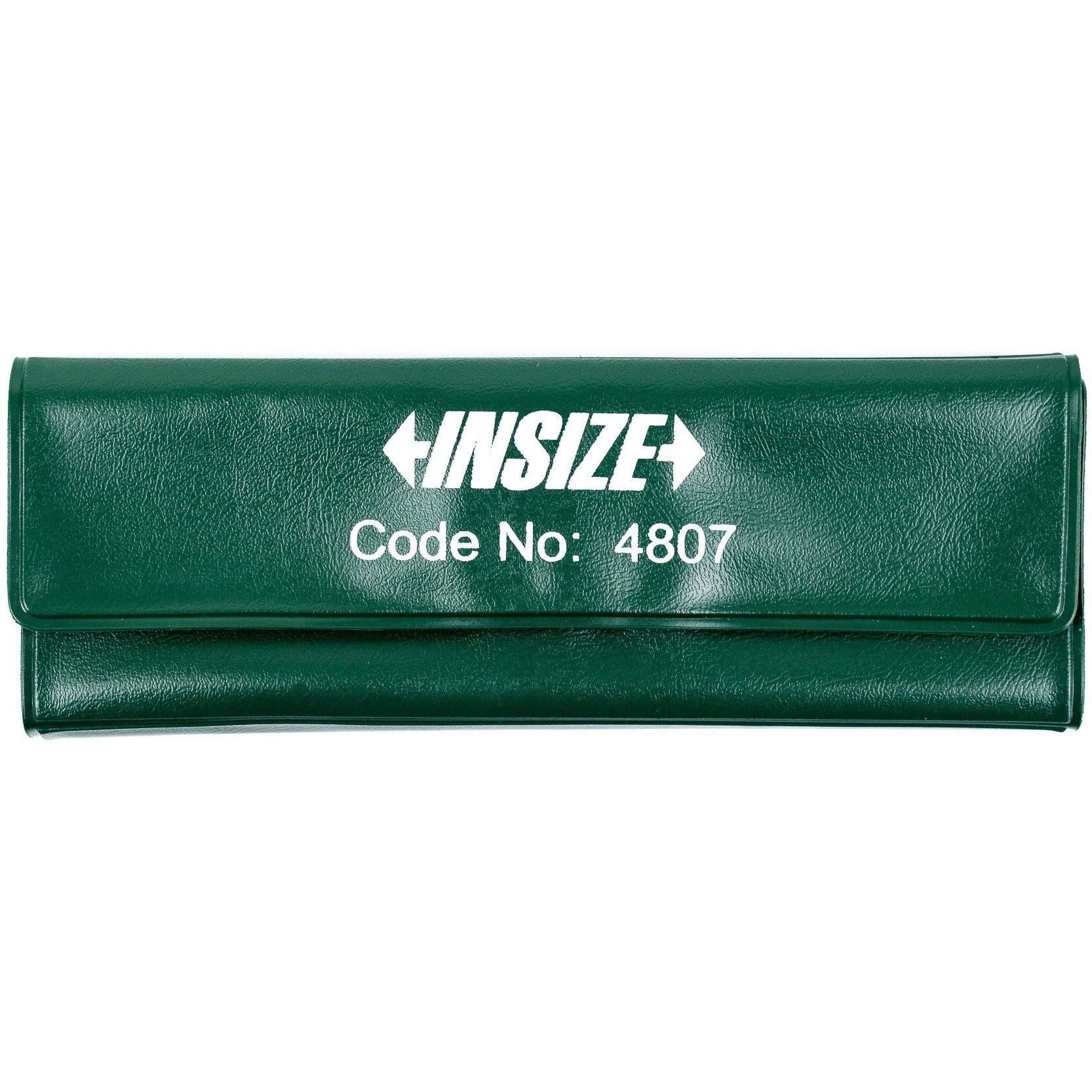

- Compact and organized storage case
- Ideal for workshop setup and inspection tasks
- Professional-grade precision measuring tool
Technical Specifications
- Part Number: 4807
- Product Type: Angle Gauge Set
- Quantity of Leaves: 18
- Accuracy: ±10′
- Material: Medium Carbon Steel
- Primary Angle Range: 5° to 90°
- Application: Angle inspection and verification

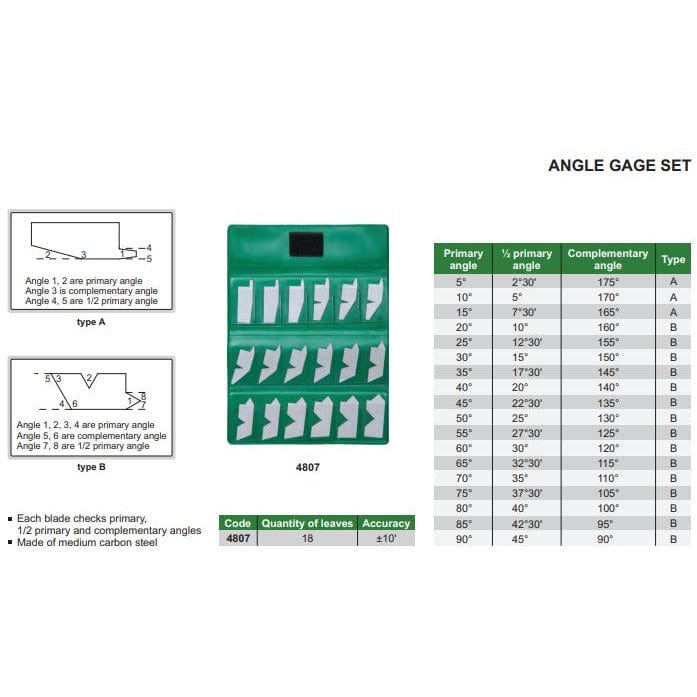

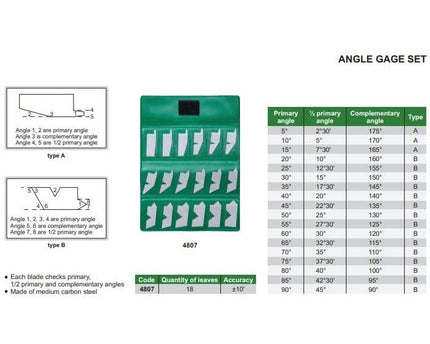

Angle Configuration
- Primary Angles: 5° to 90°
- Half Primary Angles: 2°30′ to 45°
- Complementary Angles: 175° to 90°
- Type A and Type B gauge configurations included
Applications
- Precision angle inspection
- Machining setup and verification
- Toolroom measurement tasks
- Engineering workshop applications
- Manufacturing quality control
- Tool and die inspection
- Angle layout and checking
- General industrial measurement work
Insize precision measuring instruments are trusted by machinists, engineers, manufacturers, and inspection professionals for their reliable quality, accuracy, and practical workshop performance.
The Insize 4807 Angle Gauge Set provides fast, accurate, and dependable angle verification for professional inspection and machining applications.
