Description

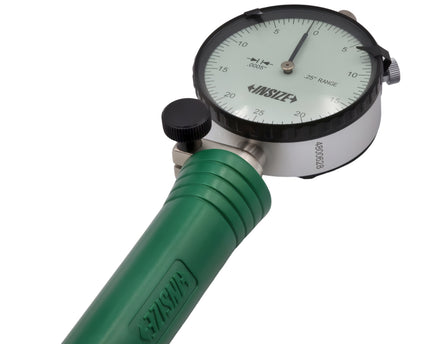

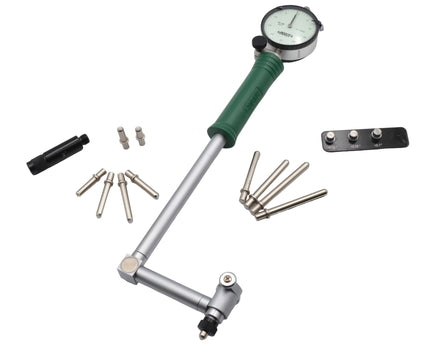

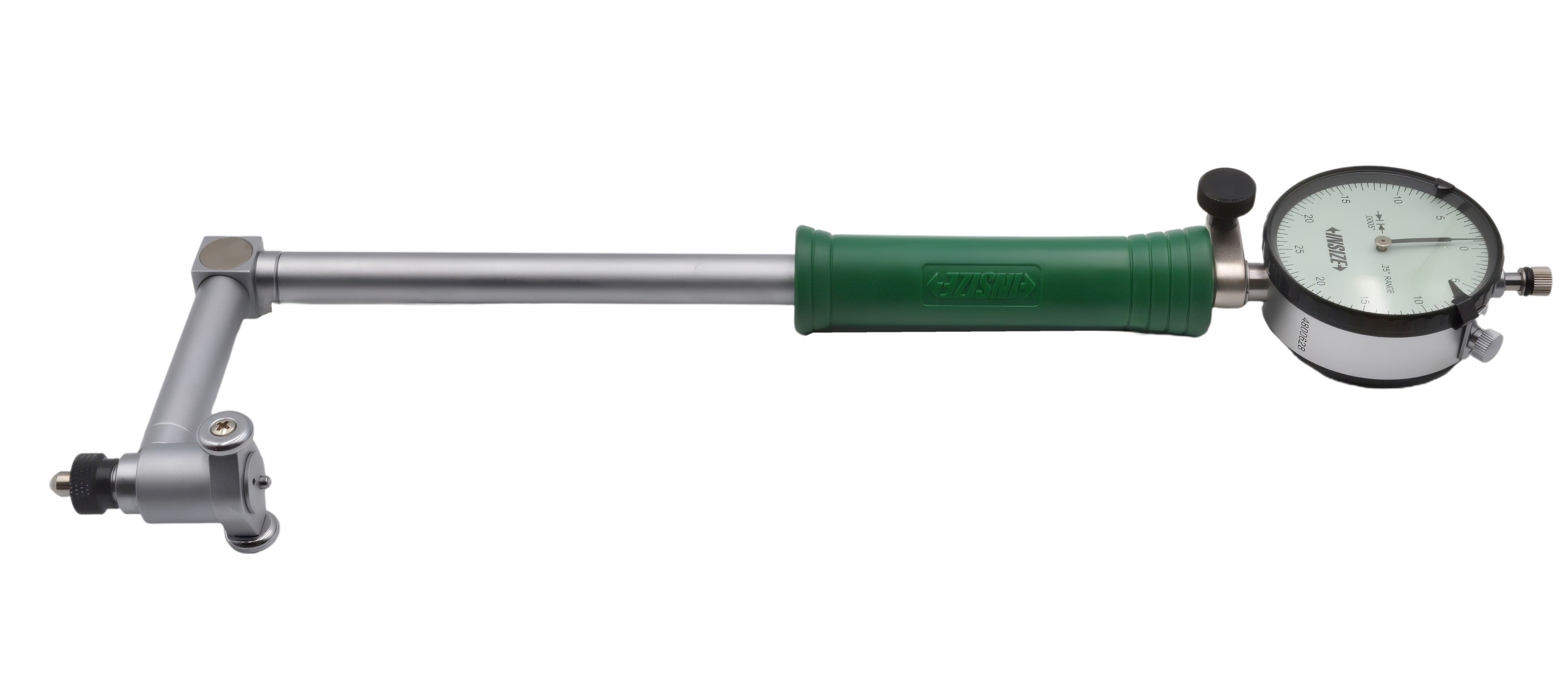

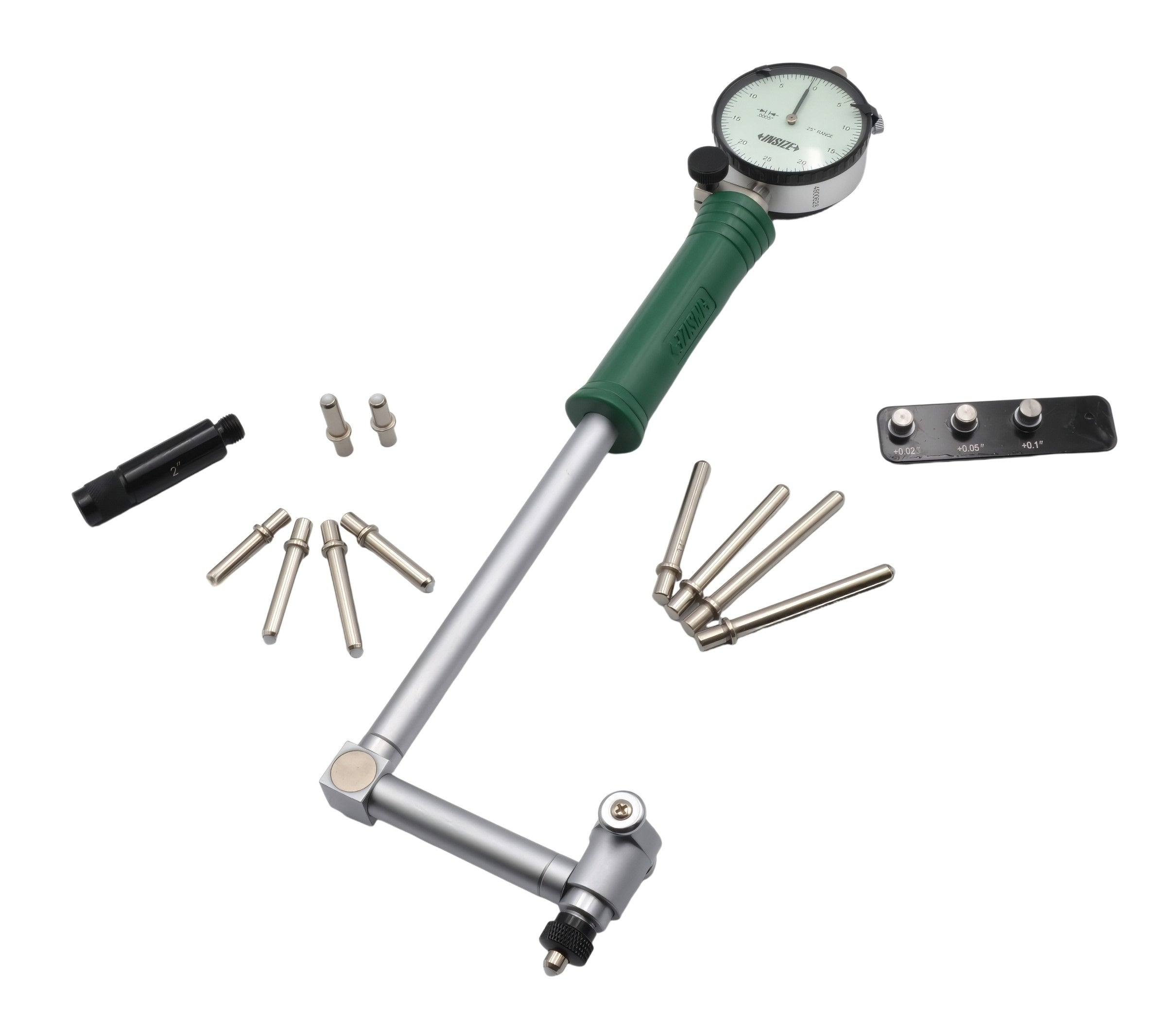

Insize 2-6" Bore Gauge
This bore gauge is designed for accurate internal diameter measurement within medium-sized bores. Precision construction and smooth movement ensure reliable, repeatable results in machining, inspection, and quality control applications.

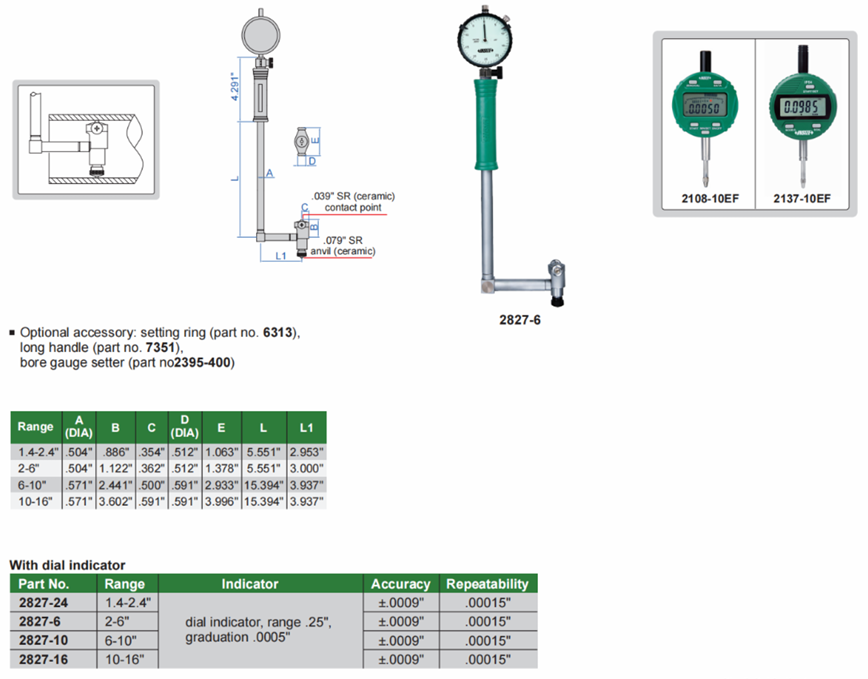

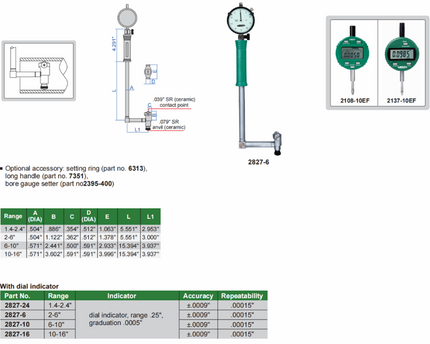

Specifications :
- Part no: 2827-6
- Reading: Imperial
- Graduation: 0.0005"
- Accuracy:-0.0009" to +0.0009"

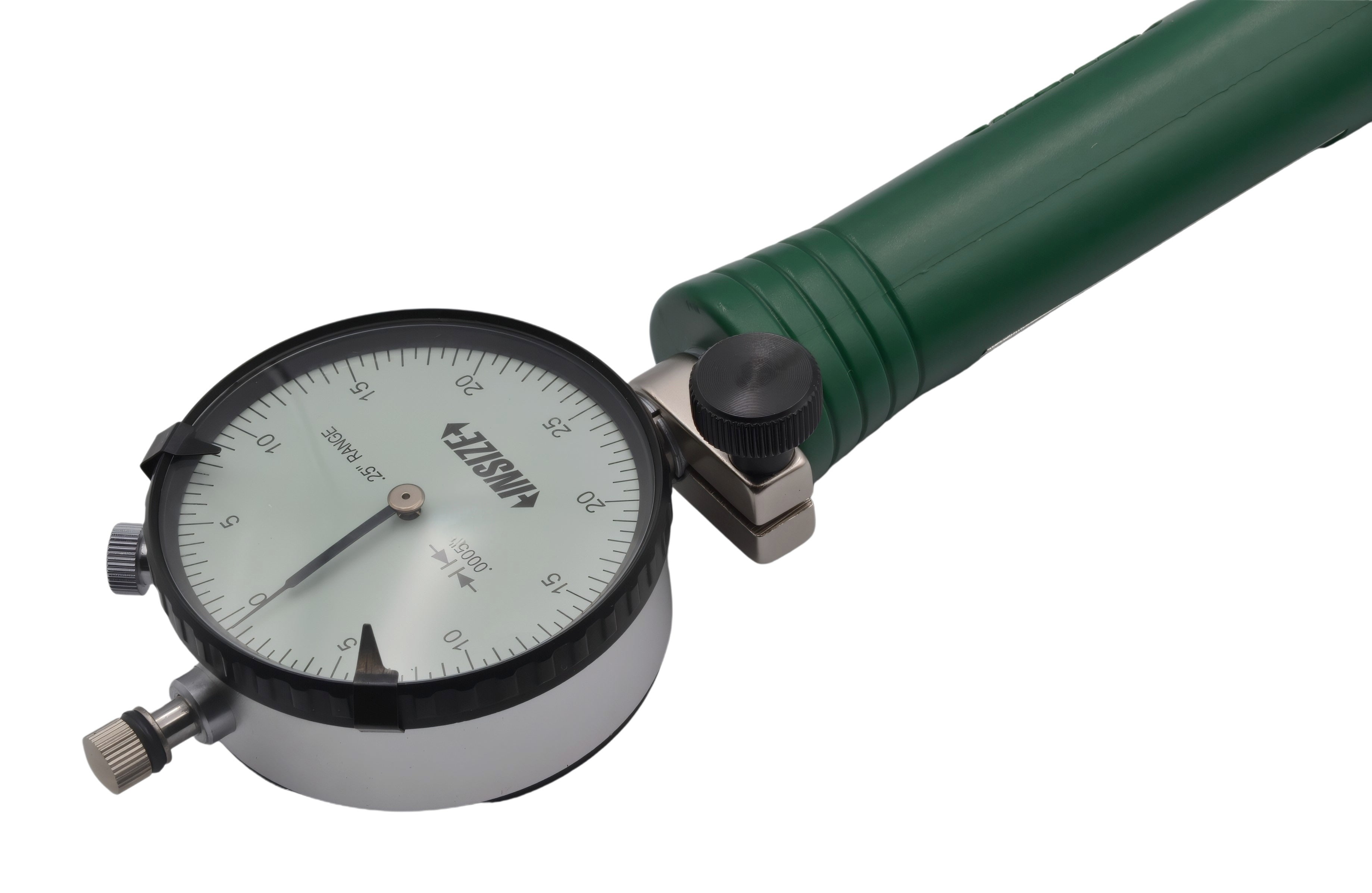

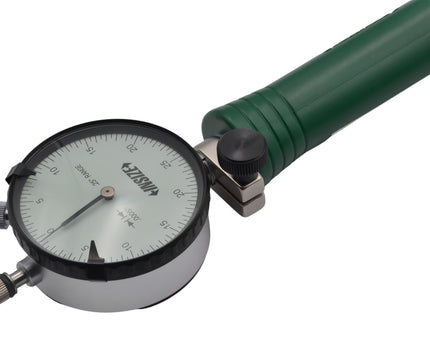

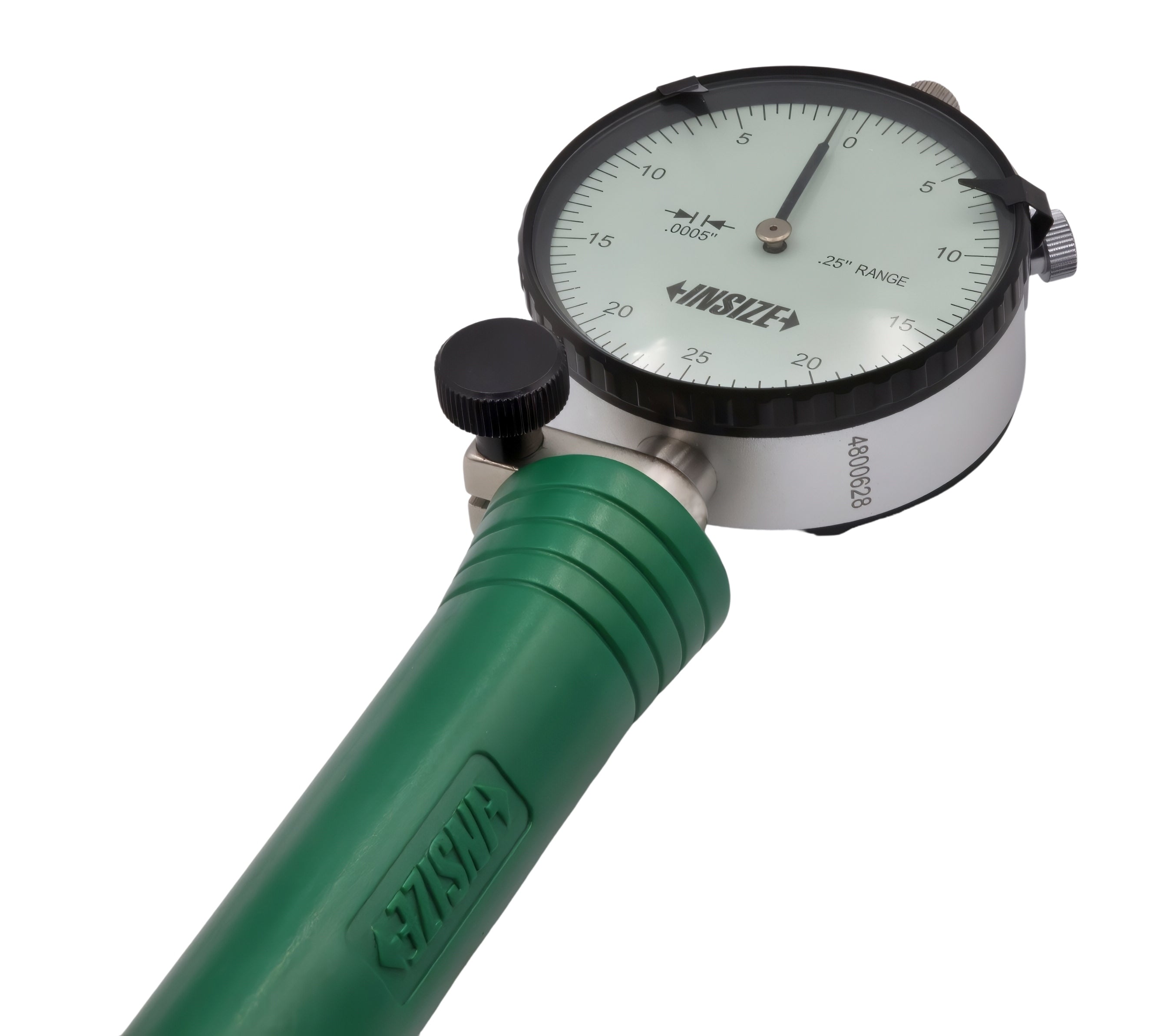

- Dial reading: 0-0.25"
- Measuring range per setting: 0.25"
- Manufacturing standard: DIN 878

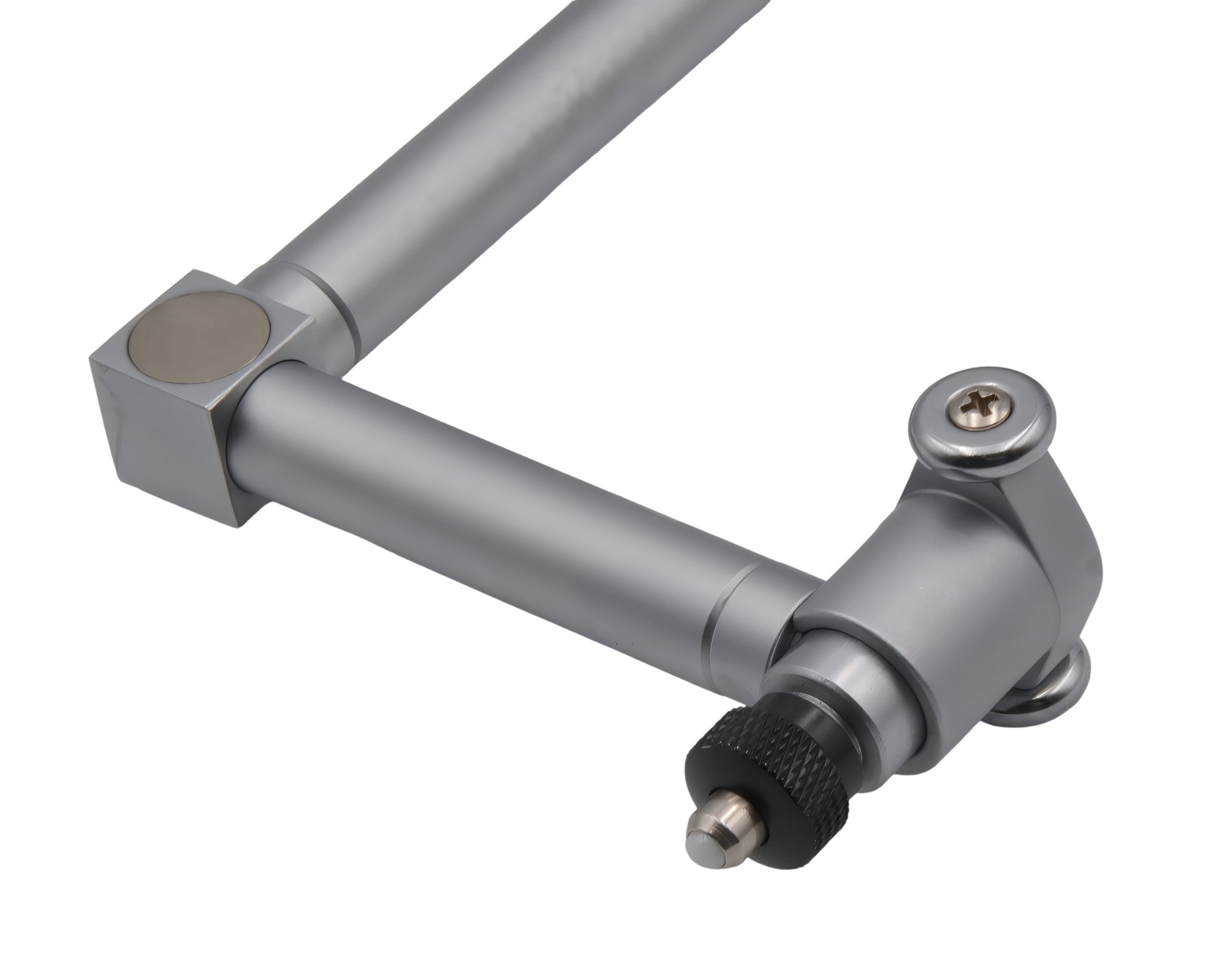

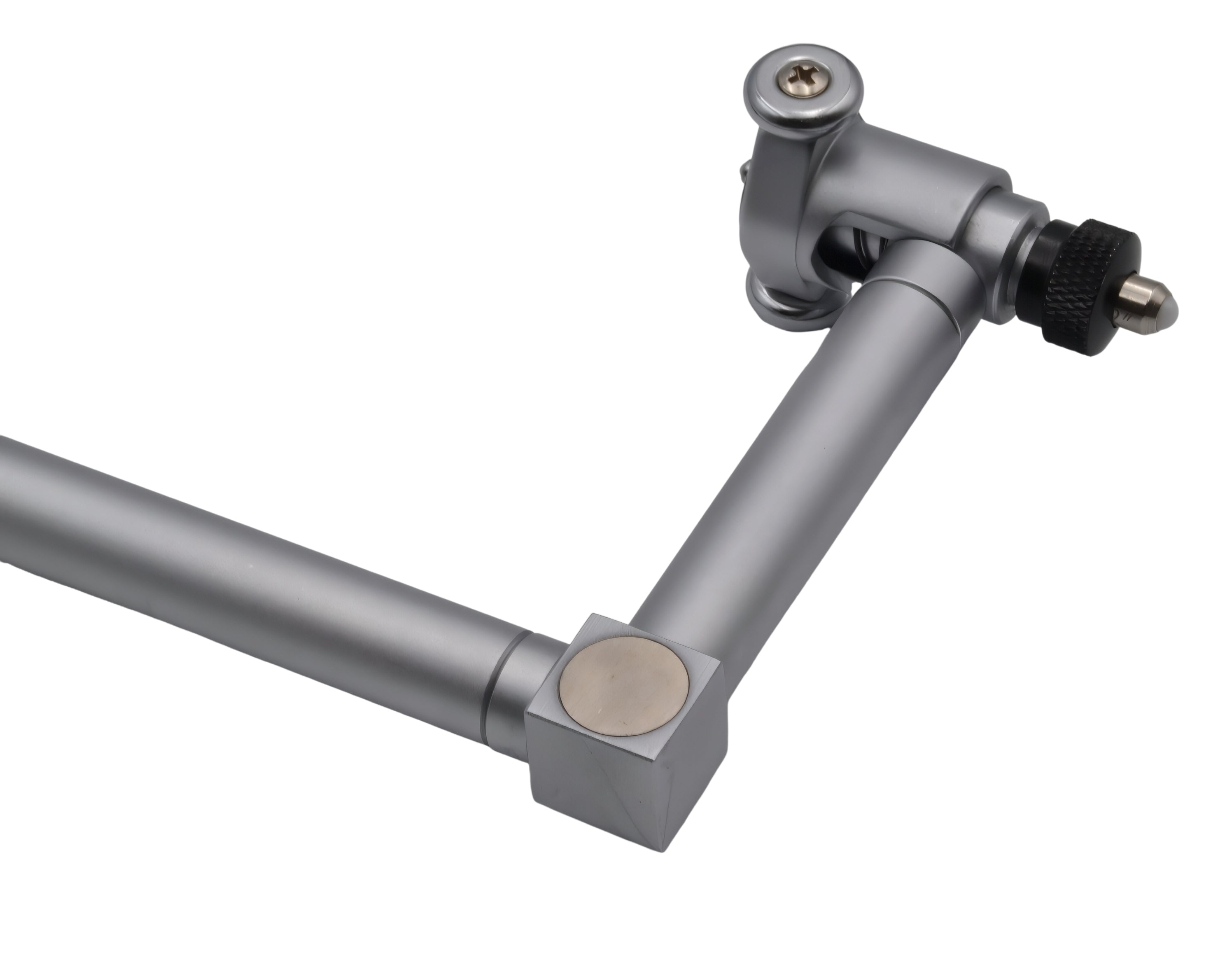

- Ceramic contact point

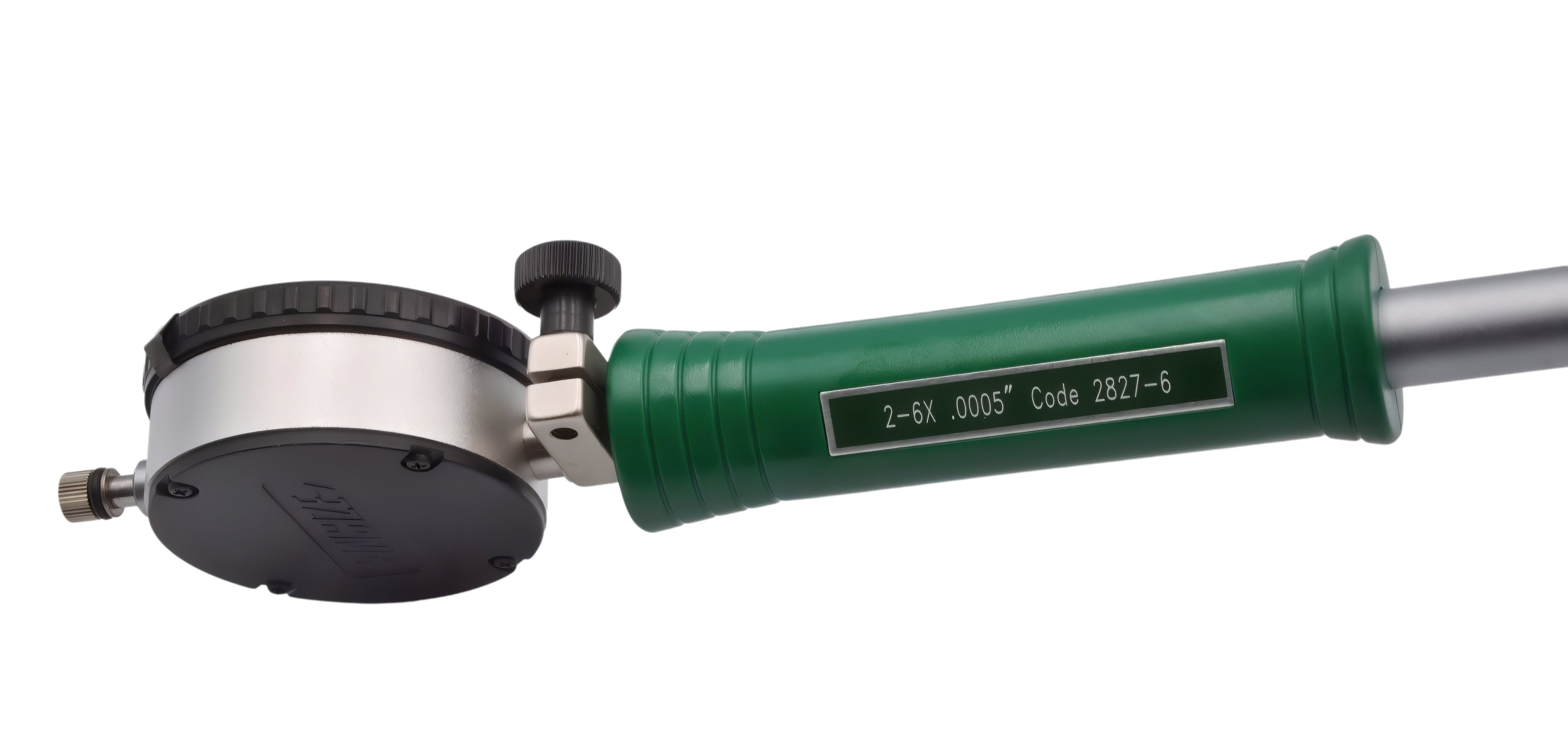

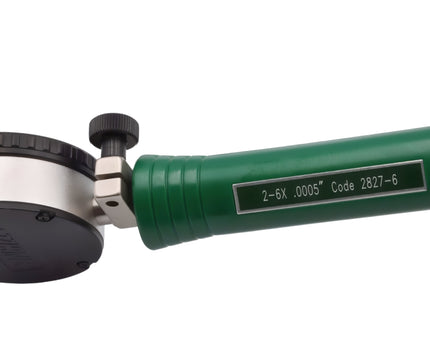

- Soft grip handle

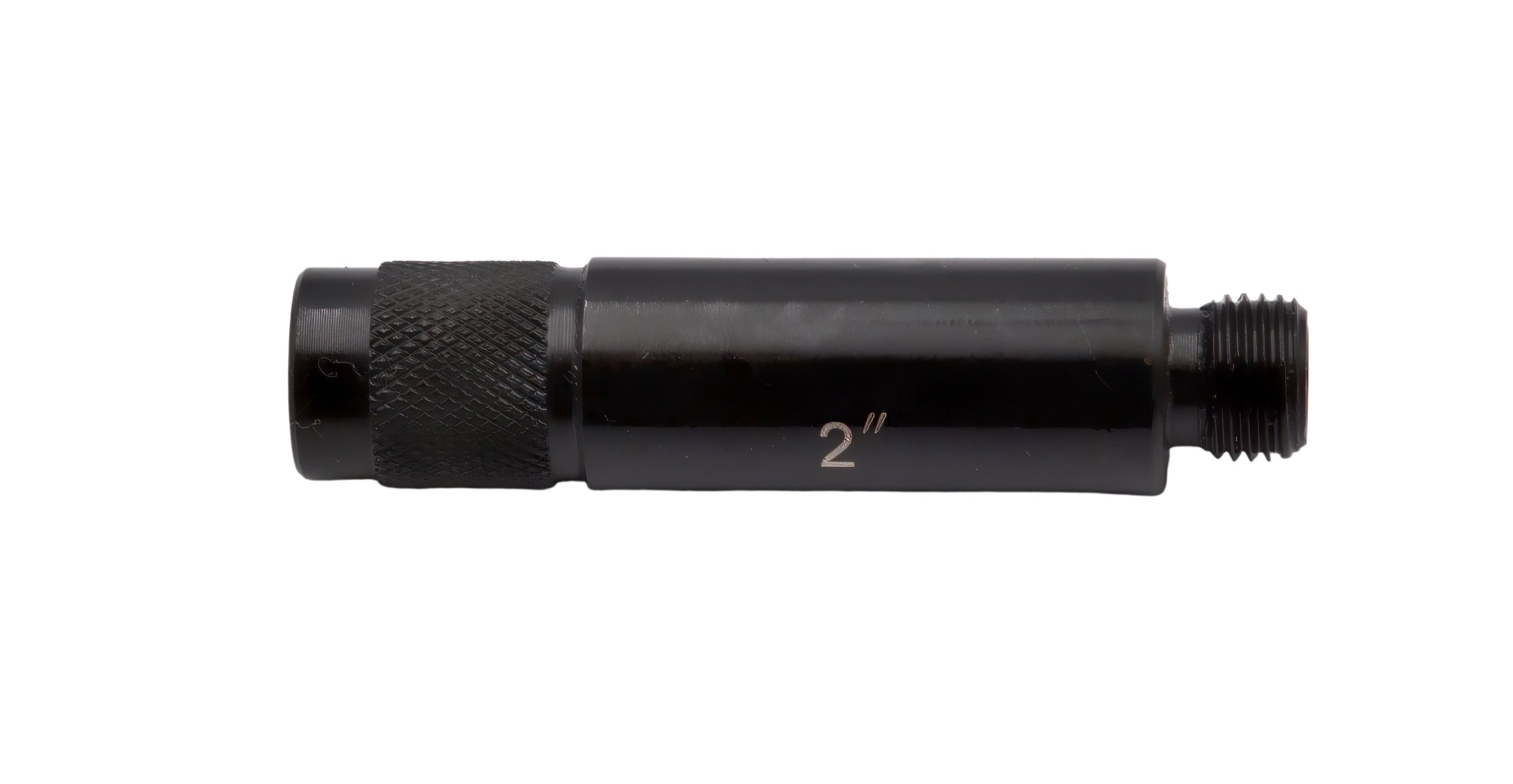

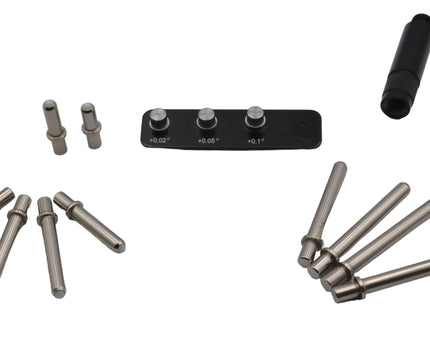

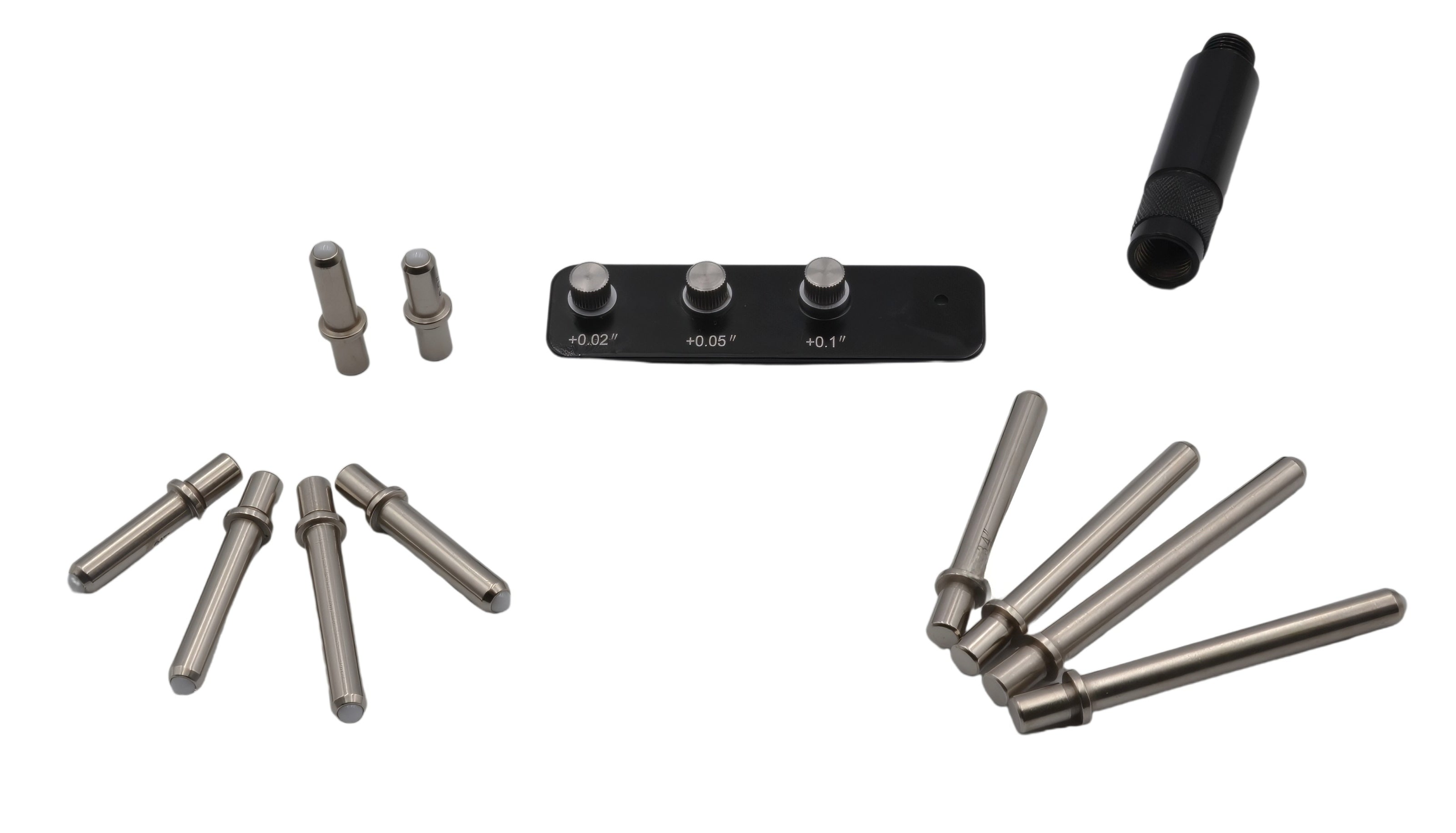

- Supplied extensions from 40mm to 60mm in 5mm increments
- Optional setting ring: 6313 (not included)
- Optional long handle: 7351 (not included)
- Supplied with limited hands and a bezel clamp

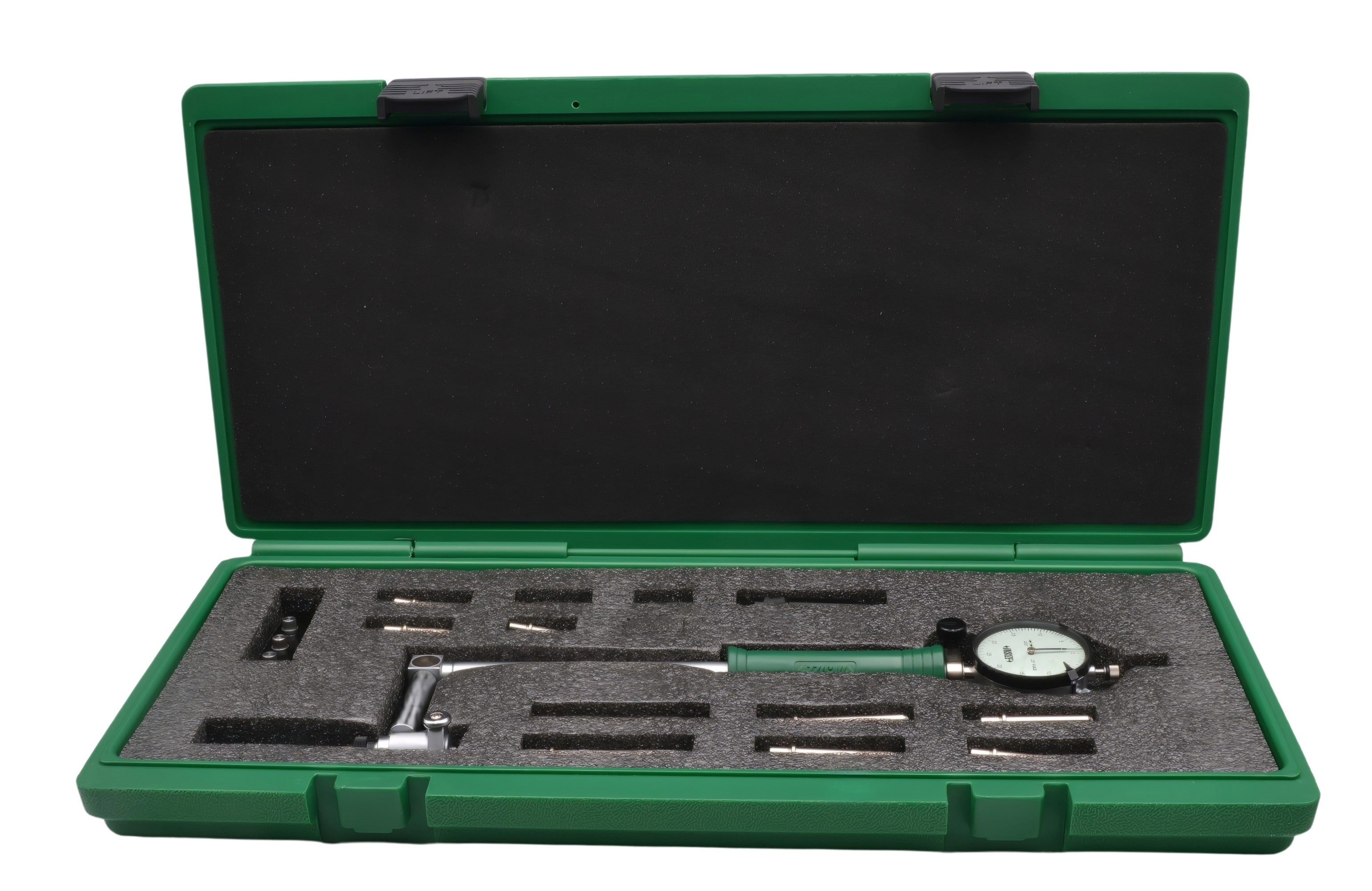

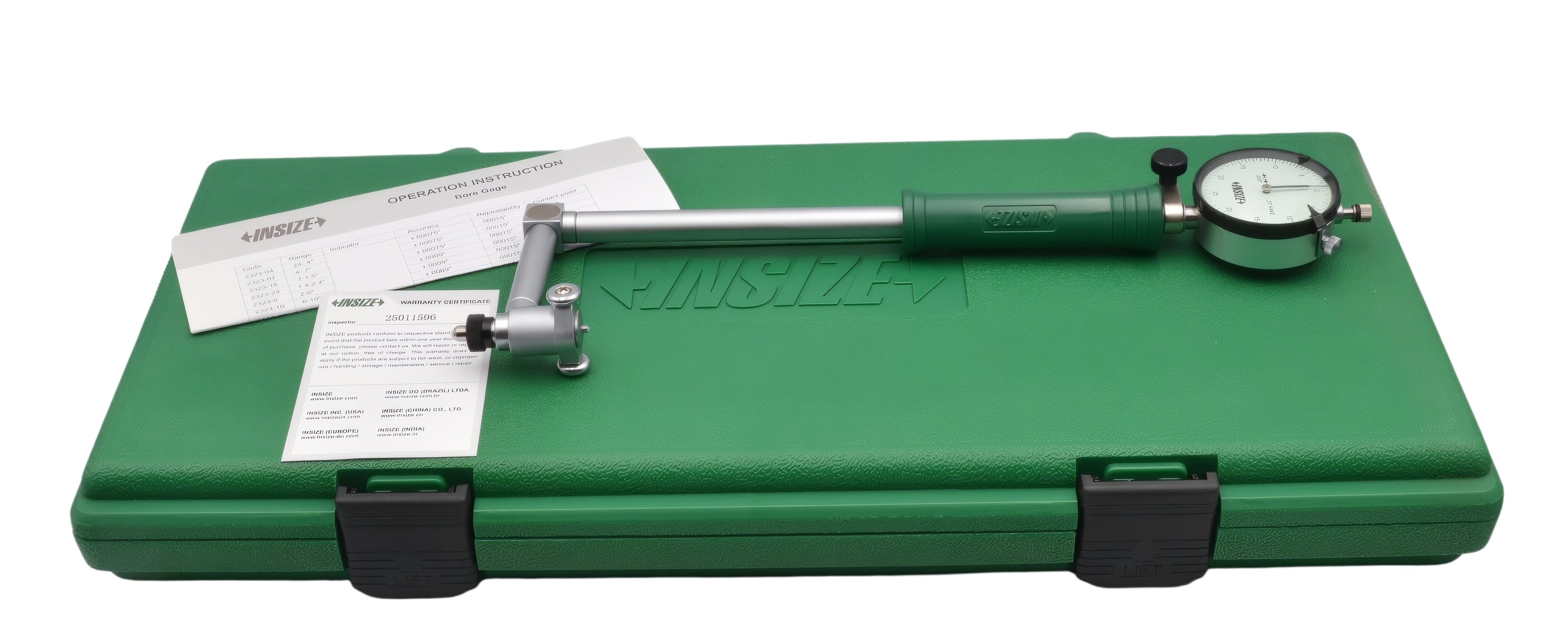

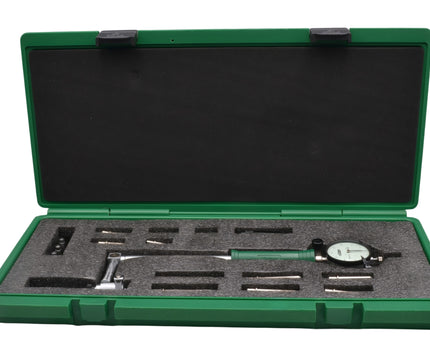

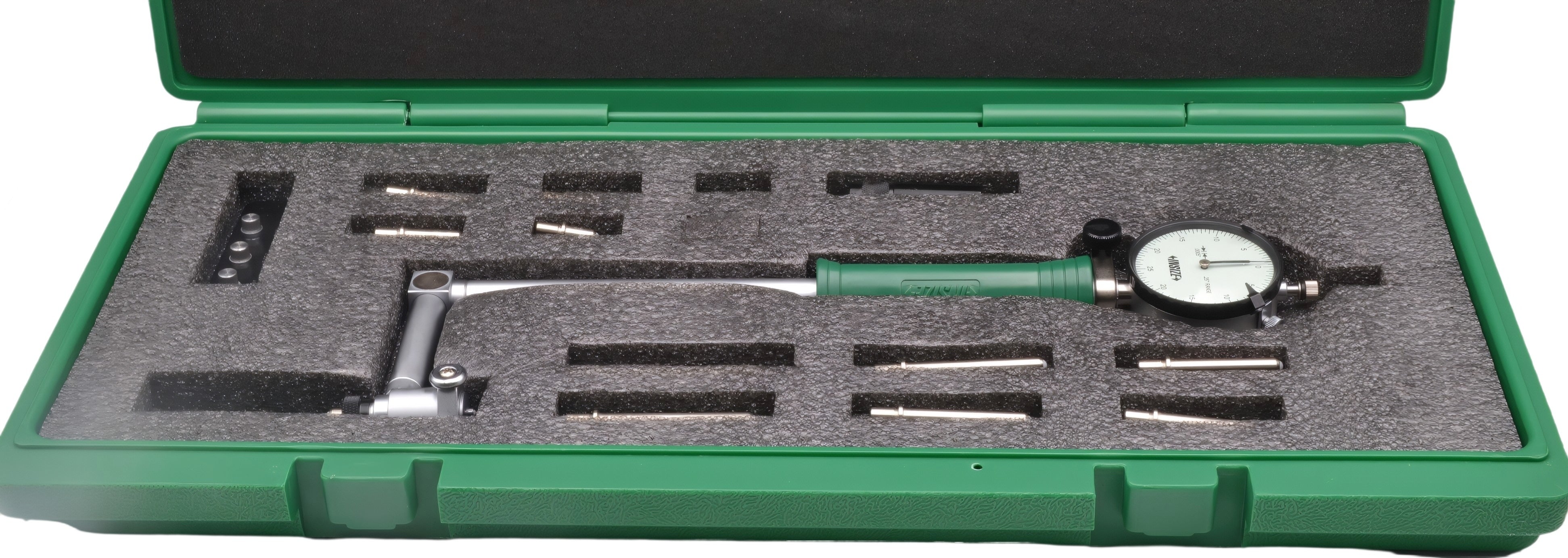

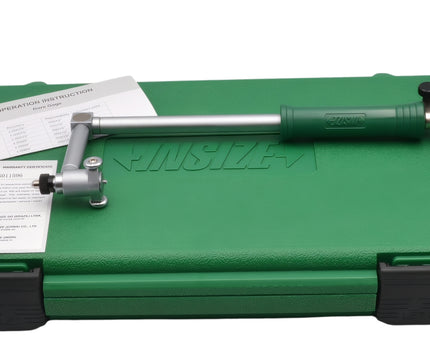

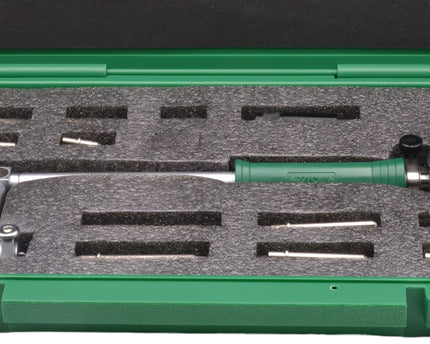

- Supplied in a moulded storage box
Well-designed, durable, high-precision tools suitable for demanding measuring tasks. INSIZE bore gauges deliver smooth operation and dependable accuracy for precise internal bore measurement.
