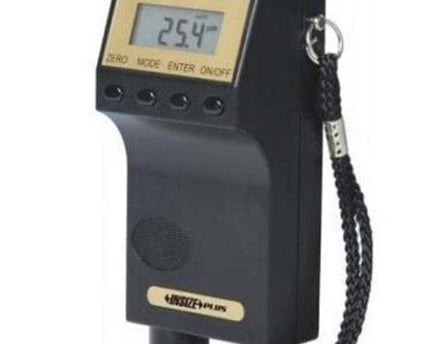

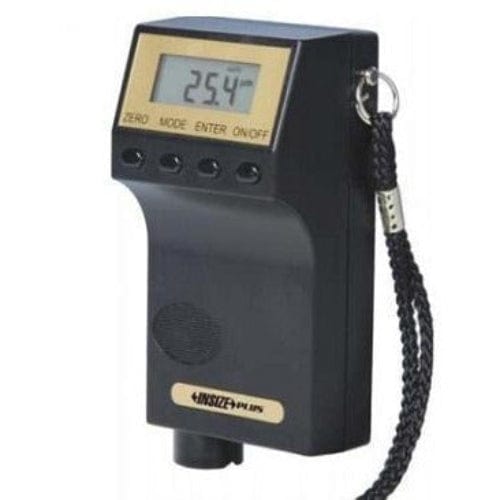

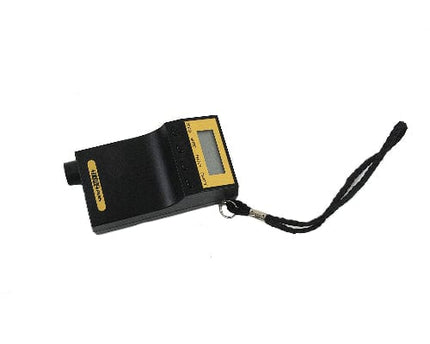

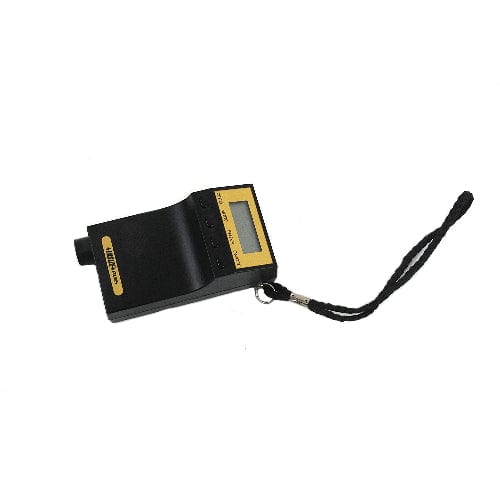

Insize Coating Thickness Gauge
The INSIZE ISO-3500FN-W Coating Thickness Gauge is a versatile, high-precision instrument designed for accurately measuring coating thickness on both ferrous and non-ferrous substrates. Equipped with integrated magnetic induction and eddy current probes, it automatically selects the appropriate method based on the substrate material. This gauge is ideal for applications in automotive, aerospace, manufacturing, and quality control environments.
Specifications :
-
Part No: ISO-3500FN-W
-
Measuring Range: 0–3500 µm
-
Resolution:
- 0.1 µm (for thickness <100 µm)
- 1 µm (for thickness 100–1000 µm)
- 10 µm (for thickness >1000 µm)
-
Accuracy:
- ±(2% of reading + 1 µm) for thickness <1000 µm
- ±(3.5% of reading) for thickness ≥1000 µm
-
Repeatability:
- 1 µm (for thickness <1000 µm)
- 10 µm (for thickness ≥1000 µm)
-
Probes: Integrated magnetic induction (for ferrous substrates) and eddy current (for non-ferrous substrates)
-
Display: LCD with backlight
-
Measuring Modes: Continuous and single
-
Calibration Mode: Zero calibration
-
Minimum Measuring Area: 10 × 10 mm
-
Minimum Substrate Thickness:
- Ferrous: 0.2 mm
- Non-ferrous: 0.05 mm
-
Minimum Curvature Radius of Workpiece:
- Concave: 30 mm
- Convex: 5 mm
-
Power Supply: 9V battery
-
Dimensions (L×W×H): 118 × 58 × 38 mm
-
Weight: Approximately 150 g
-

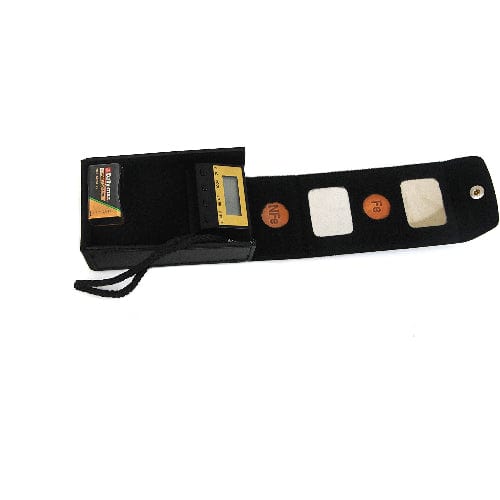

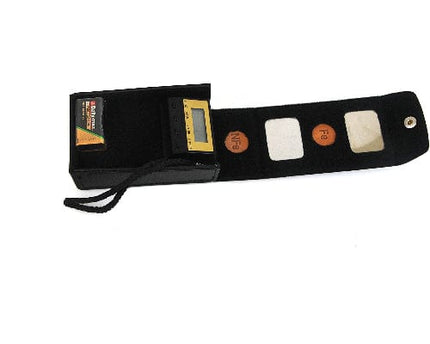

Included Accessories:
- Main unit
- 9V battery
- Zero calibration blocks for ferrous and non-ferrous probes
- Standard foils (20 µm, 50 µm, 100 µm, 250 µm)
- ISM-PRO measuring software
Well-designed and highly durable, the INSIZE ISO-3500FN-W Coating Thickness Gauge offers exceptional precision for a wide range of applications. With its advanced magnetic induction and eddy current probes, it ensures accurate measurements on both ferrous and non-ferrous materials. Perfect for quality control and inspection tasks, this instrument provides easy calibration and versatile measurement modes, making it an invaluable tool for professionals in industries such as automotive, aerospace, and manufacturing.
