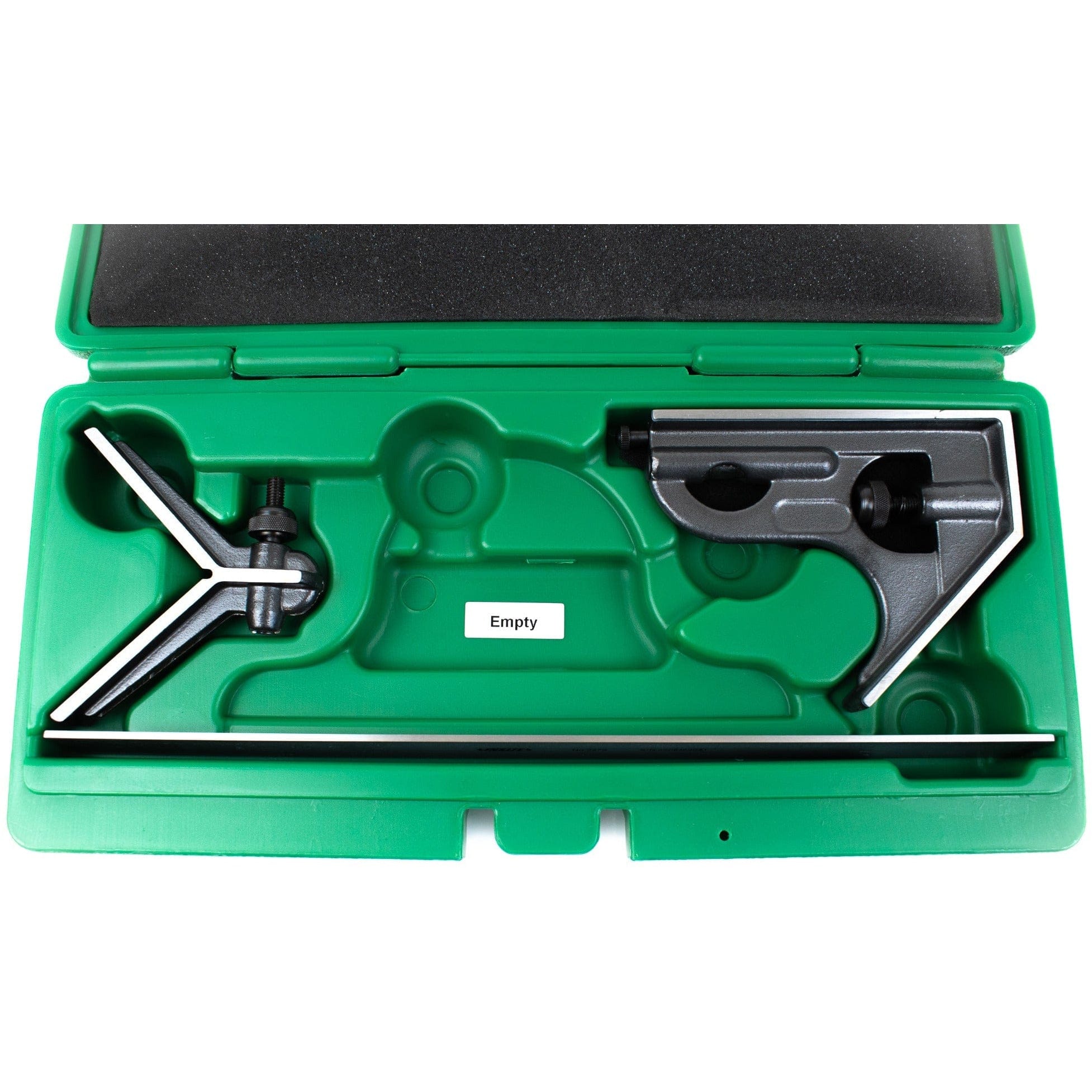

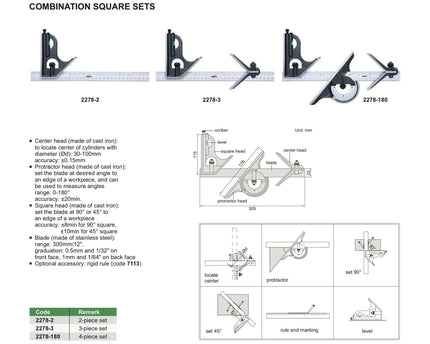

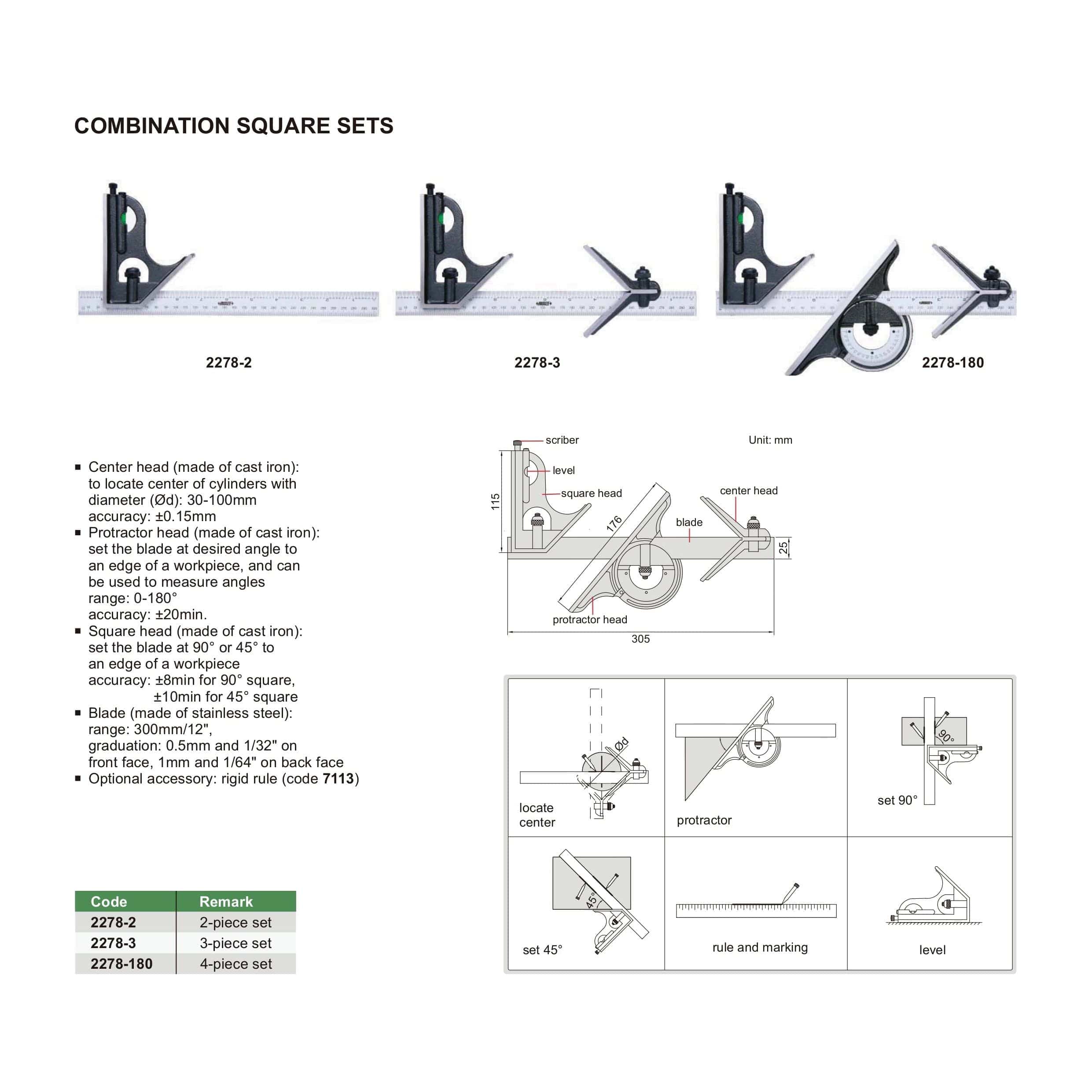

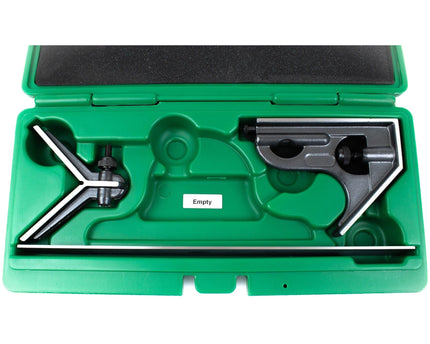

Insize Combination Square Set
This precision combination square set is engineered for accurate layout, measurement, and angle checking in machining, fabrication, carpentry, and general workshop applications. Built from durable materials and manufactured to high standards, it provides reliable performance for both professional and hobby use. Each component is designed for smooth adjustment, excellent readability, and long-term accuracy.
Key Features:
-
Part Number: 2278-3
-

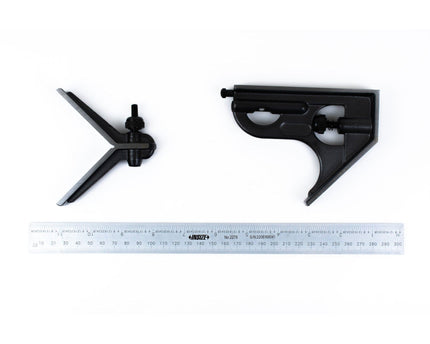

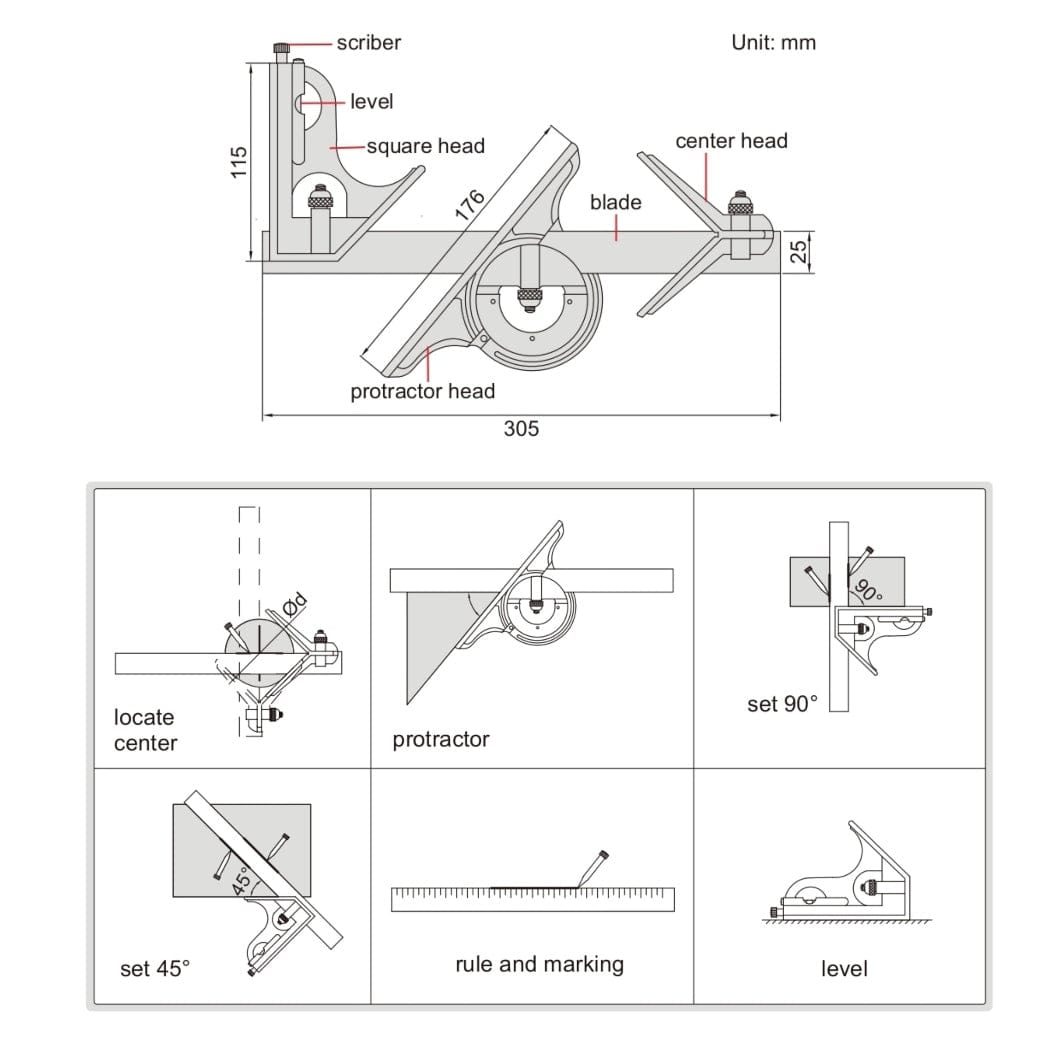

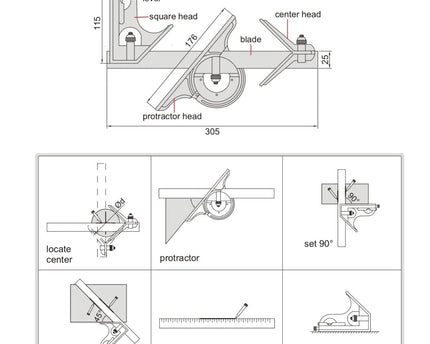

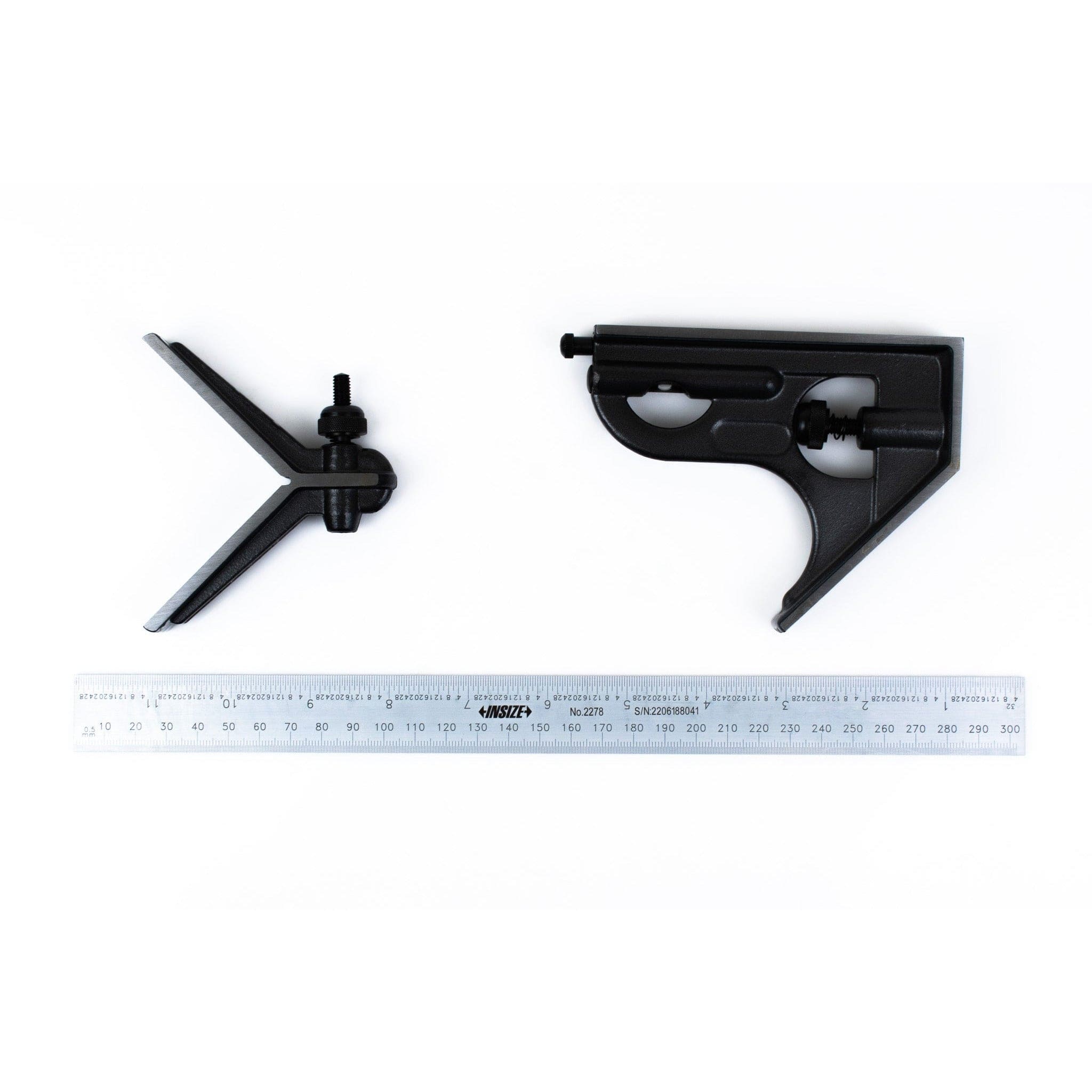

Center Head (cast iron): Designed for locating the center of cylindrical workpieces.
-
Range: 30–100mm diameter
-
Accuracy: ±0.15mm
-
Protractor Head (cast iron): Allows the blade to be set at a precise angle to an edge and used for accurate angular measurement.
-
Range: 0–180°
-
Accuracy: ±20 minutes
-
Square Head (cast iron): Positions the blade at 90° or 45° for layout and inspection tasks.
-
Accuracy: ±8 minutes (90°), ±10 minutes (45°)
-
Blade (stainless steel):
-
Length: 300mm / 12"
-
Graduations: 0.5mm & 1/32" on the front face; 1mm & 1/64" on the back face
-
Optional Accessory: Rigid rule (code 7113)
Well-designed, durable, high-precision tools suitable for a wide range of measurement and layout applications. INSIZE combination squares provide dependable accuracy and ease of use, making them ideal for checking 90° and 45° angles, marking workpieces, and performing general workshop layout tasks.
