Description

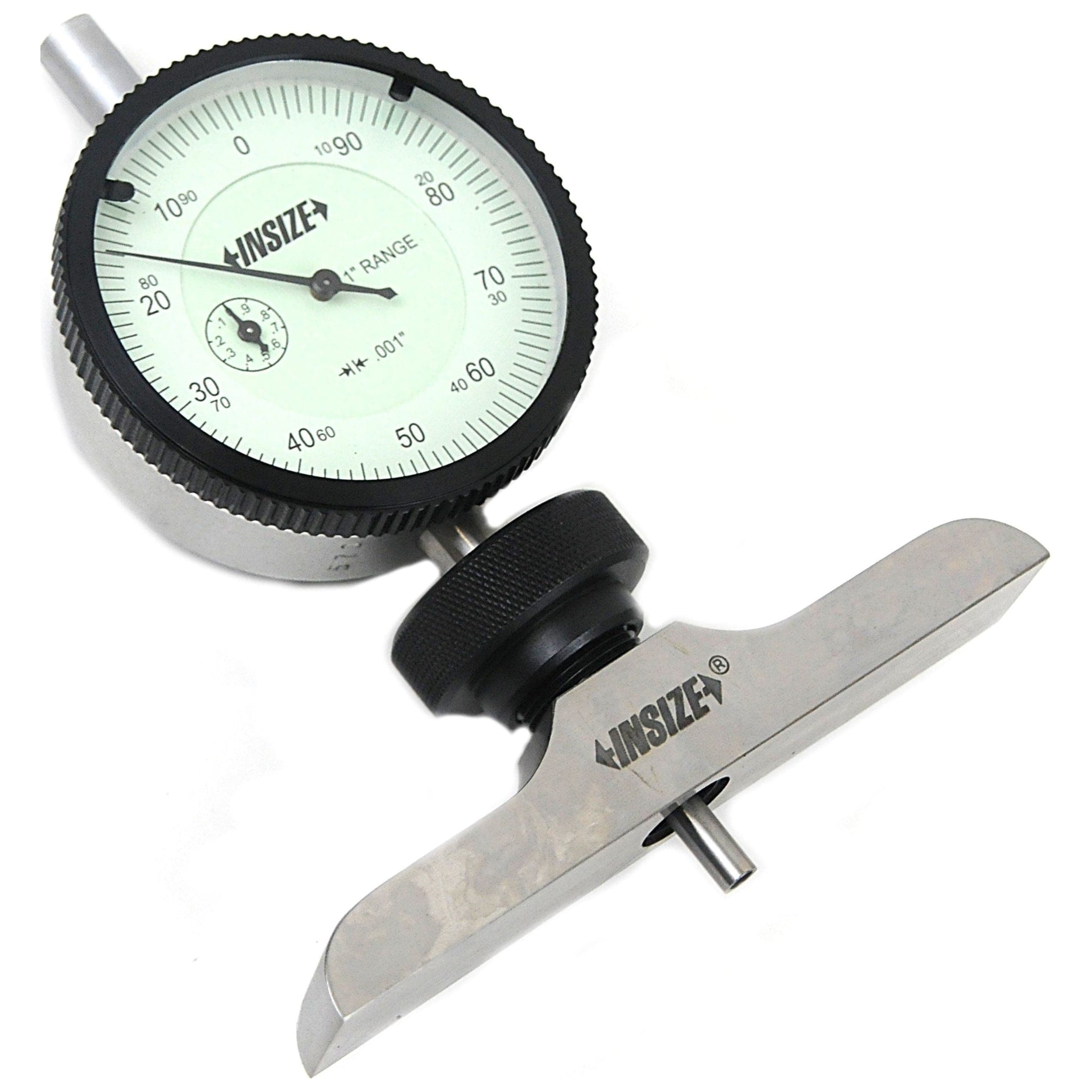

Insize 0–12" × 0.001" Dial Depth Gauge

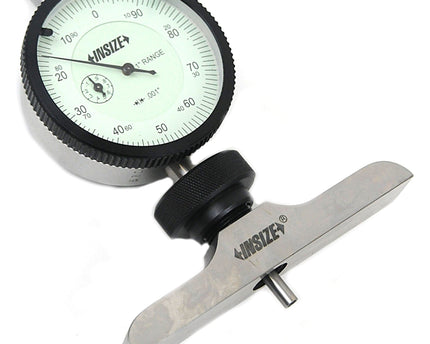

A high-precision dial depth gauge designed for accurate measurement of recesses, steps, grooves, and bore depths up to 12 inches. Built with a rigid stainless steel base and supplied with multiple extension rods, this gauge provides excellent stability and versatility for workshop, machining, and inspection tasks.

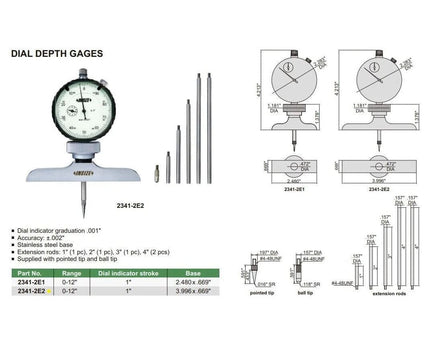

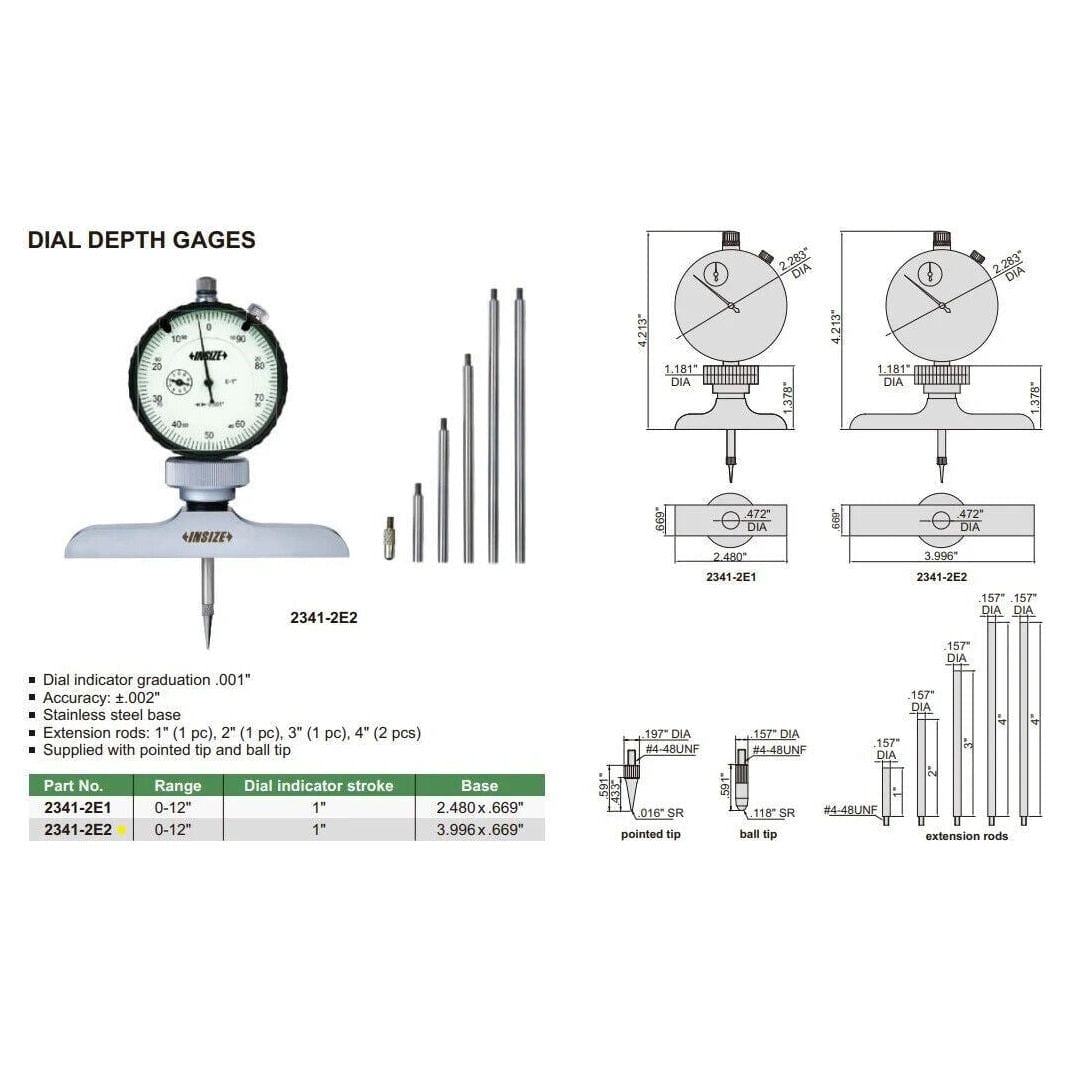

Specifications :
- Part no: 2341-2E2
- Accuracy: ±0.002"
- Graduation: 0.001"
- Range: 0–12"

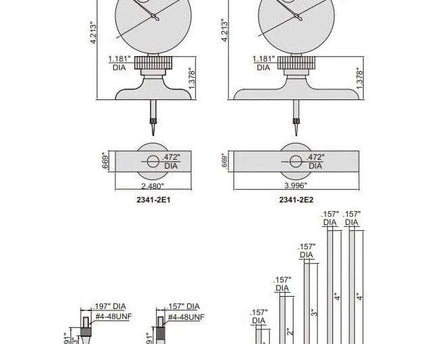

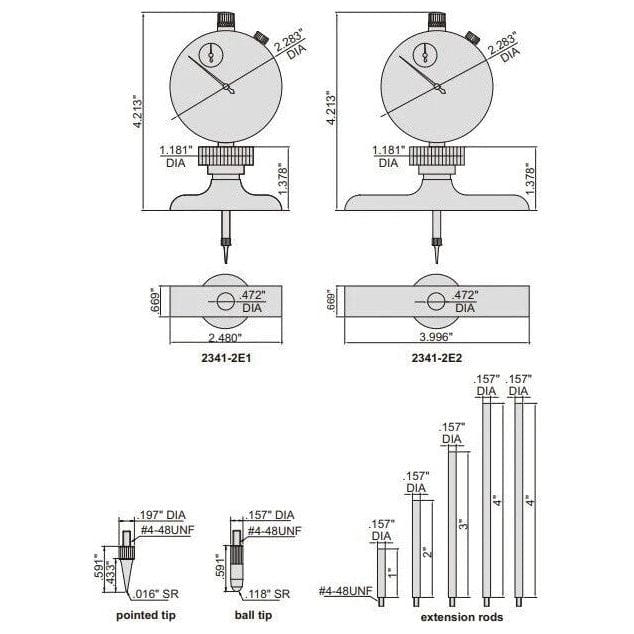

- Base size: 3.996" × 0.669"
- Base material: Stainless steel

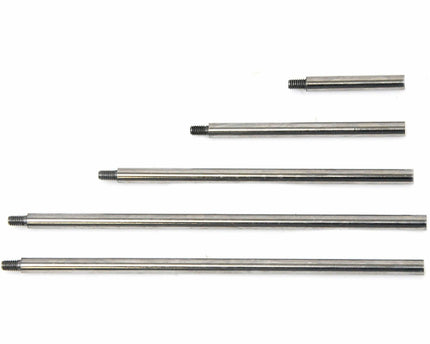

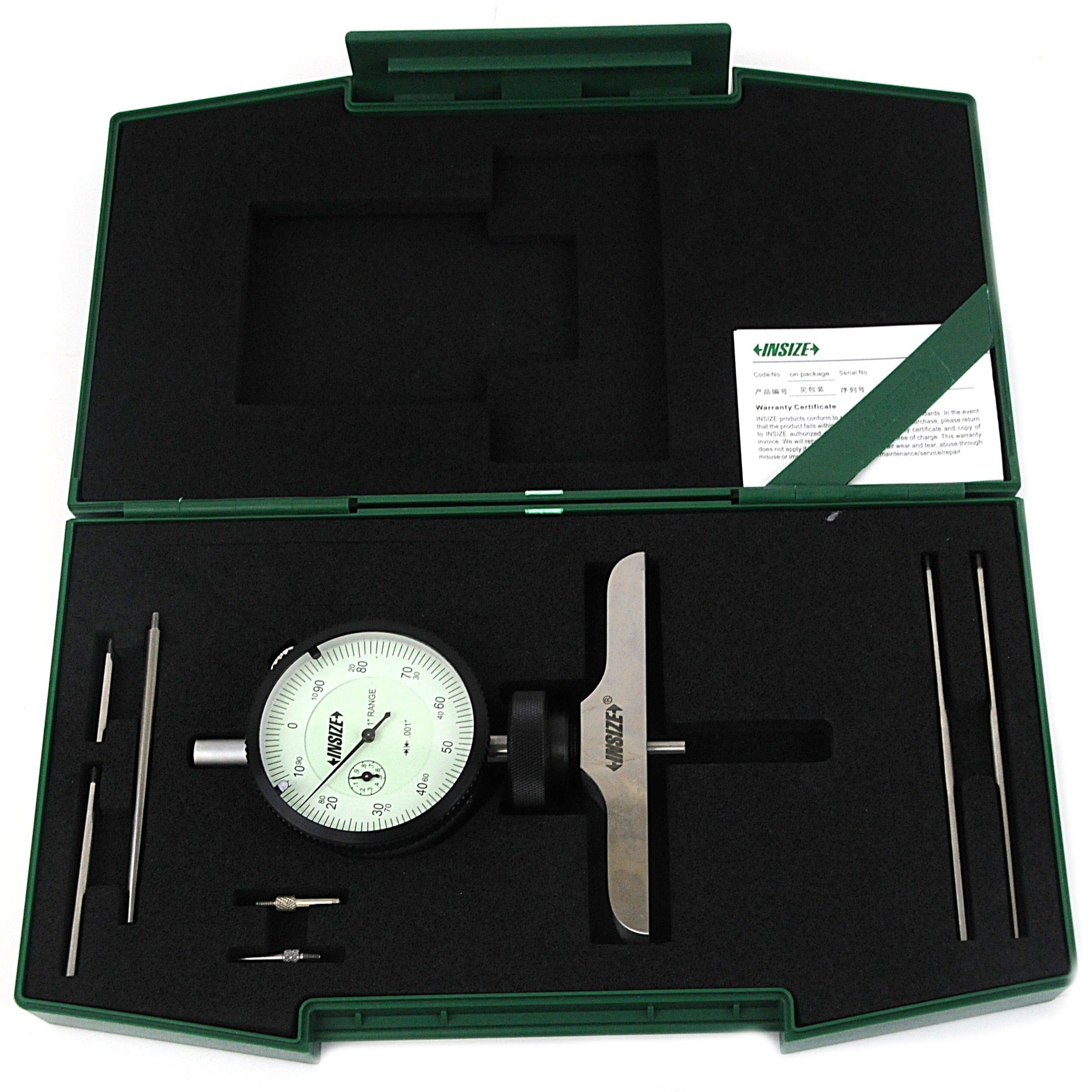

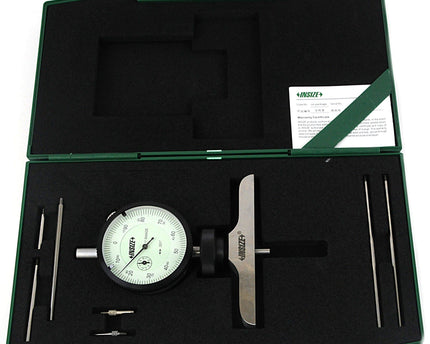

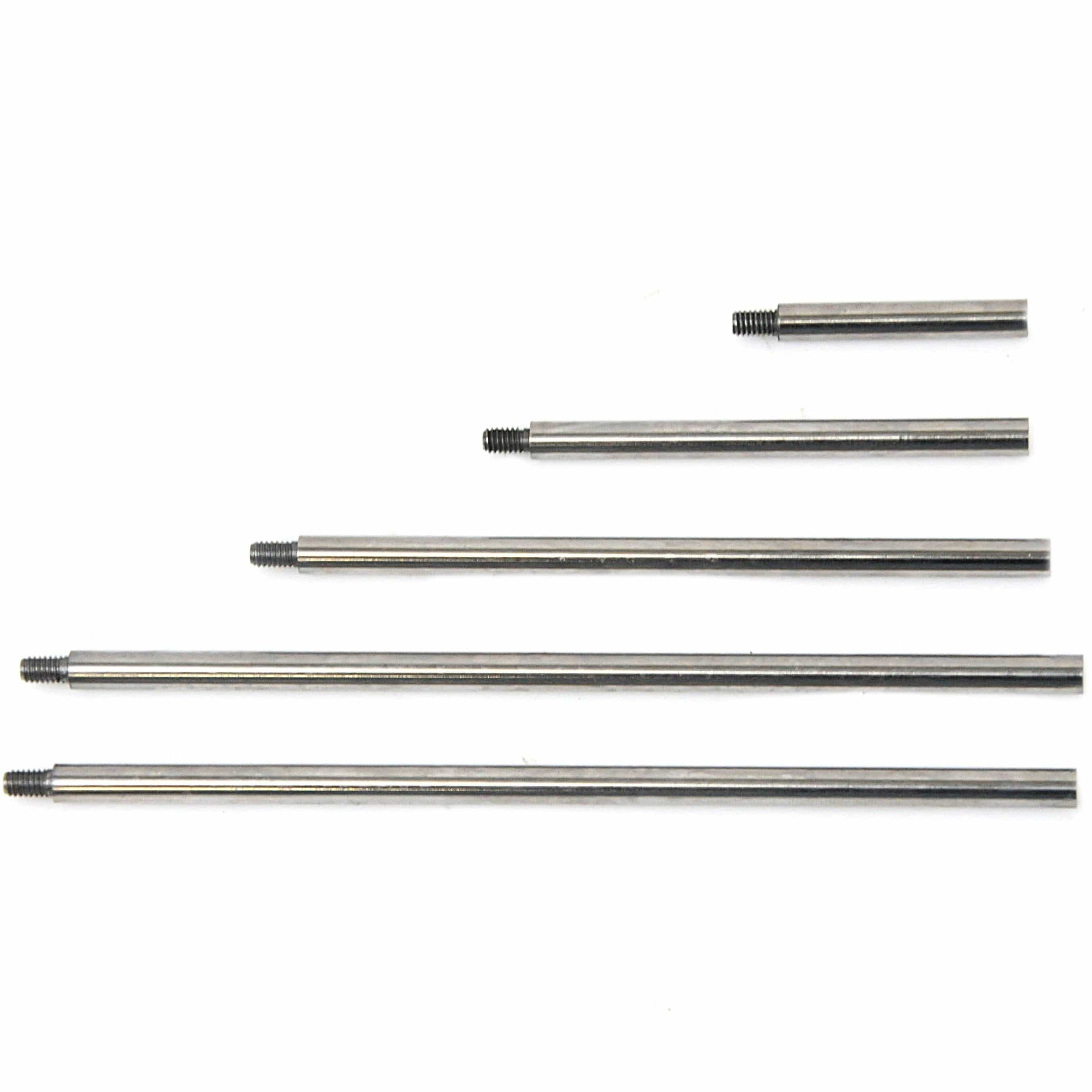

- Extension rods: 1" (1 pc), 2" (1 pc), 3" (1 pc), 4" (2 pcs)

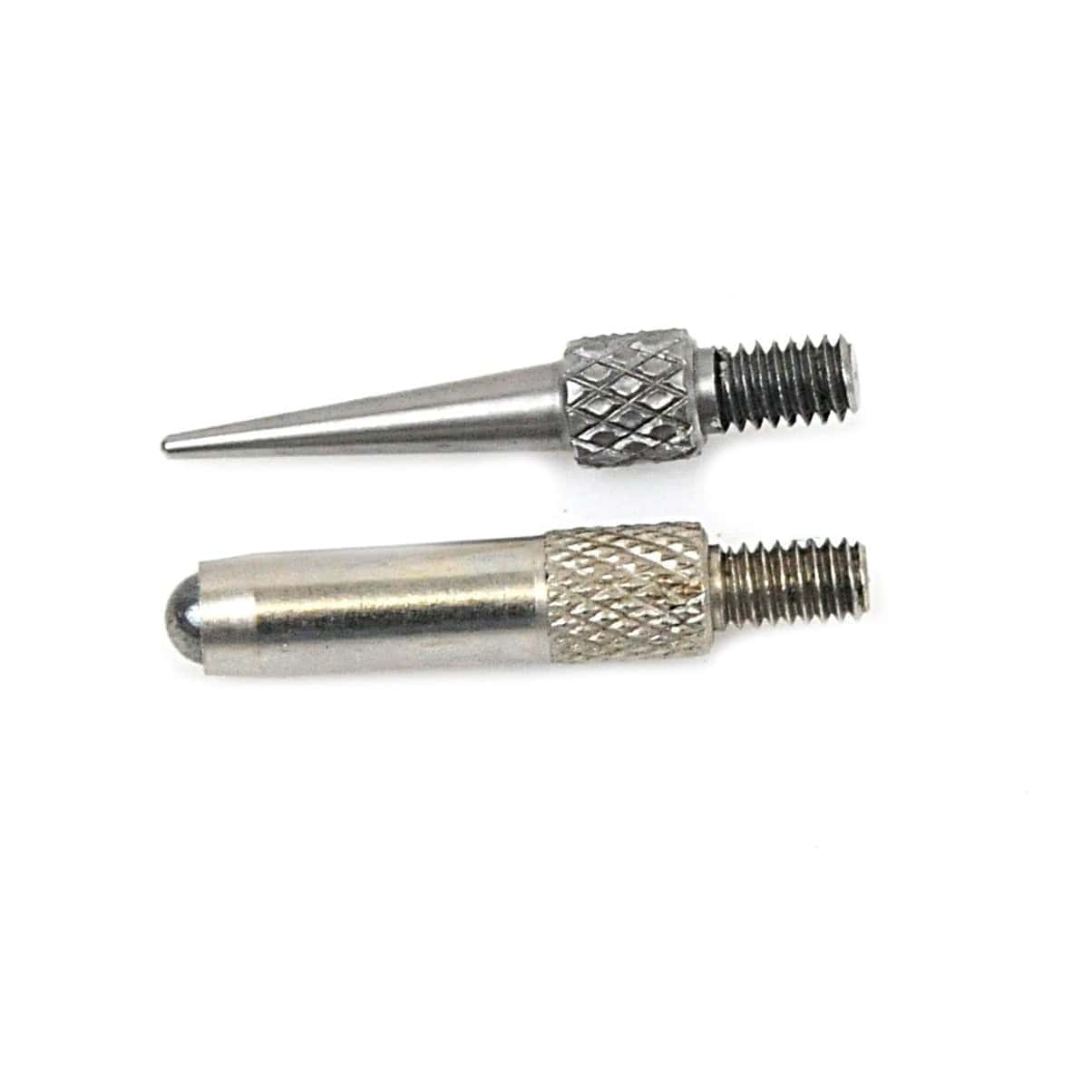

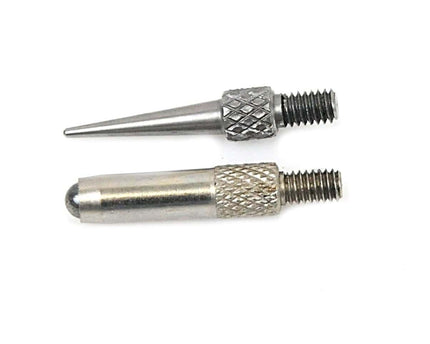

- Supplied with a pointed tip and a ball tip
Well-designed, durable, high-precision tools that are suitable for various measuring applications. INSIZE dial depth gauges provide smooth operation, clear graduations, and dependable accuracy, making them ideal for determining the depth of bores, recesses, grooves, and machined features.
