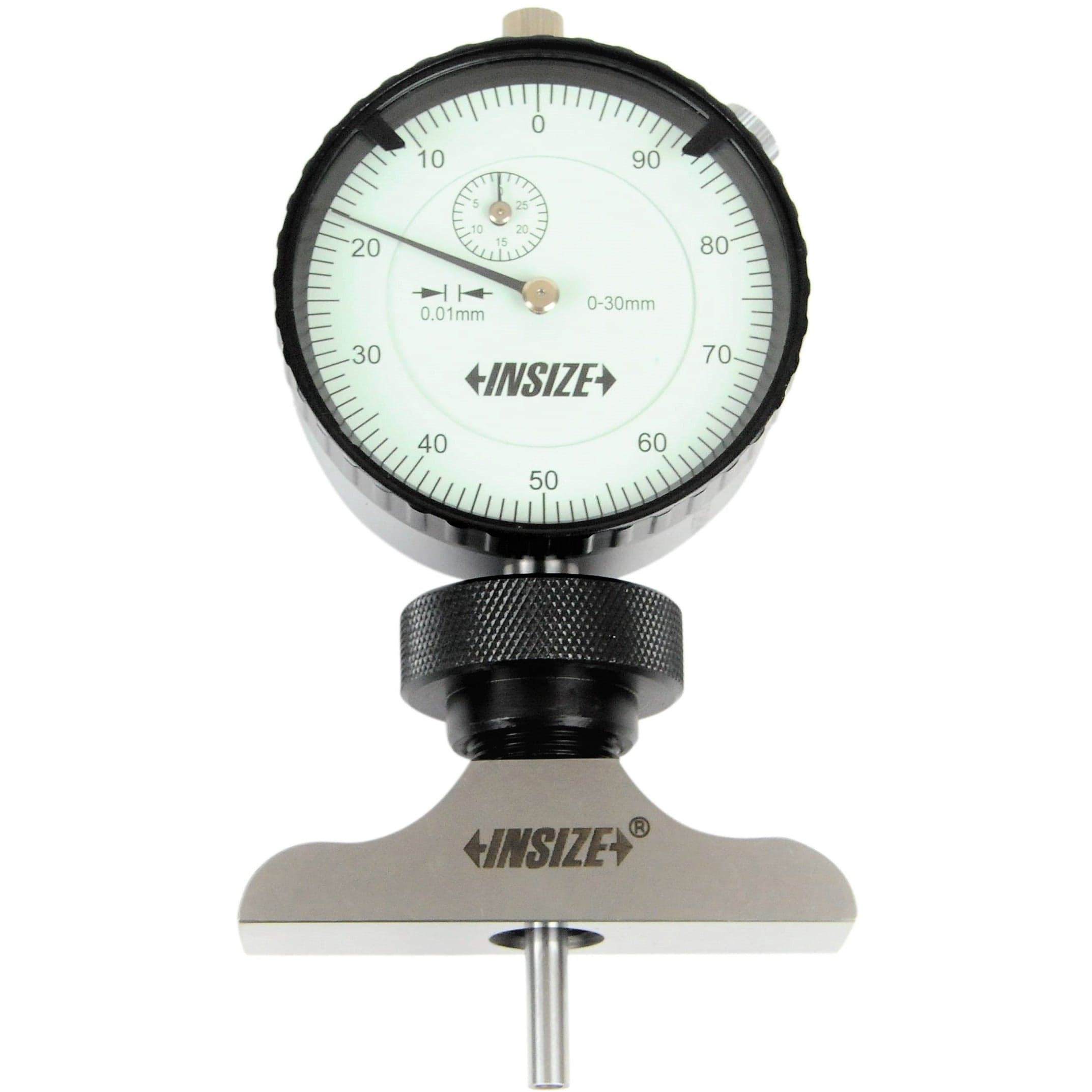

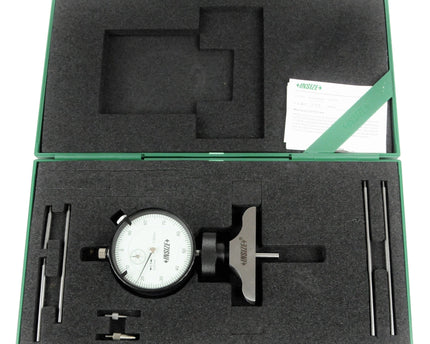

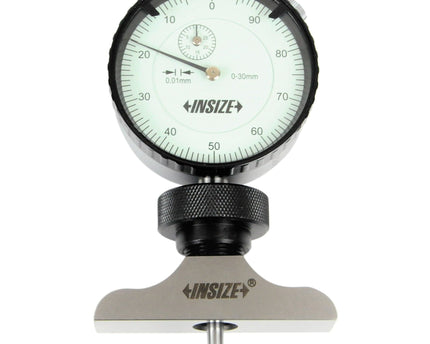

Insize 0-300mm Dial Depth Gauge

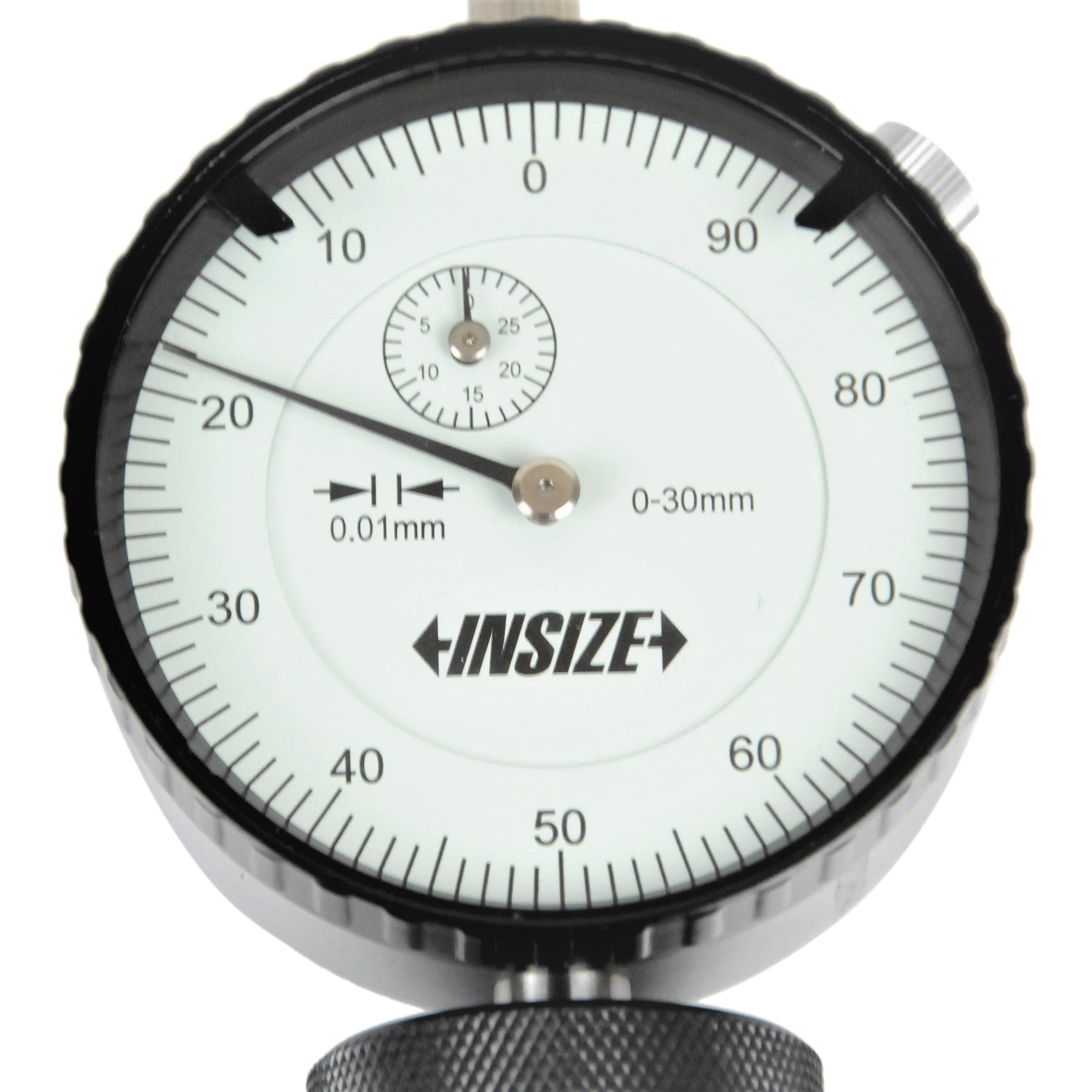

A high-precision dial depth gauge designed for accurate measurement of holes, slots, recesses, and machined features up to 300mm deep. The rigid stainless steel base and smooth dial movement ensure excellent stability, repeatability, and ease of use in both workshop and inspection environments.

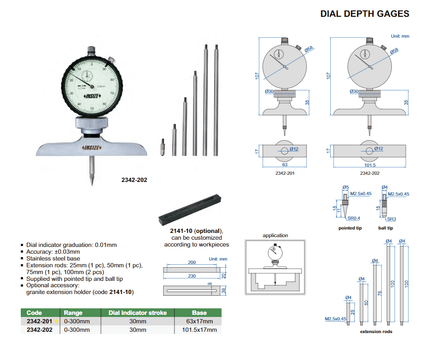

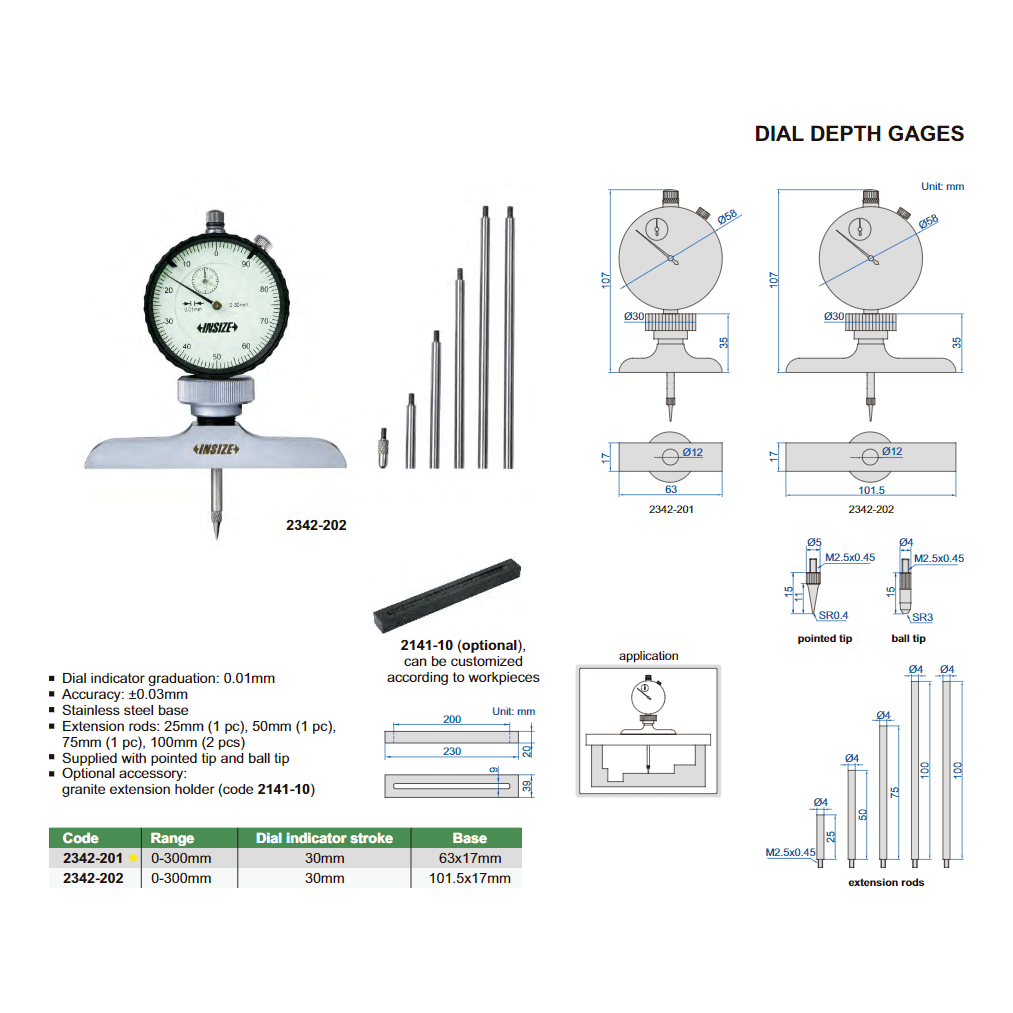

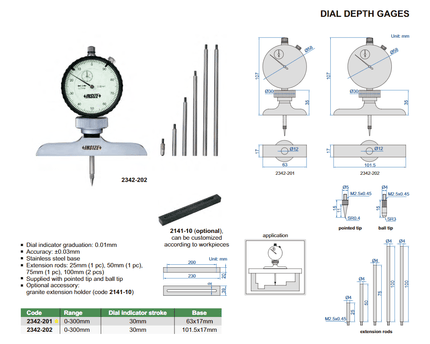

Specifications :

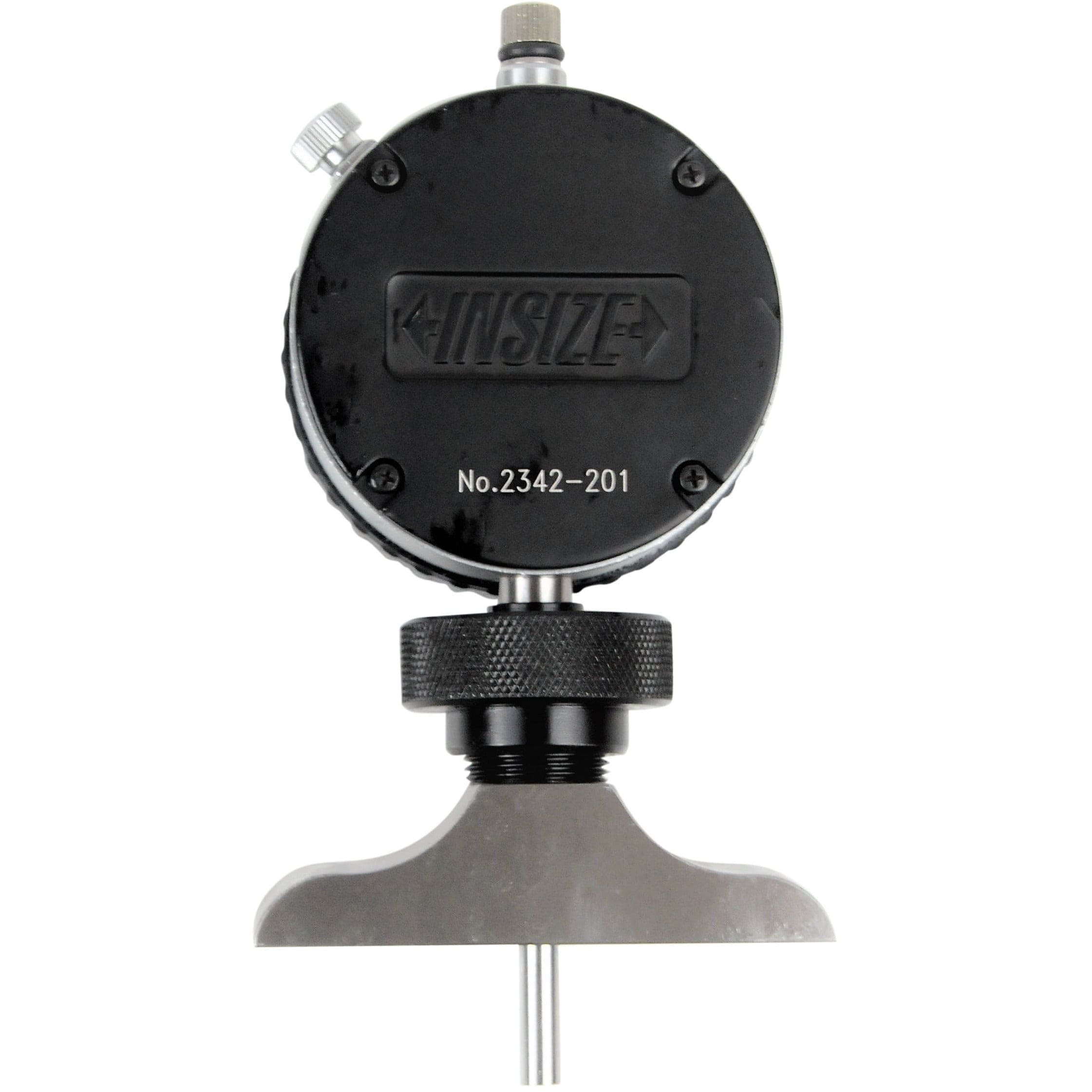

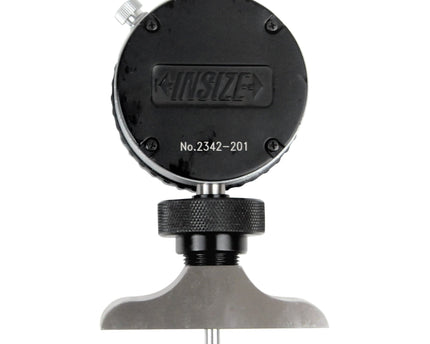

- Part no: 2342-201
- Range: 0–300mm
- Accuracy: ±0.03mm

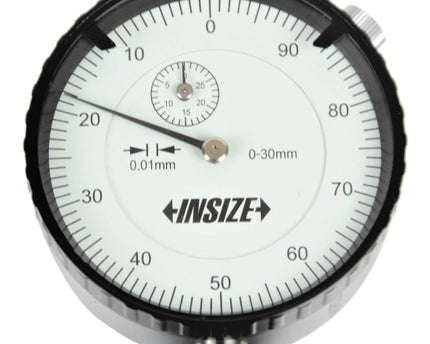

- Graduation: 0.01mm
- Stroke: 30mm
- Stainless steel base

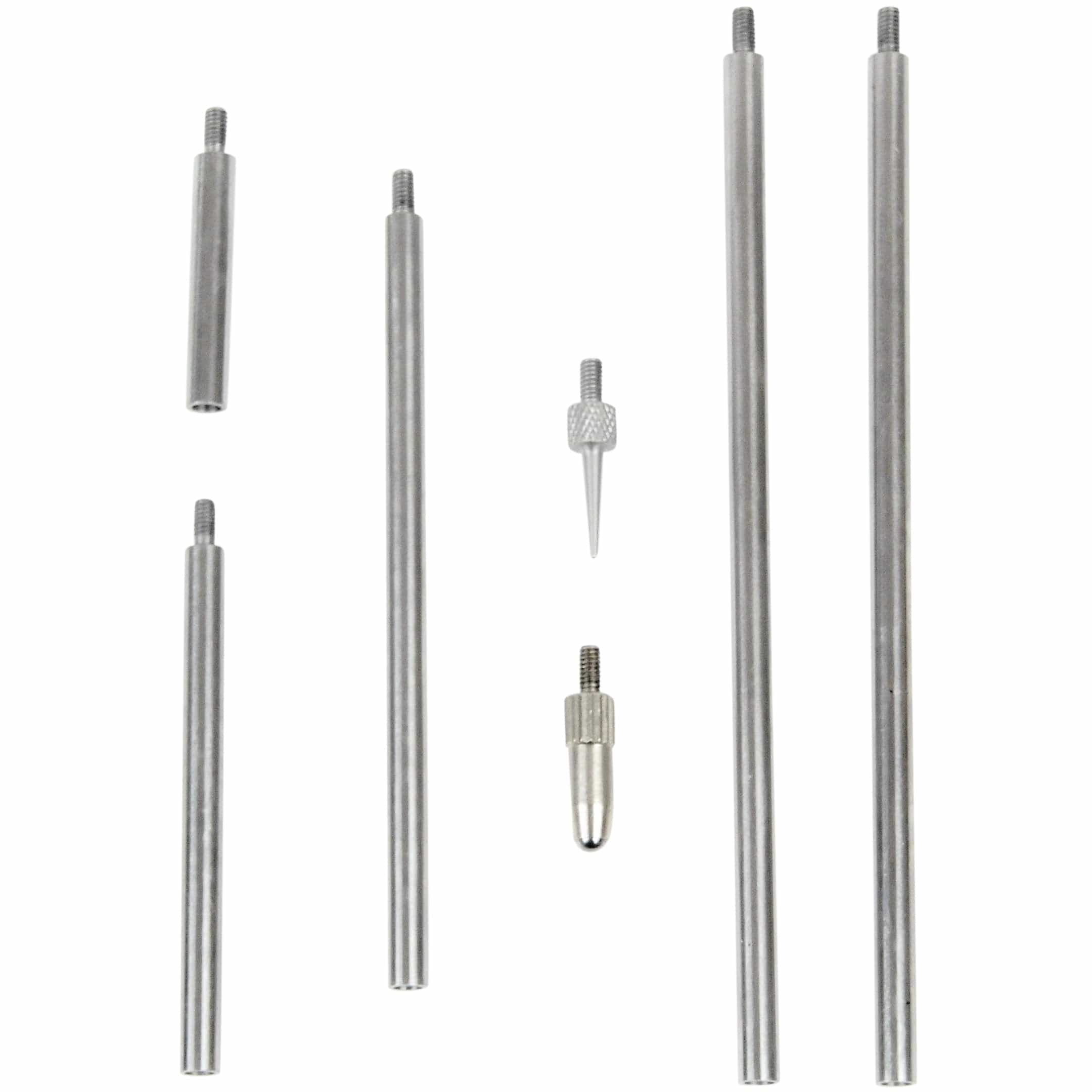

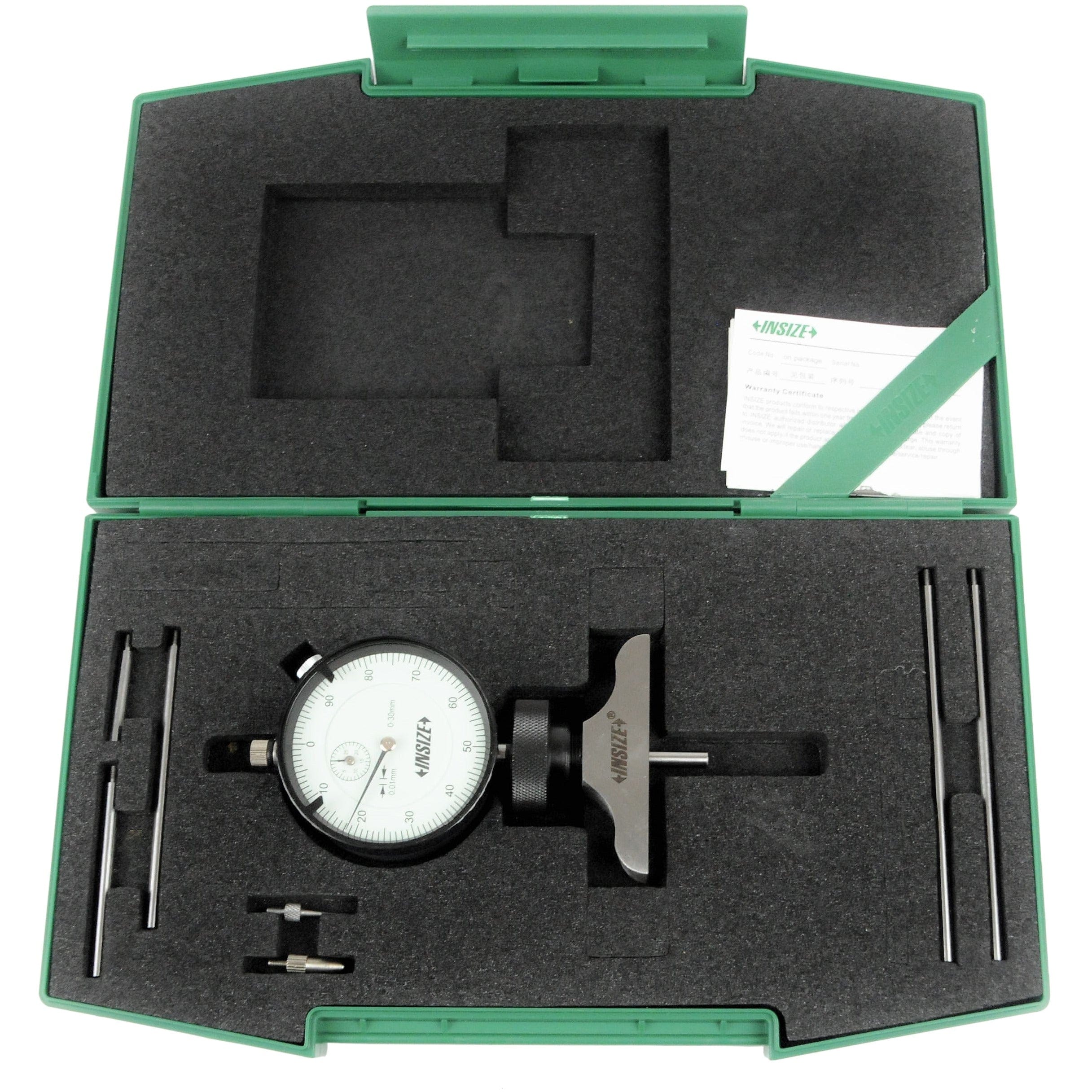

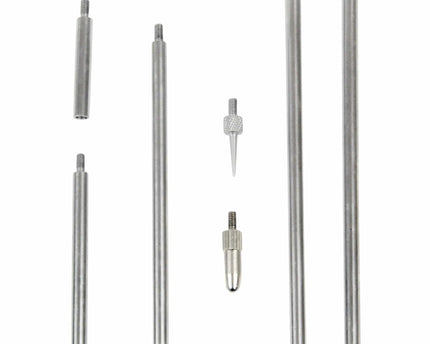

- Extension rods: 25mm (1pc), 50mm (1pc), 75mm (1pc), 100mm (2pcs)
- Supplied with pointed tip and ball tip

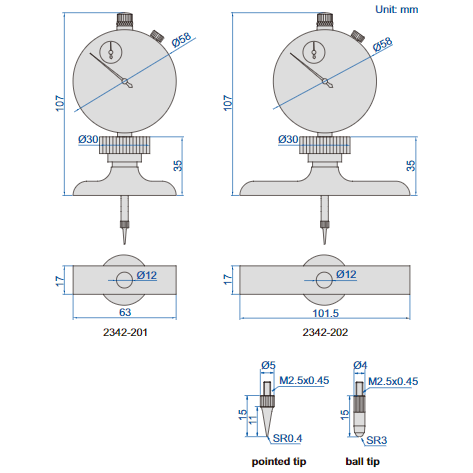

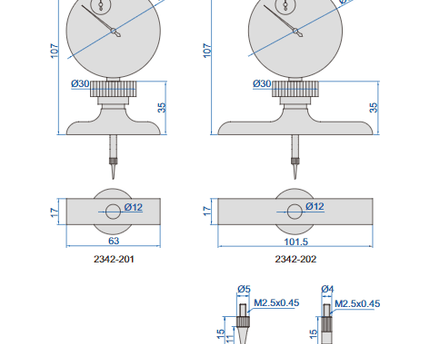

- Base size: 63 × 17mm
Well-designed, durable, high-precision tools suitable for a wide range of measuring applications. INSIZE dial depth gauges provide smooth operation, clear graduations, and reliable accuracy, making them ideal for measuring the depth of bores, recesses, steps, grooves, and other machined features.
