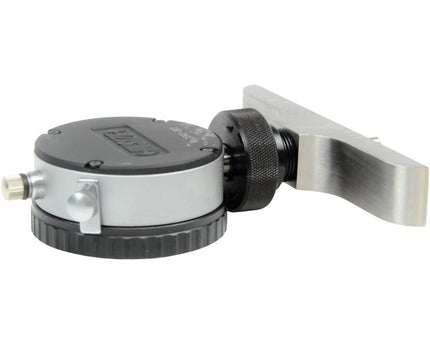

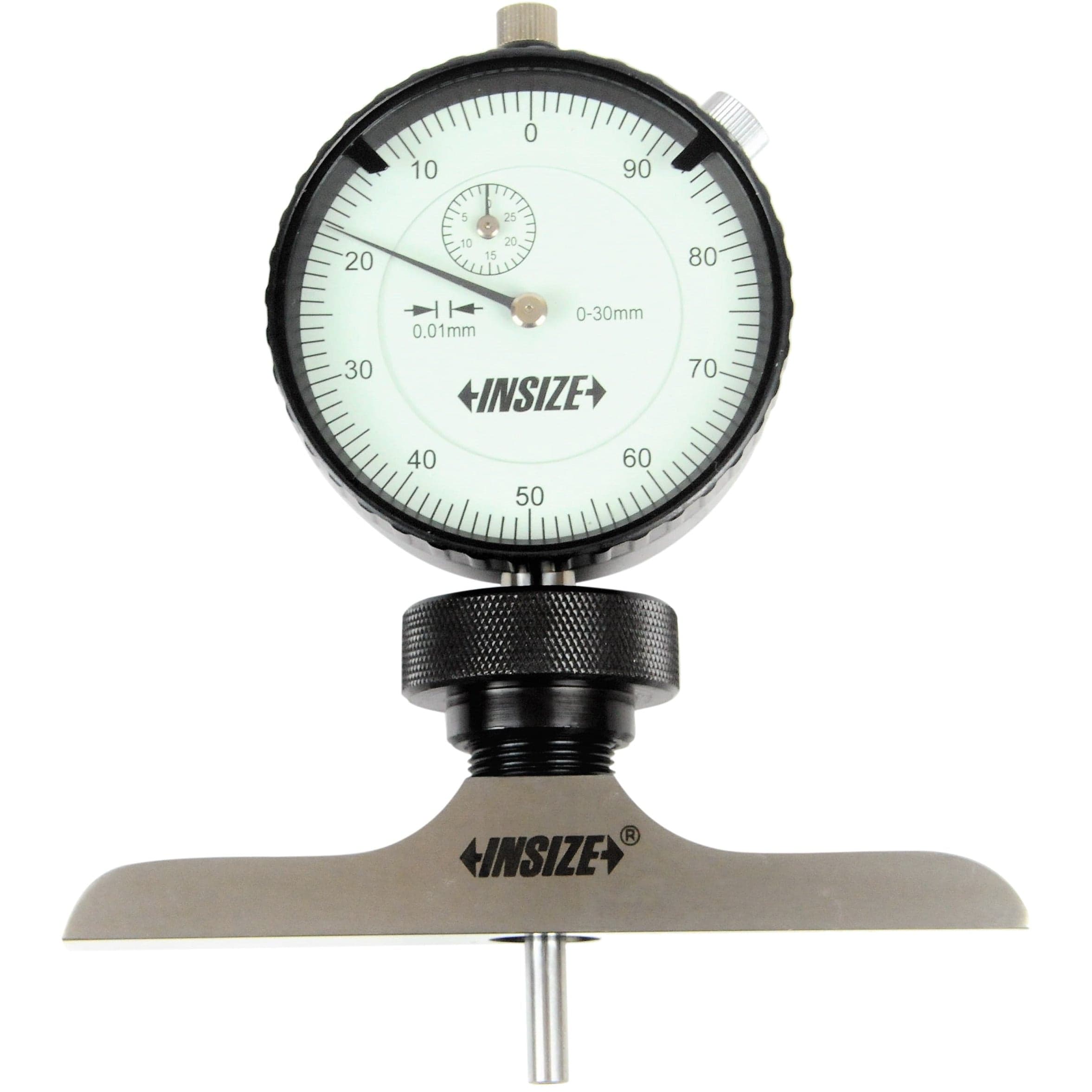

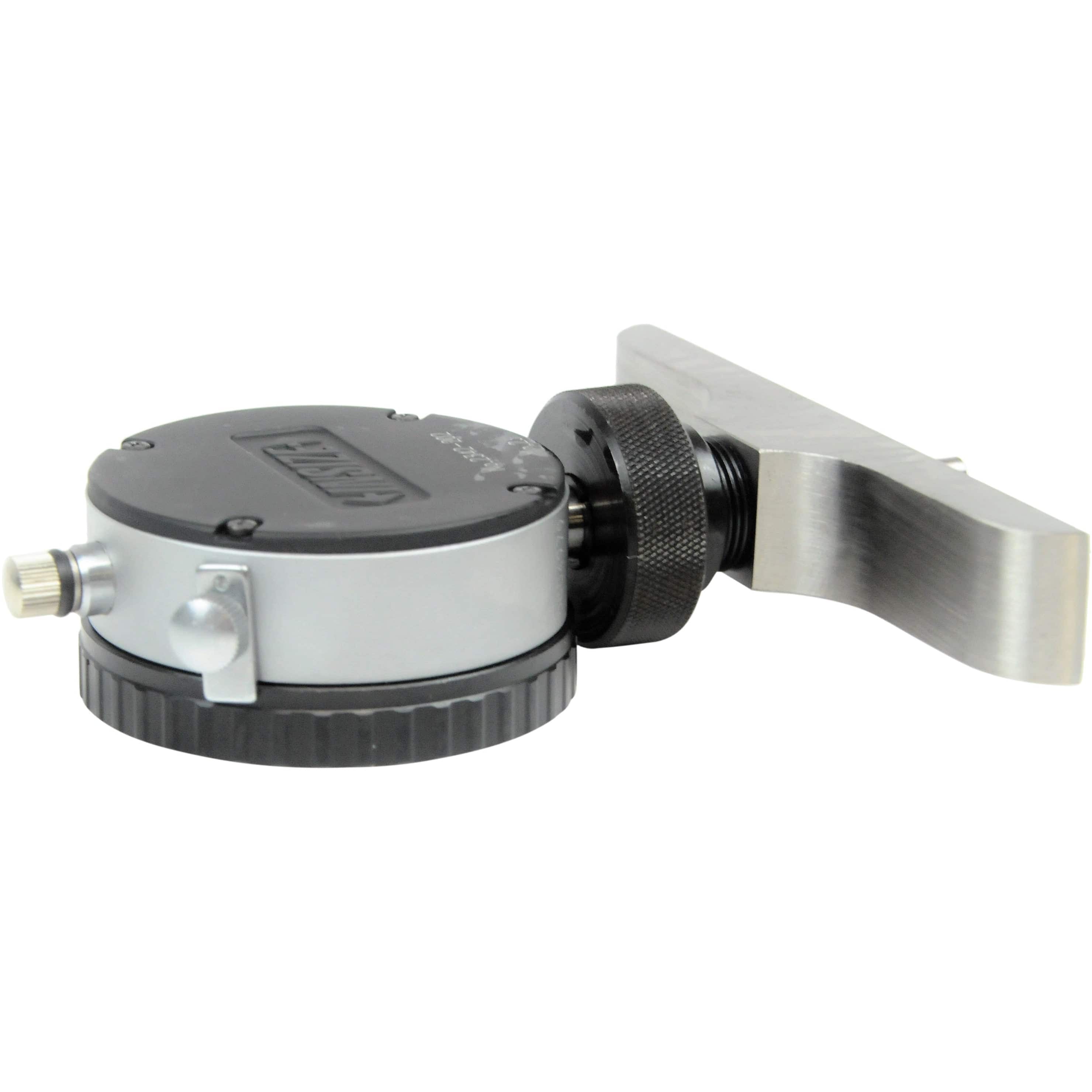

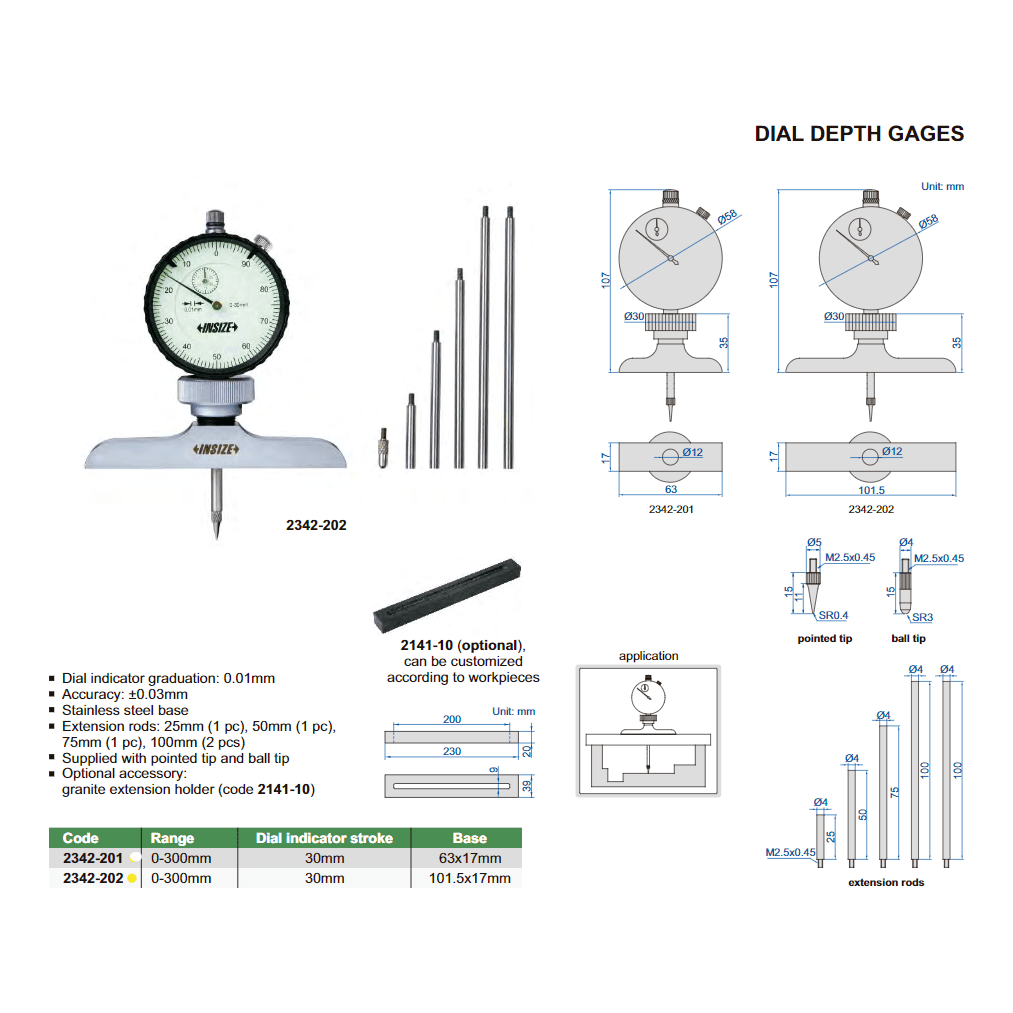

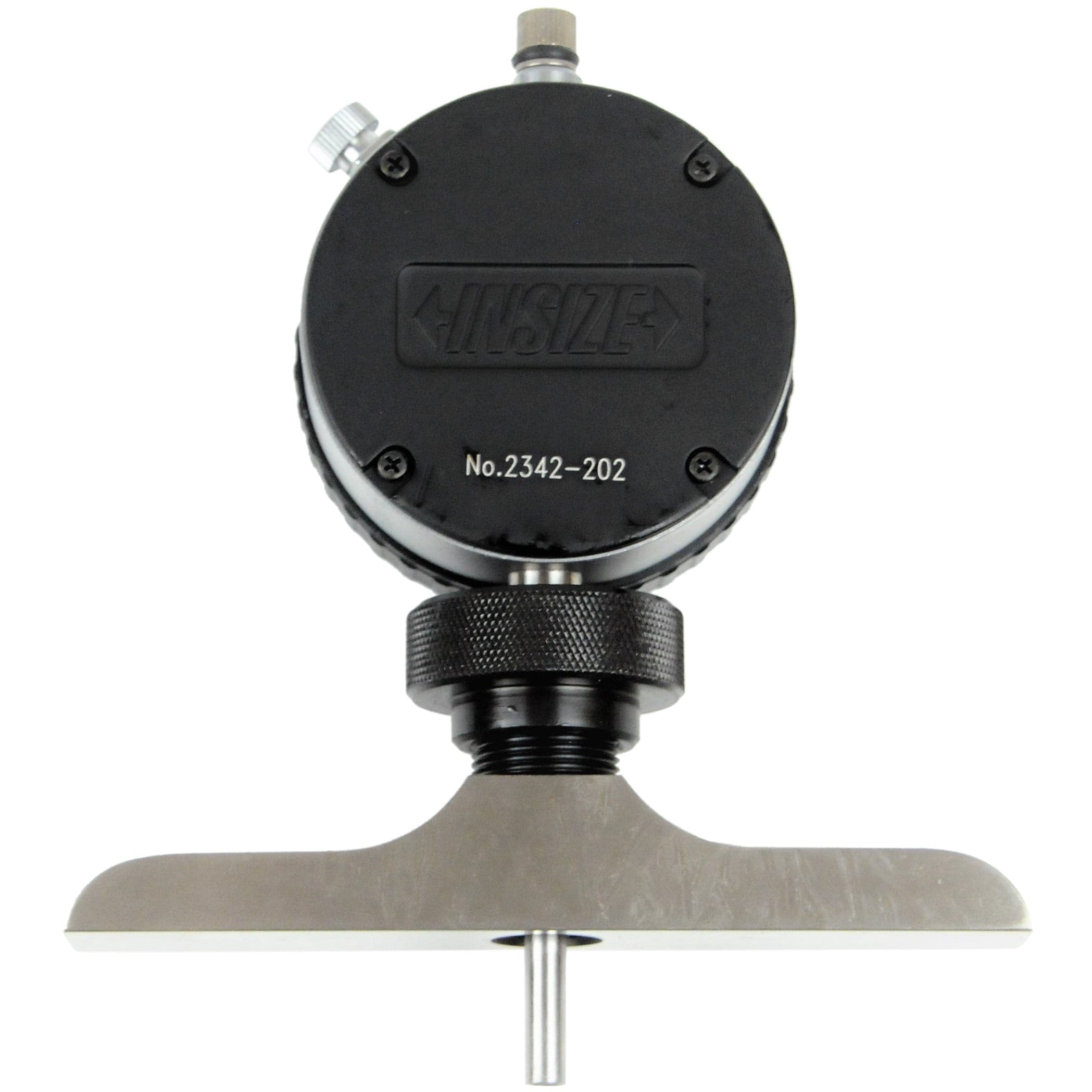

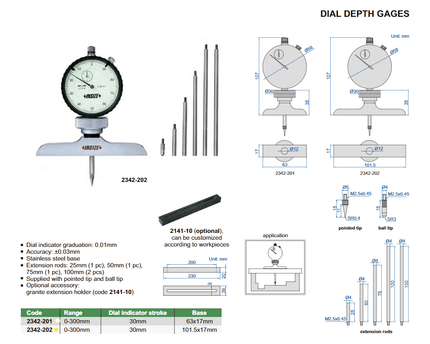

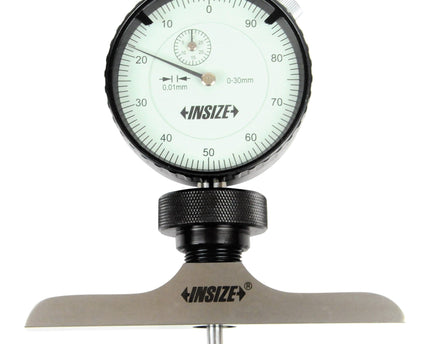

Insize 0-300mm Dial Depth Gauge
A precision-engineered dial depth gauge designed for accurate measurement of steps, recesses, bores, and machined features up to 300mm deep. The stainless steel base provides exceptional stability, while the smooth movement and clear graduations ensure reliable, repeatable readings in workshop or inspection environments.
Specifications :
- Part no 2342-202
- Range: 0–300mm
- Accuracy: ±0.03mm

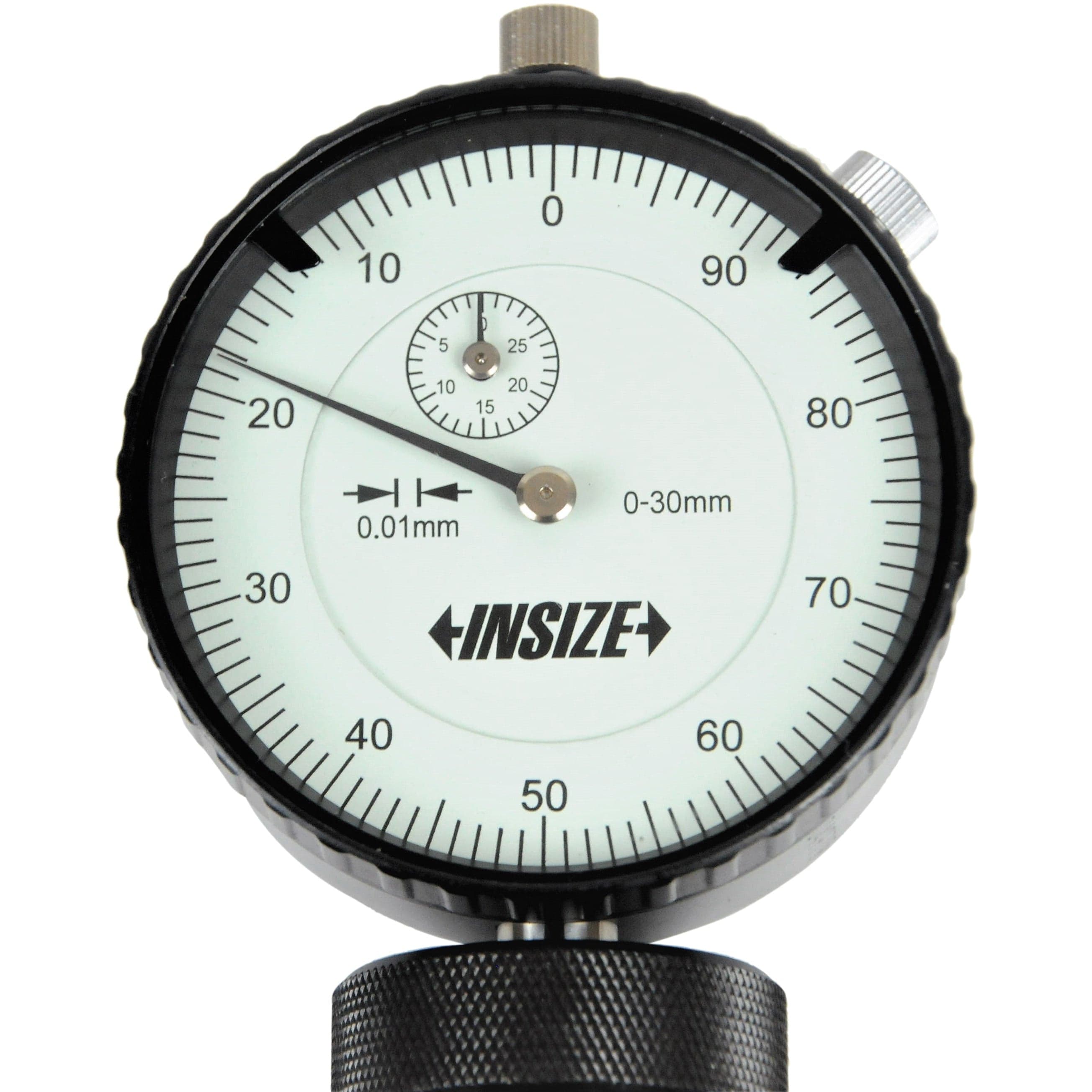

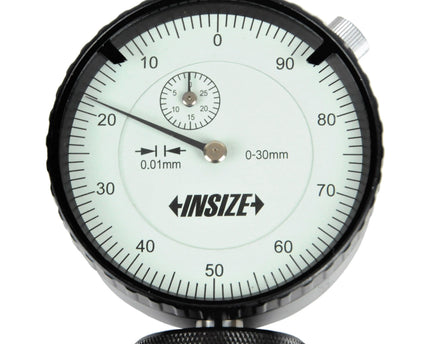

- Graduation: 0.01mm
- Stroke: 30mm

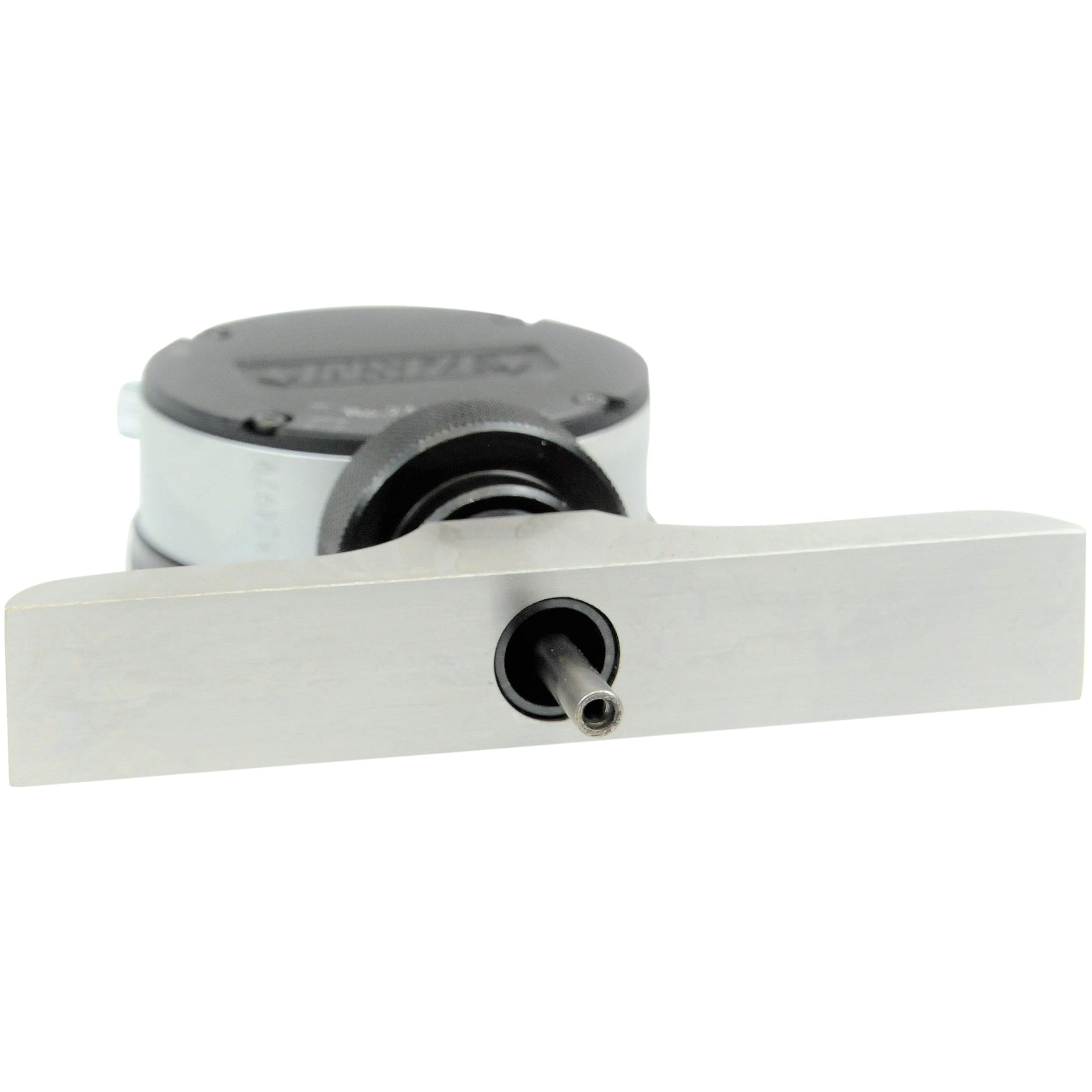

- Stainless steel base

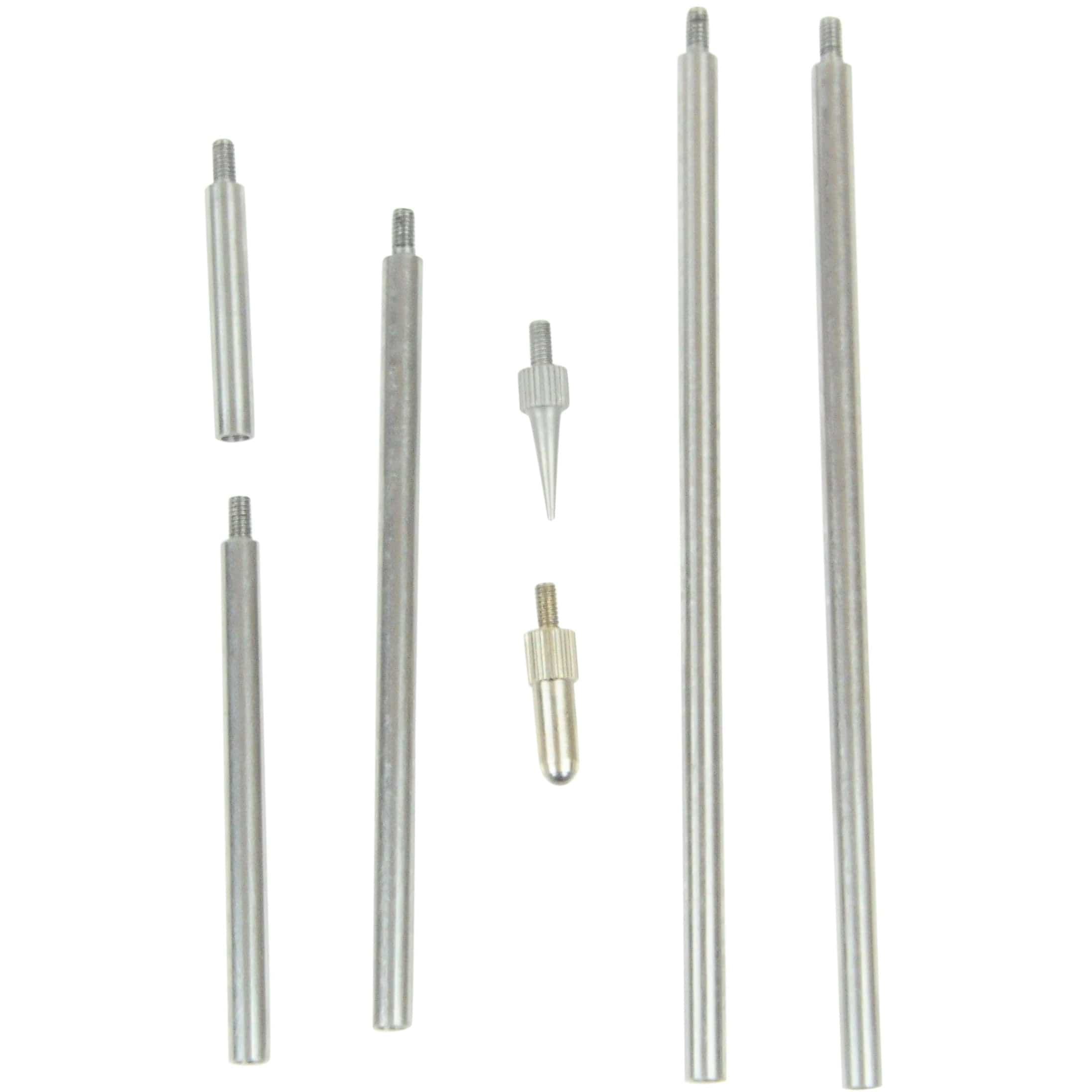

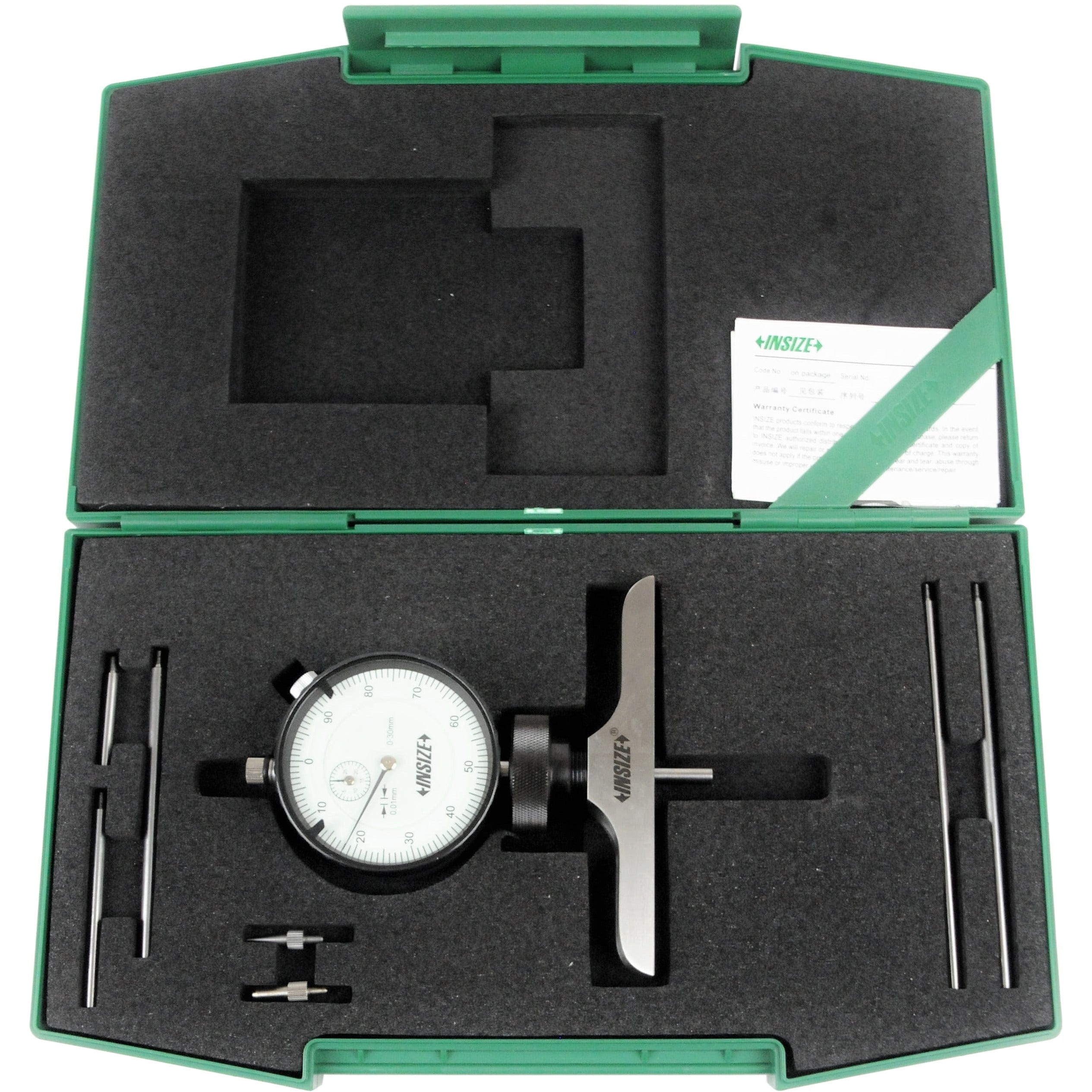

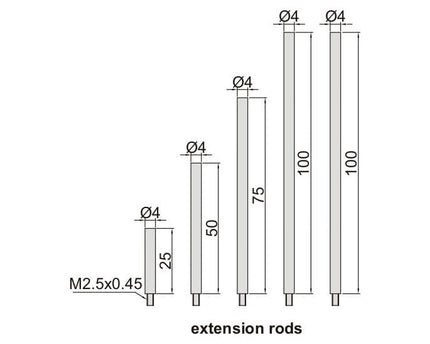

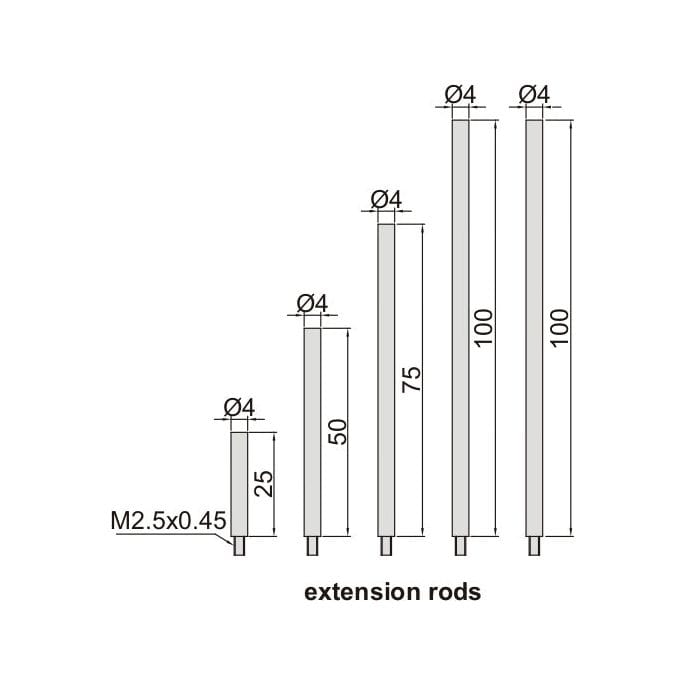

- Extension rods: 25mm (1pc), 50mm (1pc), 75mm (1pc), 100mm (2pcs)

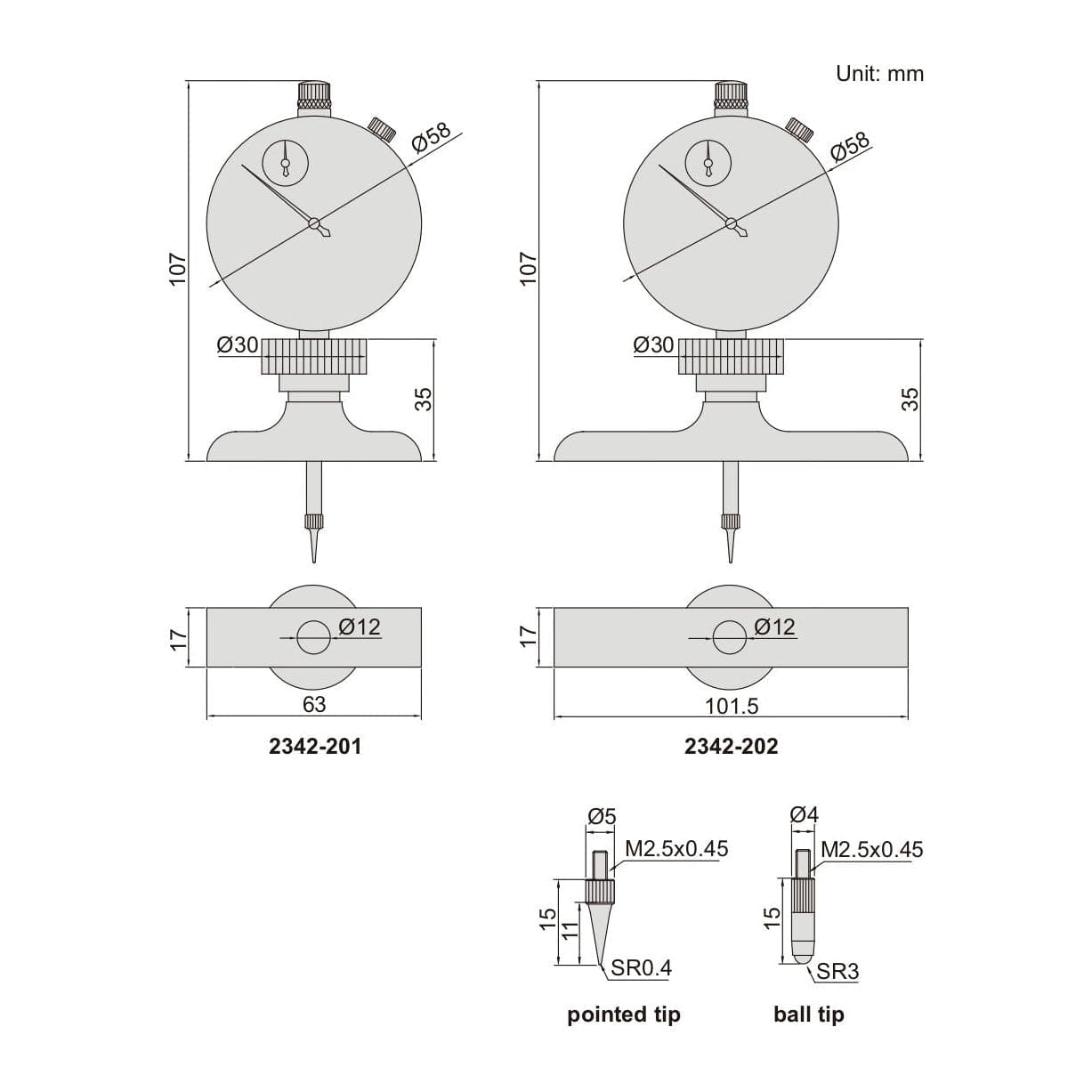

- Supplied with a pointed tip and a ball tip

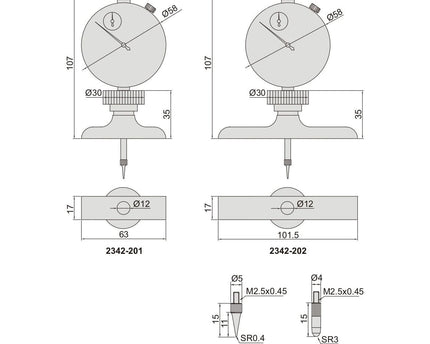

- Base: 101.5 × 17mm
Well-designed, durable, high-precision tools suitable for various measuring applications. INSIZE dial depth gauges provide smooth operation, clear readability, and dependable accuracy, making them ideal for measuring the depth of bores, recesses, steps, and machined features.
