Description

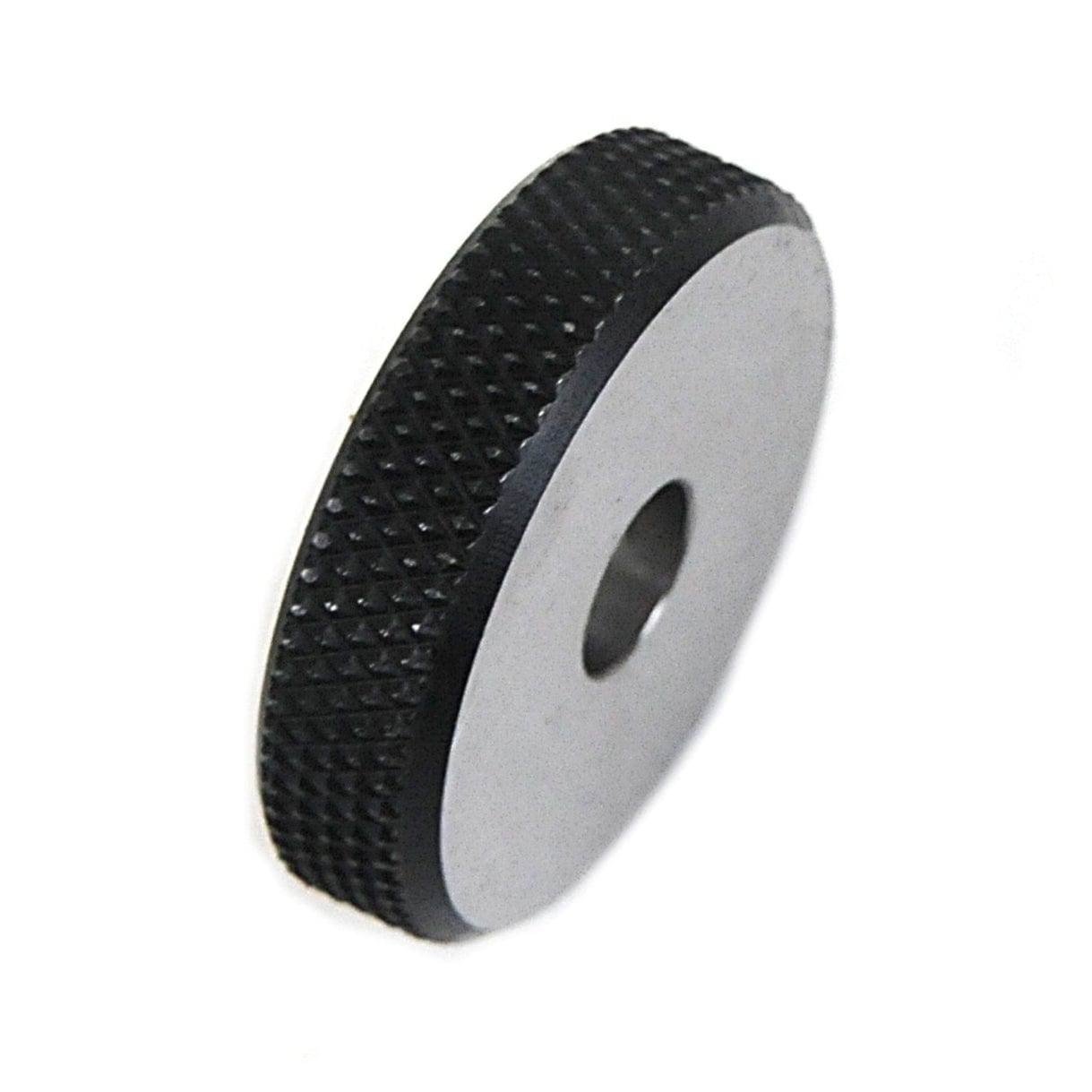

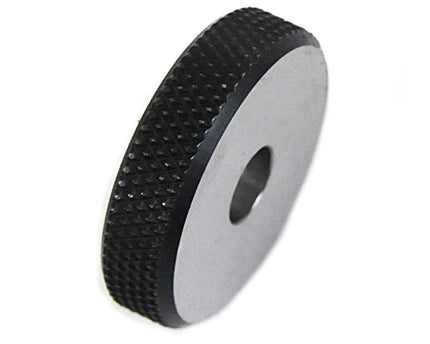

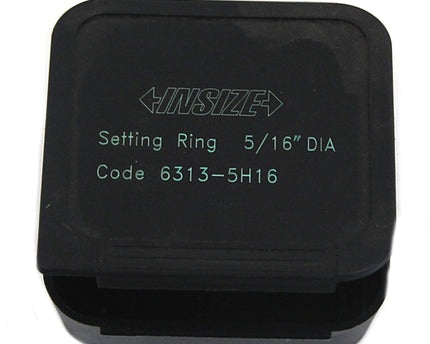

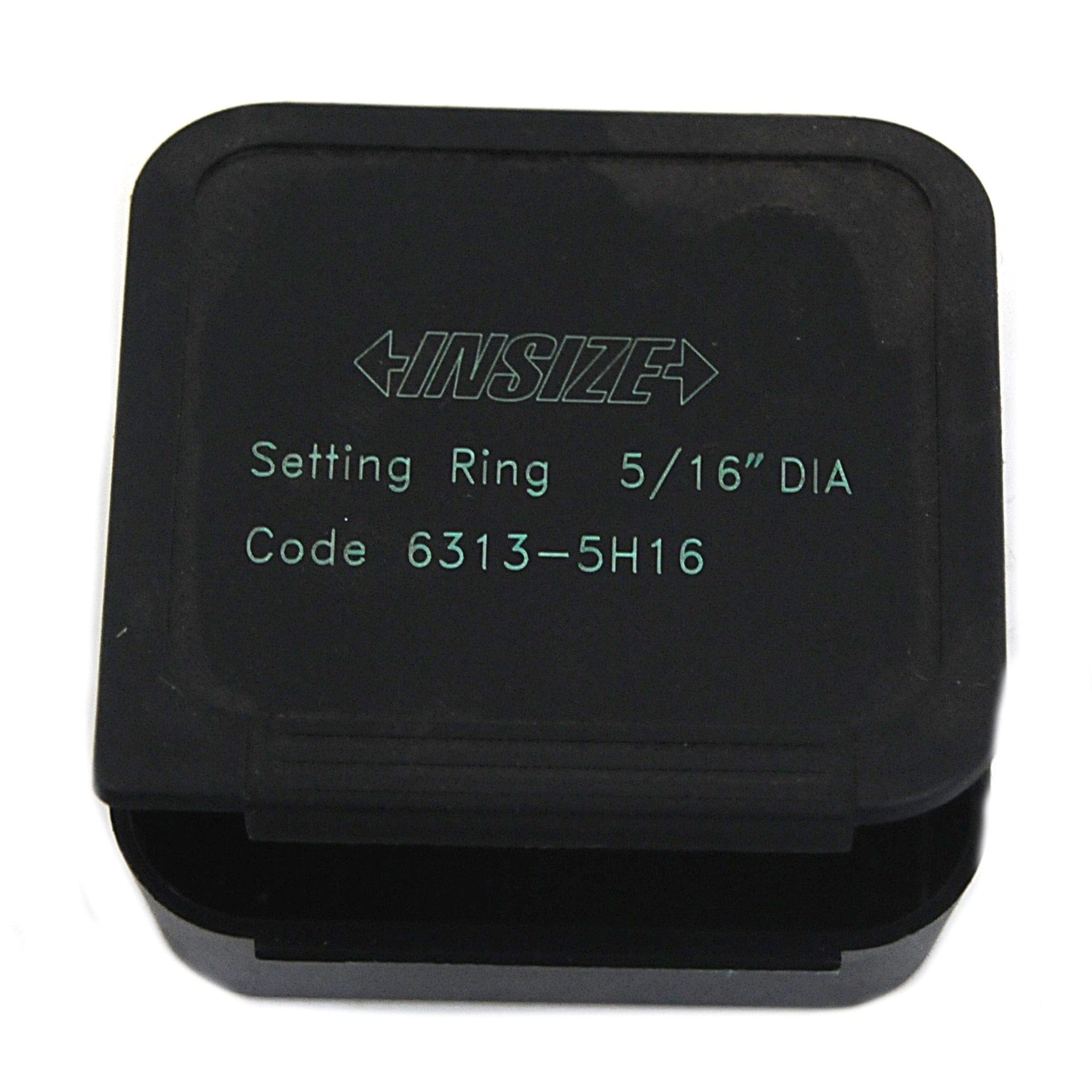

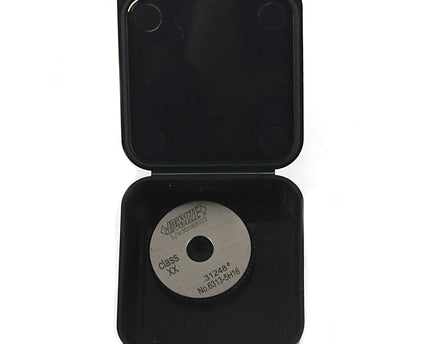

Insize Diameter Setting Ring Gauge
A master ring gauge (also known as a set ring gauge) is used to calibrate dimensional tools or other measuring instruments. It allows zero point alignment before measuring with inner diameter gauges, providing a measurement standard or reference point for tool calibration purposes. Application is suited to calibration of inside micrometers, three point internal micrometers and bore gauges.
Specifications:
-

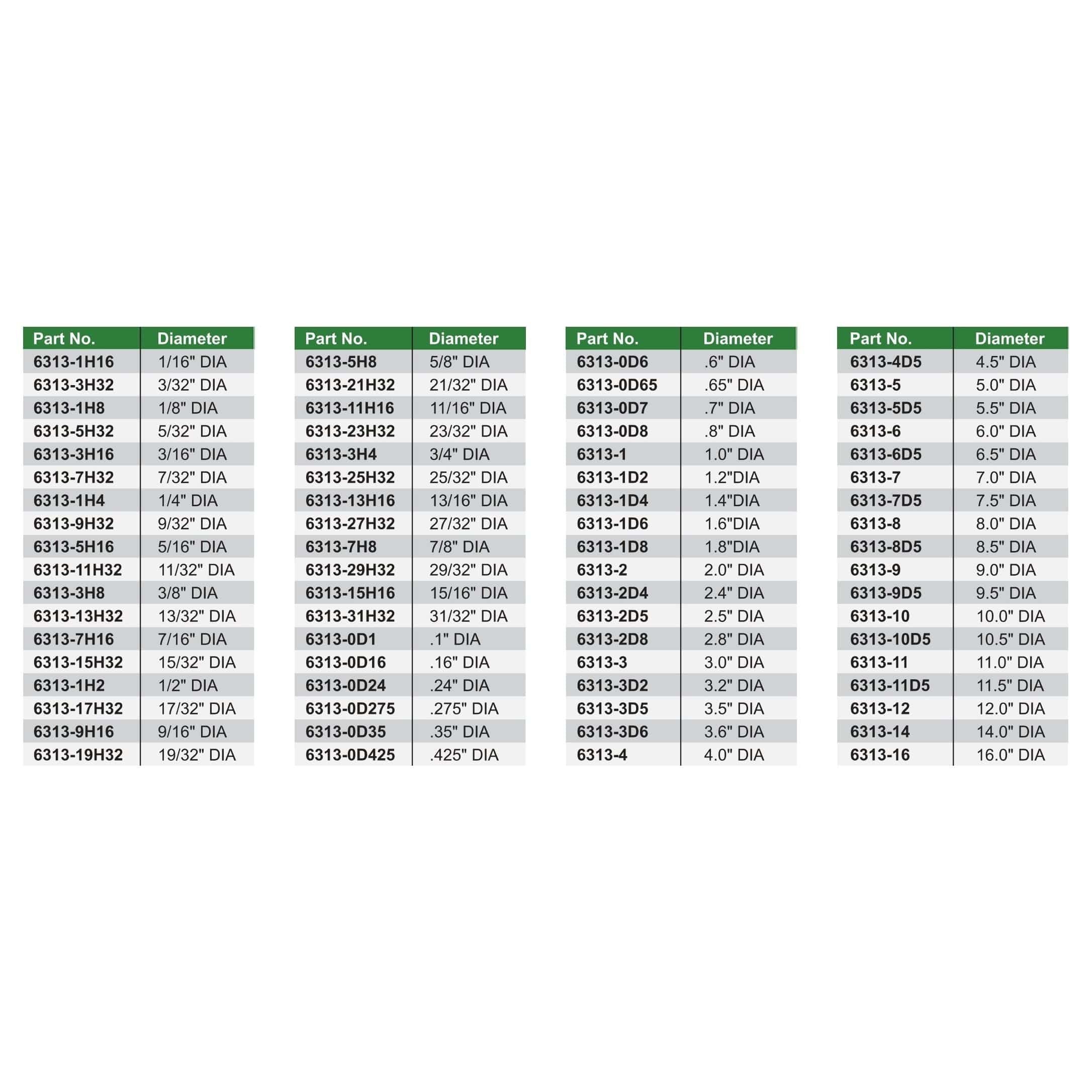

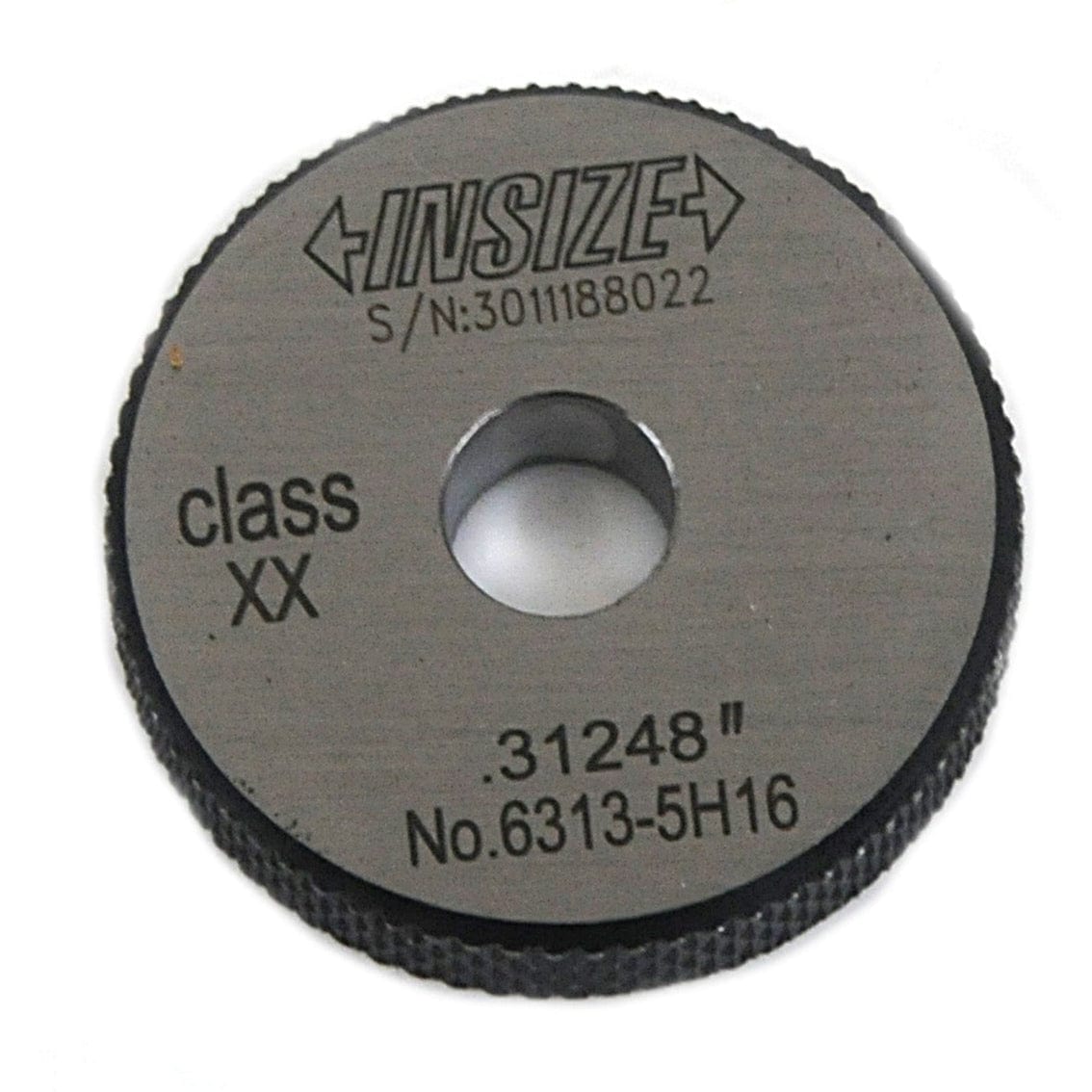

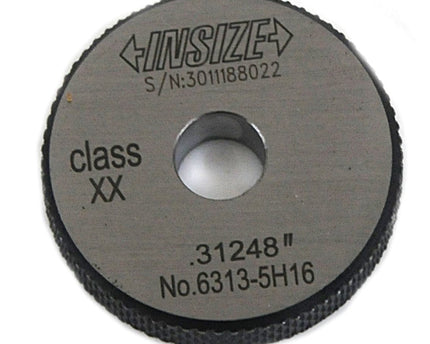

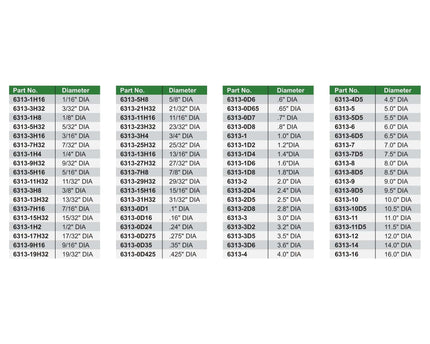

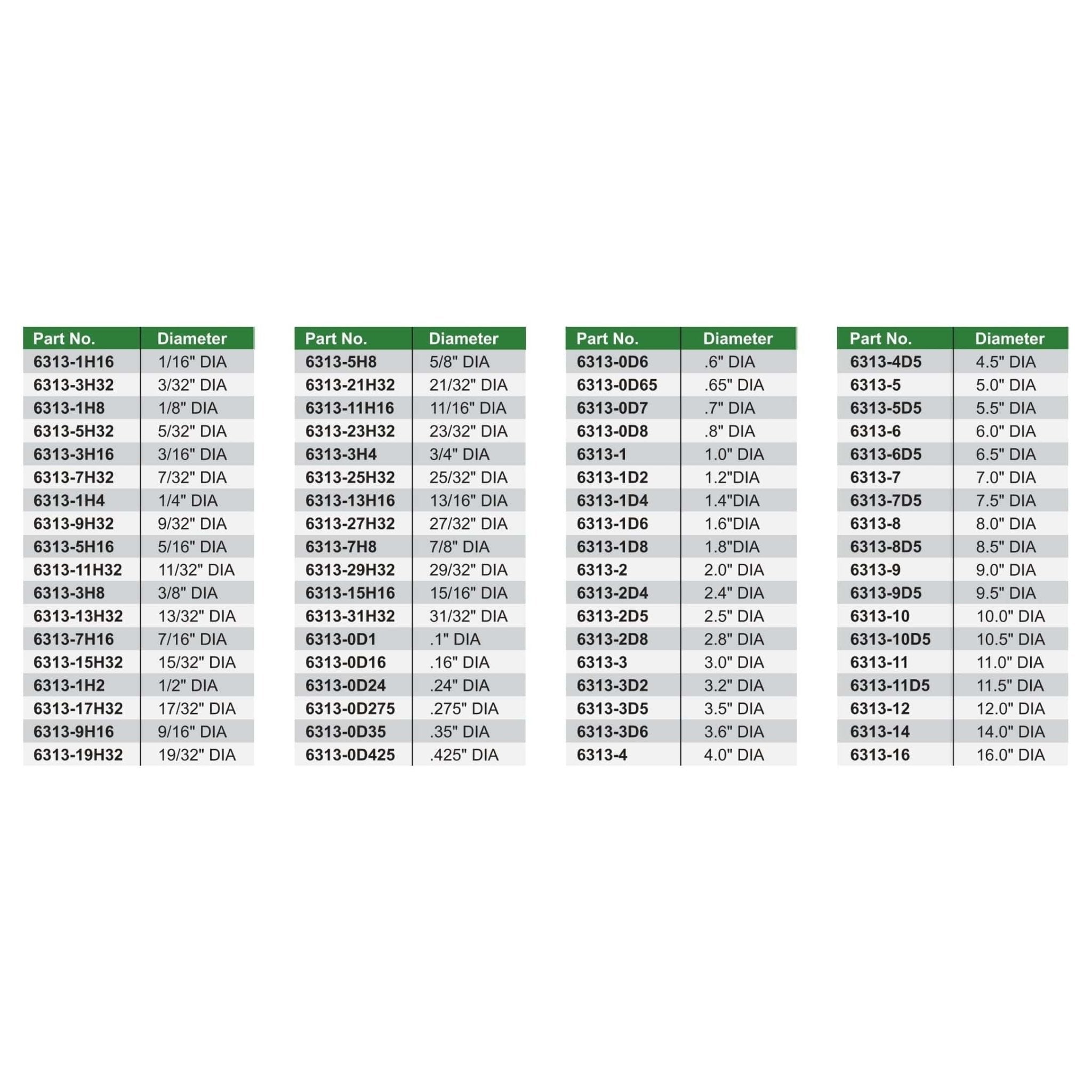

Part No: 6313-5H16
-
Diameter: 5/16" DIA
-
Application: For zero setting of inside micrometers, three points internal micrometers and bore gauges
-

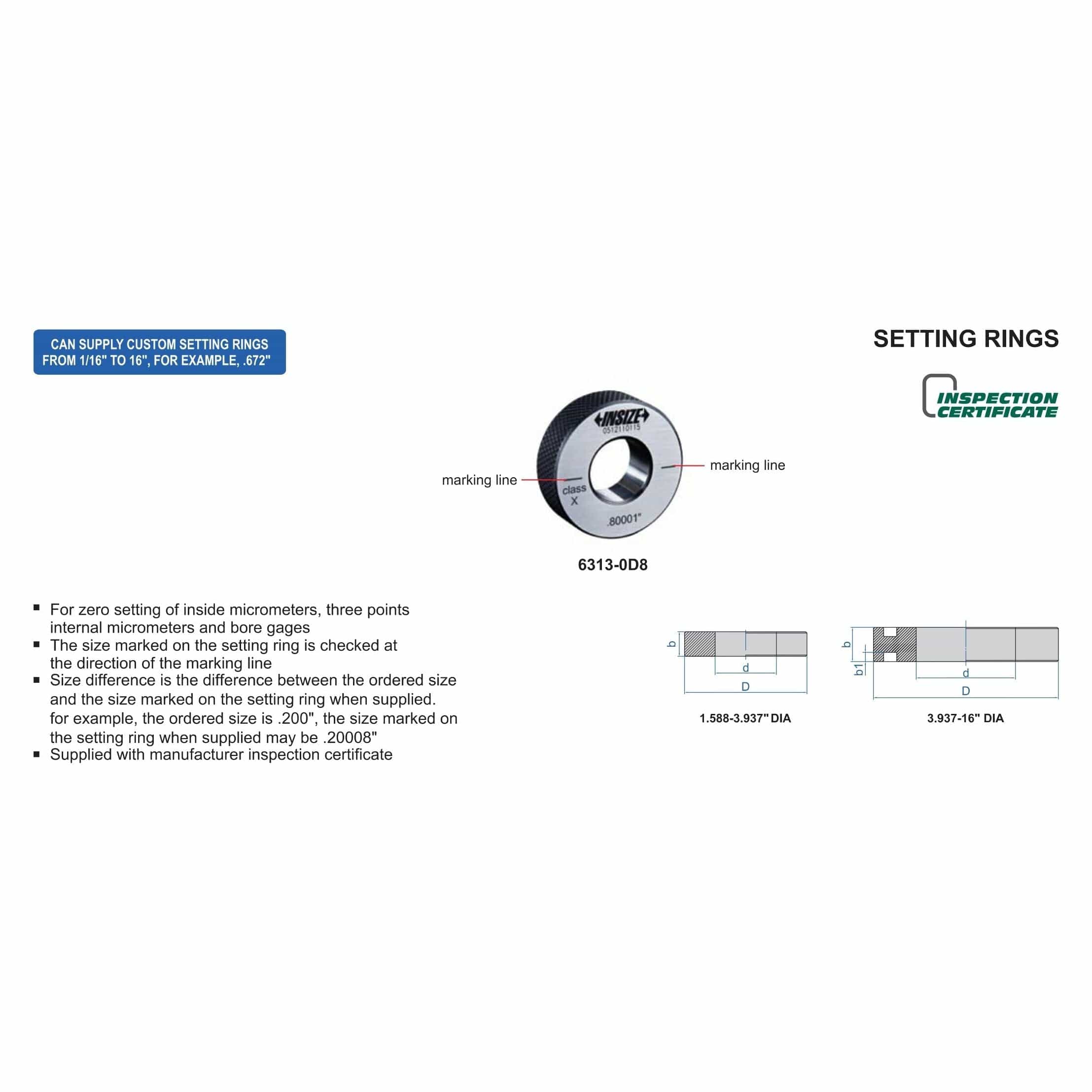

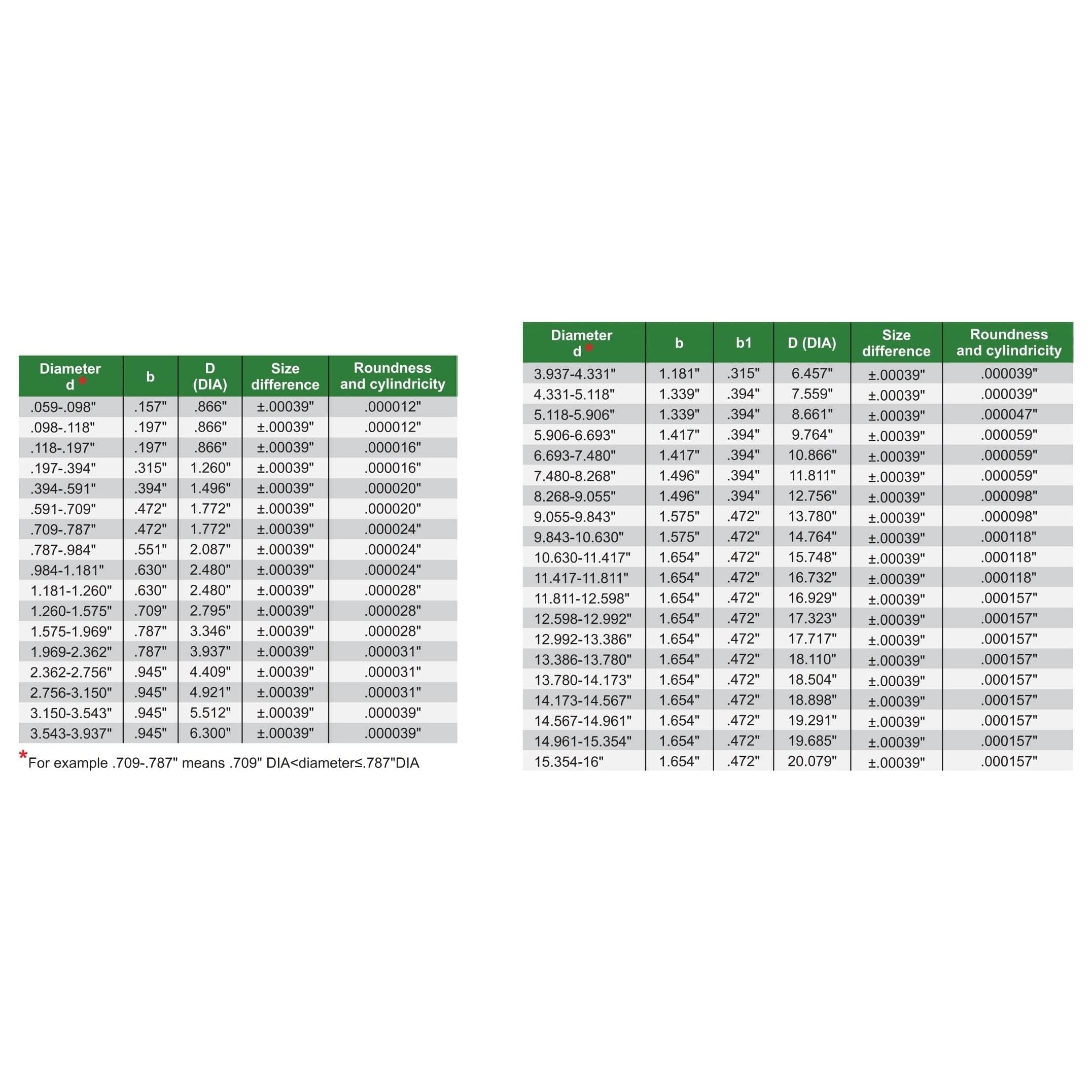

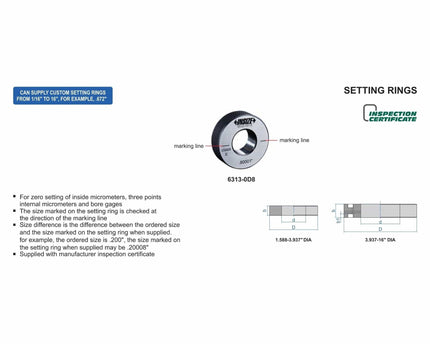

Deviation Note: Deviation is the difference between the ordered size and the size marked on the setting ring when supplied. For example, the ordered size is 0.2", the size marked on the setting ring when supplied may be 0.20008".
